COMMUNICATION INTERFACE UT-2USB RS-485

Name: COMMUNICATION INTERFACE UT-2USB RS-485
Brand: ROGER
SKU: 516629
Price: 72.68 EUR
Availability: InStock

€72.68

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Tue, Nov 26 - Fri, Nov 29

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: ROGER
Product code:: UT-2USB / 5902887014277

Specification

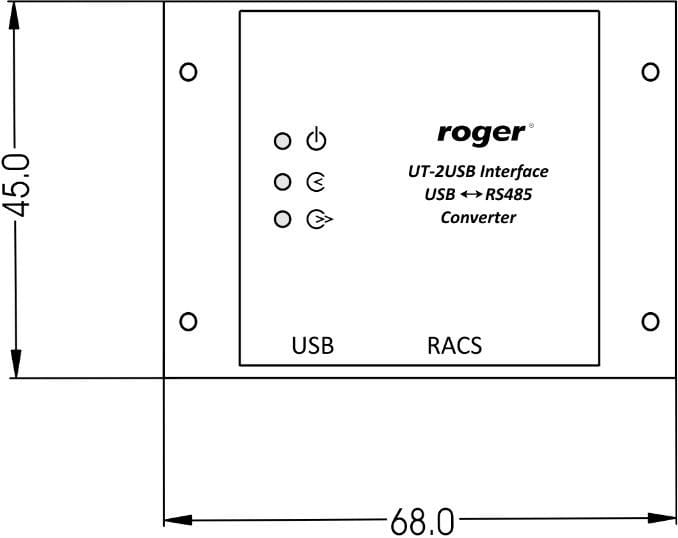

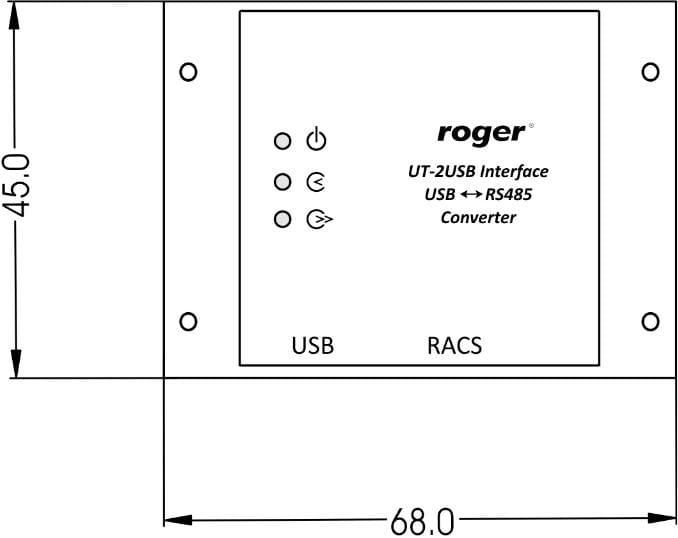

Dimensions::	68 x 45 x 23 mm
Manufacturer / brand::	ROGER
Operating temperature::	0 °C ... 55 °C
Permissible relative humidity::	10 % ... 95 % (non-condensing)
Power::	5 V DC from USB port
Scales::	0.035 kg
Sealing::	IP30
Warranty::	2 years
Working environment::	Class I internal

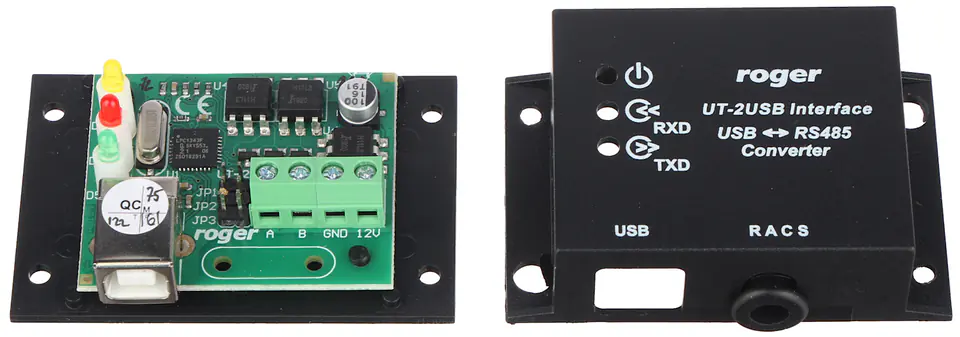

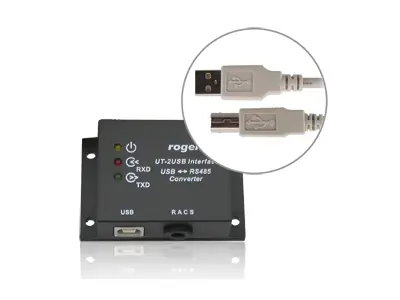

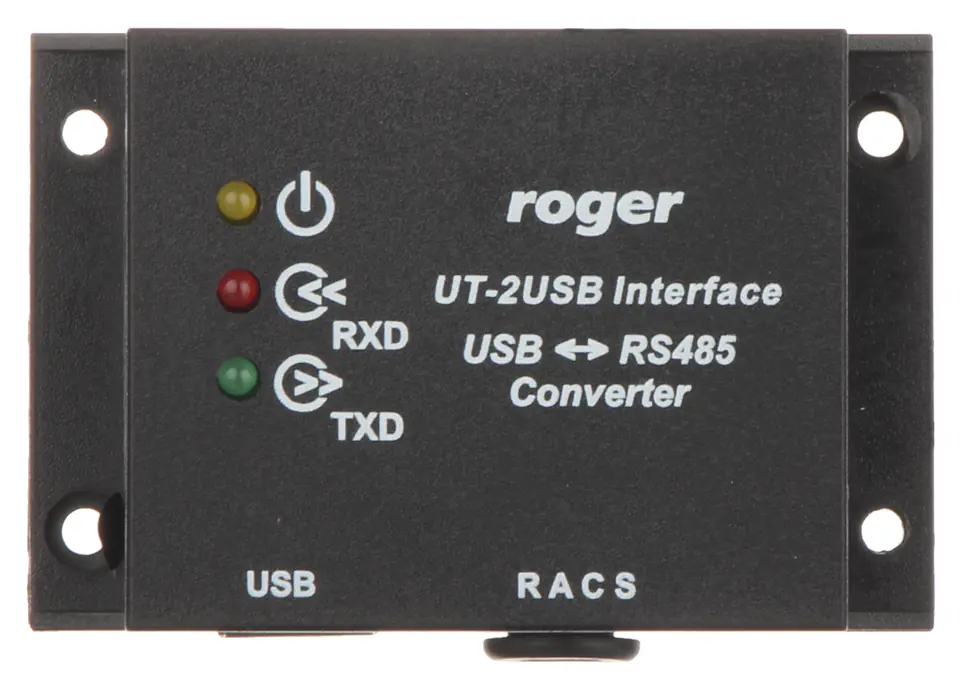

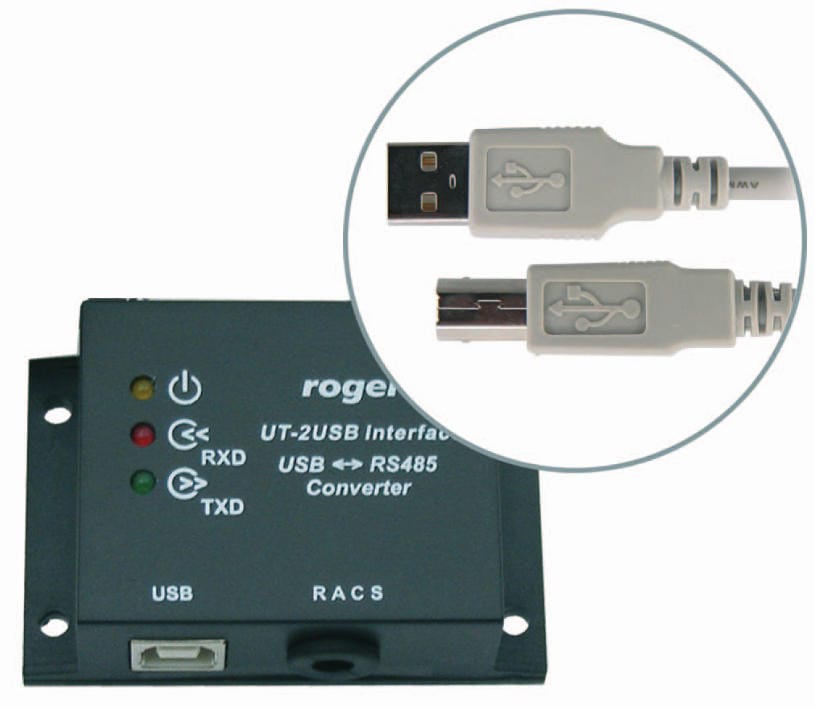

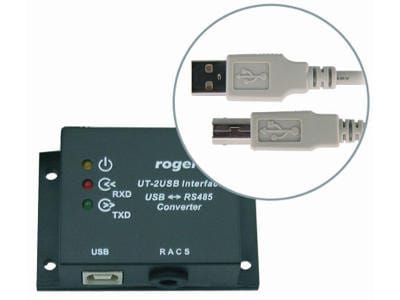

Converter between USB and RS-485 serial transmission interfacesPowered directly from the USB socket of the PC - external power source is not requiredThe system can be used for bidirectional transmission (half duplex) at a speed of 0 ... 115.2 Kb/s

The interface provides automatic control of the direction of transmission on RS-485 linesBasically, the interface has been designed and tested to communicate with RACS (Roger) access control system devices, but it can also be used in other situations where there is a need to convert USB-RS485 signals

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
