COMBO KIT 40V XGT DF001G+TD001G+GA005G+JR001G 2*4.0AH TOR

Specifications:

DF001G:

Supply voltage: 40Vmax XGT
Battery Type: Li-ion
Supported batteries: 2.5/4.0Ah
Speed rev. at idle:
Gear 1: 0 - 650 rpm
Gear 2: 0 - 2600rpm
Max. drilling diameter in steel: 20mm
Max. Drilling diameter in wood: drill: 50 mm
sednik: 76 mm
hole saw: 152mm
Max. torque soft / hard: 68 / 140Nm
Clamping range: 1.5 - 13mm
Dimensions (total length): 181mm
Weight (EPTA): 2.7 - 3.0kg

TD001G:

Supply voltage: 40Vmax XGT
Battery Type: Li-ion
Supported batteries: 2.5/4.0Ah
Speed rev. at idle:
Gear 1: 0 - 1100rpm
Gear 2: 0 - 2100 rpm
Gear 3: 0 - 3200 rpm
Gear 4: 0 - 3700rpm
Frequency of idling strokes:
Heat 1: 0 - 1100 /min
2 heat: 0 - 2600 /min
3 gear: 0 - 3600 /min
4 heat: 0 - 4400/min
Standard bolts: M5 - M16
Machine screws: M4 - M8
Screw with a height of withstand. tensile: M5 - M14
Screws with thread: 22 - 125mm
Max. torque: 220Nm
Tool holder: 1/4" hex
Dimensions (total length): 120mm
Weight (EPTA): 1.7 - 2.0kg

GA005G:

Supply voltage: 40Vmax XGT
Battery Type: Li-ion
Supported batteries: 2.5/4.0Ah
Speed rev. idle: 8500rpm
Dial Diameter: 125mm
Dial Hole Diameter: 22.23mm
Dimensions (total length): 410mm
Weight (EPTA): 2.9 - 3.6kg

JR001G:

Supply voltage: 40Vmax XGT
Battery Type: Li-ion
Supported batteries: 2.5/4.0Ah
Frequent idle jumps:
Heat 1: 0 - 2300 /min
Heat 2: 0 - 3000/min
Stroke length: 32mm
Cutting capacity: in tube: 130 mm
in wood: 255mm
Dimensions (total length): 472mm
Weight (EPTA): 4.2 - 4.5kg

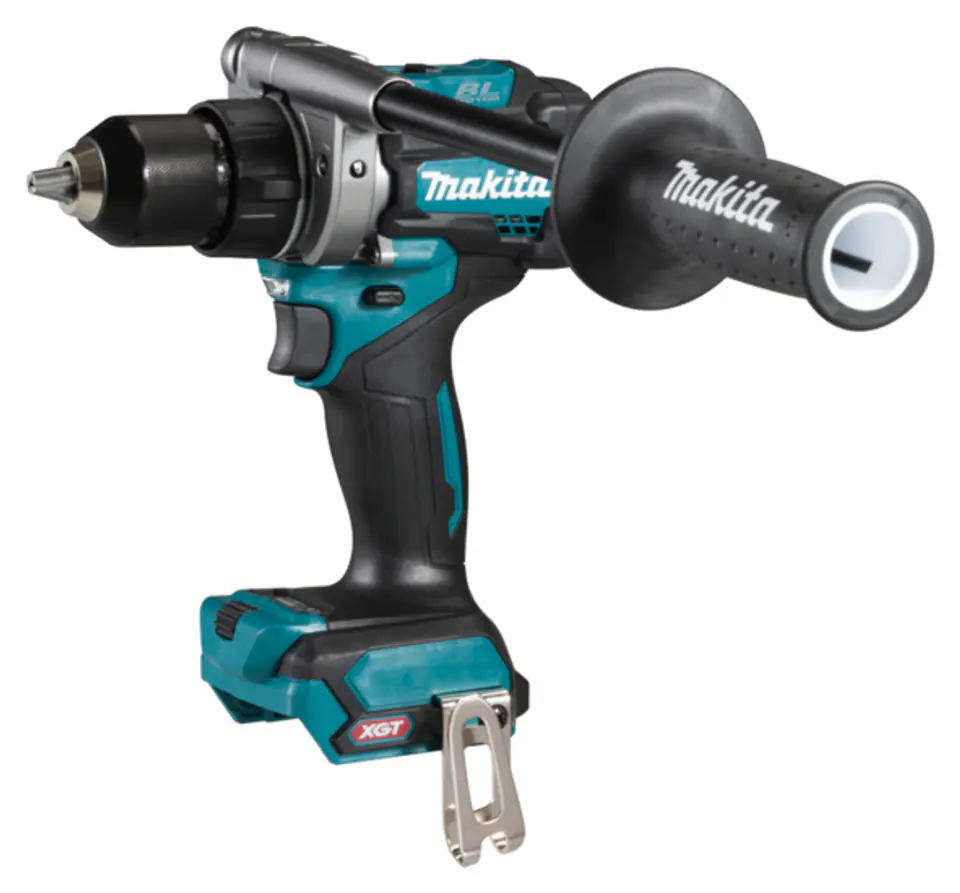

DF001G:

Cordless 2-speed heavy-duty drill/driver powered by 40Vmax XGT battery
BLDC - brushless DC motor
XPT technology - increased resistance to dust and moisture
AFT - Active Feedback Sensing - automatic shutdown of the tool in case of sudden slowing down or stopping of the drill (so-called kick-back)
Electronic torque control:
- 41 torque settings in gear 1 (in the range of 1 - 45 Nm)
- 21 torque settings in gear 2 (in the range of 1 - 10 Nm)
Digital display indicating the selected torque setting
Compact size - total length 181 mm
Quick clamping chuck
Transmission components made of metal for increased service life
Speed control with switch trigger
2 LEDs illuminating the work area with delayed blanking function

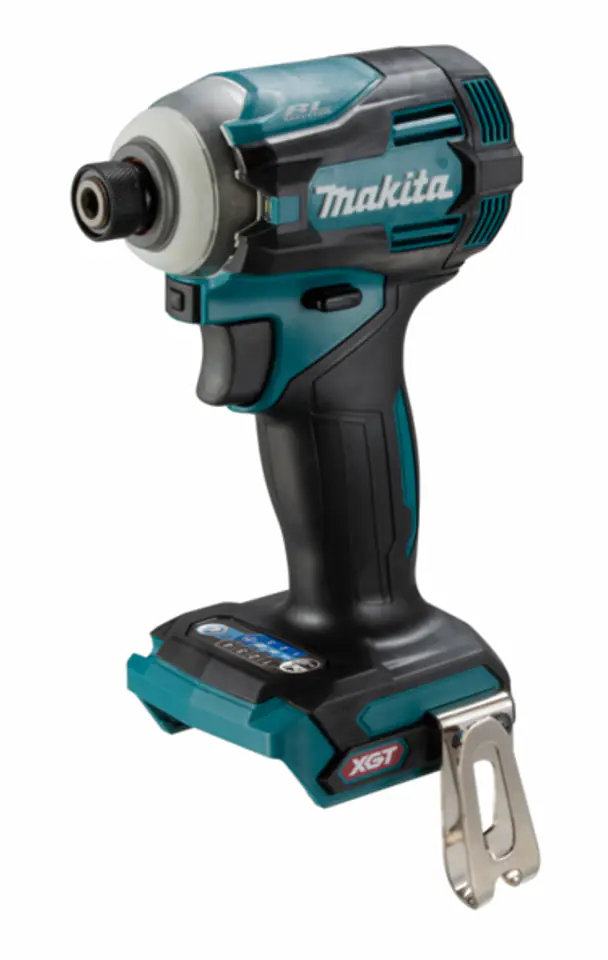

TD001G:

Cordless heavy-duty impact screwdriver powered by 40Vmax Li-ion battery
BLDC - brushless DC motor
XPT technology - increased resistance to dust and moisture
4-stage electronic speed and impact frequency switch
Speed control with switch trigger
6 screwdriver assistant options:
- Operation mode "A" - in this mode, the tool starts screwing at a low speed, then turns on the impact and increases the speed until the max is reached. Speed
- "T" operating mode for thick metal sheet - special mode for optimal and fast screwing of self-drilling screws
- "T" mode for thin sheet metal - the device stops automatically after 3 strokes
- Bolt mode with automatic stop of the device when tightening / de-de-de-clamping bolts and nuts (3 stages of setting the mode for both tightening and unscrewing bolts and nuts)
Quick mode change function
2 LEDs illuminating the work area with delayed blanking function located on both sides of the housing
Maximum torque - 220 Nm
Ergonomically designed elastomer-coated handle

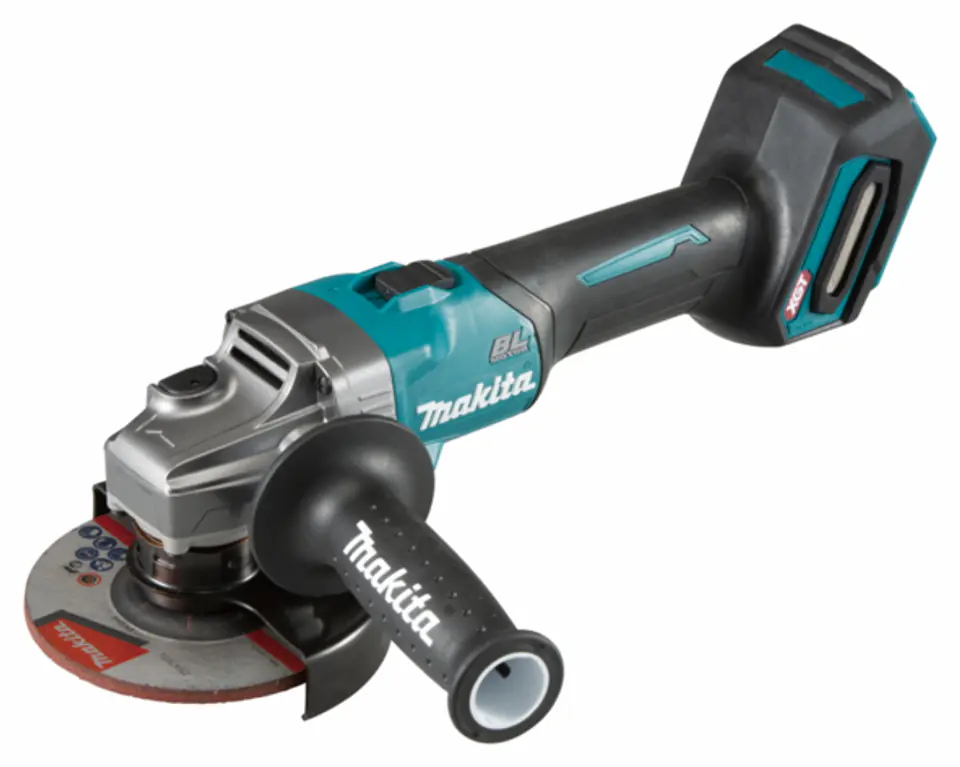

GA005G:

Cordless angle grinder with 125 mm disc for heavy duty applications powered by 40Vmax Li-ion battery
BLDC - brushless DC motor
XPT technology - increased resistance to dust and moisture
AFT - Active Feedback Sensing - automatic shutdown of the tool in the event of a sudden slowdown or stop of the disc (so-called kick-back)
Slide switch
Anti-restart function protects against accidental start after installing the battery
New tool-free sanding wheel cover
It has a soft start function and an electric brake
The narrow motor housing allows for a comfortable and secure grip of the grinder

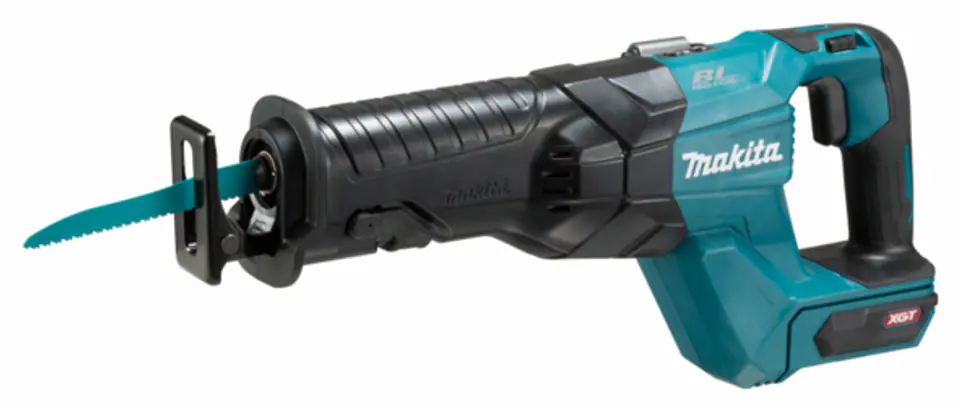

JR001G:

Cordless heavy-duty feed saw powered by 40Vmax Li-ion battery
BLDC - brushless DC motor
XPT technology - increased resistance to dust and moisture
Control of the frequency of jumps with the trigger of the switch
2-stage electronic jump frequency control
Vertical gear design increases blade stability
Tool-free saw blade change
Tool-free setting of the limiter
High strength achieved by:
- more efficient lubrication mechanism for the slider section
- reinforced metal transmission
Electric brake
Tool hanging hook
Dual LED illuminating the work area with delayed blanking function
Battery seat separated from the machine body by a rubber shock absorber to prevent vibration from being transmitted to the battery

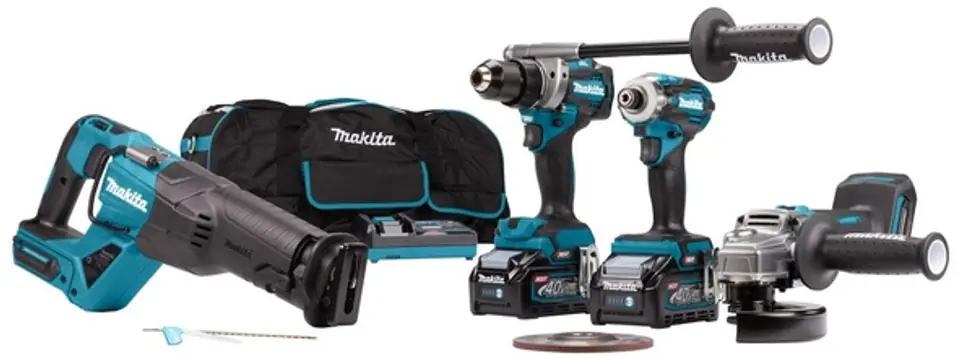

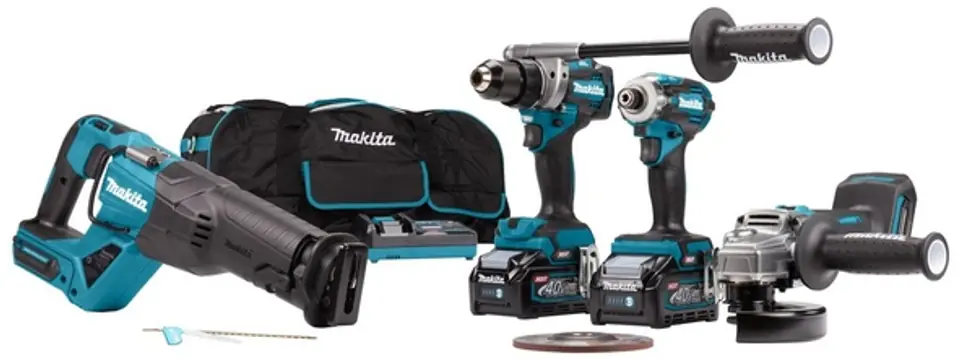

Cordless 2 Speed Drill/Driver 40 V max DF001G
Cordless impact driver 40 V max TD001G
Cordless angle grinder 125 mm 40 V max GA005G
Cordless feed saw 40 V max JR001G
2 BL4040 batteries (40 V max / 4.0 Ah)
DC40RA charger
Carrying bag

**

The photo is for illustrative purposes.
