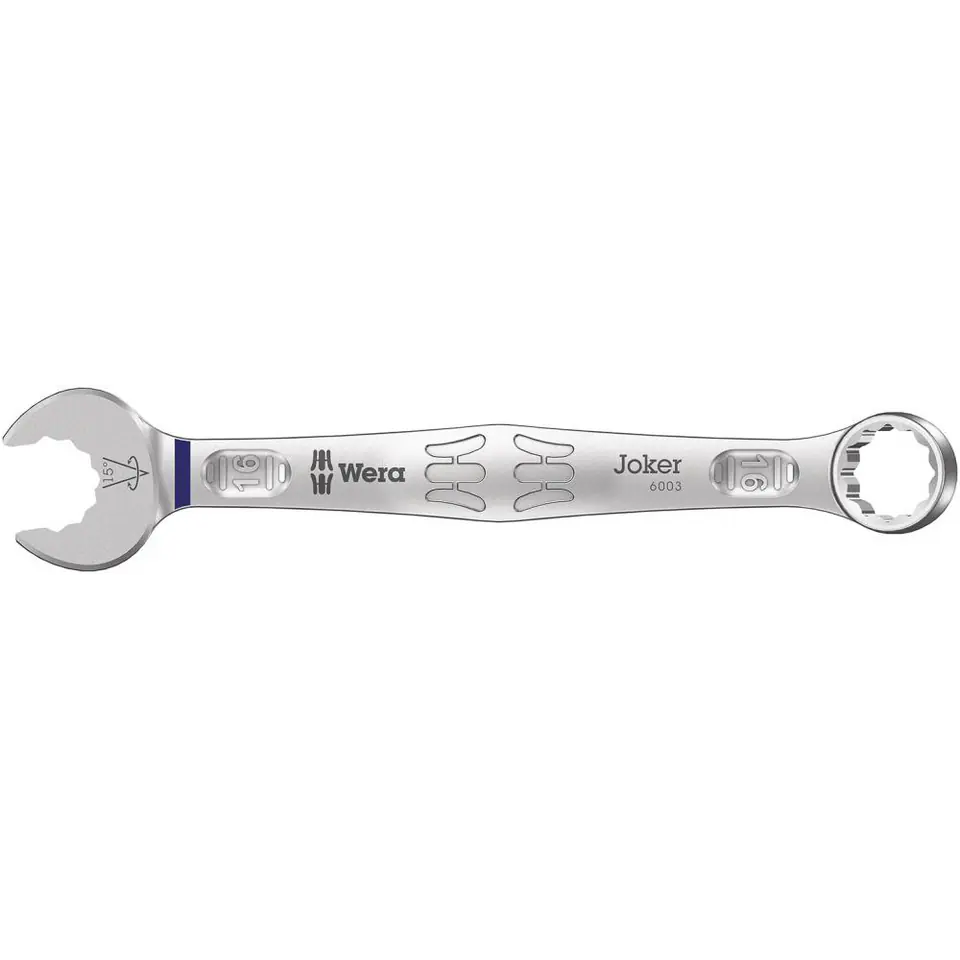

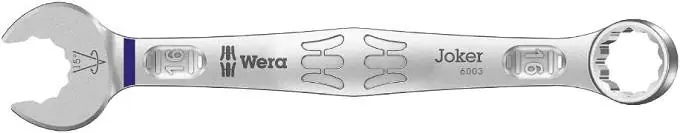

COMBINATION SPANNER JOKER 16

Specifications:

Spanner size [mm]: 16
Total length [mm]: 182
Jaw external dimensions [mm]: 35
Head thickness [mm]: 6,5
External dimensions (ring wrench with ratchet) [mm]: 23
Max. head height (ring wrench with ratchet) [mm]: 10





COMBINATION SPANNER JOKER 16

As users are increasingly confronted with situations where installation space is very limited, tools are needed to enable them to perform their tasks in these conditions as well.
Narrow mounting spaces require additional application points for tools.

So, can flat wrenches be modified in such a way as to increase the embedding of the tool?
The combination of a 7.5° jaw and double hexagon geometry doubles the number of touchdown points.

During repeated 180° rotations around the longitudinal axis, it is possible to mount the wrench every 15° on the nut or bolt head.
The Joker 6003 wrench with its well-thought-out jaw geometry significantly expands the range of applications in confined spaces.
The Joker 6003 automatically finds the right touchpoint after each turn.
The slim yet robust eyelet side of the wrench is tilted 15° to the tool axis.
The high-quality surface provides very good and long-lasting corrosion protection.

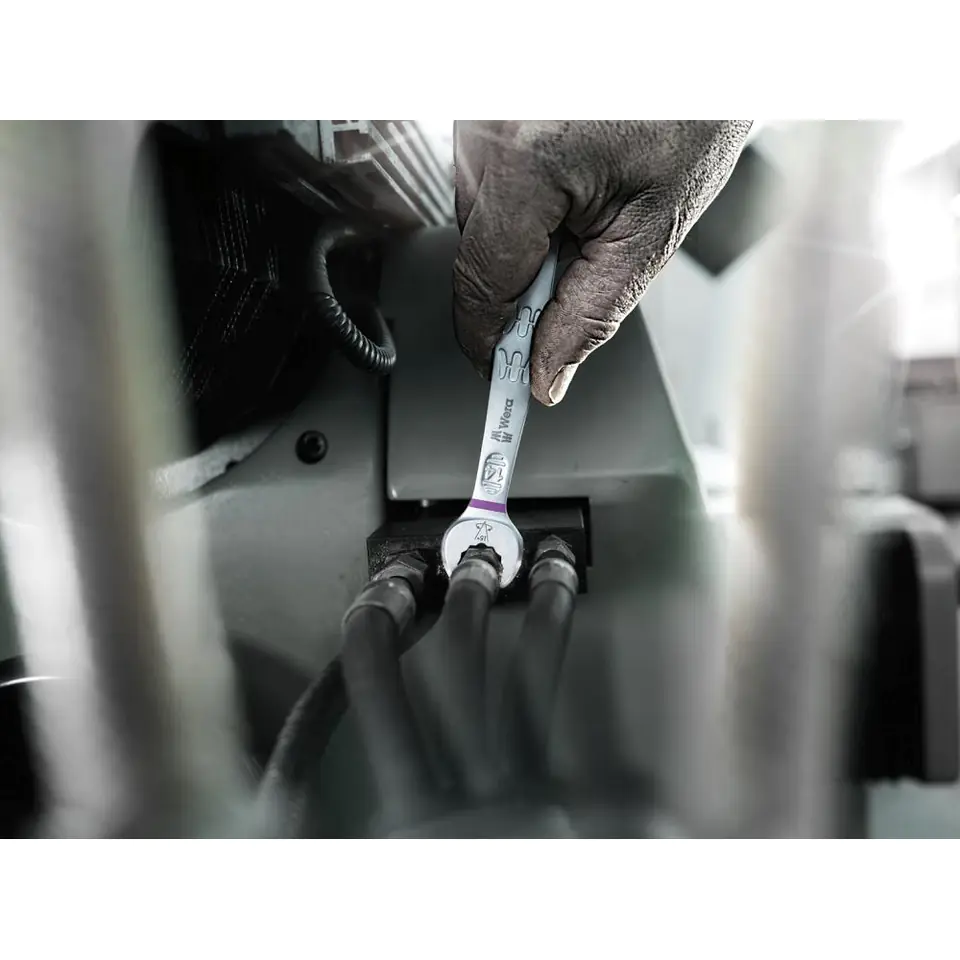

Designed especially for narrow spaces
Special jaw geometry expands tool application possibilities
The small working angle allows the screw to be "gripped" every 15°
Slim, 15° tilted wrench
With the Wera tool search system "Take it easy": the system for colour-coding tools by size


**
