| Card reading range:: | Max. 3 cm |
|---|---|
| Card support:: | Unique EM 125kHz |
| Case:: | Metal |
| Colour:: | Silver + Black |
| Communication:: | Wiegand 26, Wiegand 34 |
| Dimensions:: | 78 x 115 x 25 mm |
| Load capacity of relay contacts:: | 3 A / 12 V |
| Manufacturer / brand:: | ATLO |
| Maximum current consumption:: | 30 mA (standby) 60 mA (Operating) |
| Operating temperature:: | -40 °C ... 60 °C |
| Permissible relative humidity:: | 10 ... 90 % (non-condensing) |
| Power:: | 12 V DC ± 10 % 12 V AC ± 10 % |
| Scales:: | 0.49 kg |
| Sealing:: | IP68 |
| Selected features:: | 2000 indexed users Identification: Card and/or PIN Blue button backlight Cooperation with the opening sensor and output button NO/NC output, Wiegand 26 / 34 bit interface, Possibility to use codes without associated cards Number of relay outputs : 1, Support for electric strikes and solenoid valve Support for reversible bolts Possibility to attach an additional ATLO-R series reader (double-sided transition control) Blue backlight |
| Warranty:: | 3 years |

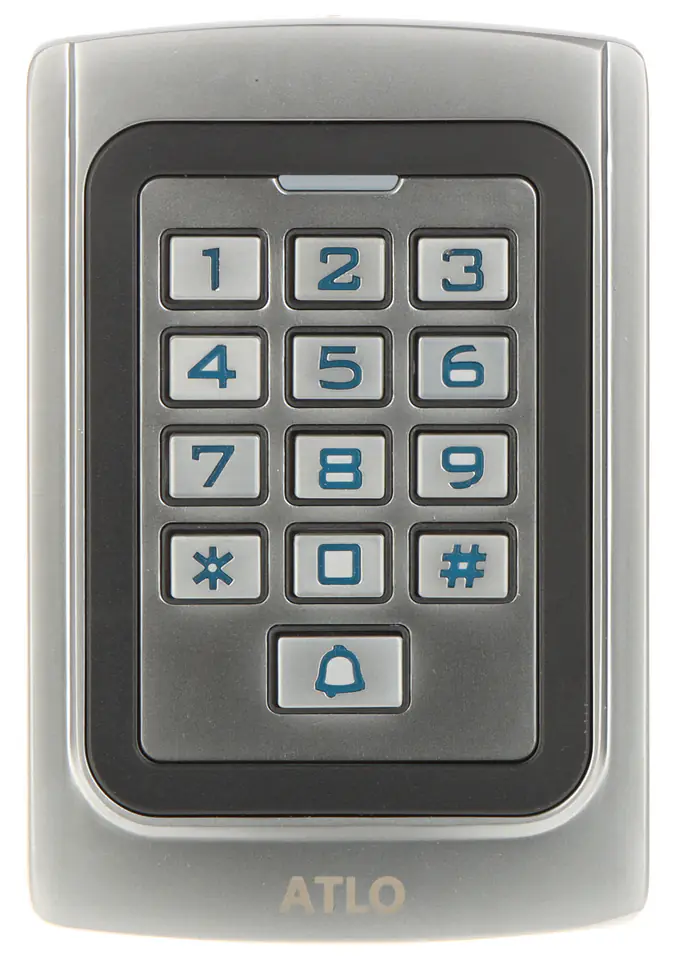

External, autonomous code lock with RFID reader
Autonomous operation of the device allows the user:
Opening with a card or PIN
Remembering saved cards or PINs
Indication of the door left open
Audible and optical signalling
The administrator's capabilities are as follows:
Keyboard programming
Add a new tab using the keyboard
Adding a new card and entering a PIN
Change a user's PIN
Delete a user's PIN
Setting the lock release time
Restore default settings
