| Card reading range:: | 1 ... 3 cm |
|---|---|
| Card support:: | MIFARE 13.56 MHz |
| Case:: | ABS self-extinguishing plastic |
| Colour:: | Black + Silver |
| Communication:: | Wiegand 26, Wiegand 34 |
| Dimensions:: | 75 x 115 x 18 mm |
| Load capacity of relay contacts:: | 3 A / 12 V |
| Manufacturer / brand:: | ATLO |
| Maximum current consumption:: | ≤ 30 mA (standby)≤ 60 mA (Operating) |
| Operating temperature:: | -40 °C ... 60 °C |
| Permissible relative humidity:: | 10 ... 90 % (non-condensing) |
| Power:: | 12 V DC ± 10% |
| Scales:: | 0.08 kg |
| Sealing:: | IP40 |

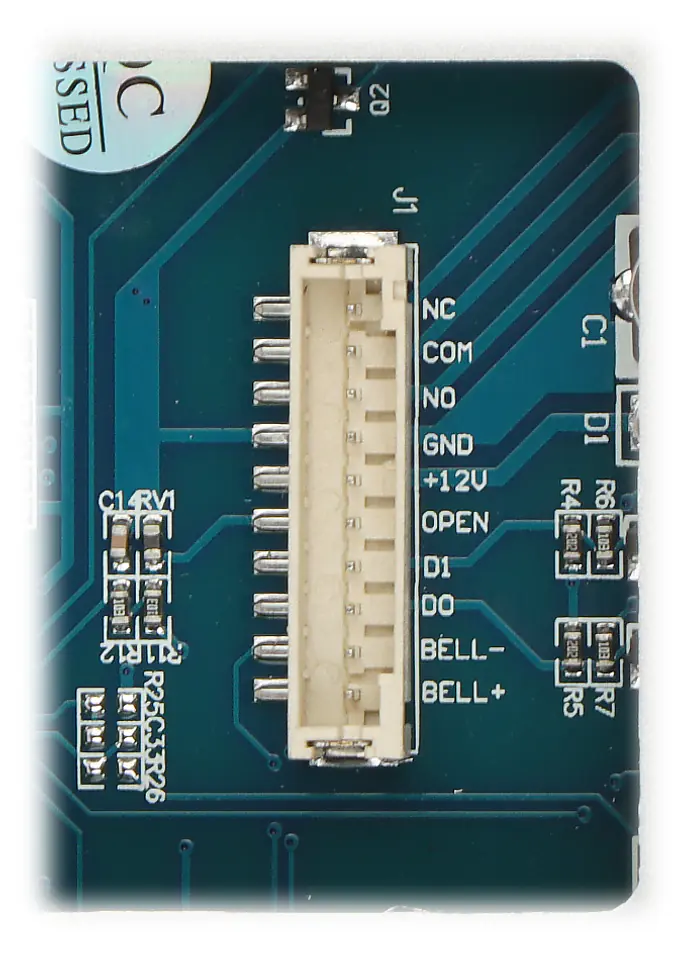

| Selected features:: | Number of relay outputs : 1, 2000 indexed users, Wiegand interface 26 / 34 bit Identification: Card and/or PIN Cooperation with opening sensor and exit button Support for solenoid valves and solenoid valve Support for reversible bolts NO/NC output |
| Warranty:: | 3 years |

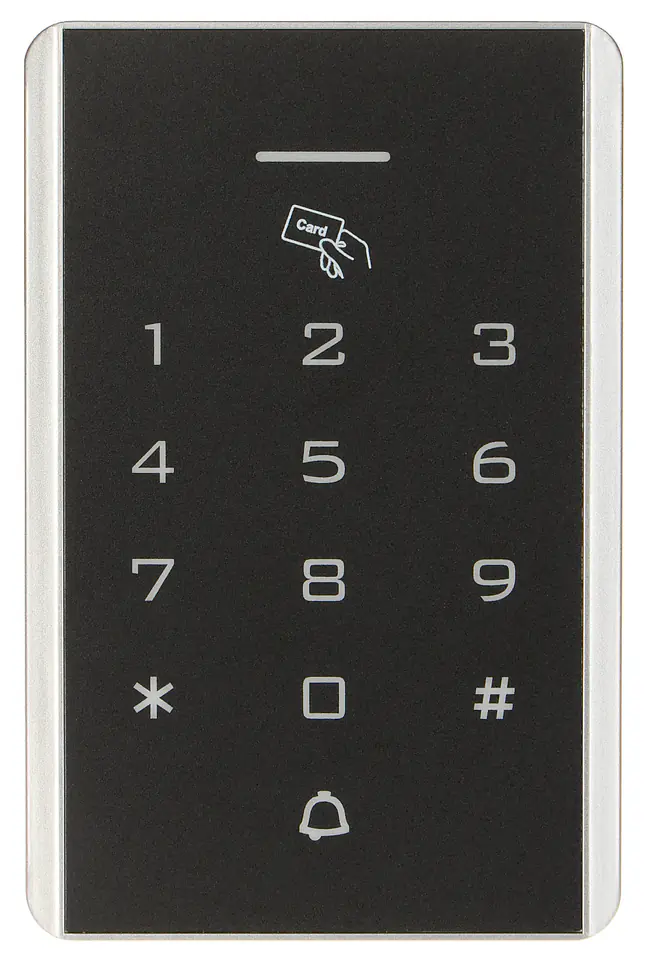

Internal, autonomous code lock with RFID reader
Autonomous operation of the device allows the user:
Opening with a card or PIN
Remembering saved cards or PINs
Indication of the door left open
Audible and optical signalling
The administrator's capabilities are as follows:
Keyboard programming
Add a new tab using the keyboard
