High quality coaxial cable TRISET-PLUS/500 dedicated for both individual and community installationsLSZH sheathed cable (LS0H) - halogen-free insulation, used where greater safety is needed in the event of fire (high-rise and high-rise residential buildings, public utility buildings).

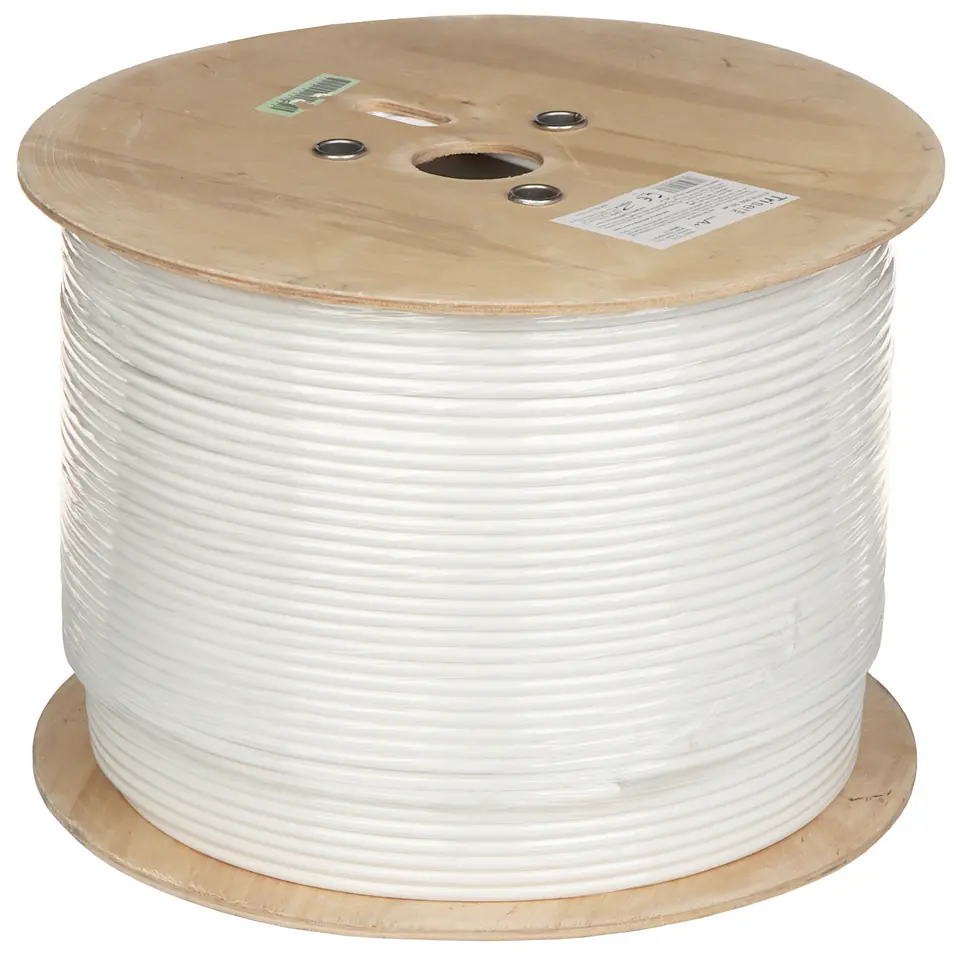

COAXIAL CABLE TRISET-PLUS/500 Dca LSZH A+
€0.97
Shipping from warehouse: D4
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- TRISET-PLUS/500 / 5907634599625
Share this product:
Specification

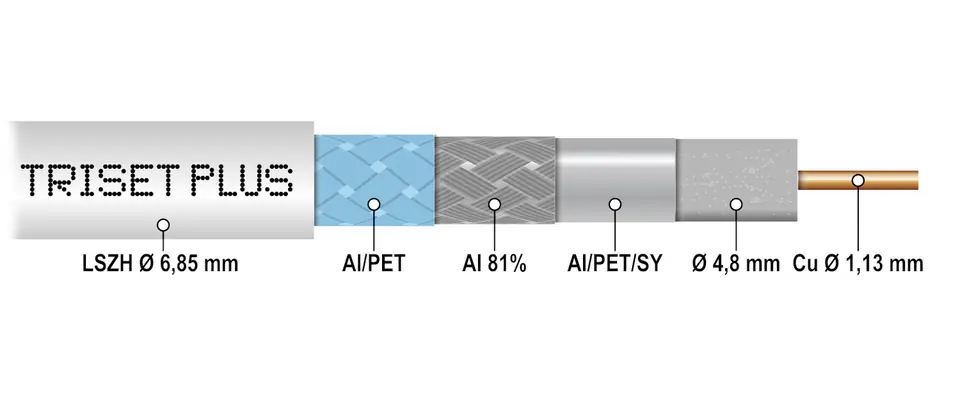

| Braid: | 81 % Al wire |
|---|---|
| Capacity: | 52 pF/m |
| Coating color: | white |
| Coaxial cable: | TRISET |
| Dc conductor resistance: | 16.85 Ω/km |
| Dielectric: | Ø 4.8 mm (physically foamed) |
| Impedance: | 75 Ω |
| In ": | 500 m . Price for 1m when buying the whole roll |
| Insulation: | 2500 MΩ/km |
| Internal vein: | Ø 1.13 mm Cu Wire |
| Minimum bending radius: | 70 mm |
| Outer shell: | Ø 6.85 mm PVC LSZH |
| Scales: | 41.4 kg/km |
| Screen: | Foil : Al/PET/SY - Internal film : Al/PET - external |
| Selected features: | low attenuation excellent fit high shielding efficiency LSZH (Low Smoke Zero Halogen) coating - a small amount of toxic gases emitted during combustion |

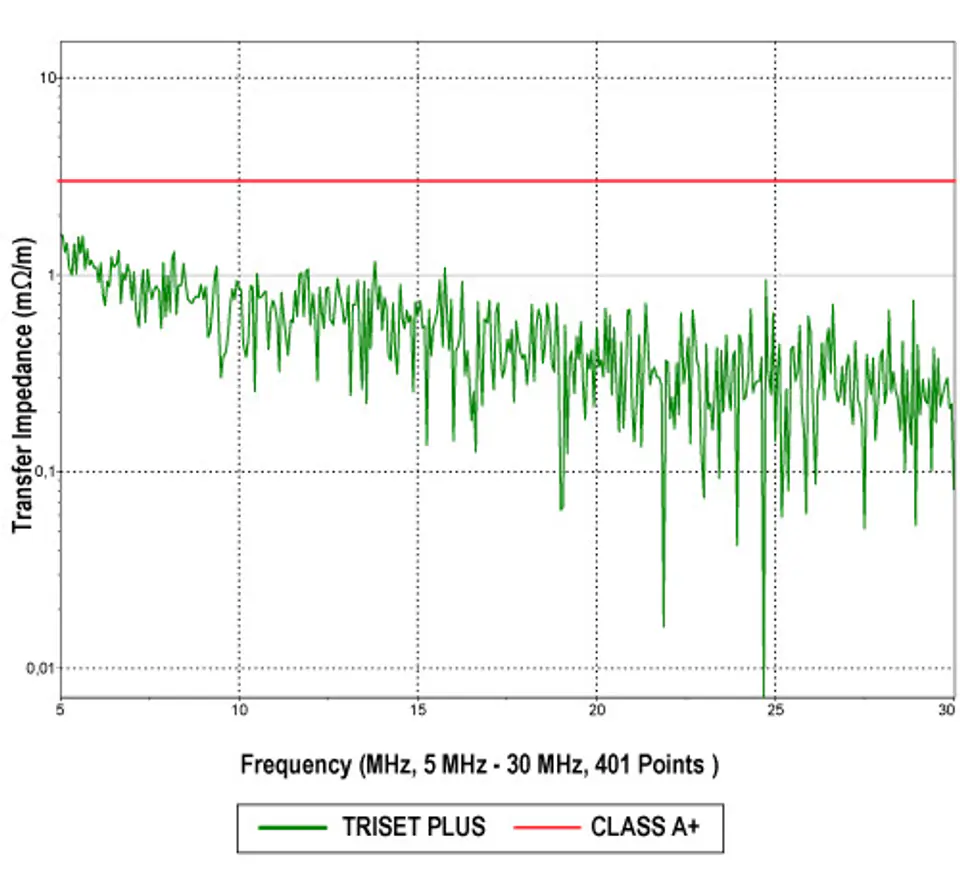

| Shielding efficiency: | > 95 dB @ 30 ... 1000 MHz> 85 dB @1 ... 2 GHz> 75 dB @ 2 ... 3 GHz |
| Warranty: | 2 years |
| Wave shortening factor: | 84 % |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
