COAXIAL CABLE TRISET-113PE/500

€0.89
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
moderate quantity
Product code:
TRISET-113PE/500 / 5902887064746

Specification

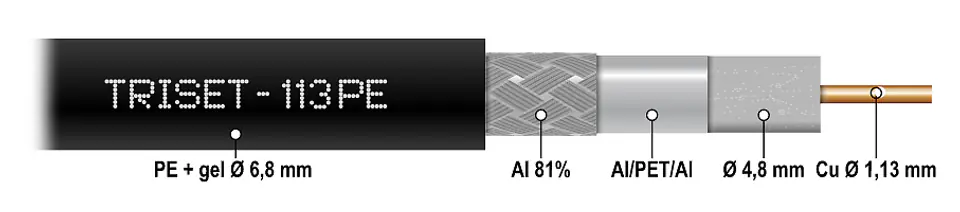

Braid:81 % Al wire
Capacity:52 pF/m
Coating color:Black
Coaxial cable:TRISET
Dc conductor resistance:16.85 Ω/km
Dielectric:Ø 4.8 mm (physically foamed)
Impedance:75 Ω

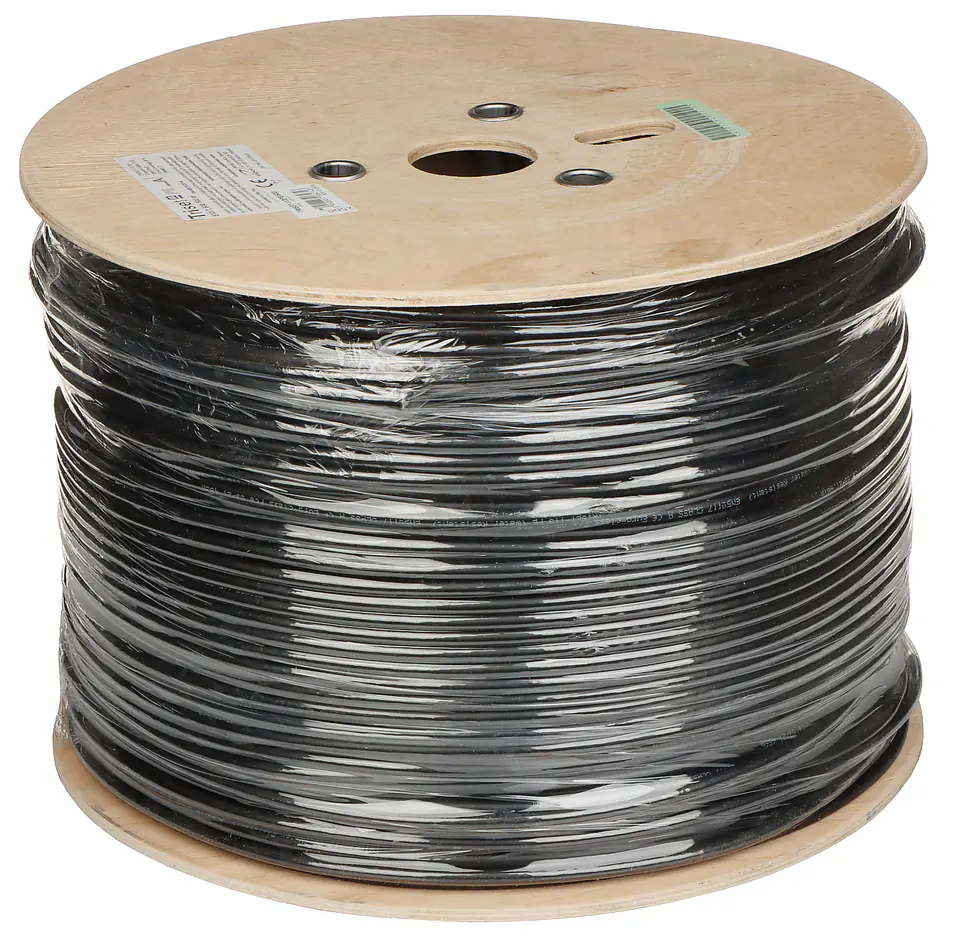

In ":500 m . Price for 1m when buying the whole roll
Insulation:2000 MΩ/km
Internal vein:Ø 1.13 mm Cu Wire
Minimum bending radius:35 mm
Operating temperature:-30 °C ... 70 °C
Outer shell:Ø 6.8 mm PE + gel
Scales:40 kg/km
Screen:Al/PET/Al - 30 μm / 12 μm / 30 μm

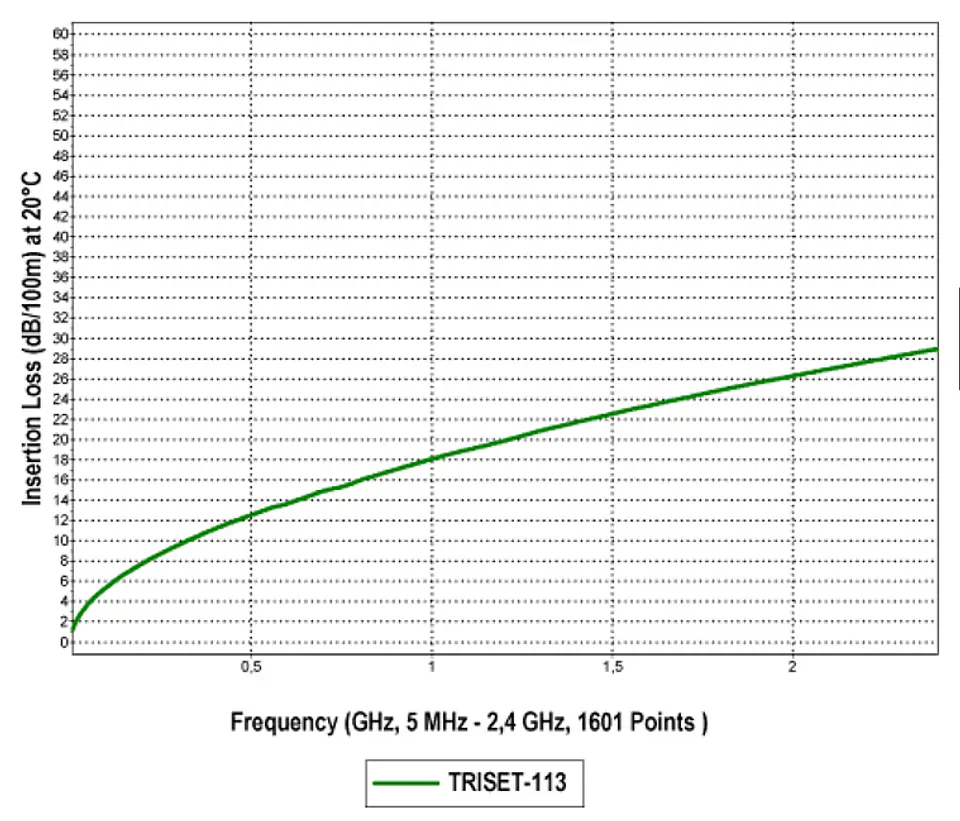

Selected features:low attenuation Excellent fit High shielding efficiency Class A compliance Compliance with MTBiGM Regulation Meets the requirements of the IEC68-2 part 3 standard for accelerated aging

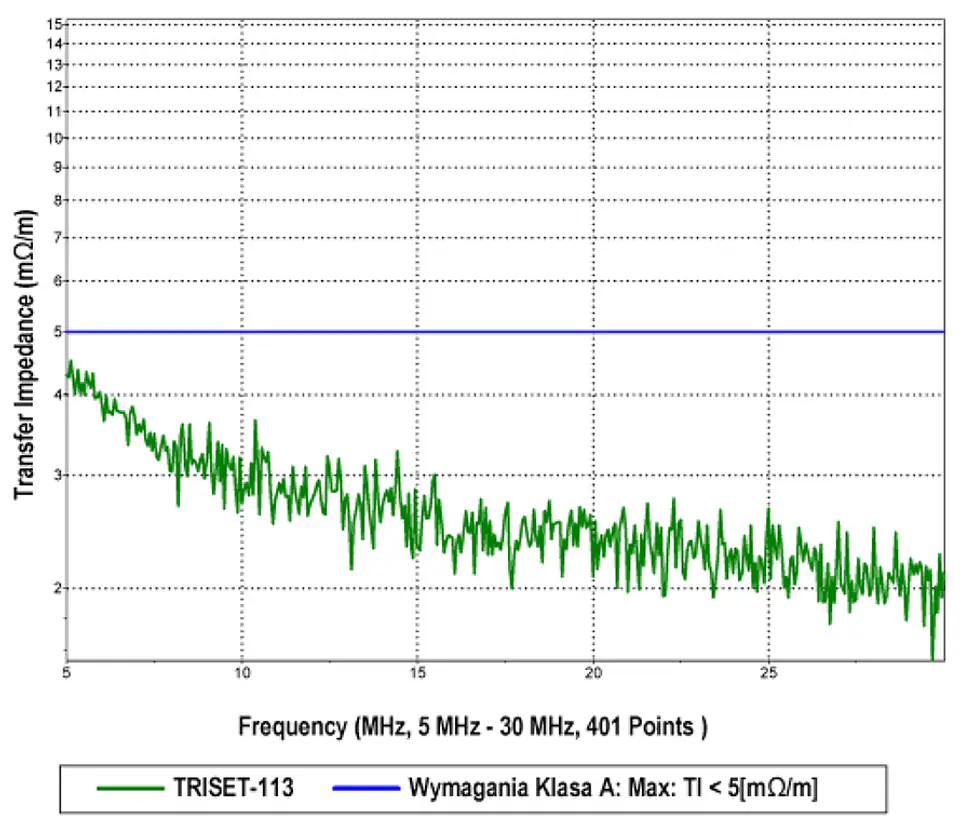

Shielding efficiency:≥ 90 dB @100-900 MHz
Warranty:5 years
Wave shortening factor:84 %

High quality coaxial cable TRISET-113PE/500 dedicated for both individual and SMATV systemsIt can be successfully used in DVB-T/T2 digital terrestrial television systems, FM/DAB radio and multiswitch systems (terrestrial DVB-T/T2 and satellite DVB-S/S2)

The cable made in PE sheath (polyethylene) is therefore intended for outdoor applications

To facilitate work, a length marker has been printed on the cable every 1 m

The cable was made with strict quality rigour, with small permissible deviations from the nominal parameters

The cable is gel-filled

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
