COAXIAL CABLE TRISET-113/500

€0.95
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
moderate quantity
Product code:
TRISET-113/500 / 5907634500676

Specification

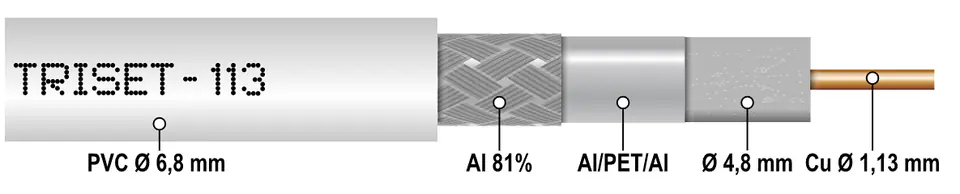

Braid:81 % Al wire
Capacity:52 pF/m ± 2
Coating color:white
Coaxial cable:TRISET
Dc conductor resistance:16.85 Ω/km
Dielectric:Ø 4.8 mm (physically foamed)
Impedance:75 Ω ± 3

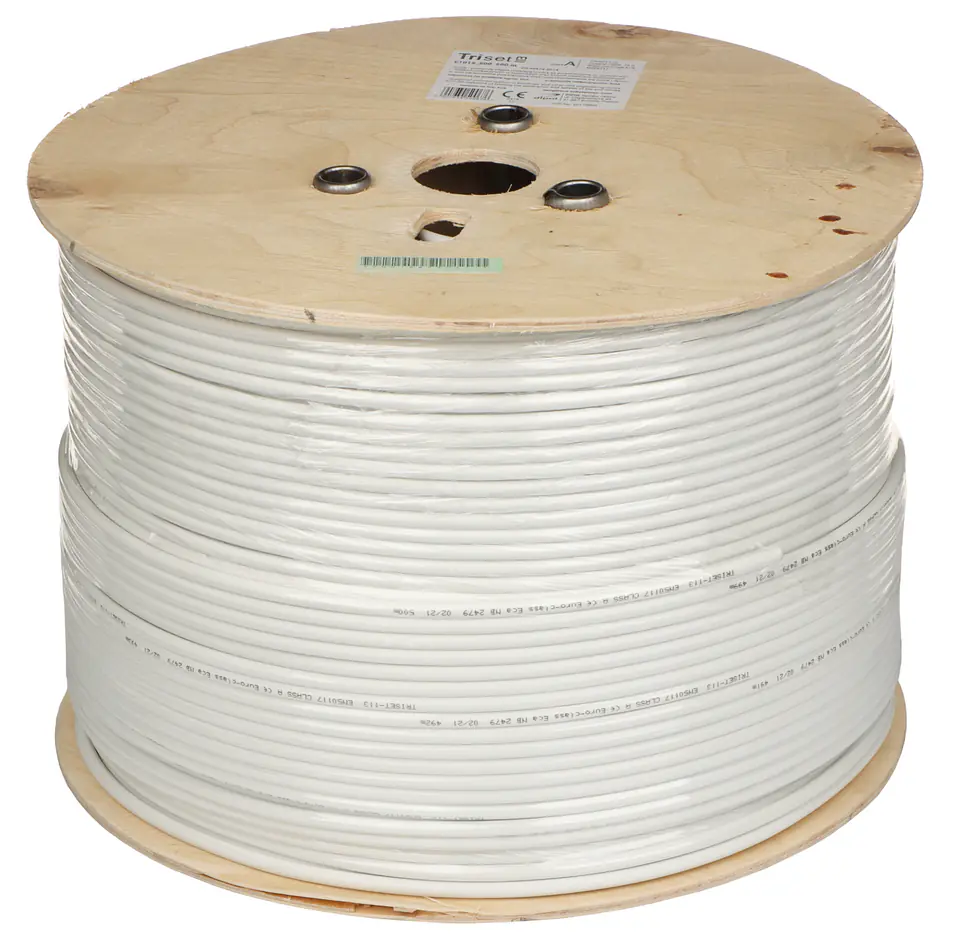

In ":500 m . Price for 1m when buying the whole roll
Insulation:2000 MΩ/km
Internal vein:Ø 1.13 mm Cu Wire
Minimum bending radius:30 mm
Outer shell:Ø 6.8 mm PVC
Scales:45 kg/km
Screen:Foil - Al/PET/Al
Selected features:low attenuation Excellent fit High shielding efficiency Class A compliance Compliance with MTBiGM Regulation Meets the requirements of the IEC68-2 part 3 standard for accelerated aging
Shielding efficiency:≥ 90 dB @100-900 MHz
Warranty:5 years
Wave shortening factor:84 %

High quality coaxial cable TRISET-113/500 dedicated for both individual and SMATV systemsIt can be successfully used in DVB-T/T2 digital terrestrial television systems, FM/DAB radio and multiswitch systems (terrestrial DVB-T/T2 and satellite DVB-S/S2)To facilitate work, a length marker has been printed on the cable every 1 m

The cable was made with strict quality rigour, with small permissible deviations from the nominal parameters

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
