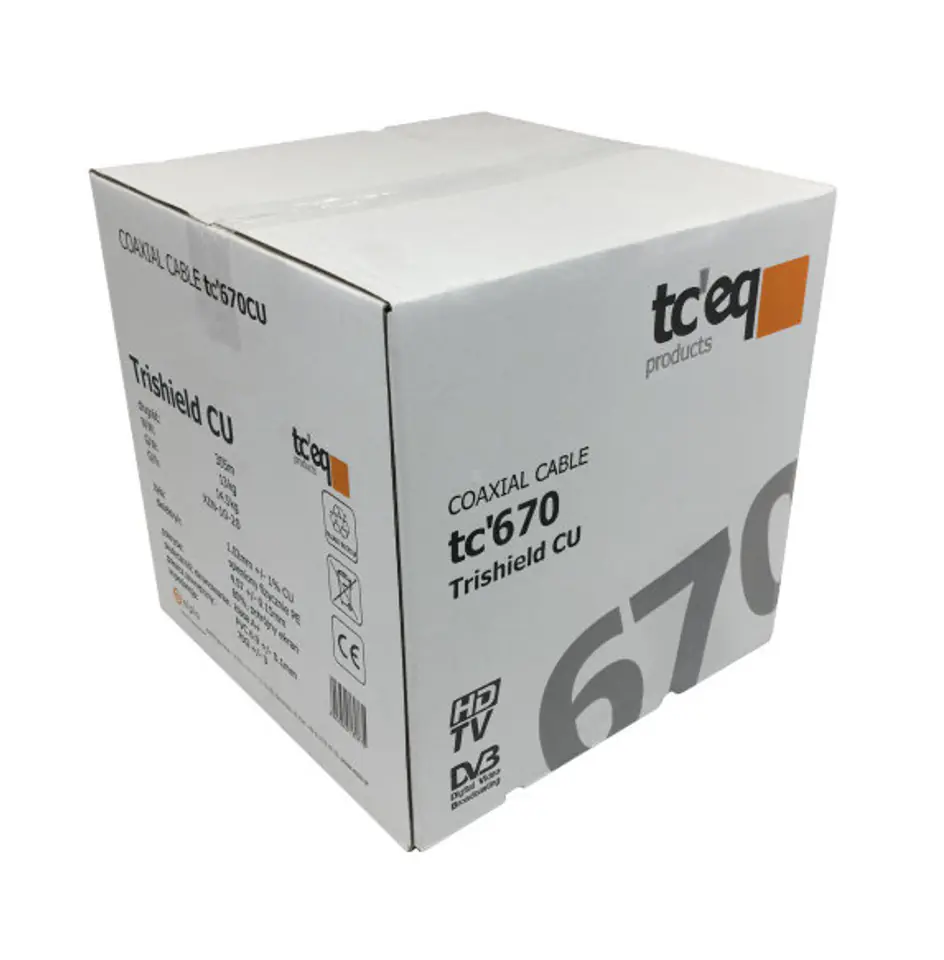

RG6 coaxial cable, pullbox 305m, copper core 1.02mm, braid 128 x 0.12 AL.
tc'eq coaxial cables are high-quality coaxial cables for all applications. The well-thought-out design allows them to be used as universal antenna cables for all applications. The cables are resistant to the ingress of unwanted electromagnetic waves inside the cable, as well as their radiation is kept to a minimum. All this thanks to the three-layer screen, which in the era of digital transmissions is of paramount importance. Cable in accordance with the CPR Building Directive - EN 50575.

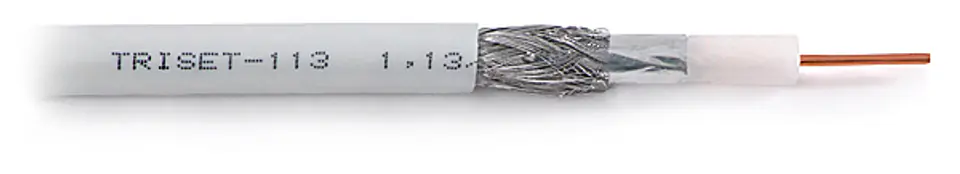

CONSTRUCTION
Vein - 1.02 mm ± 1% CU
Dielectric - physically foamed PE 4.7 ± 0.15 mm
Screen 1 - AI/PET film, glued to the internal dielectric

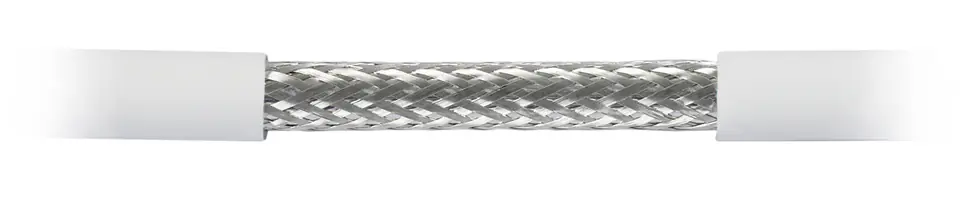

Screen 2 - 128 x 0.12 mm, 80% coverage
3 screen - aluminum foil, double-sided laminated
Outer jacket - white PVC 6.9 ± 0.1 mm
Minimum bending radius - 40 mm
ELECTRICAL
Shielding efficiency - 30 MHz ~1000MHz : ≥105dB, class A+
Cable capacity - test value: 51 ± 3 pF/m
Internal conductor DC resistance - 18 Ohm/km
DC Shielding Resistance - 21 Ohm/km
Loop DC resistance - 39 Ohm/km
Characteristic impedance - 75 Ohm
