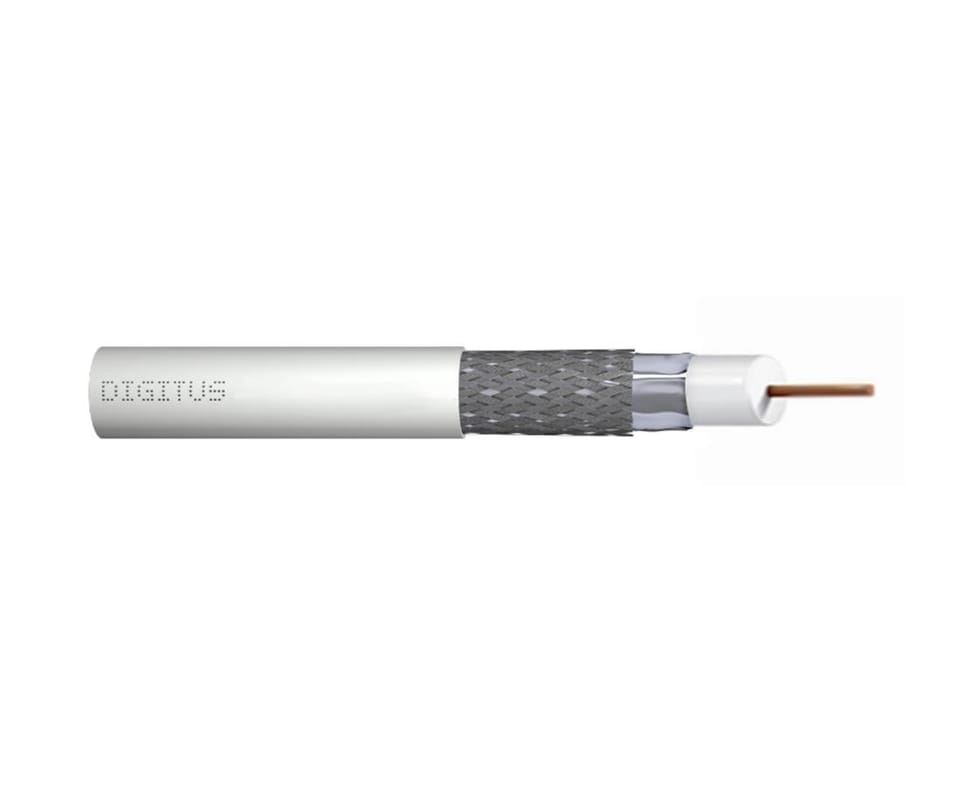

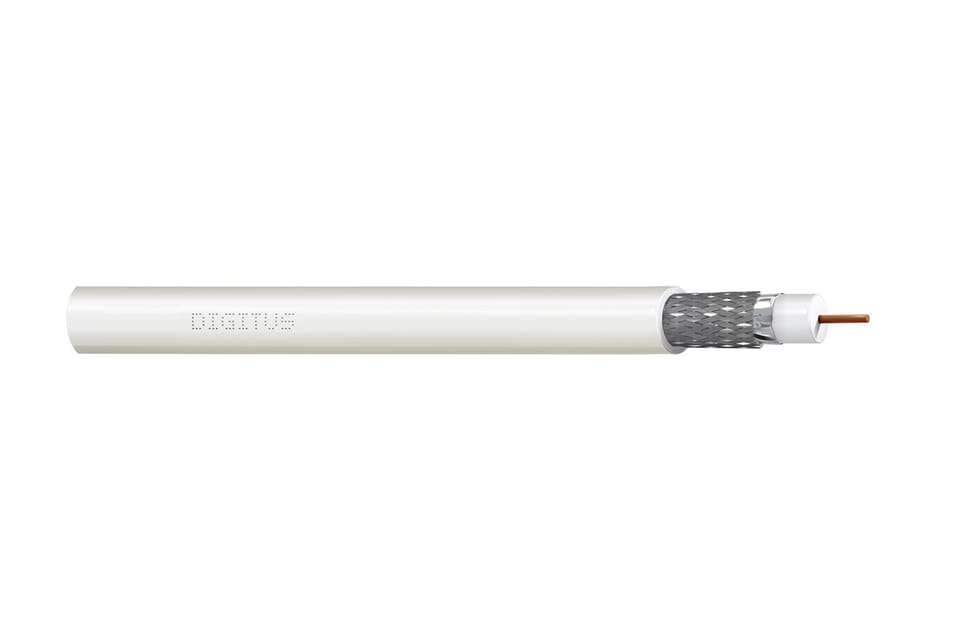

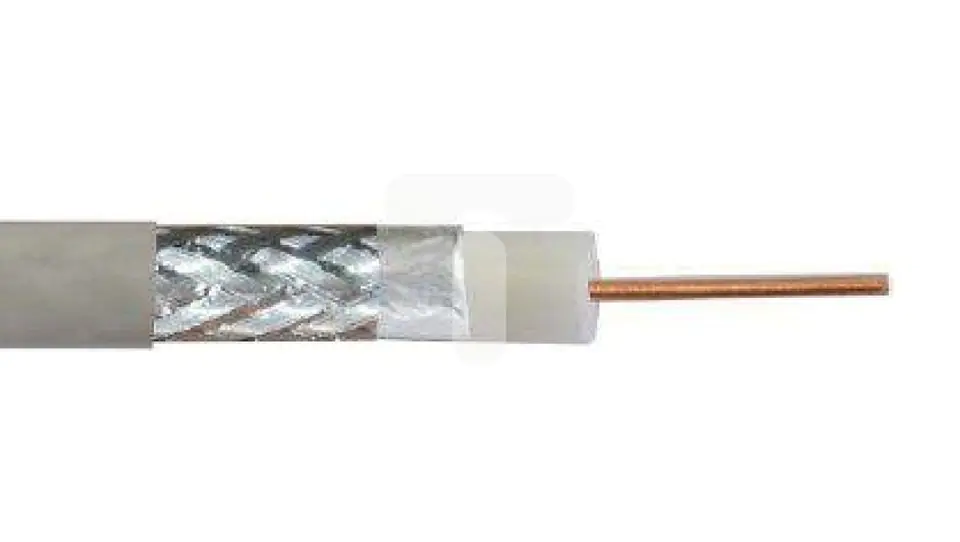

Coaxial Cable RG6 75 Ohm PN-EN 50117-2-4 Class A white PVC /500m/ DK-RG-5
This product is not available
- Availability:
- expected delivery
- Brand:
- Assmann Distribution Sp. z o
- Product code:
- DK-RG6-5 / 5907772595992
Share this product:
Specification
| Cable length: | 500 m |
|---|---|
| Cable type: | RG-6 |
| Conductor material: | Copper |
| Conductor size: | 1.05 mm |
| Connector 1: | No |
| Connector 2: | No |
| Frequency band: | 0.005 - 2.4 GHz |
| Impedance: | 75 Ω |
| Insulation material: | Foamed polyethylene |
| Insulation outer diameter: | 5 mm |
| Insulation resistance: | 1000 MΩ |
| Jacket material: | Polyvinyl chloride (PVC) |
| Operating temperature (t-t): | -30 - 80 °C |
| Outer shield coverage: | 77% |
| Product colour: | White |
| Shield material: | Aluminium |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
