The cable complies with the CPR Directive No. 305/2011 and meets the requirements of the European standard PN-EN 50575 in which the requirements for properties under fire conditions, test methods and evaluation of cables used as a building material are specified. The cable has a Declaration of Performance and CE marking, which confirm its compliance with the guidelines of the CPR Regulation.
COAXIAL CABLE NS113-TRISHIELD
€0.60
Shipping from warehouse: D4
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- NS113-TRISHIELD / 5901721544192
Share this product:
Specification

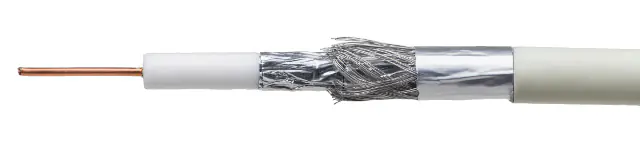

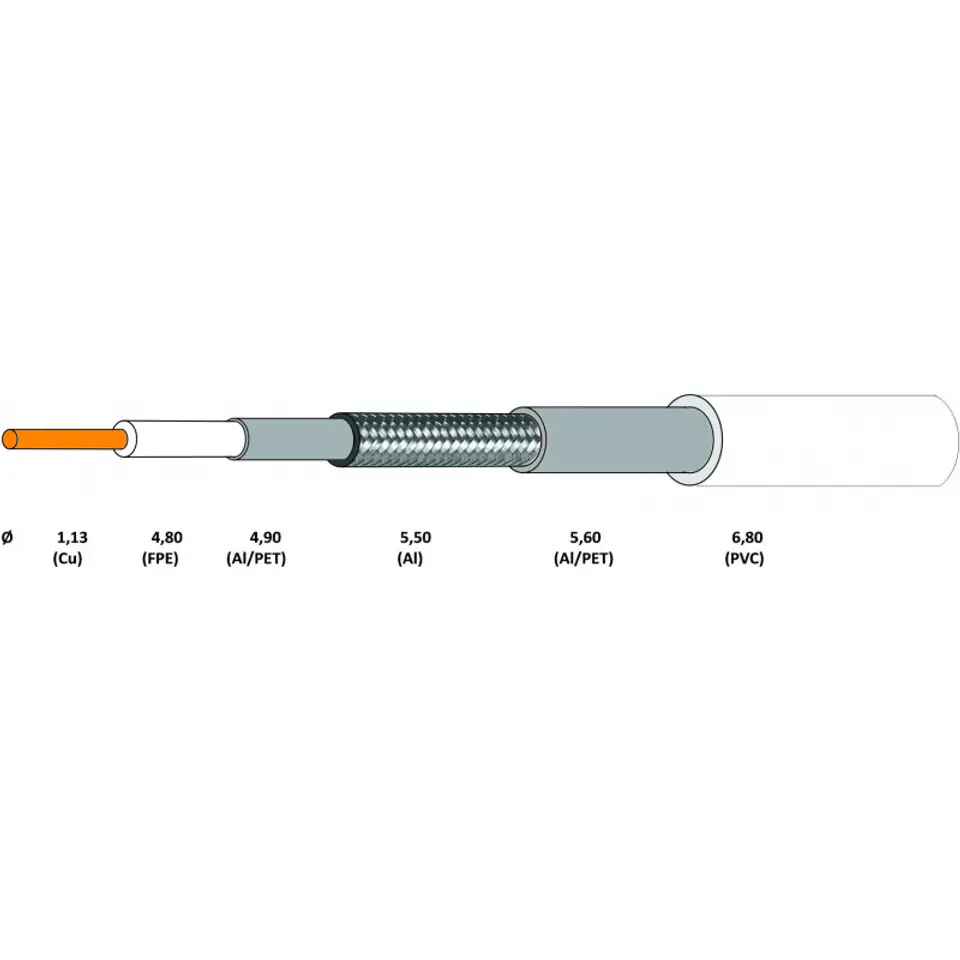

| Braid:: | 144 x 0.12 mm Al/PET Wire |
|---|---|

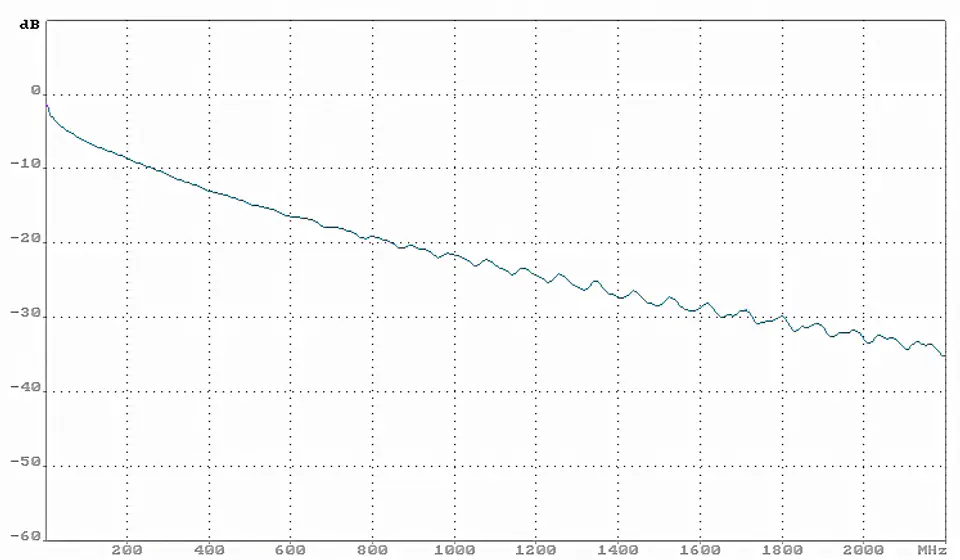

| Cable attenuation over a distance of 100m:: | 3.6 dB @ 50 MHz6.2 dB @ 100 MHz13 dB @ 500 MHz17.3 dB @ 862 MHz18.8 dB @ 1000 MHz23.2 dB @ 1500 MHz27.9 dB @ 2000 MHz |
| Coating color:: | white |
| Dielectric:: | Ø 4.8 mm (physically foamed) |
| Impedance:: | 75 Ω |
| In the episode:: | 100 m . The price given for 1m when buying the whole roll |
| Inner vein:: | Ø 1.13 mm Cu Wire |
| Outer shell:: | Ø 6.8 mm PVC |
| Screen:: | Double Al/PET |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
