S-PLASMA 125CNCSTAMOS GERMANY maximum cutting current 125 AGBT technologies ensure reliabilityFast parameter switchinglow risk of short circuitProduct features:
- - Functionality - for cutting steel and other electrically conductive metals (titanium, copper, brass , etc.)
- - Versatility - a special socket allows you to connect the cutter to the CNC plotter
- - Efficiency - modern IGBT technology and non-contact arc ignition ensure smooth and stable operation,
- - Simple operation - a large knob and switches allow you to precisely set the operating parameters without having to remove gloves,
- - Readability - LED display shows current intensity even in dark rooms, and LEDs inform about the decrease in air pressure,
- - Easy transport - comfortable handles, small size and weight allow you to easily move the cutter as needed,
- - Convenience - long 5 and 4-meter wires guarantee freedom of movement during cutting and facilitate work in hard-to-reach places,
- - Safety - built-in fan that guarantees heat dissipation,
- - Model - S-PLASMA 125CNC
- - Catalogue number - 2078
- - Article status - New
- - Power supply - 400 V, 3-phase / 50 Hz
- - Rated input current - 22 A
- - Max. input current - 31 A
- - Rated input power - 15,4 kVA
- - Max. input power - 21,8 kVA
- - Idle voltage - 300 V
- - Cutting current - 10-125 A
- - Duty cycle - 60%
- - Cut current in the duty cycle 60% - 125 A
- - Cut-cycle cutting current 100% - 96.8 A
- - Gas outflow - 5, 10, 60 s
- - Cooling - Fan
- - Burner cooling - Gas
- - Ground wire - 4 m
- - Cable with burner - 5 m
- - Gas hose - 4 m
- - Power cord - 3.8 m
- - Max. cutting thickness - 34 mm
- - Cutting width - 1.4 mm
- - Gas flow - 250 l/min
- - Pressure - 7 bar
- - Insulation class - F
- - Degree of protection - IP21s
- - Compliant with - EN 60974-1; EN 60974-10
- - Certificate - CE
- - Dimensions (LxWxH) - 67 x 27 x 47 cm
- - Weight - 30 kg
- - Shipping dimensions (LxWxH) - 74.5 x 37.5 x 52 cm
- - Shipping weight - 34.9 kg
- Plasma cutting - thanks to the current of up to 125 A, the device will easily cut such metals as iron, stainless steel, cast iron, copper or aluminum. The air pressure is infinitely adjustable, which allows for precise control of the plasma jet. Non-burning of the material, a small amount of distortion and a smooth cutting gap are some of the advantages of using the Stamos Germany multifunction device.
- - 2T/4T, i.e. two-bar and four-bar. When using the first one, pressing the button will initiate the cut, and releasing it interrupts this process. In the case of a four-bar, the user does not have to hold the buttons constantly, because pressing and releasing the button starts or ends the work,
- - Non-contact ignition of the plasma arc allows you to start cutting without contact with the material being processed, which reduces wear of consumable parts and improves work efficiency,
- - Gas Post-Flow Time, i.e. regulation of gas outflow. Prevents oxidation of the weld,

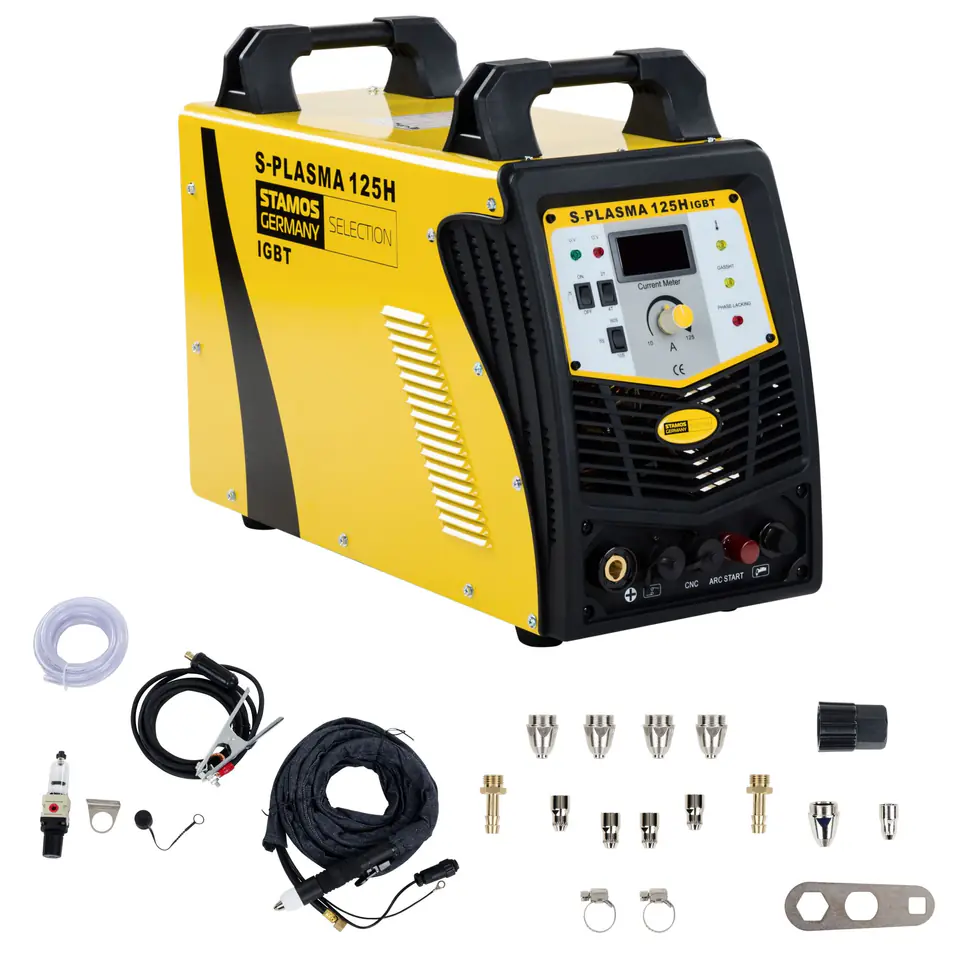

- - Cutter S–PLASMA 125CNC
- - Plasma cutting handle 5 m
- - Ground wire with 4 m terminal
- - Air hose 4 m
- - Pressure regulator
- - Pressure gauge
- - Cutting handle components
- - Manual EN
