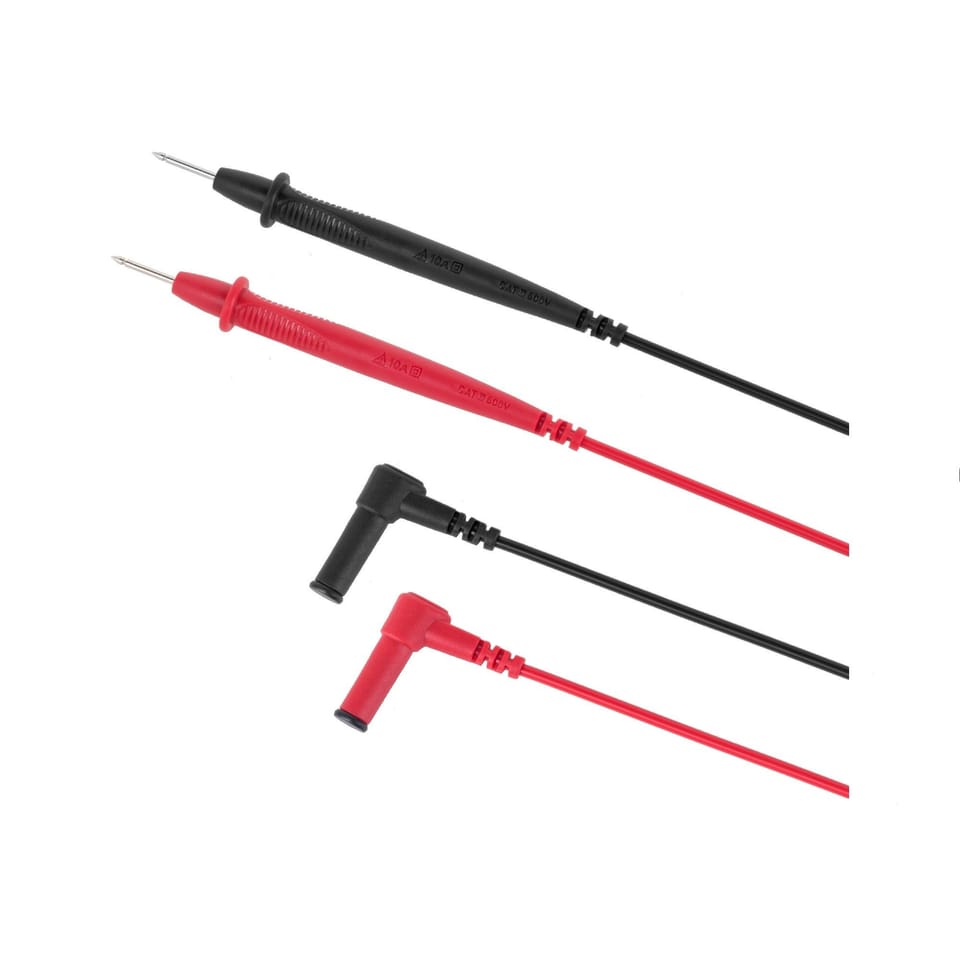

MEASURING RANGESDC constant voltage: 600 V ? (0,7%+3) AC voltage: 600 V ? (1%+5) DC current: 400 A ? (2%+5) AC intensity: 400 A ? (2%+5) Resistance: 40 MOhm ? (0,8%+2) Capacity: 40 mF ? (4%+5) Frequency: 10Hz~10MHz ? (0,1%+4) Diode testVeraging the continuity of the circuitADDITIONAL FUNCTIONSAutomatic change of measurement rangesMeasurement True RMSElectrolance measurementMAX/MINDimendial measurementReservationAutomatic shutdownFreezing of the last indicationLow battery indicatorMaximal reading: 4000CECHOS GENERALPower: Battery 2x 1.5 V (R03)Maximum jaw spacing: 28 mmDisplay: 37 x 25 mmDimensors: 215 x 63 x 36 mmWeight: 248 gWhen set: batteries, measuring cables, cases

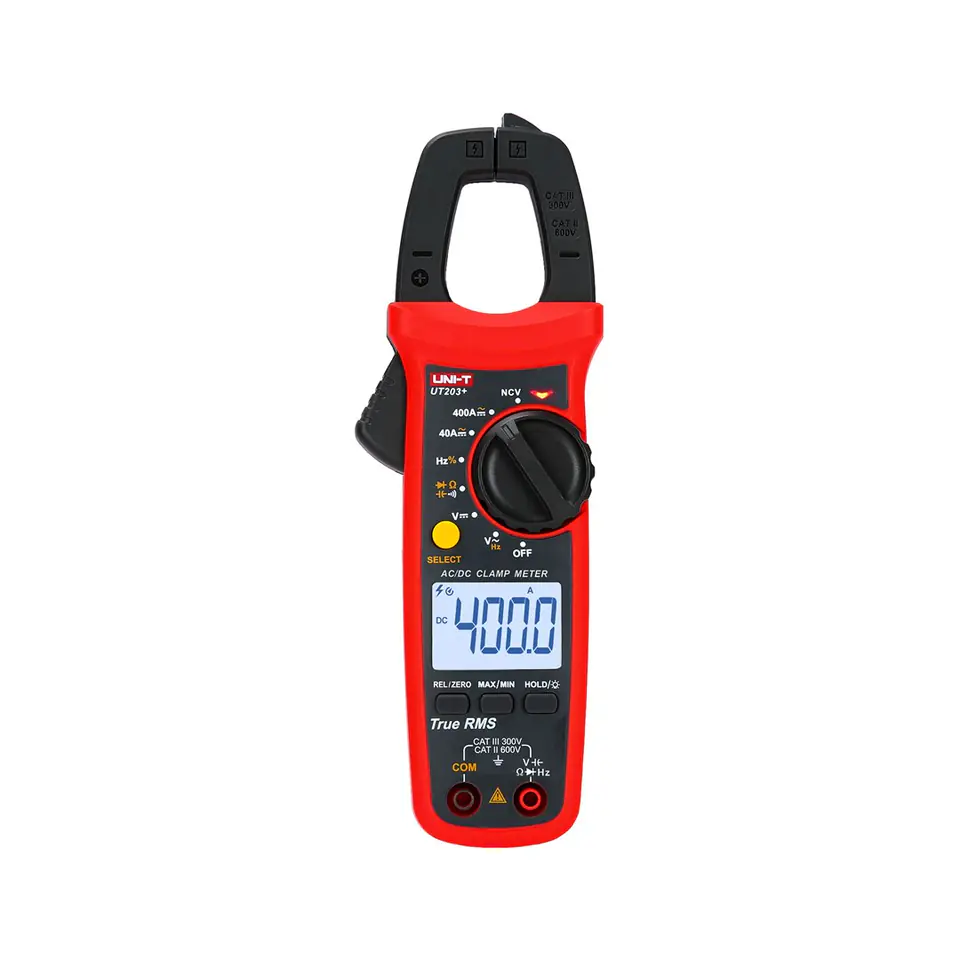

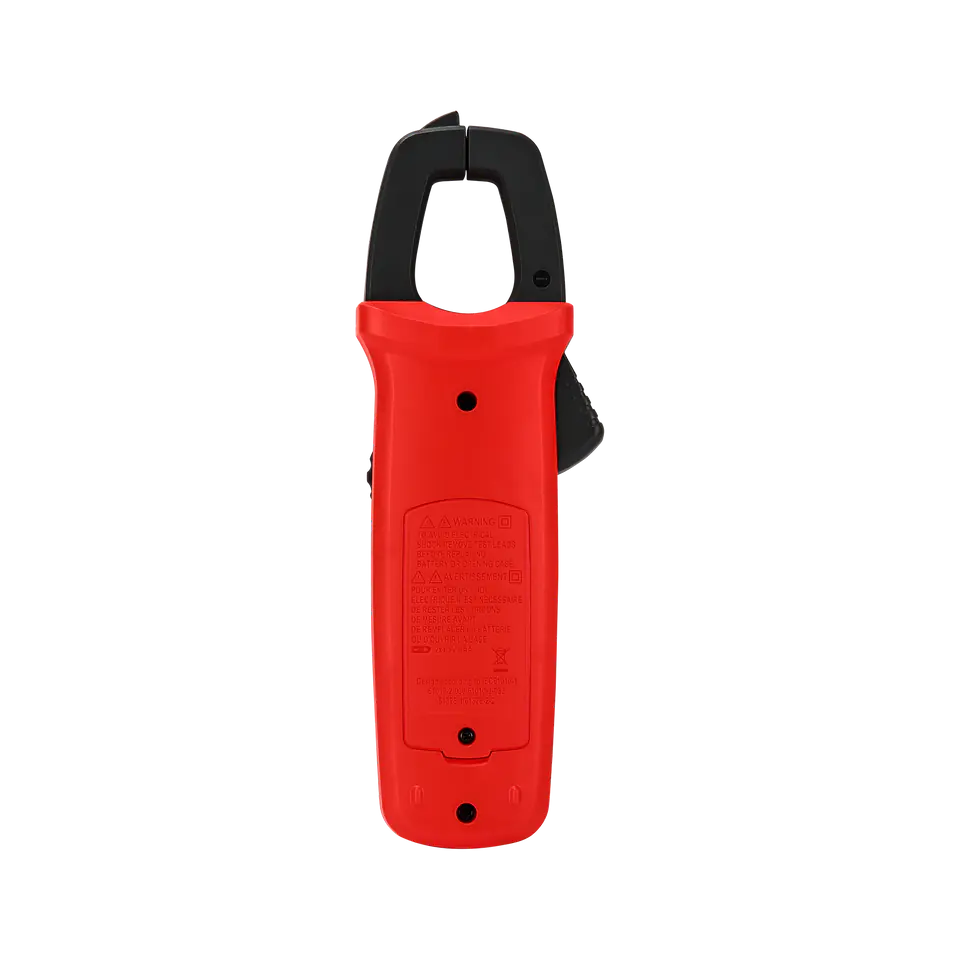

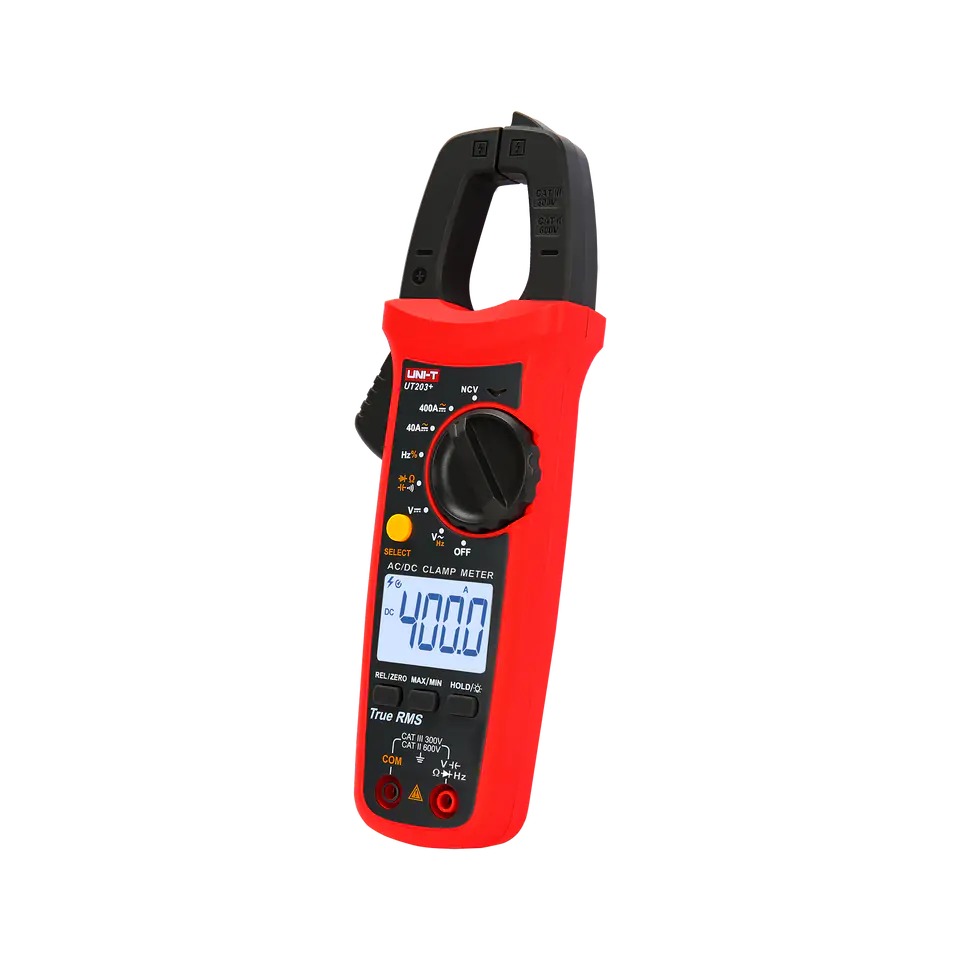

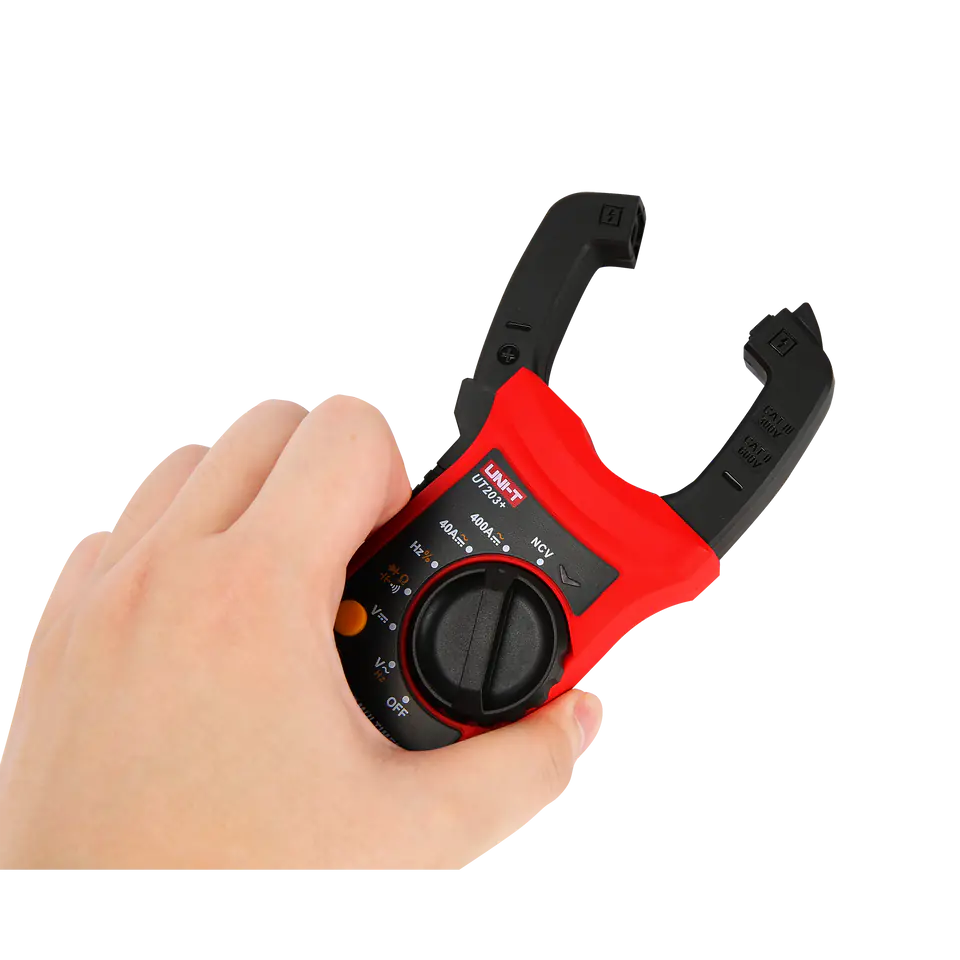

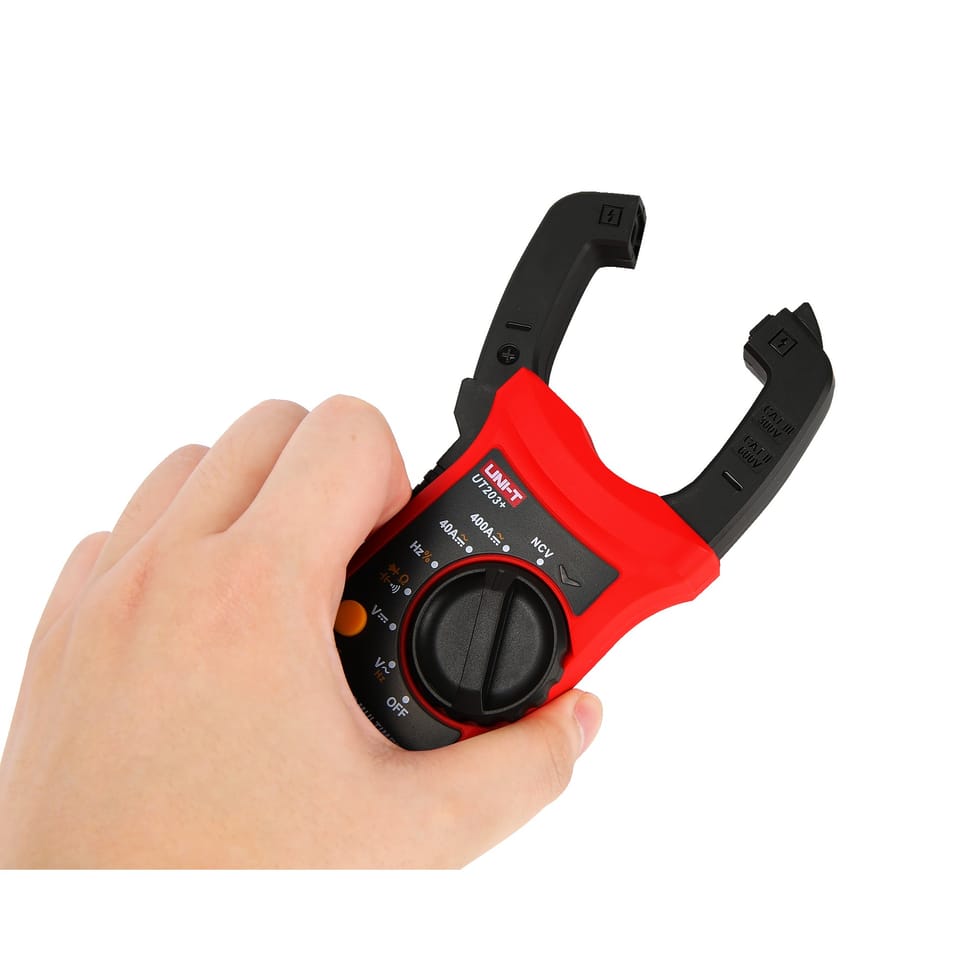

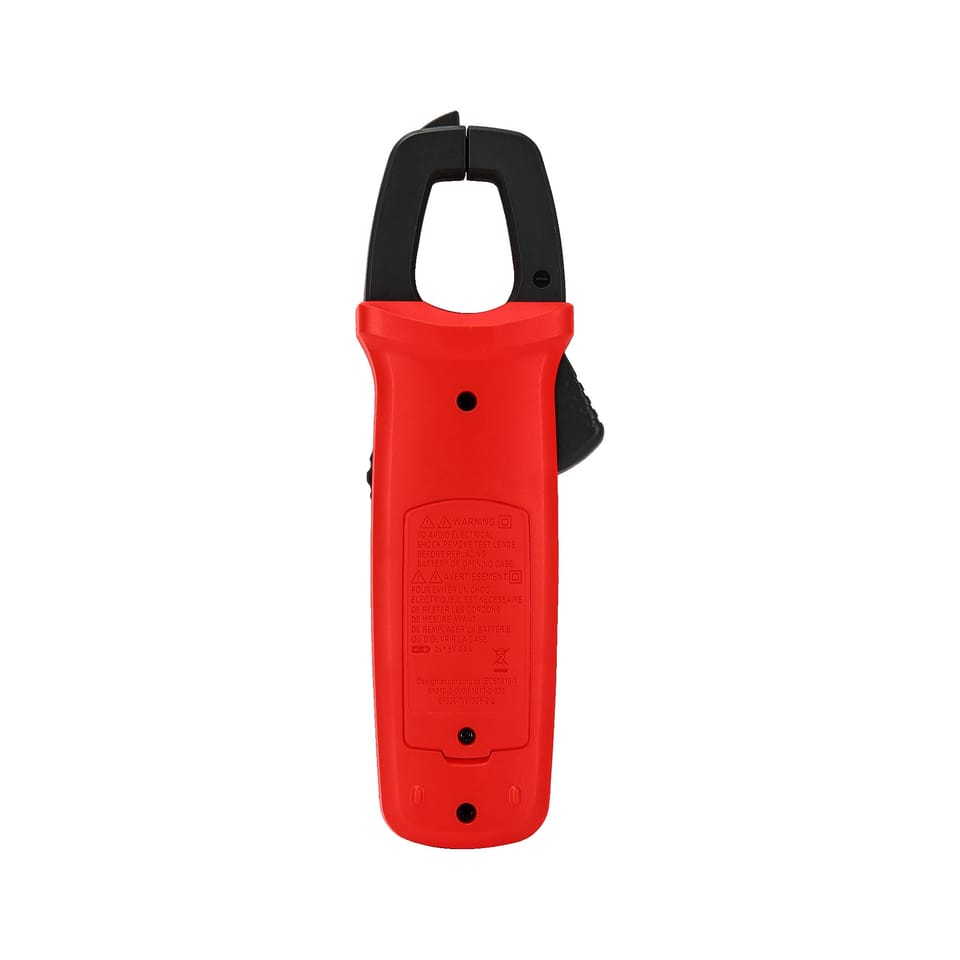

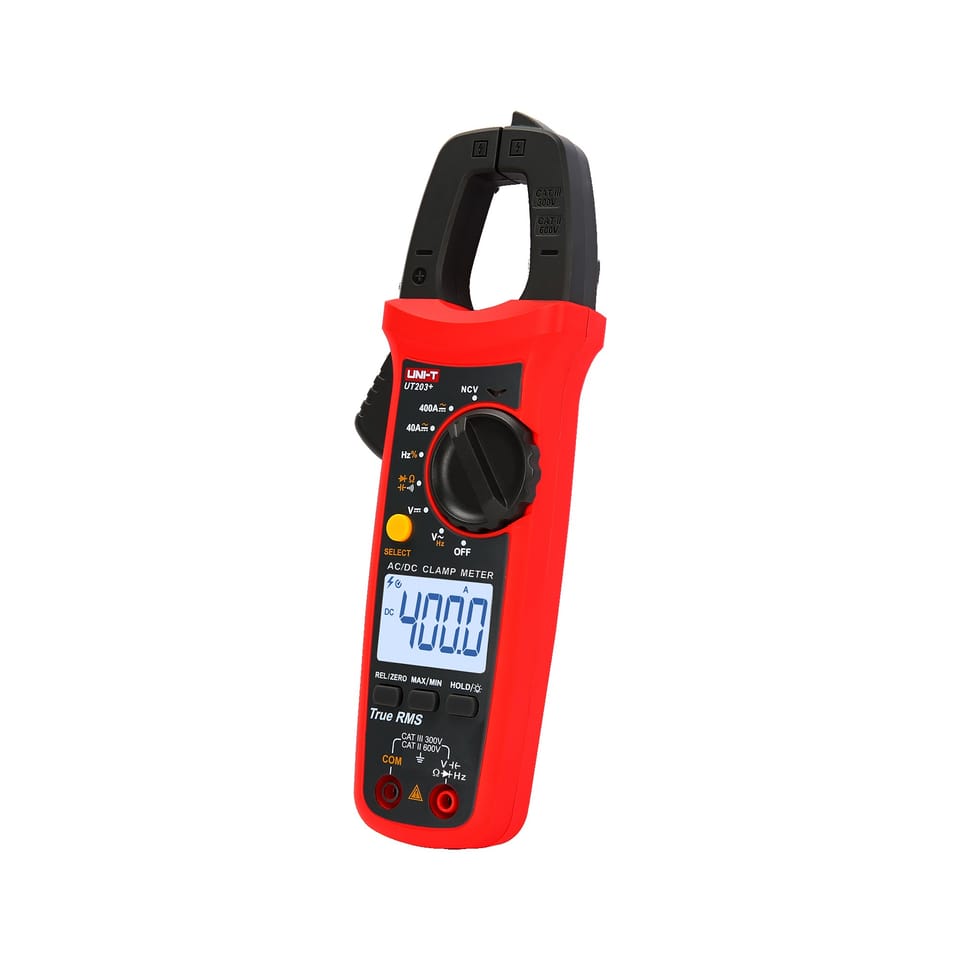

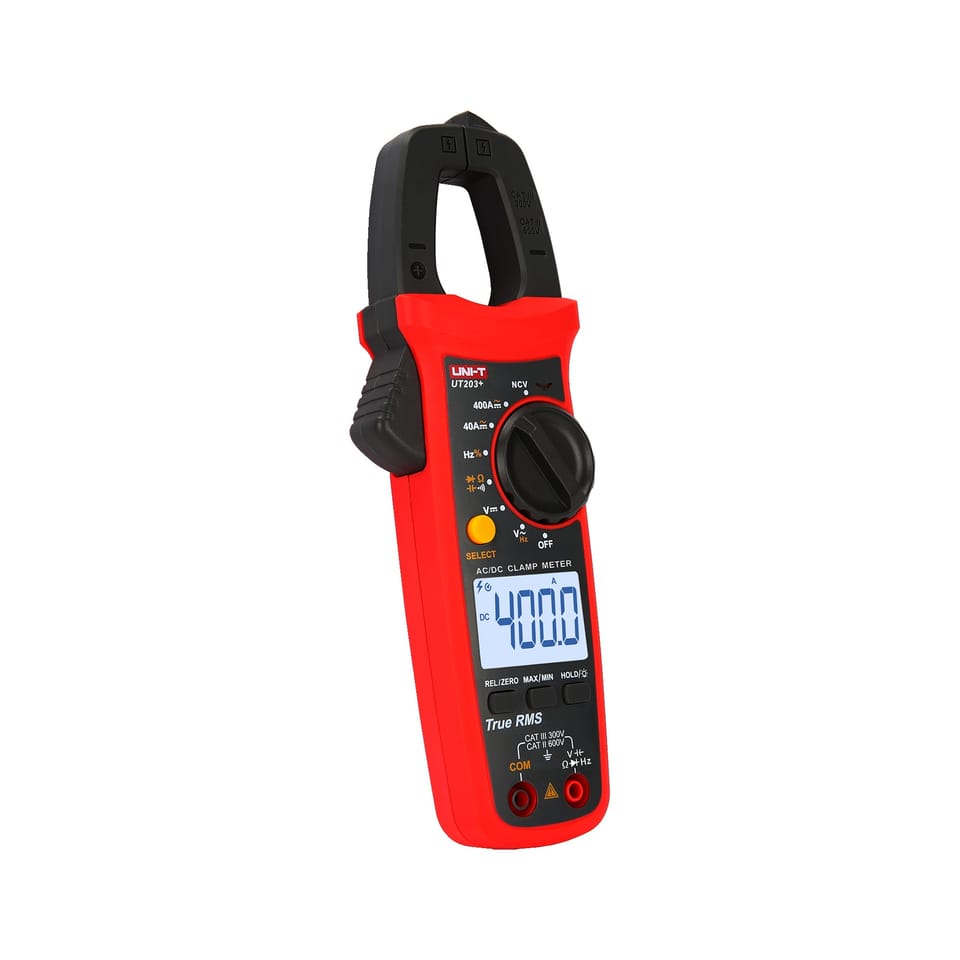

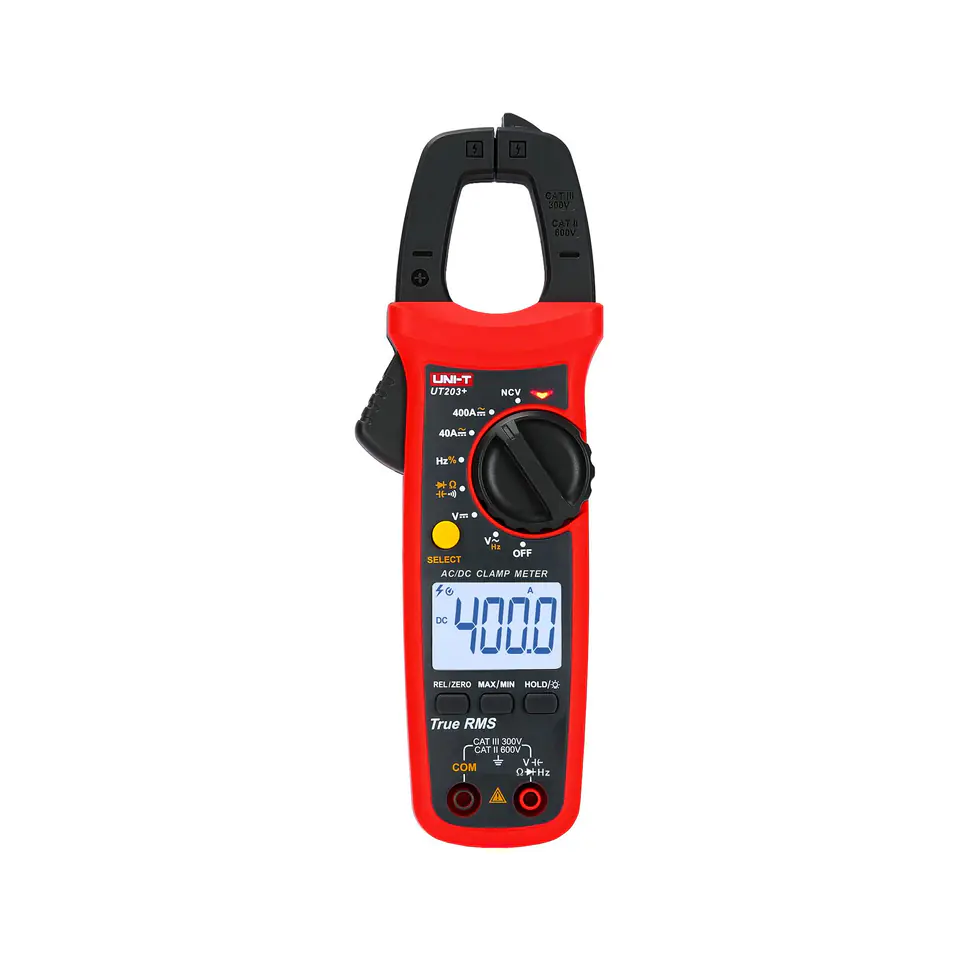

Clamp meter Uni-T UT203+
€50.65
Shipping from warehouse: L1
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Uni-T
- Product code:
- MIE0402 / 5901890057059
Share this product:
Specification
| Ac current range: | 40 - 400 A |
|---|---|
| Ac voltage range: | 4 - 600 V |
| Basic accuracy (ac current): | ±(2.5%+5) |
| Basic accuracy (ac voltage): | ±(1%+5) |
| Basic accuracy (dc current): | ±(2%+3) |
| Basic accuracy (dc voltage): | ±(0.8%+1) |
| Basic accuracy (frequency): | ±(0.1%+3) |
| Basic accuracy (resistance): | ±(1%+2) |
| Battery voltage: | 9 V |
| Carrying case: | Yes |
| Continuity check: | Yes |
| Data hold: | Yes |
| Dc current range: | 40 - 400 A |
| Dc voltage range: | 0.4 - 600 V |
| Dimensions (wxdxh): | 76 x 30 x 210 mm |
| Diode test: | Yes |
| Frequency range: | 0.01 - 1000 kHz |
| Weight: | 200 g |
