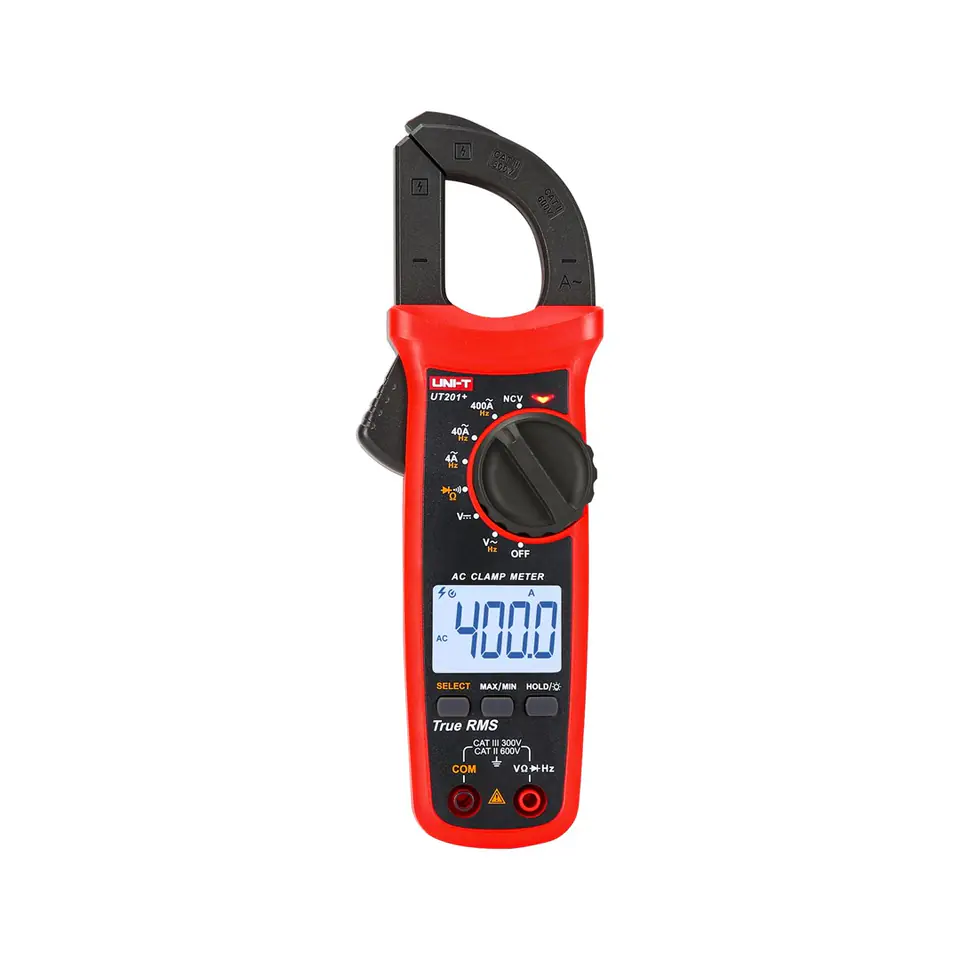

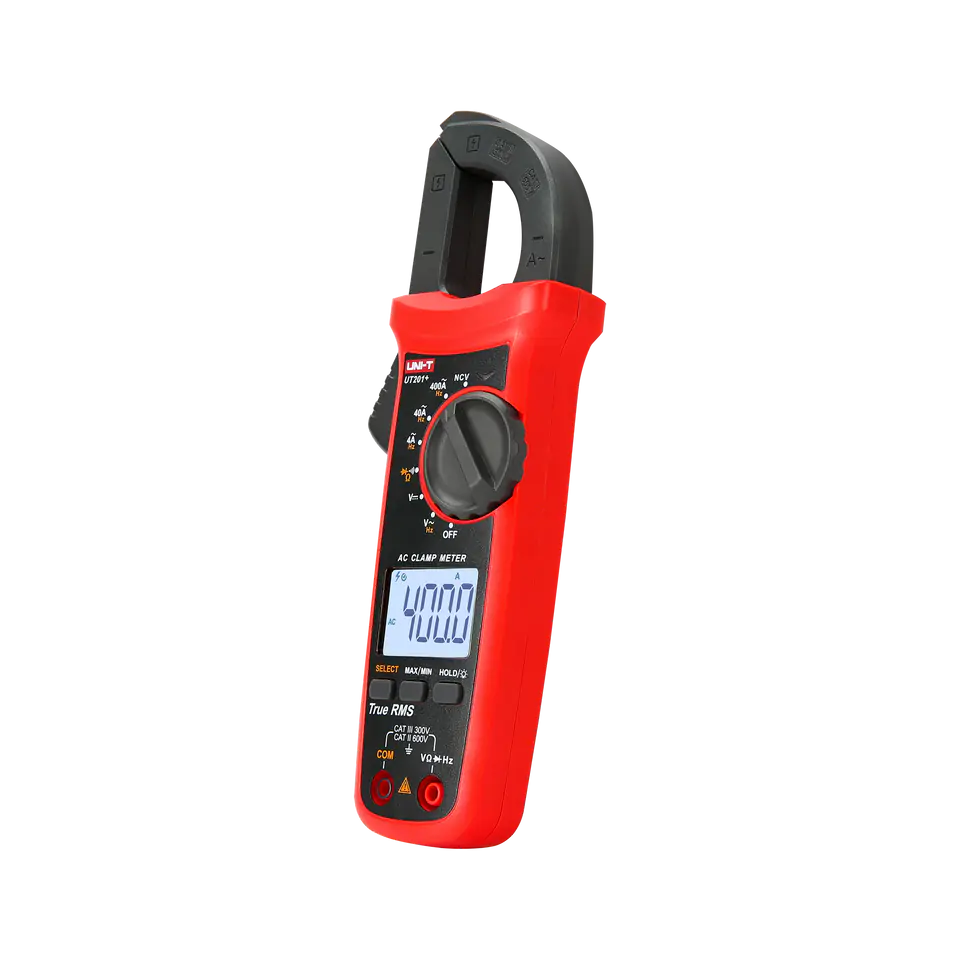

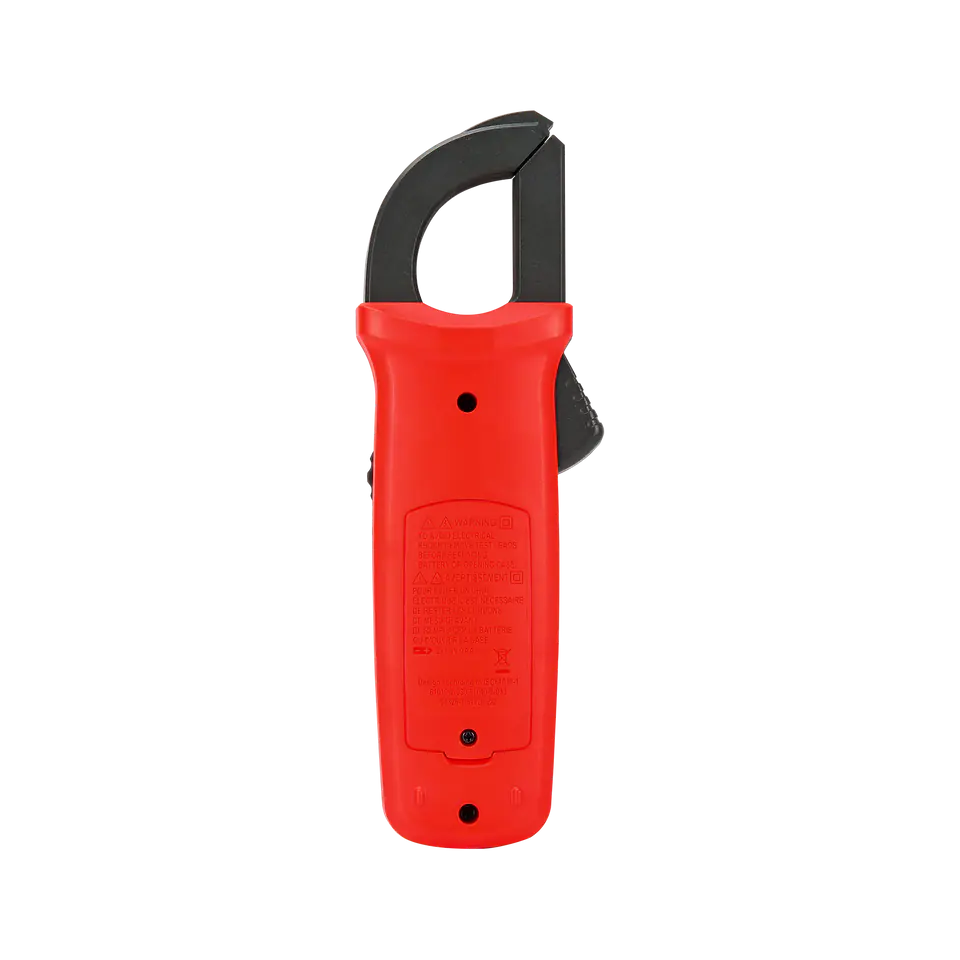

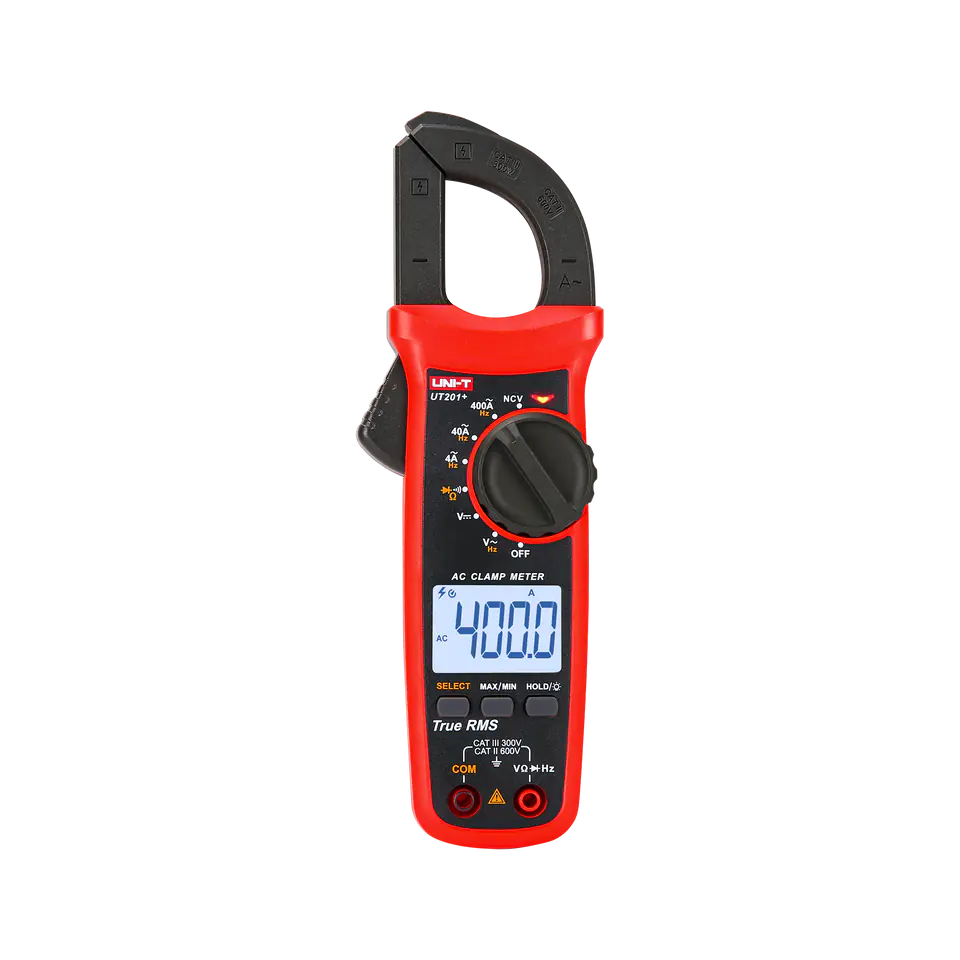

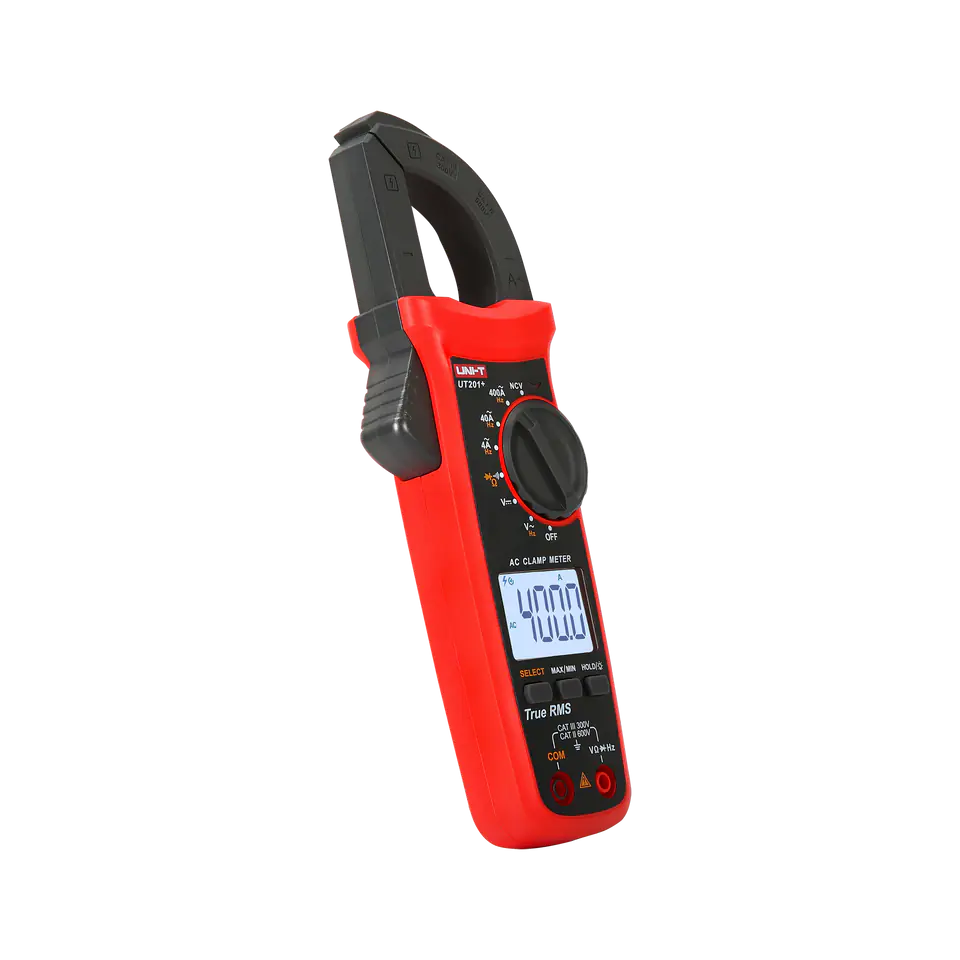

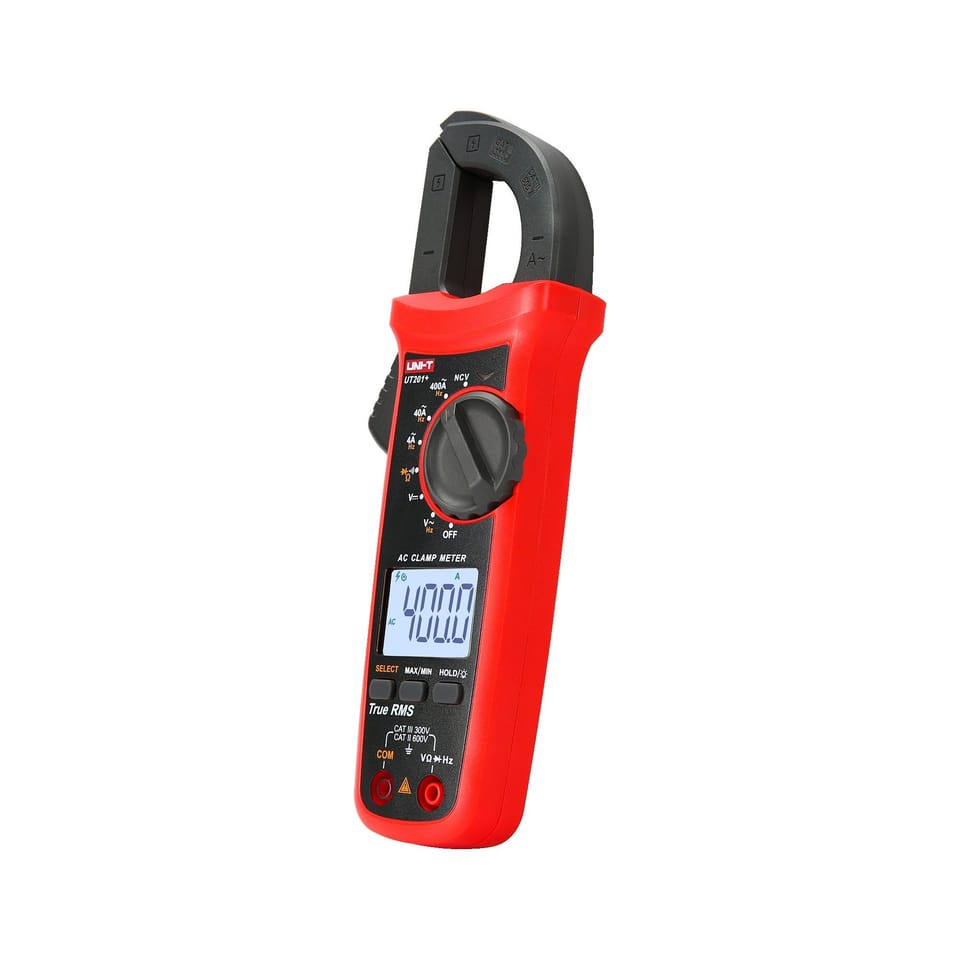

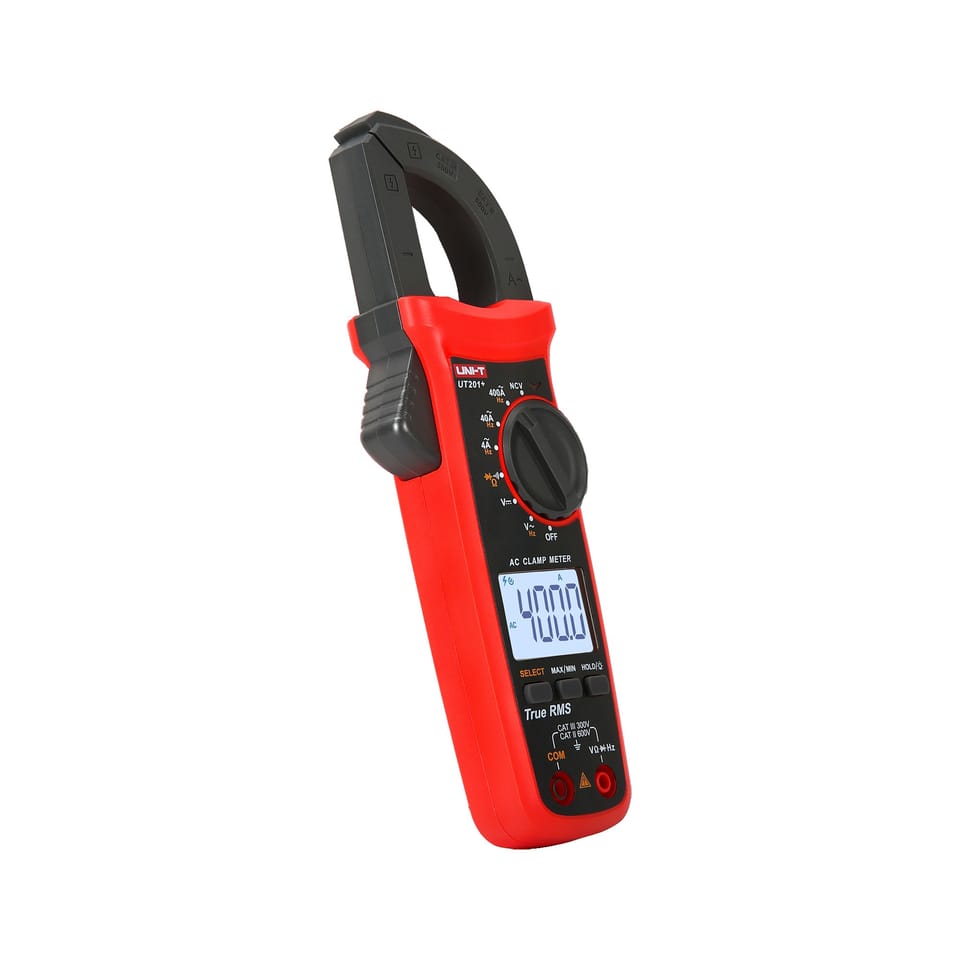

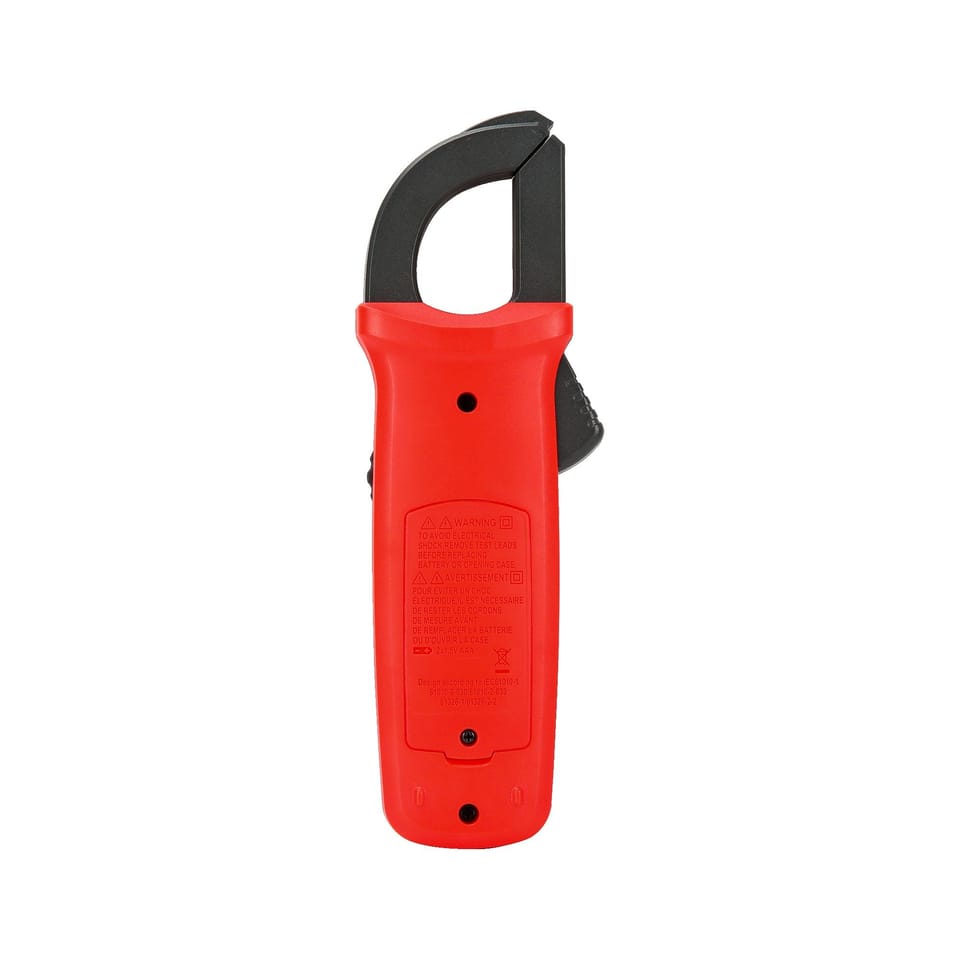

Clamp meter Uni-T UT201+

MEASURING RANGES

DC voltage: 600 V ±(0.5%+2)

AC voltage: 600 V ±(0.8%+5)

AC intensity: 400 A ±(2%+10)

Resistance: 40 MOhm ±(0.8%+2)

Diode test

Checking the continuity of the circuit



ADDITIONAL FEATURES

Automatic change of measuring ranges

Automatic shutdown

True RMS

NCV

Freezing of the last indication

Maximum/Minimum Value Indication Function

Maximum reading: 4000



GENERAL FEATURES

Power supply: Battery 2x 1,5 V (R03)

Maximum jaw spacing: 28 mm

Display: 37 x 25 mm

Net weight: 248 g

Dimensions: 215 x 63 x 36 mm
