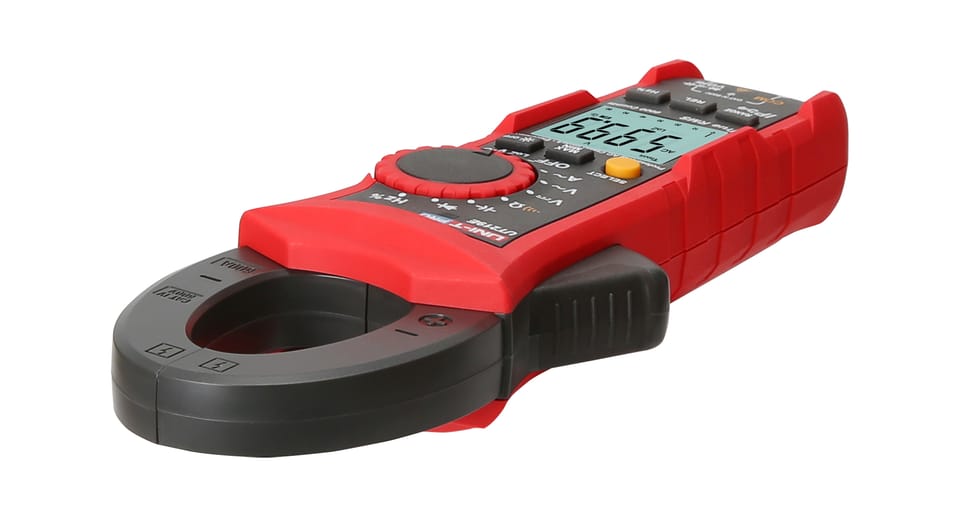

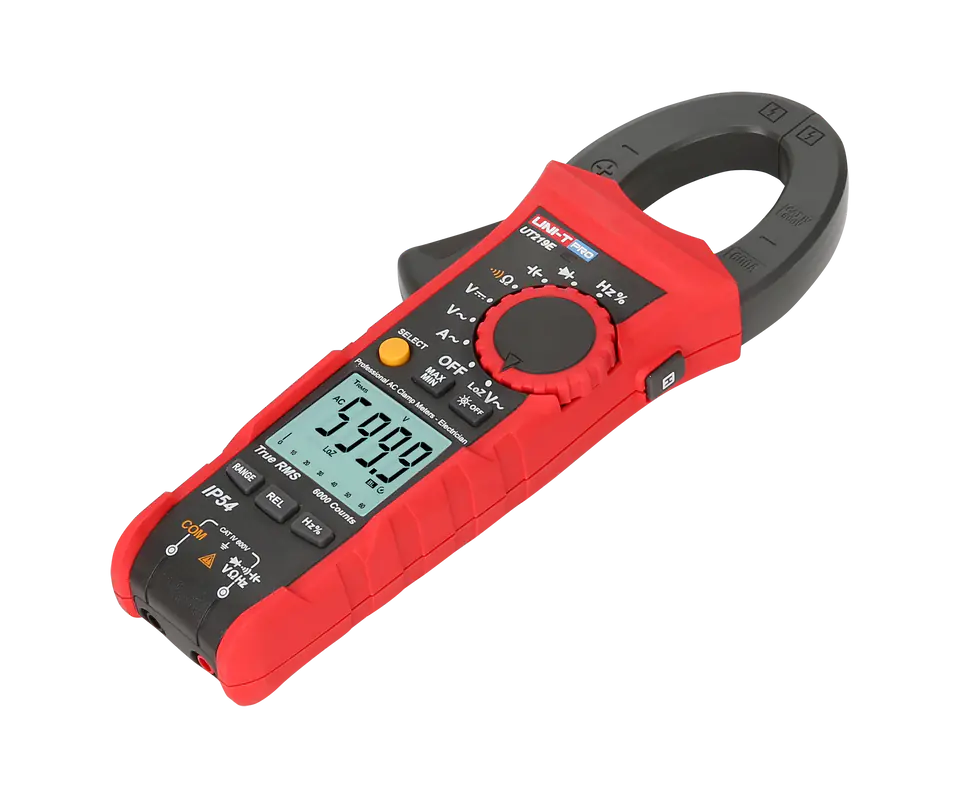

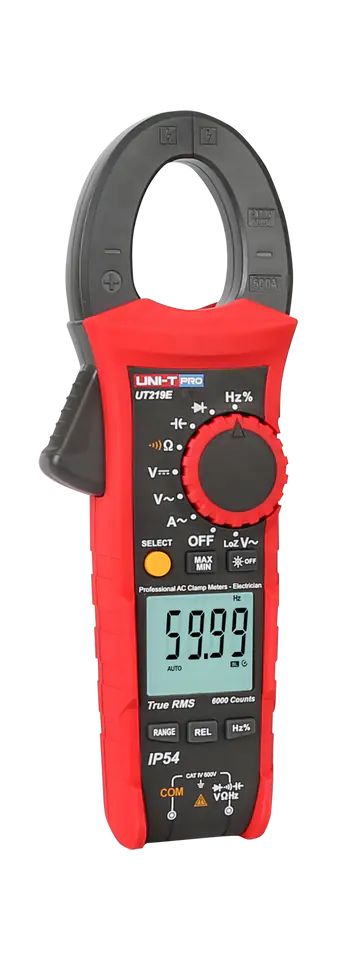

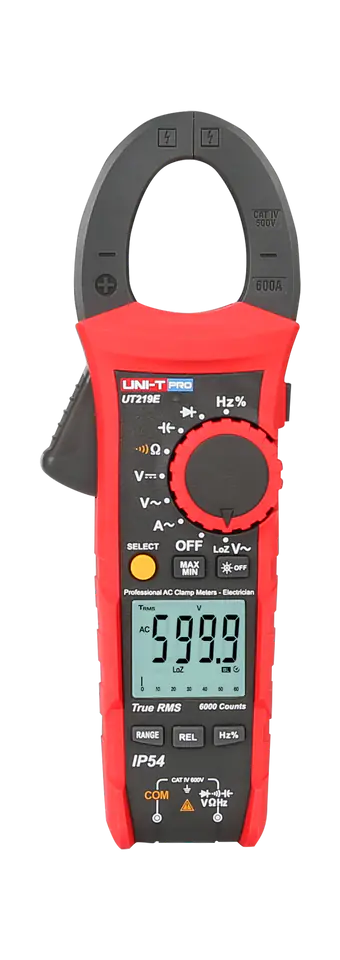

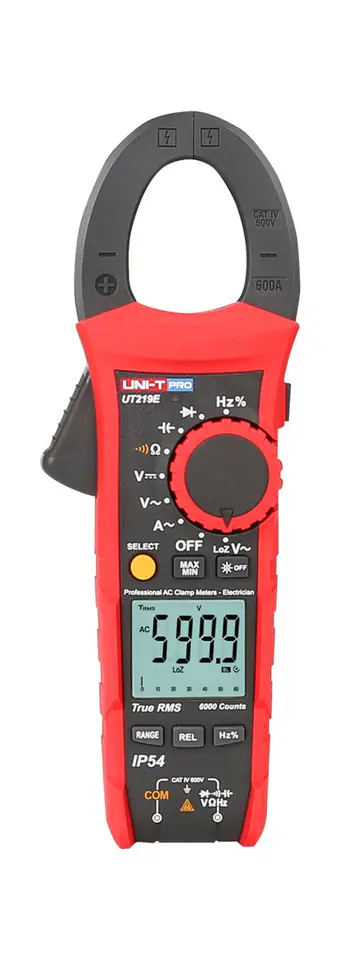

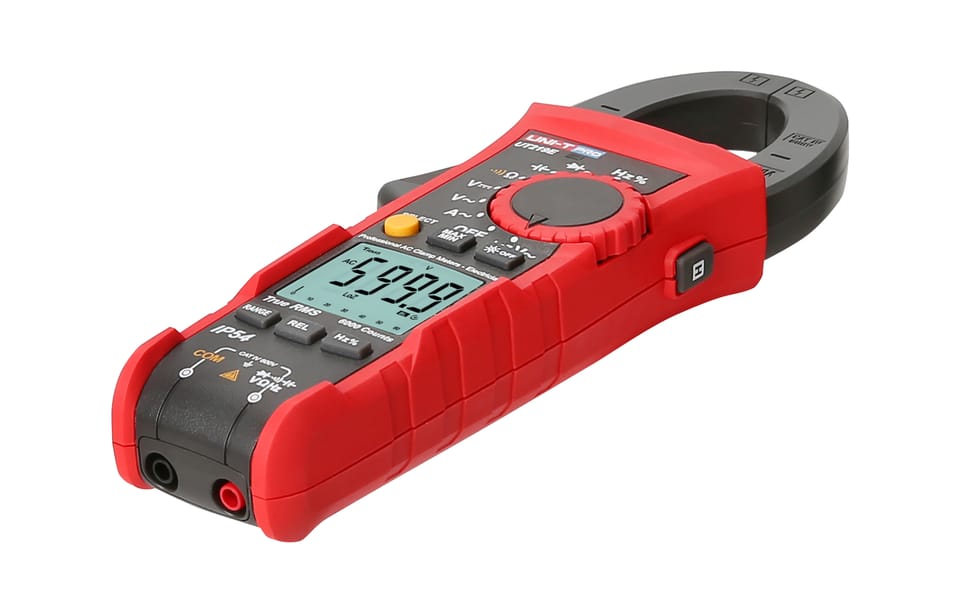

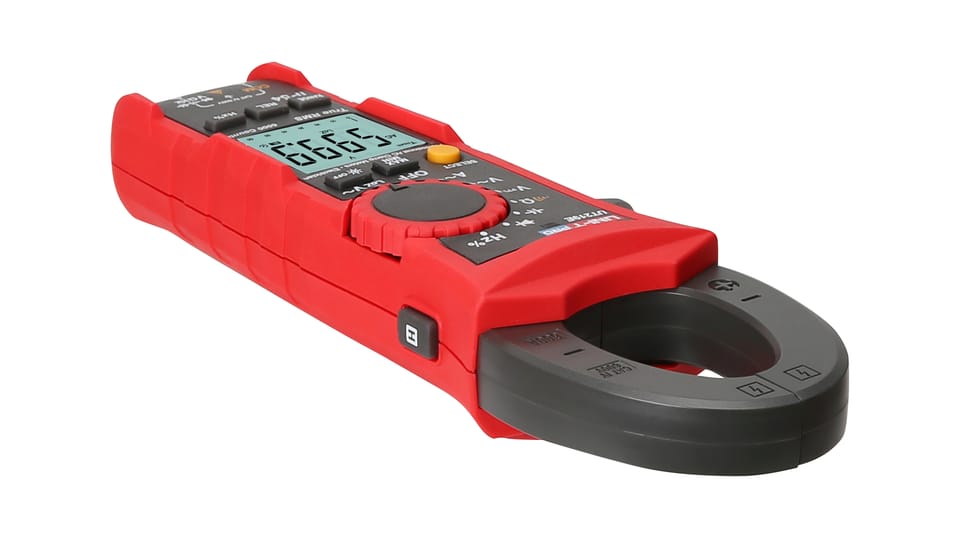

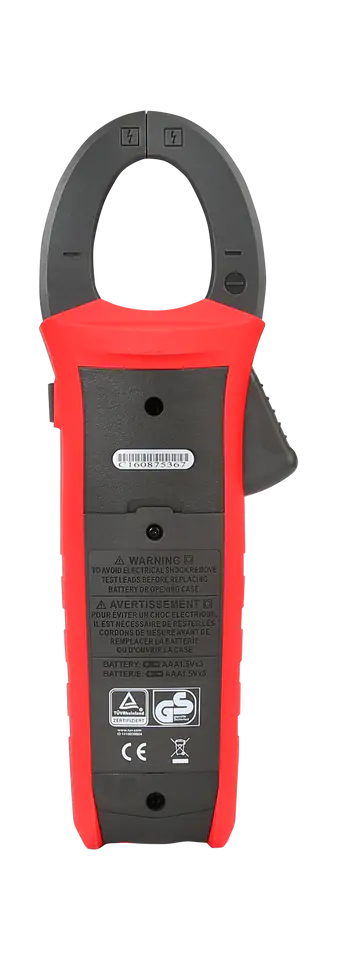

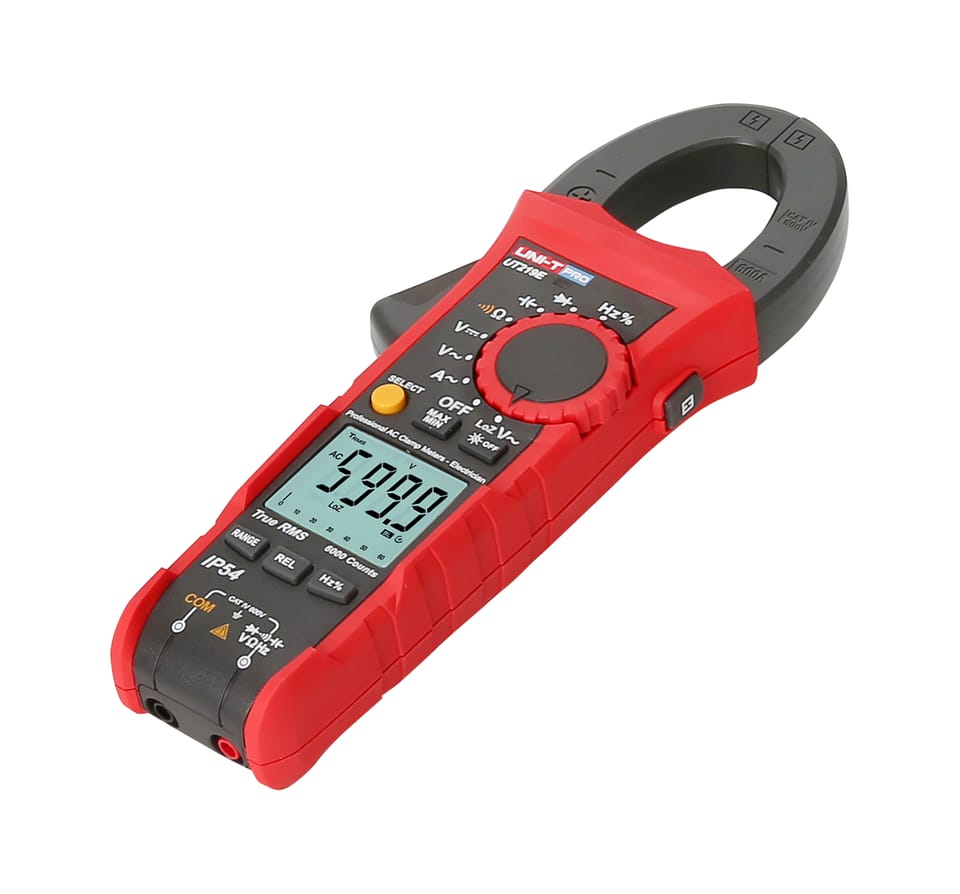

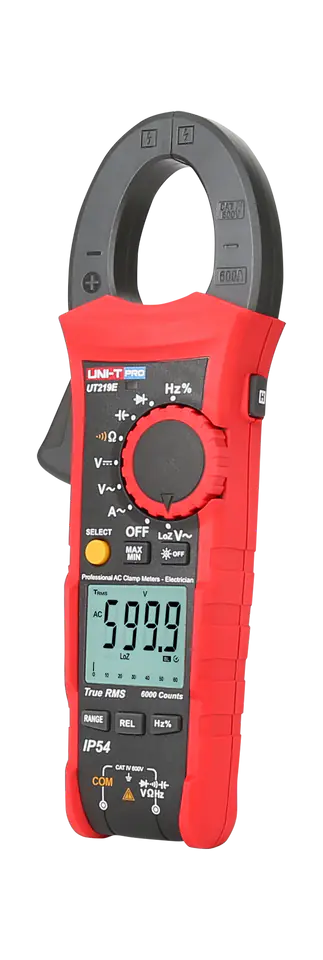

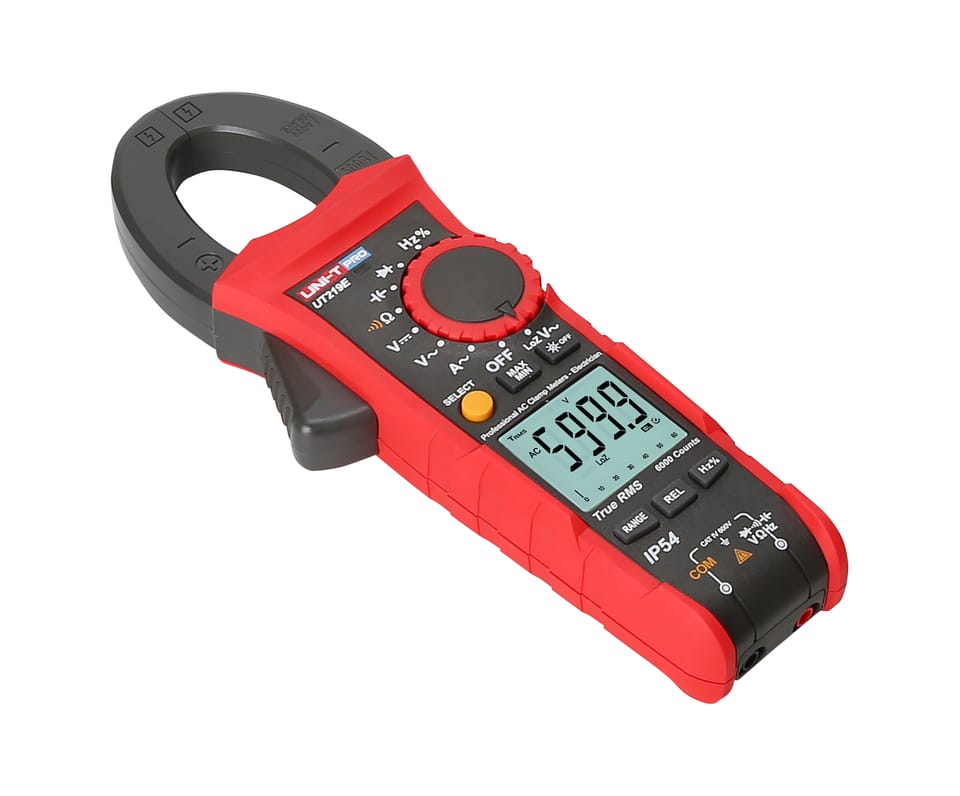

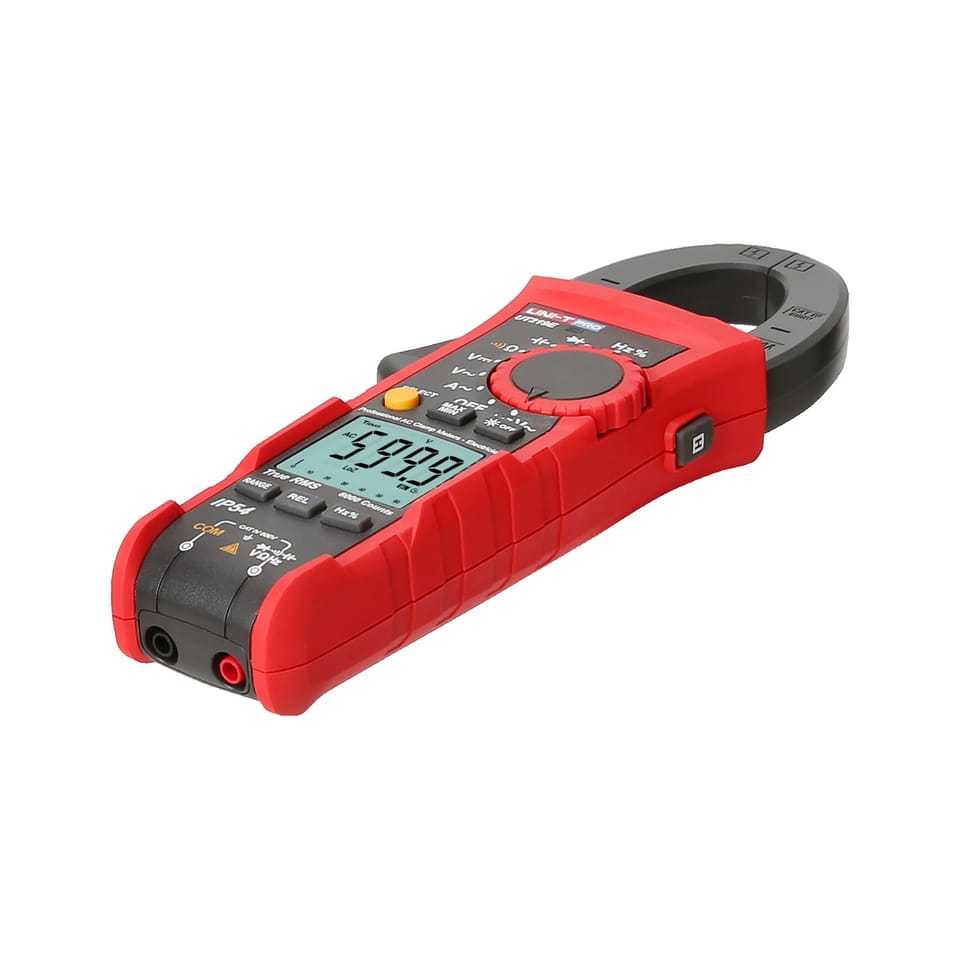

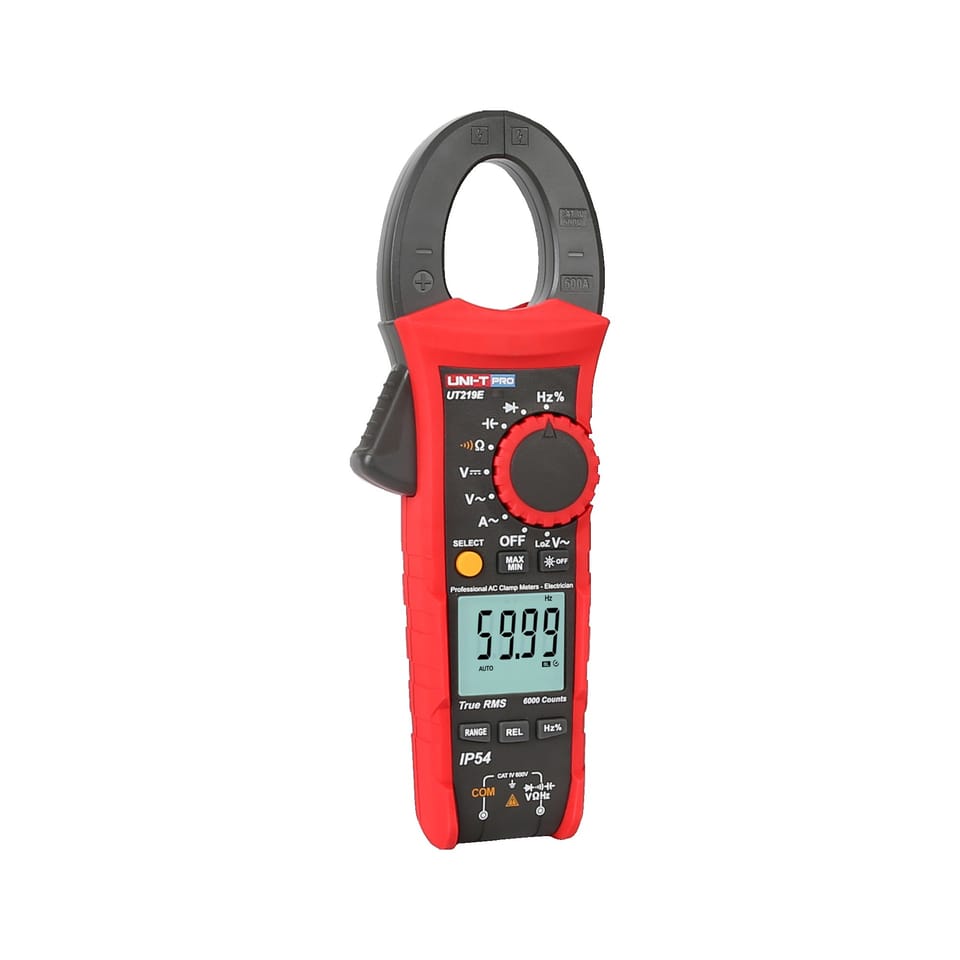

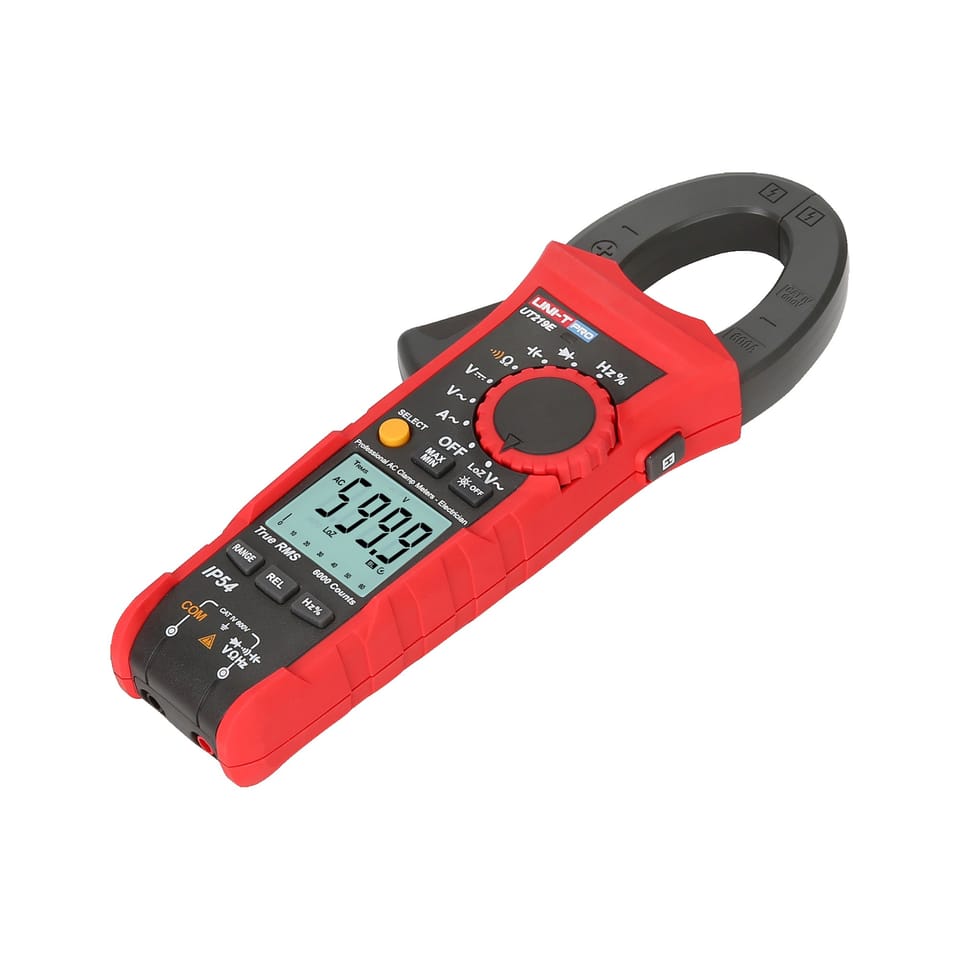

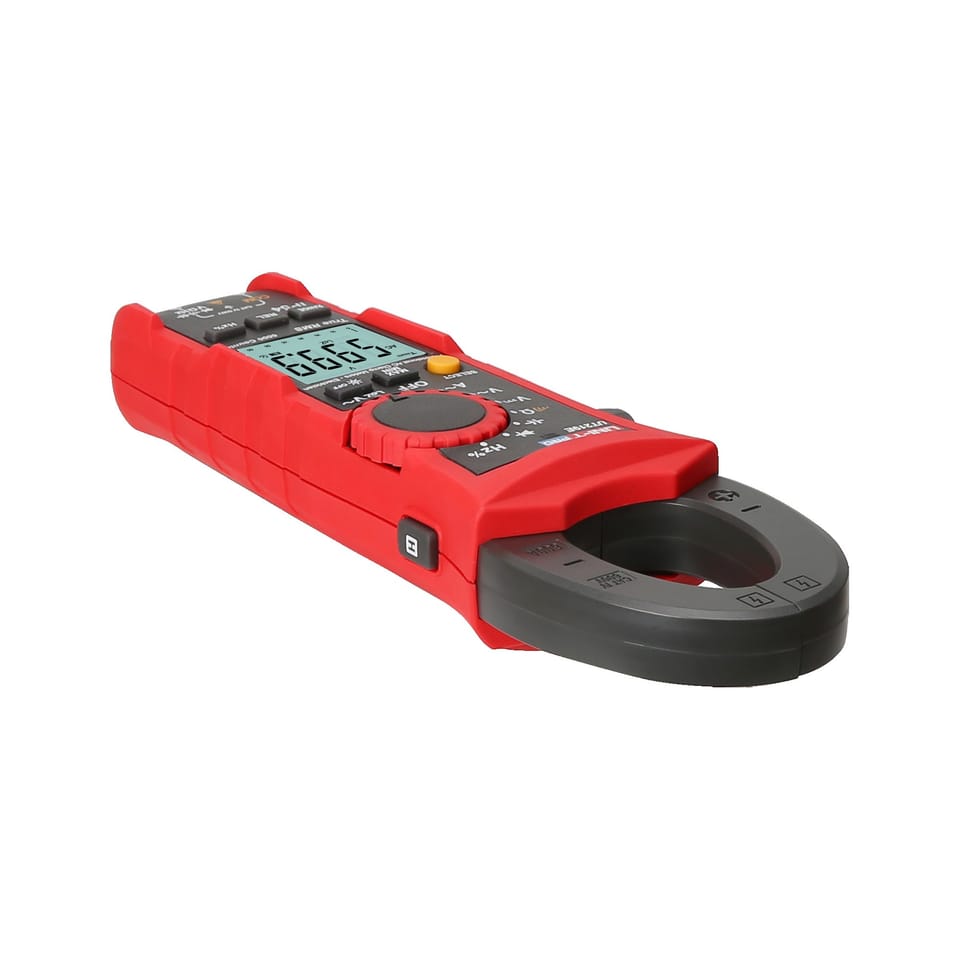

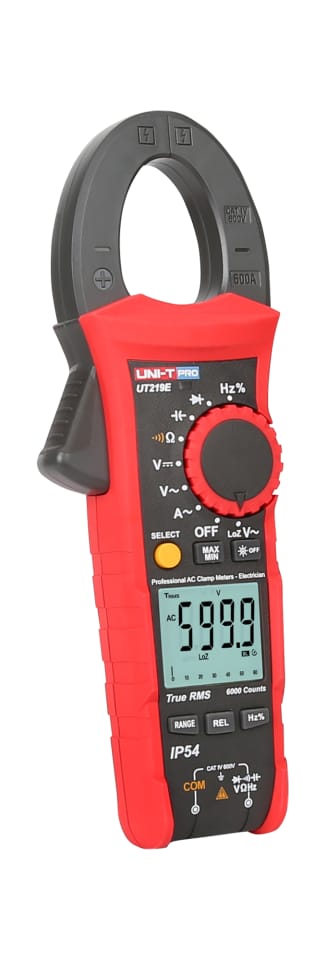

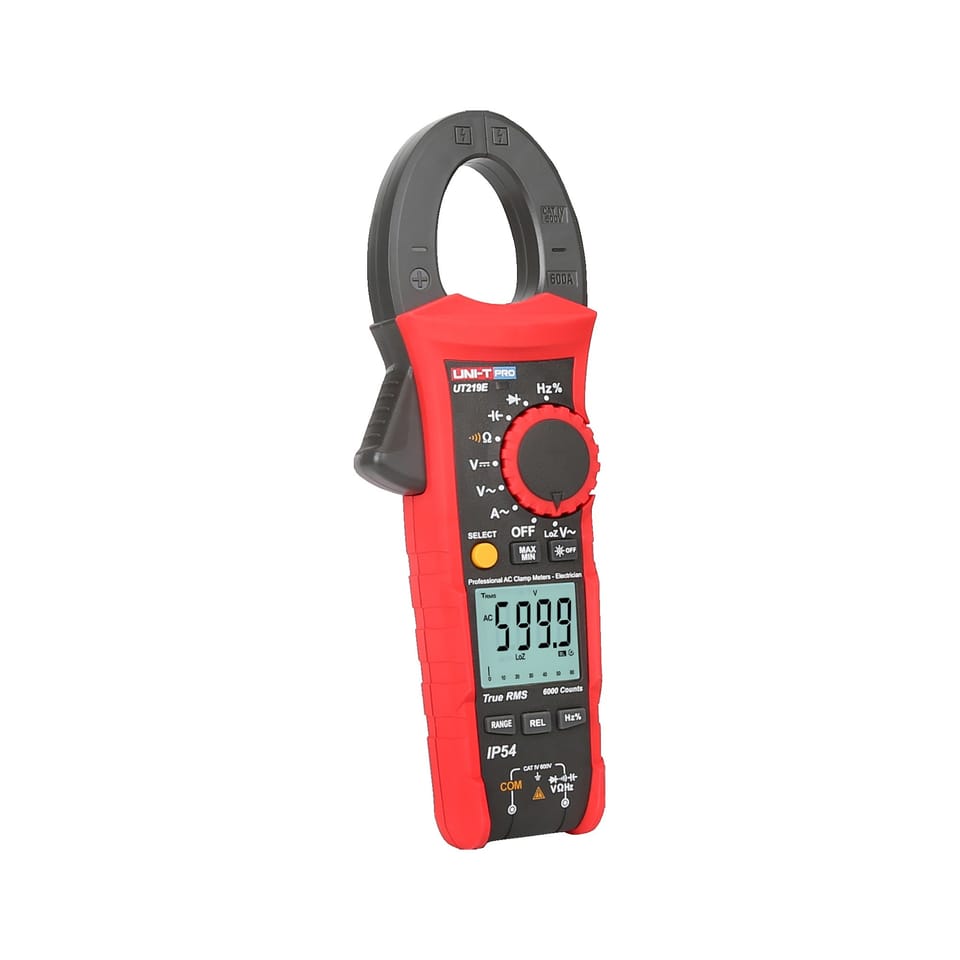

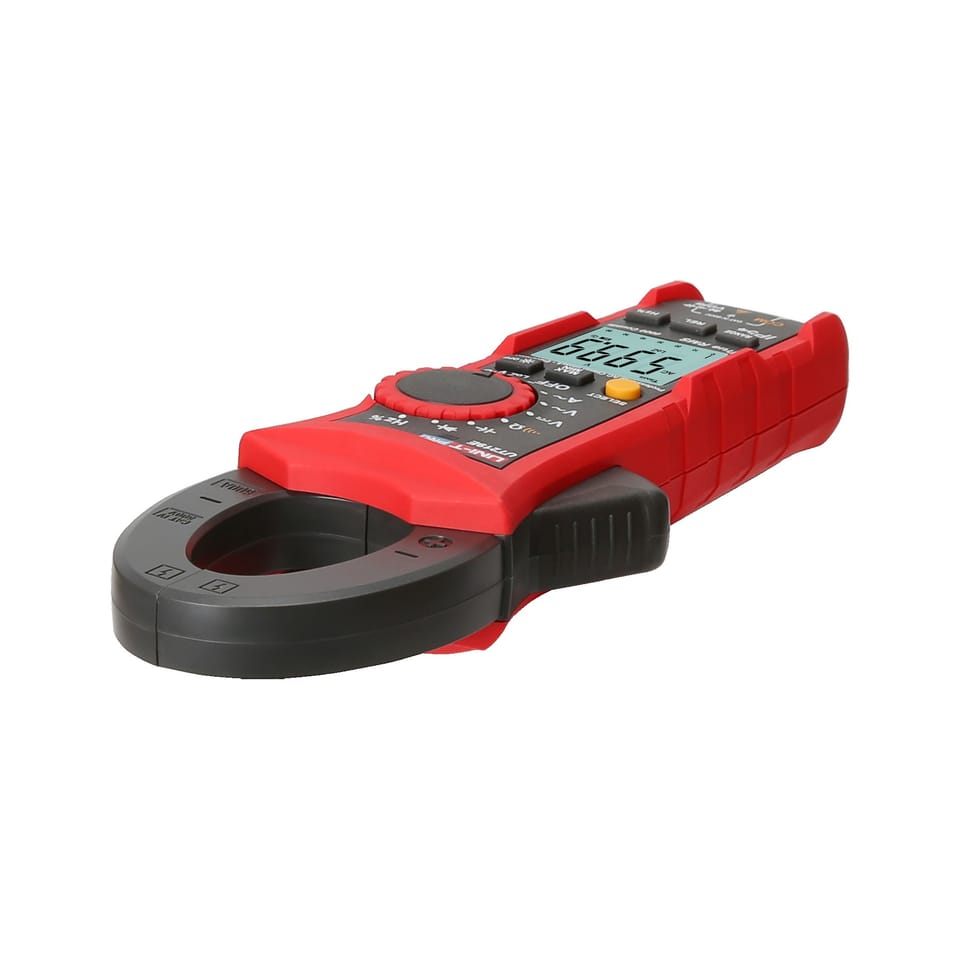

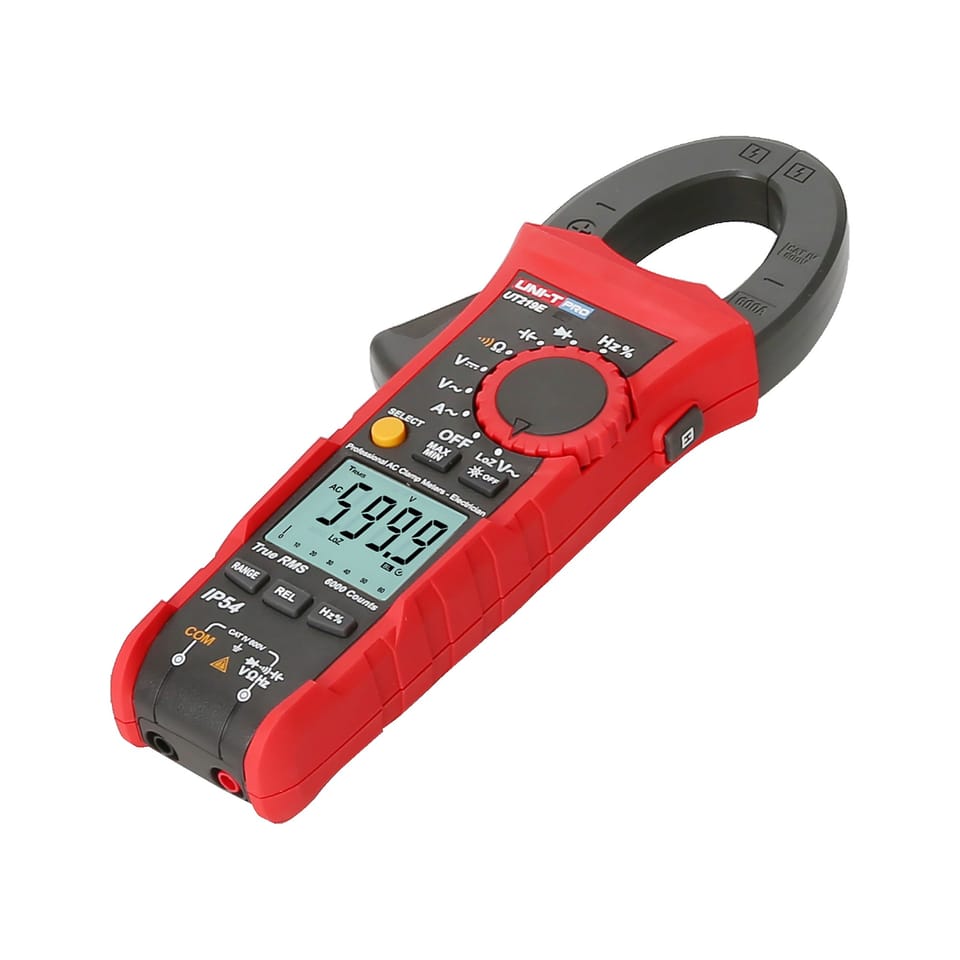

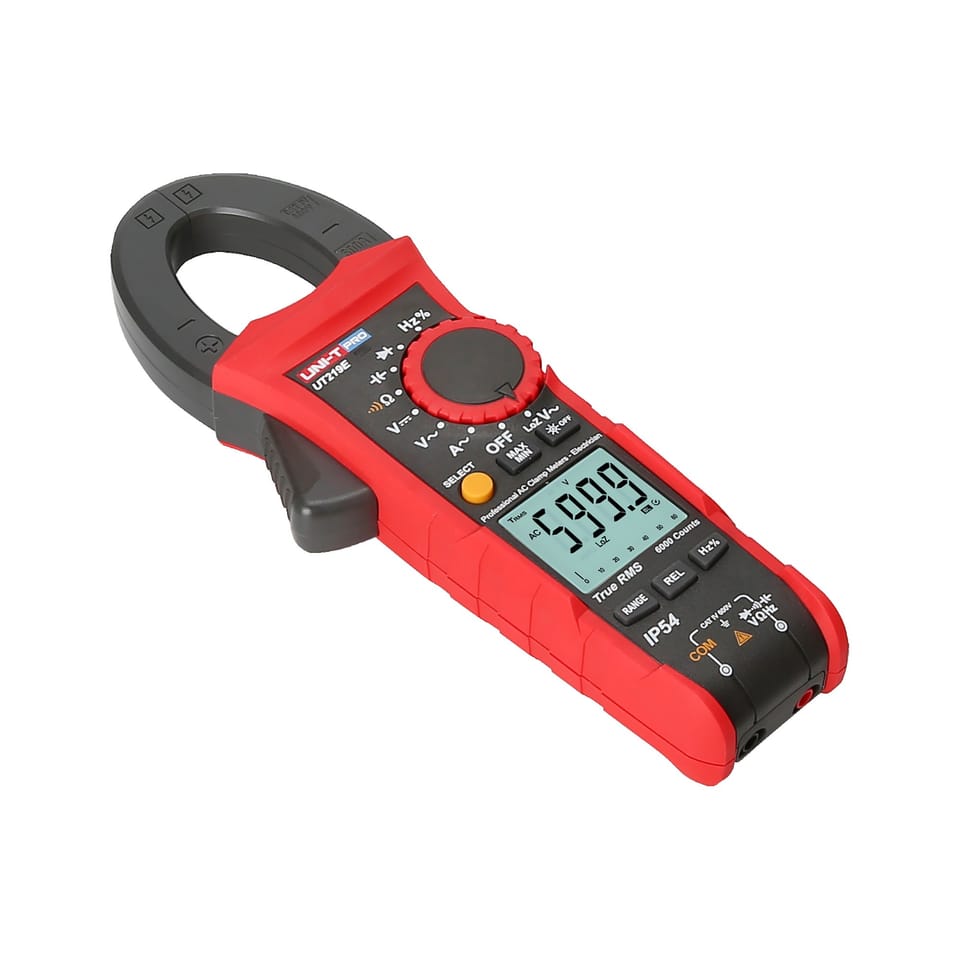

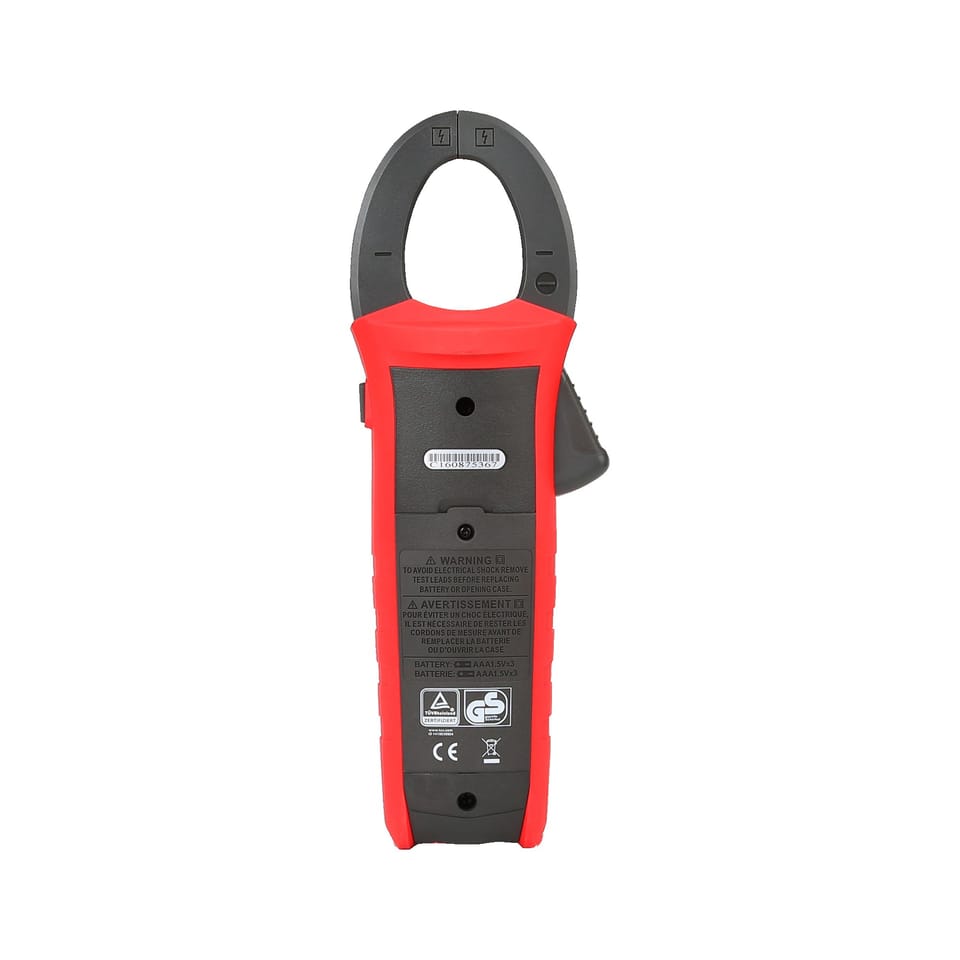

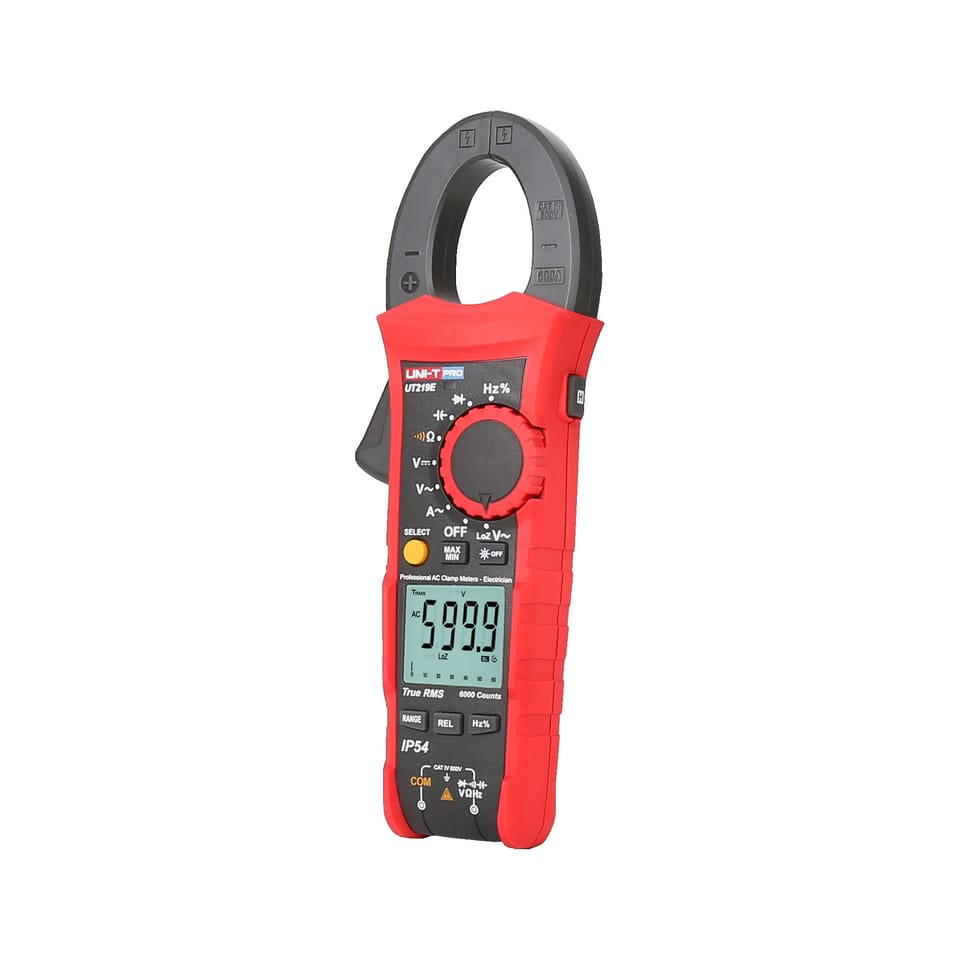

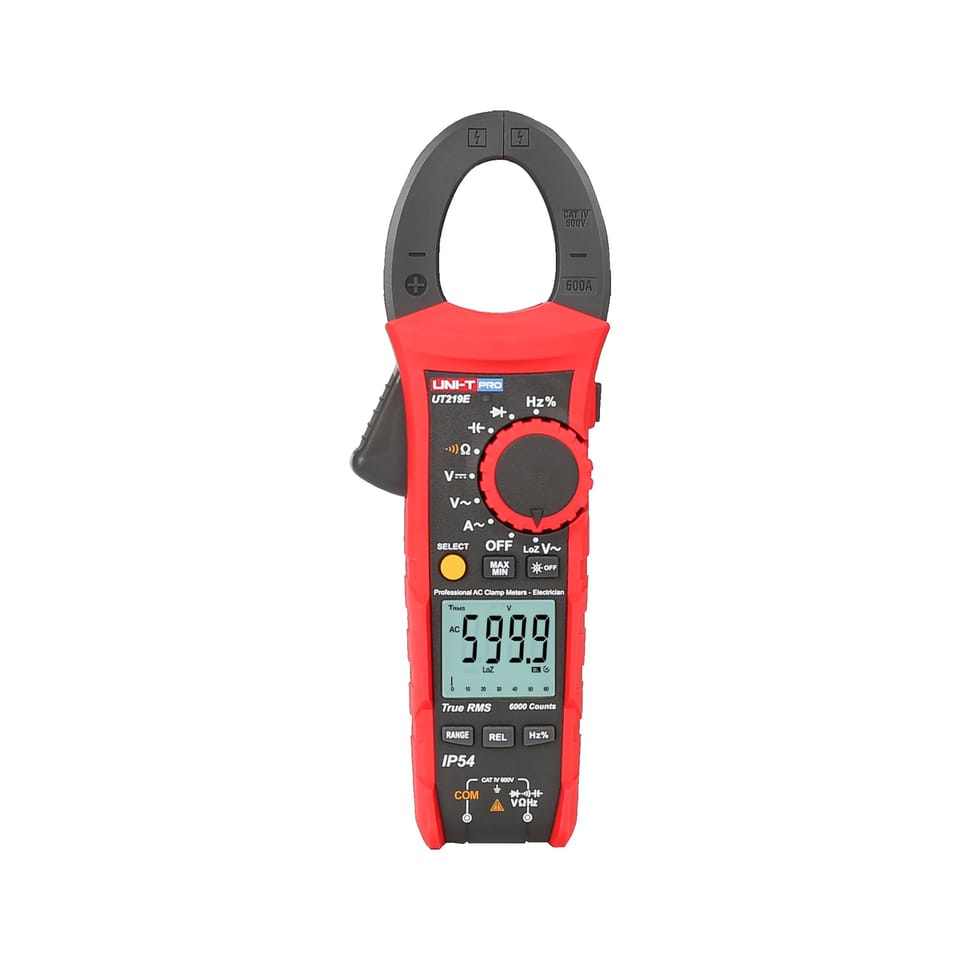

Clamp meter Uni-T PRO UT219E

MEASURING RANGES
AC: 600 A ? (1,8%+6); (measured current intensity frequency range: 40~400Hz)
DC voltage: 600 V ? (0,6%+3)
AC voltage: 600 V ? (1%+6); (measured voltage frequency range: 40~400Hz)
AC voltage for sources with low internal impedance: 600 V ? (2,5%+6)
Resistance: 60 MOhm ? (1%+3)
Capacity: 60 mF ? (4%+7)
Frequency: 10 Hz~10 MHz ? (0,1%+6)
Fill factor: 0.1%-99.9% ? (2,6%+7)
Diode Test: 3V
Checking the continuity of the circuit
ADDITIONAL FEATURES
Automatic/manual change of measuring ranges
True RMS measurement
Analog bargraph: 31 segments (number of measurements: 10/s)
Freezing of the last indication
Relative measurement mode (zero function)
Max/MIN value recording
Backlit LCD display
Auto Power Off
Low battery indicator
Maximum reading: 6000
GENERAL FEATURES
Protection class: IP54
Input impedance of voltage measurement: >= 10 MOhm
Number of measurements: 3/s
Power supply: 3x 1,5 V (R03)

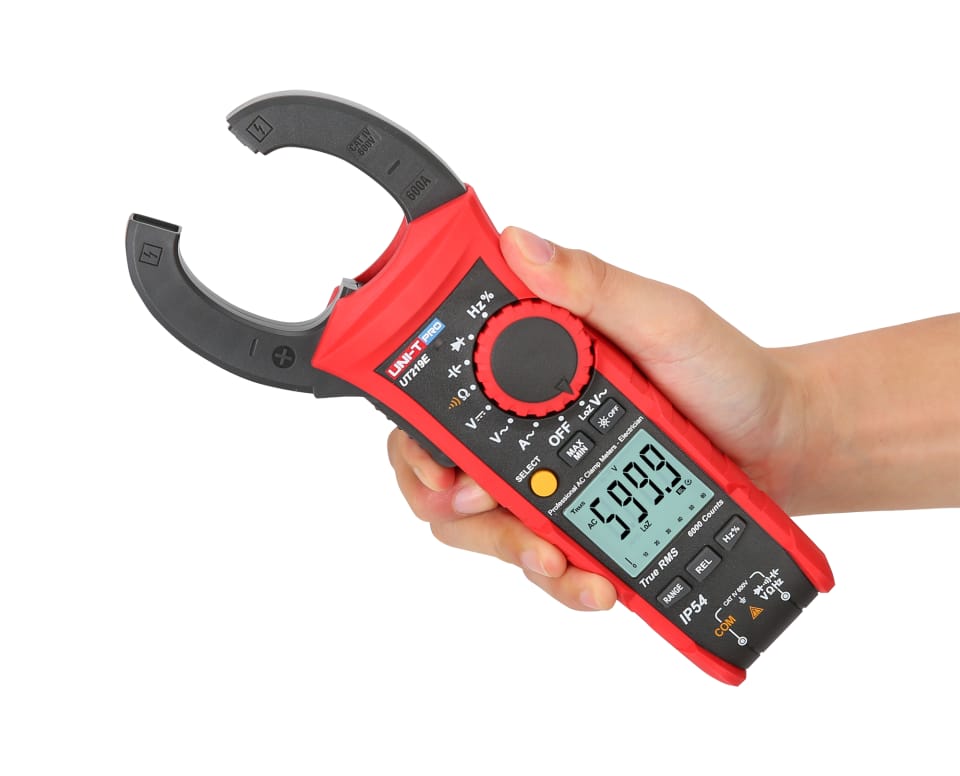

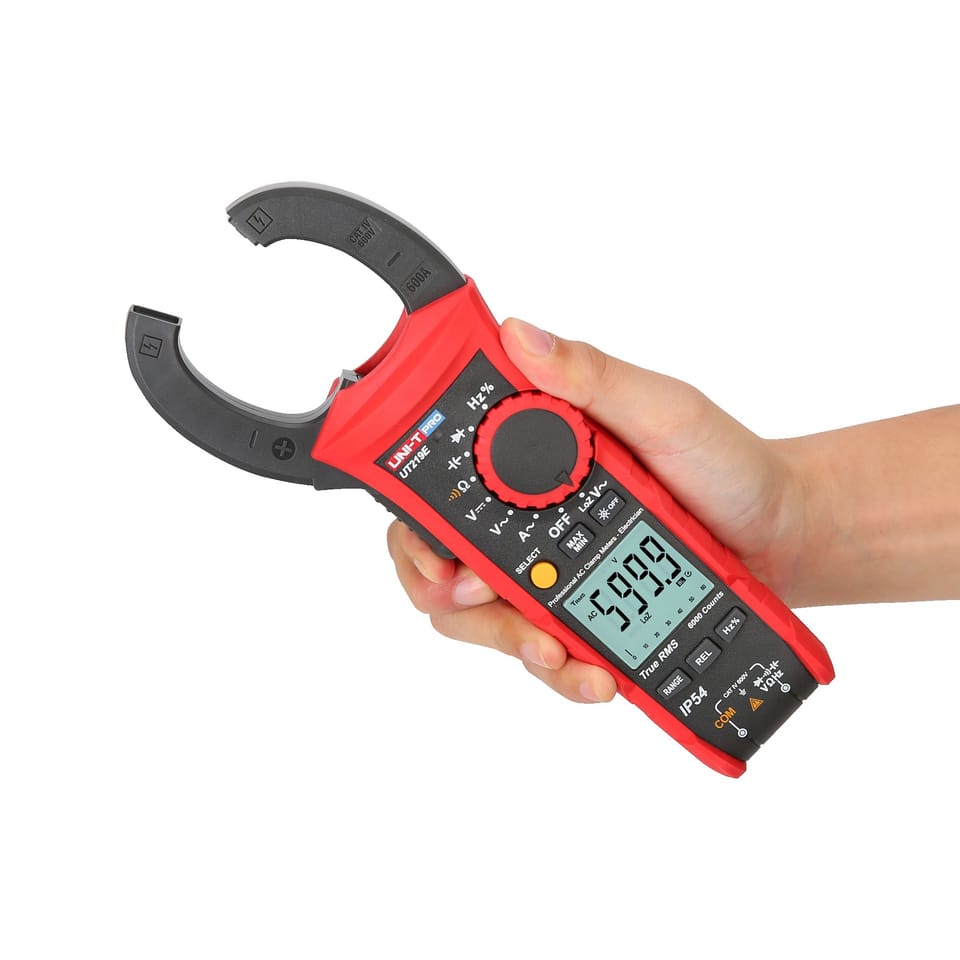

Jaw opening: 33 mm
Display size: 35 x 31 mm
Dimensions: 234,6 x 82 x 47 mm
Weight: 310 g

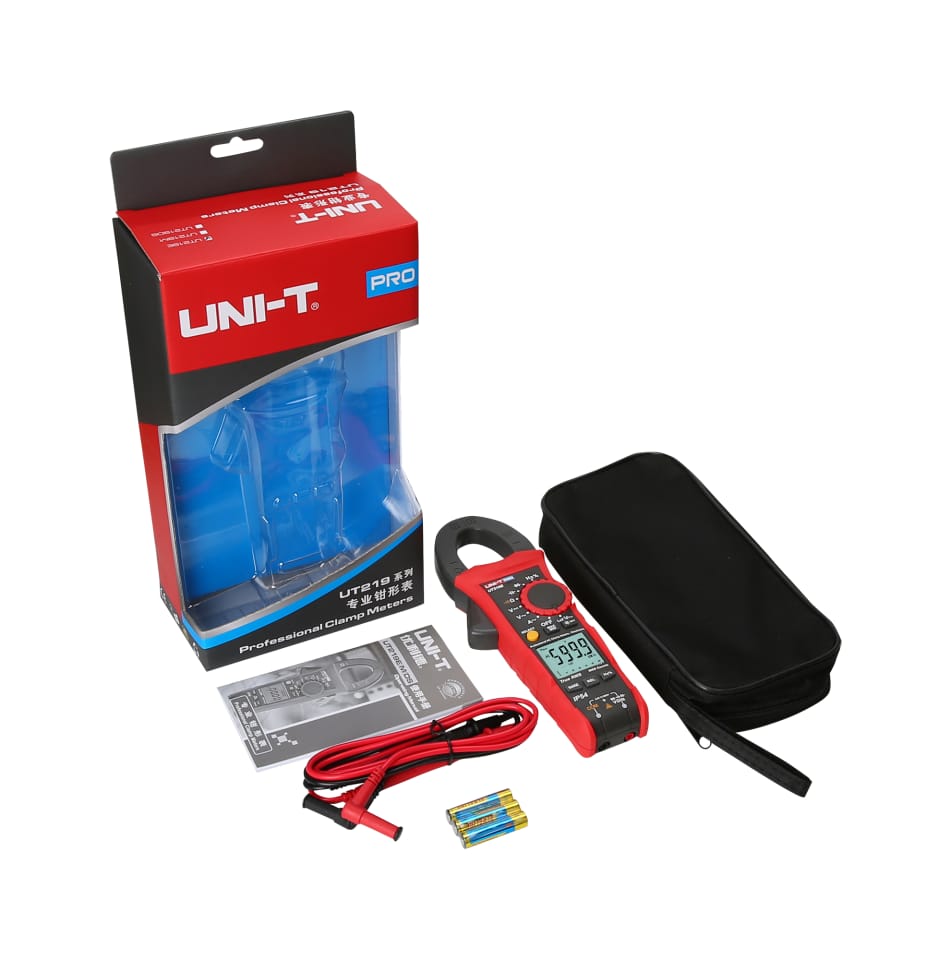

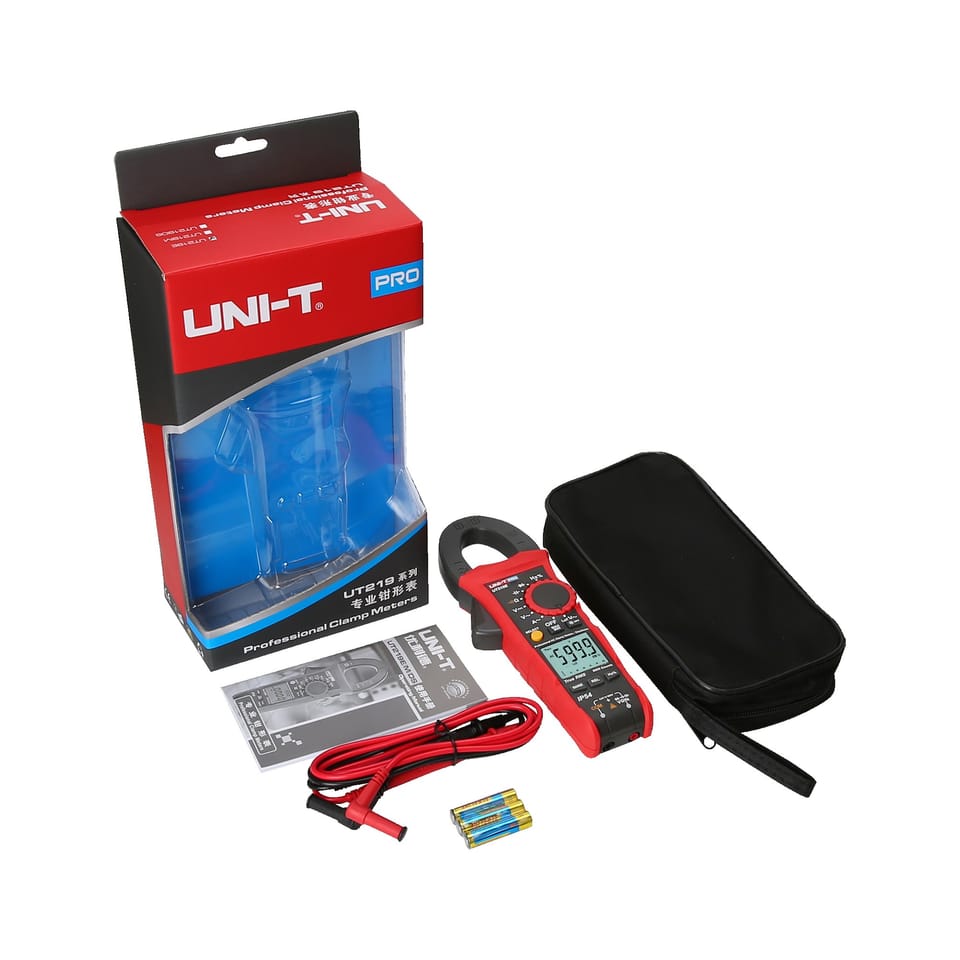

Accessories: Batteries, test leads, cases
