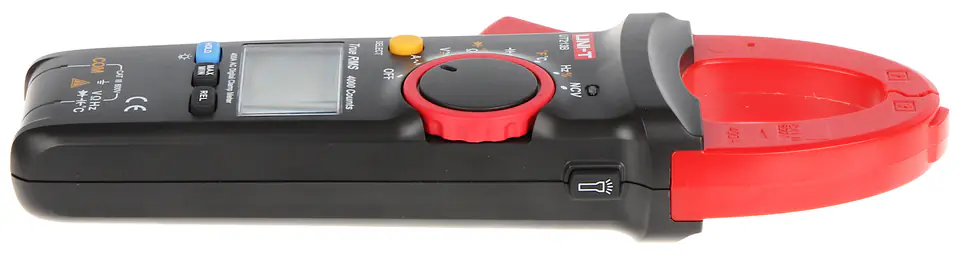

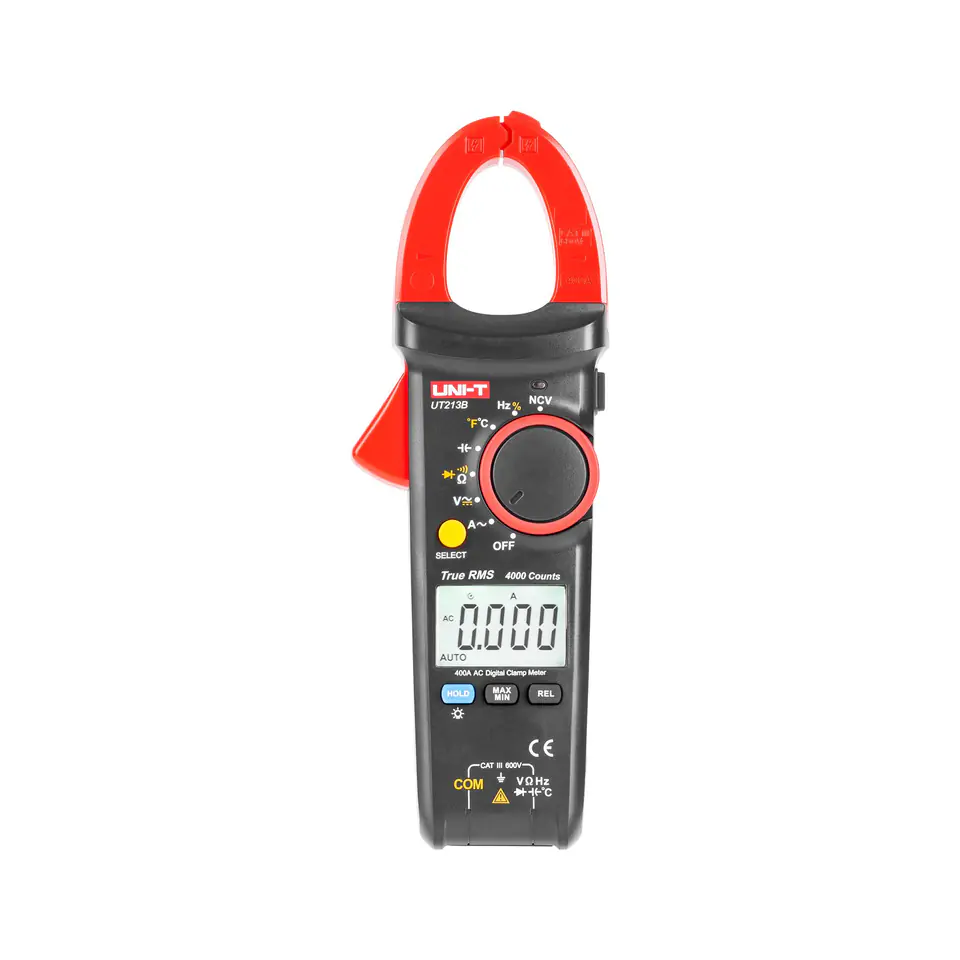

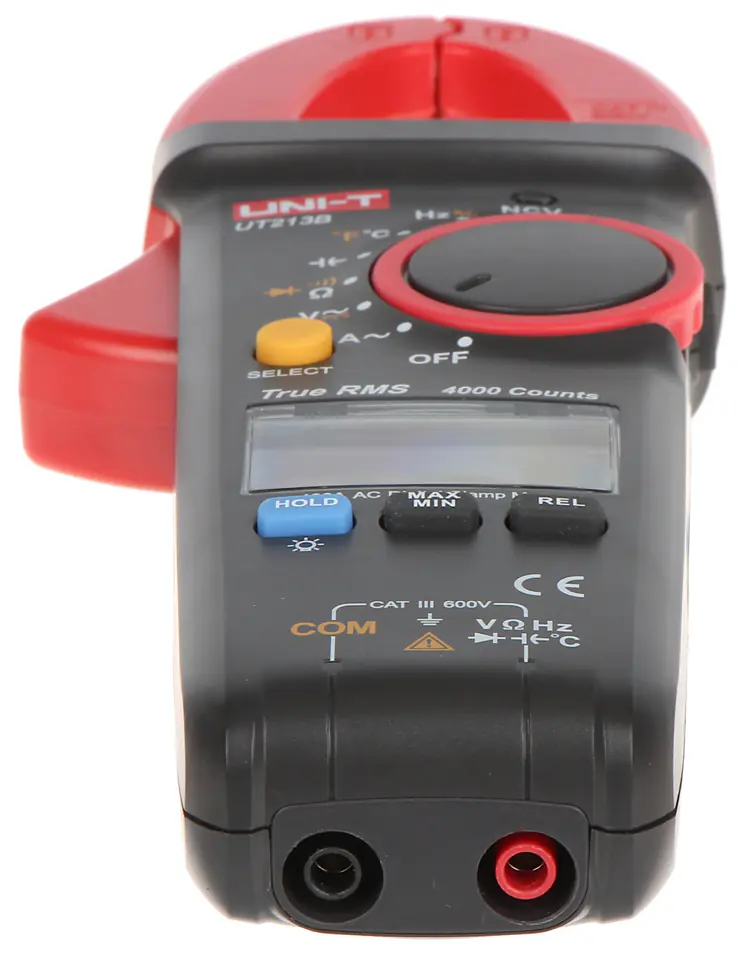

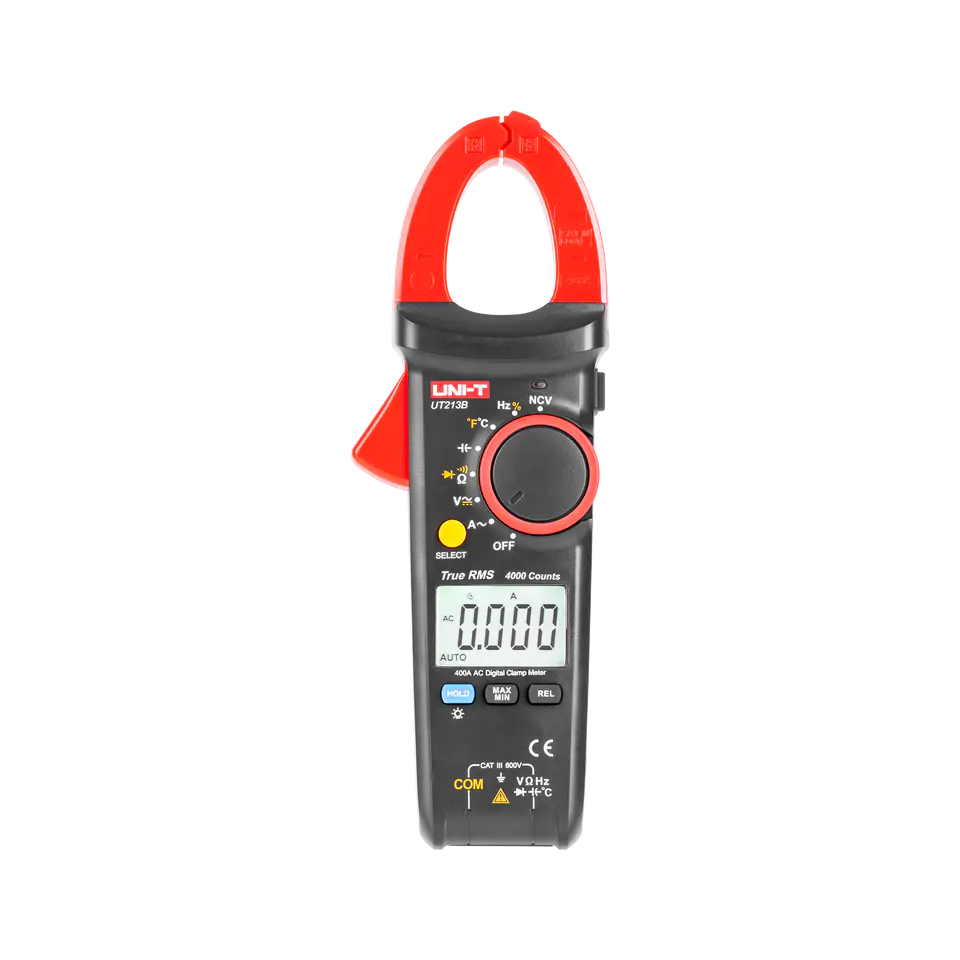

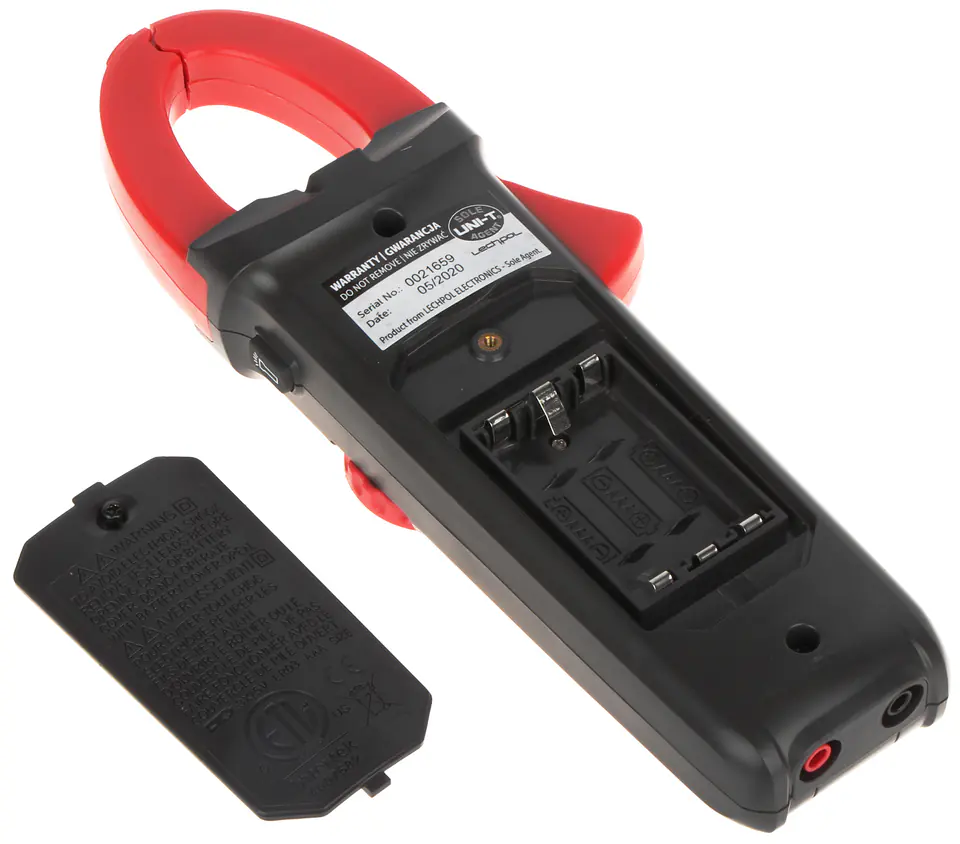

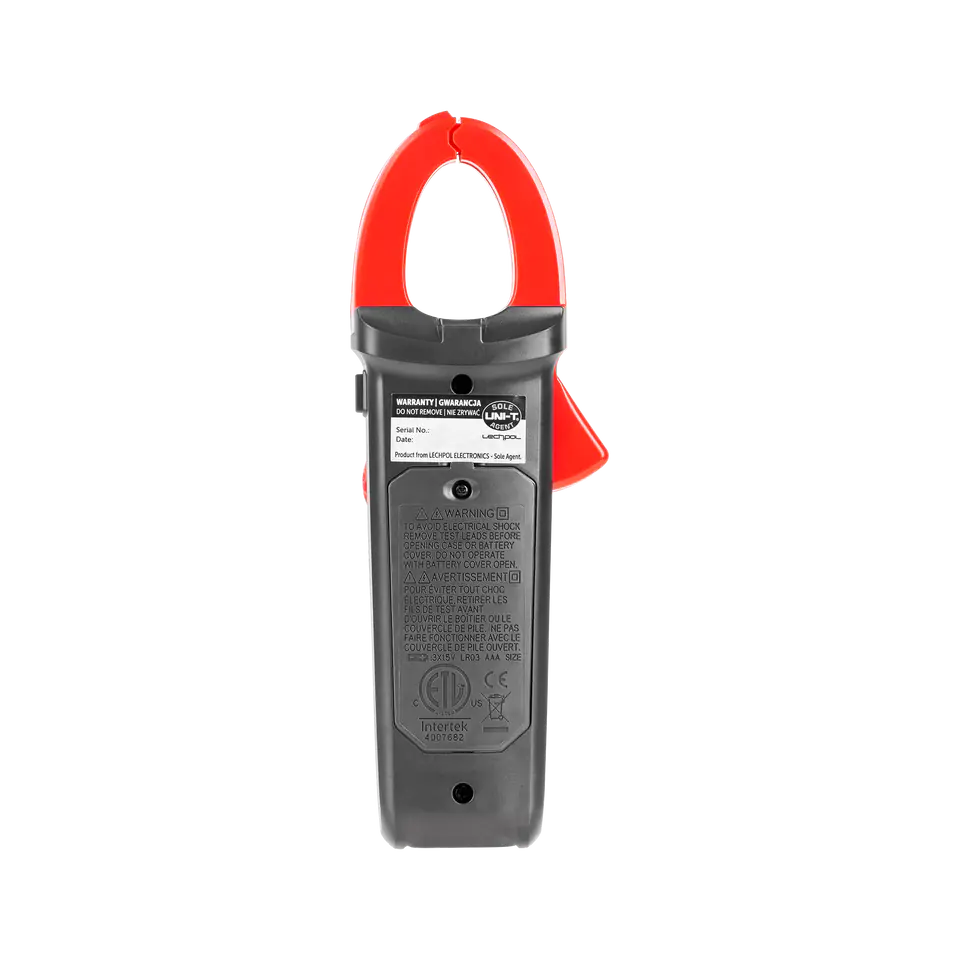

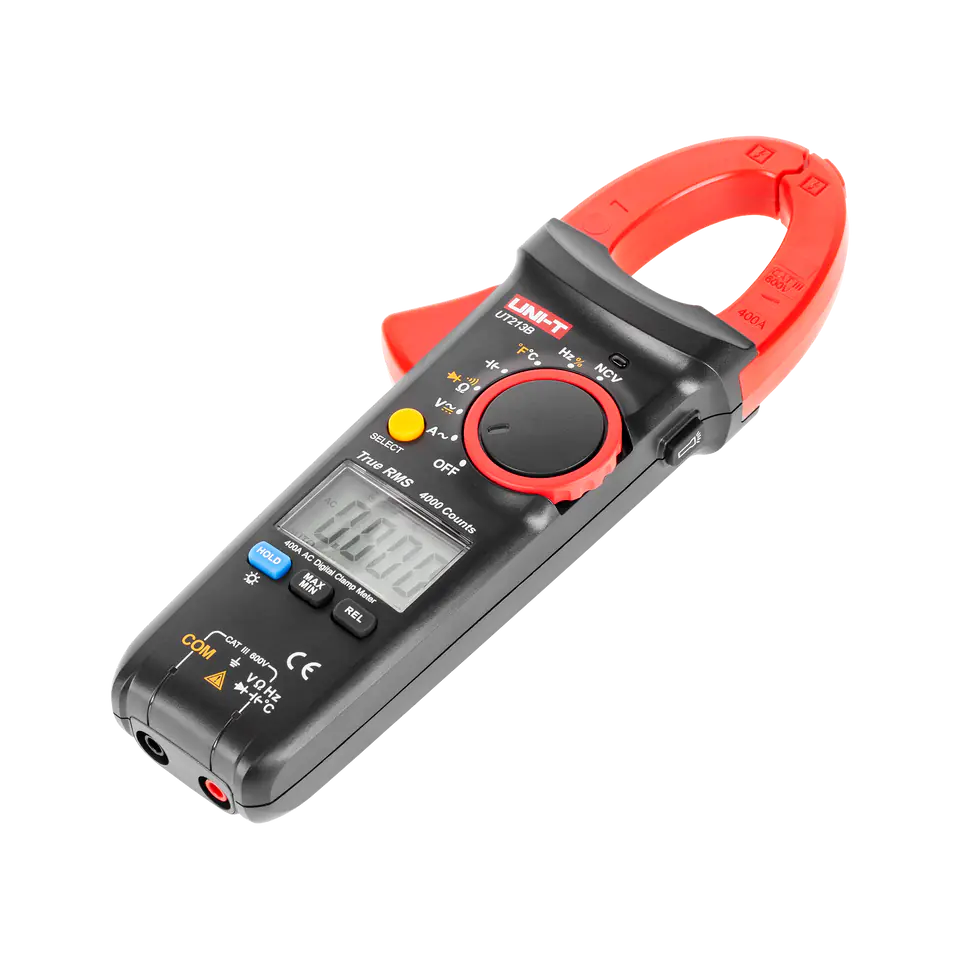

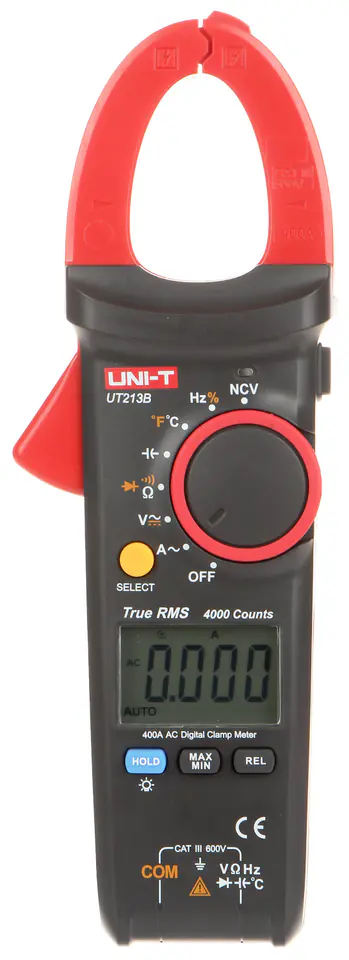

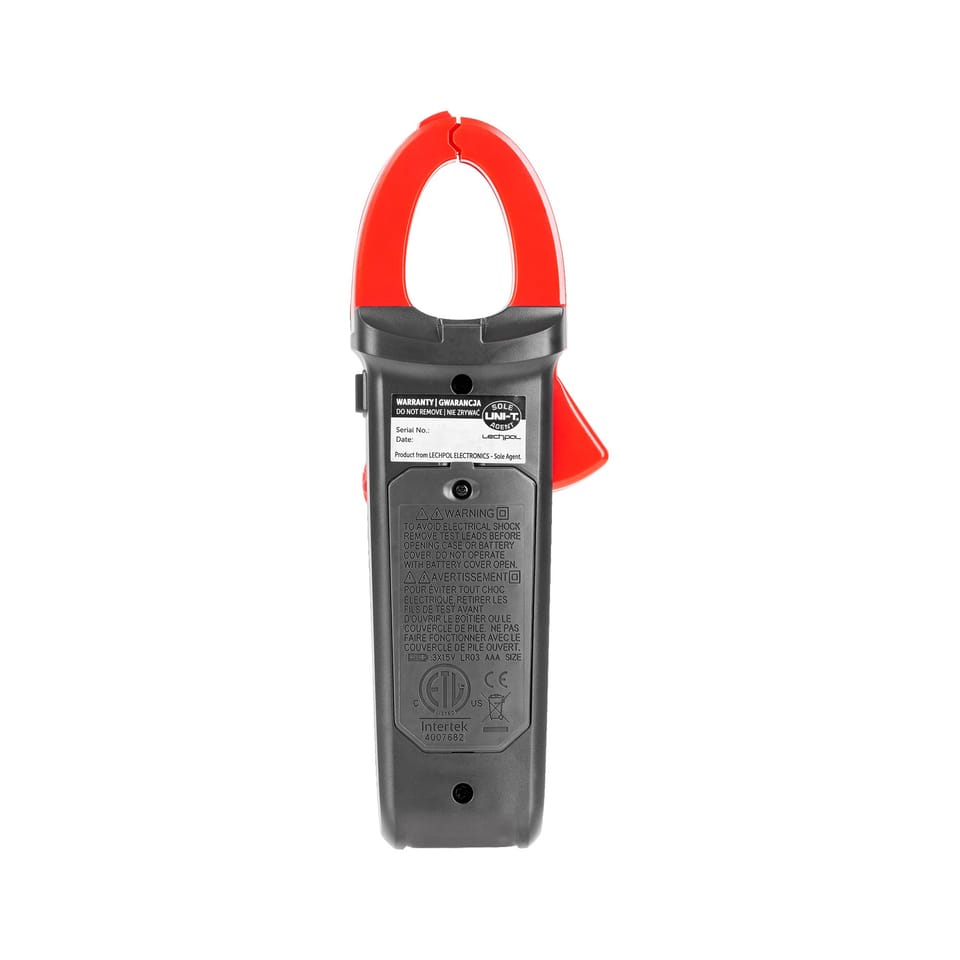

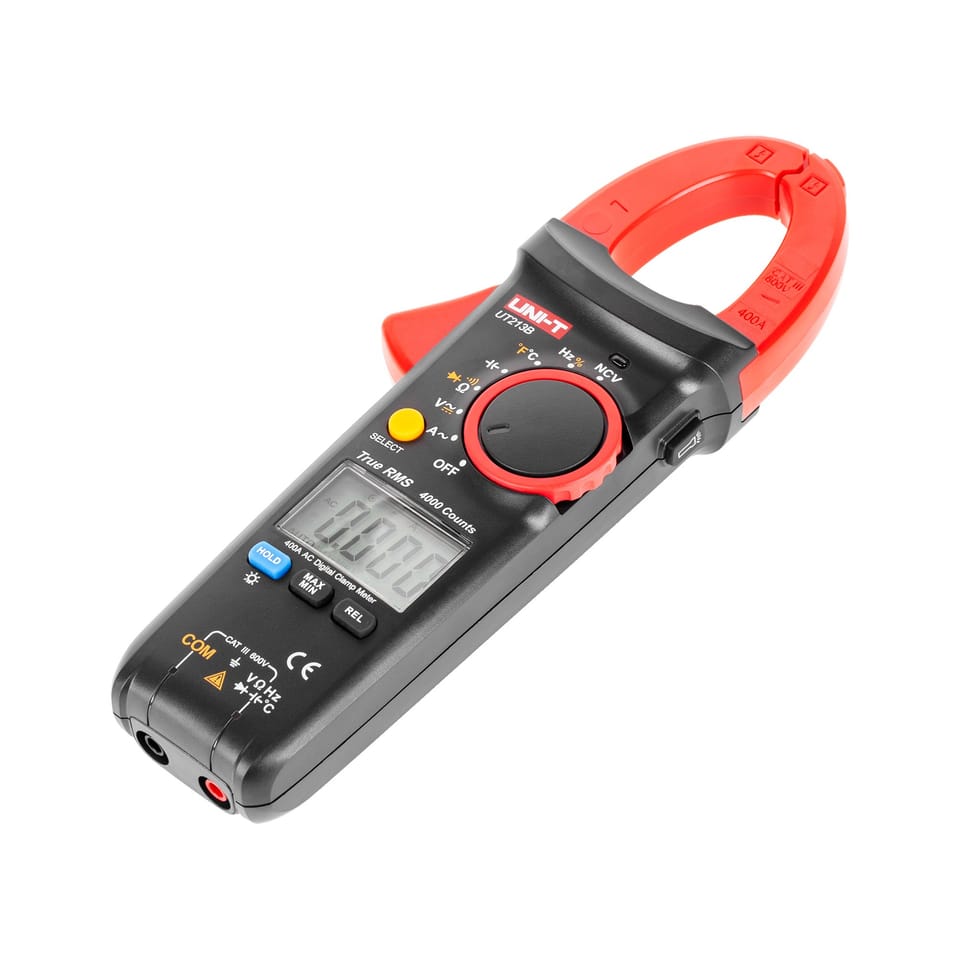

Clamp meter model UT213B

€46.22
Shipping from warehouse: ⁨L1⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Uni-T
Product code:
UT-213B / 5901890018203

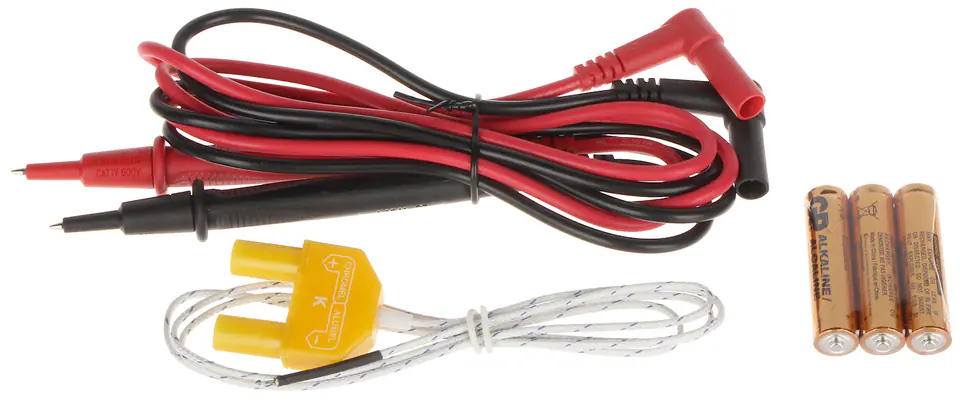

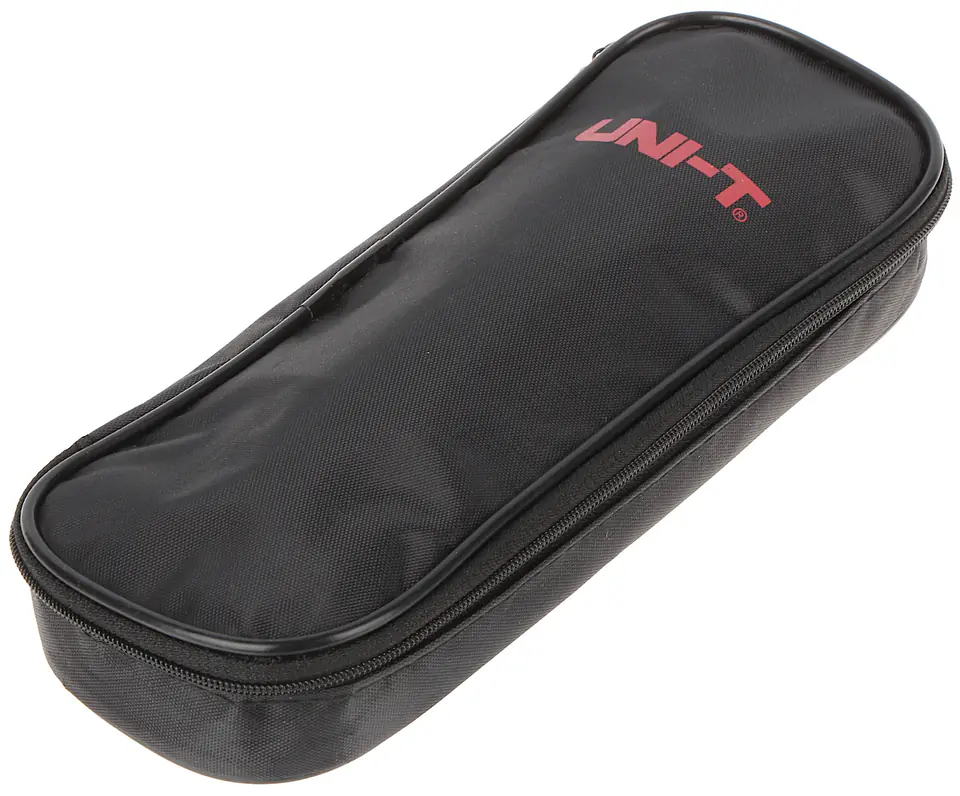

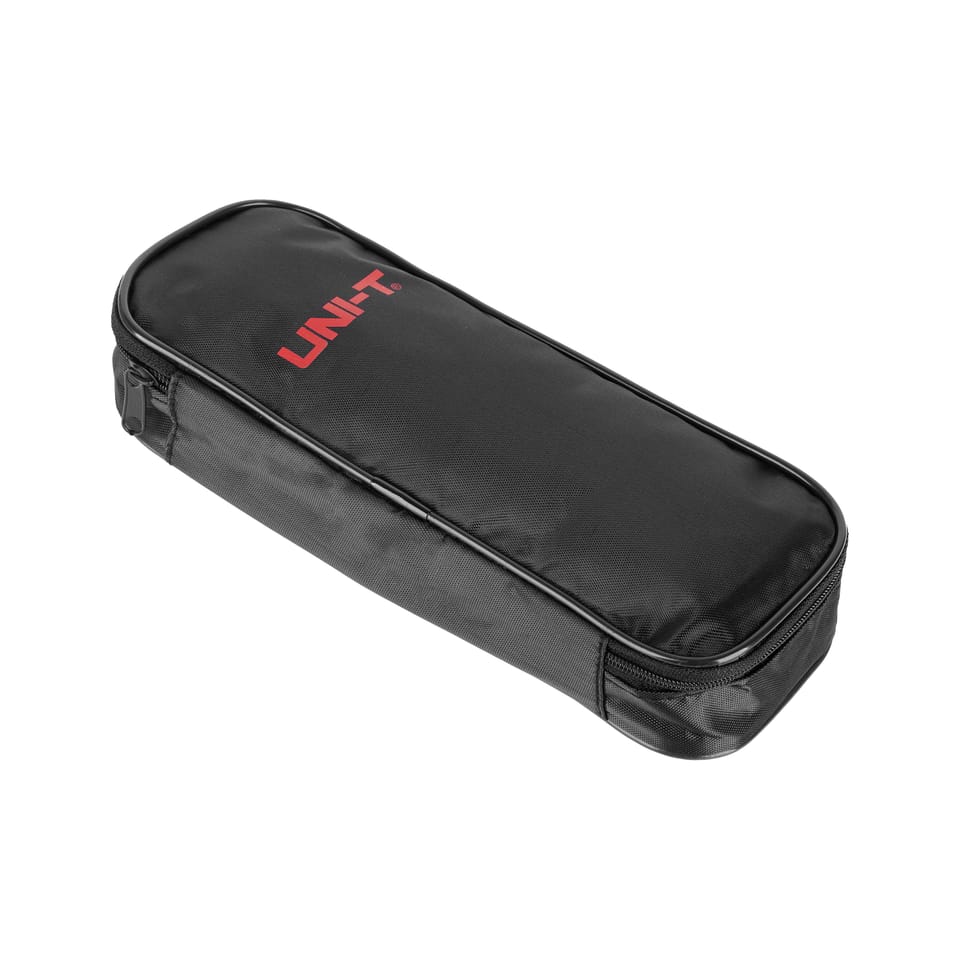

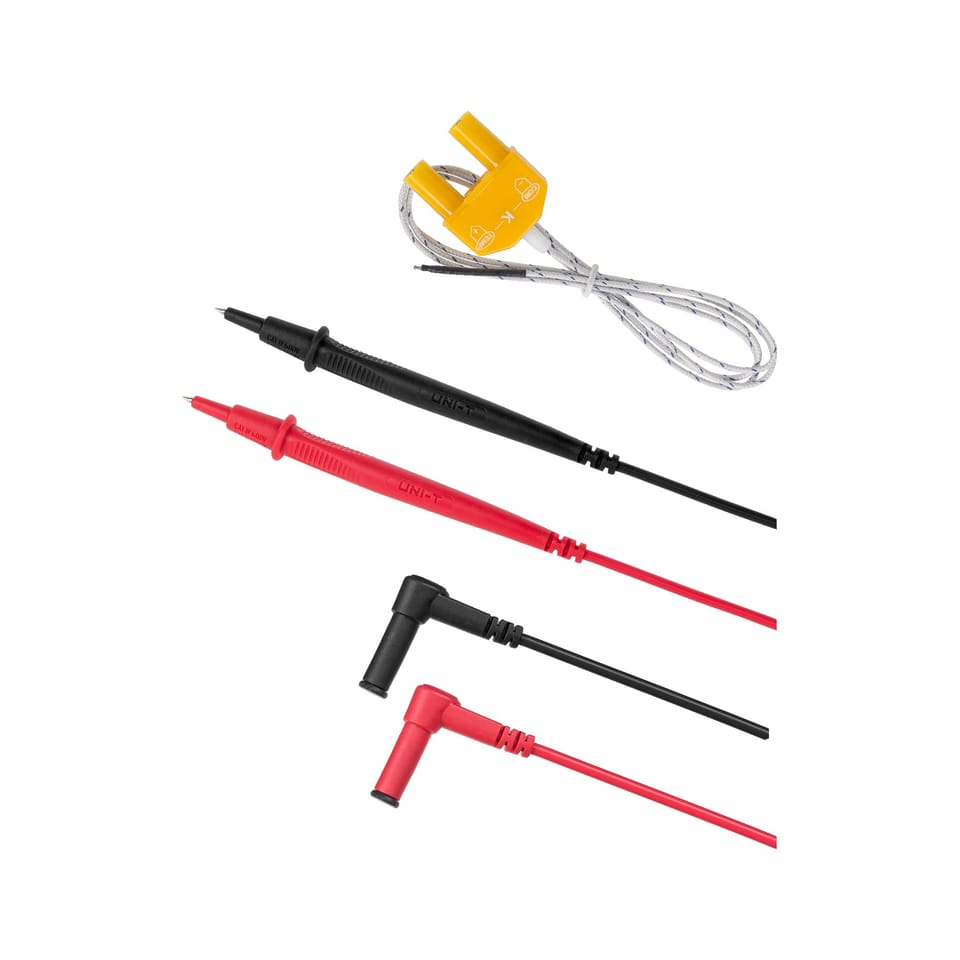

MEASURING RANGEDC CONSTANT VOLTAGE: 400 mV / 4 V / 40 V / 400 V / 600 V ? (0,8%+1) AC voltage: 4V/40V/400V/600V ? (1,2%+5) AC: 40 A / 400 A ? (1,8%+9) Resistance: 400 Ohm / 4 kOhm / 40 kOhm / 400 kOhm / 4 MOhm / 40 MOhm ? (1%+2) Capacity: 40 nF / 400 nF / 4 ? F / 40 ? F/400 ? F / 4 mF / 40 mF ? (4%+5) Frequency: 10Hz~1MHz ? (0,1%+4) Temperature: -40? ~ 1000? ? (1%+3); -40? ~ 1832? ? (1%+6) Diode test: approx. 1.5 VSchecking continuity of the circuitFilling factorADDITIONAL FUNCTIONSAutomatic change of measuring rangesElectric field detection function (NCV)Freezing the last indicationMeasurement True RMSDate measurementSize valuesMAX/MINSatluminated LCD screenLighting of the measurement siteAutomatic shutdownLow battery indicator: =Maximum reading: 4000CESU GENERALDIRECT voltage input inflation: >= 10 MOhm Jaw opening: 30 mmNumber of measurements: 3/sPower: 3x 1.5 V battery (R03)Display size: 38 x 24 mmDimensions: 220 x 75 x 40 mmWeight: 280 gAccessories: batteries, test leads, temperature probe, case

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
