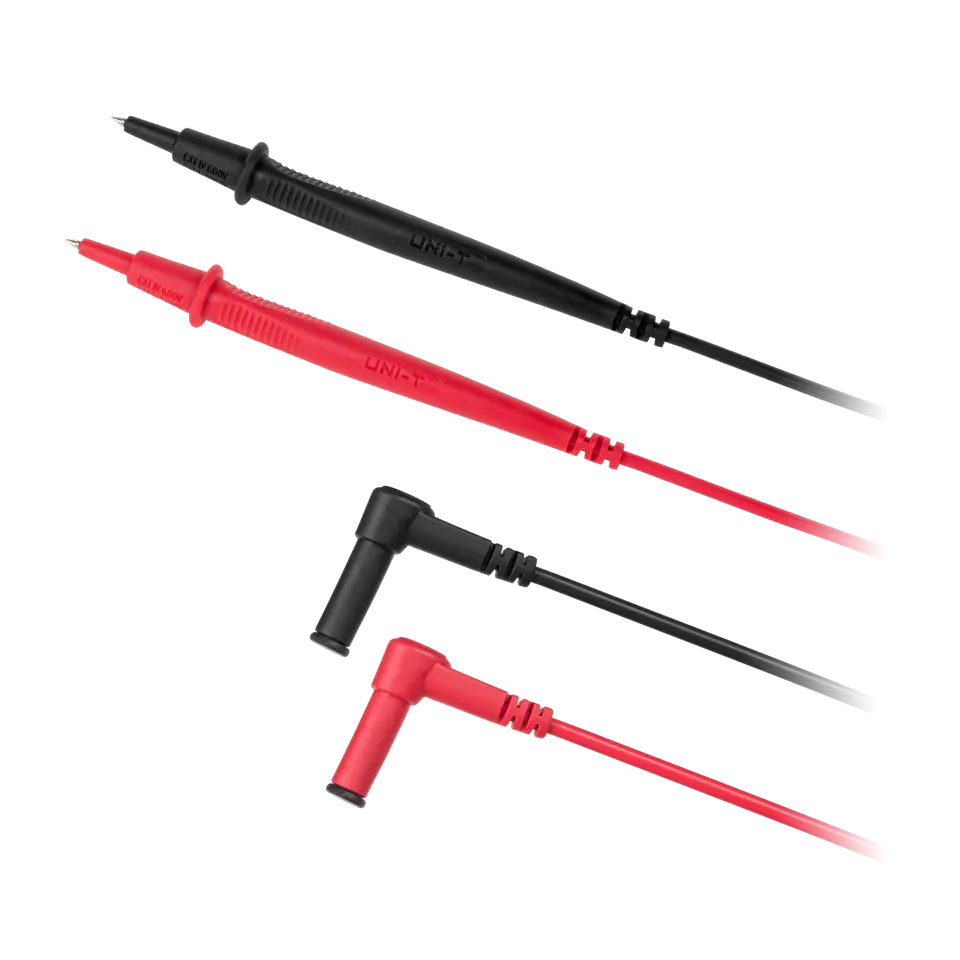

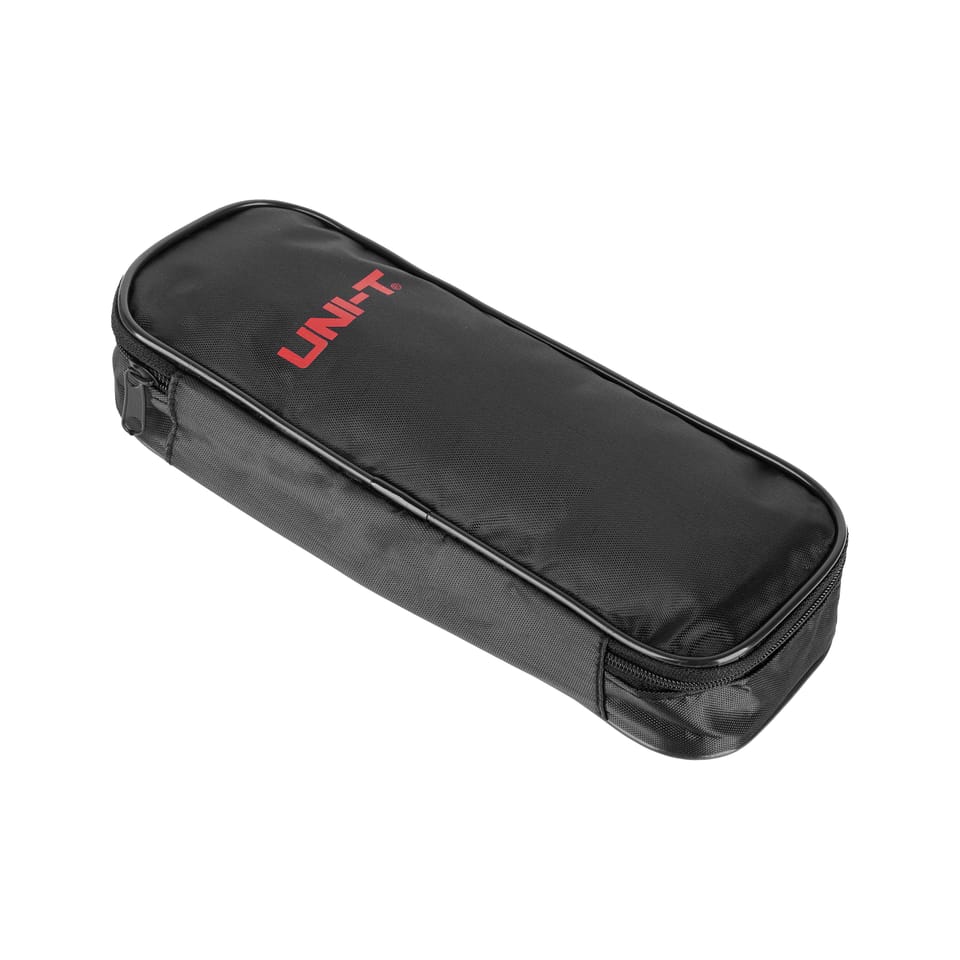

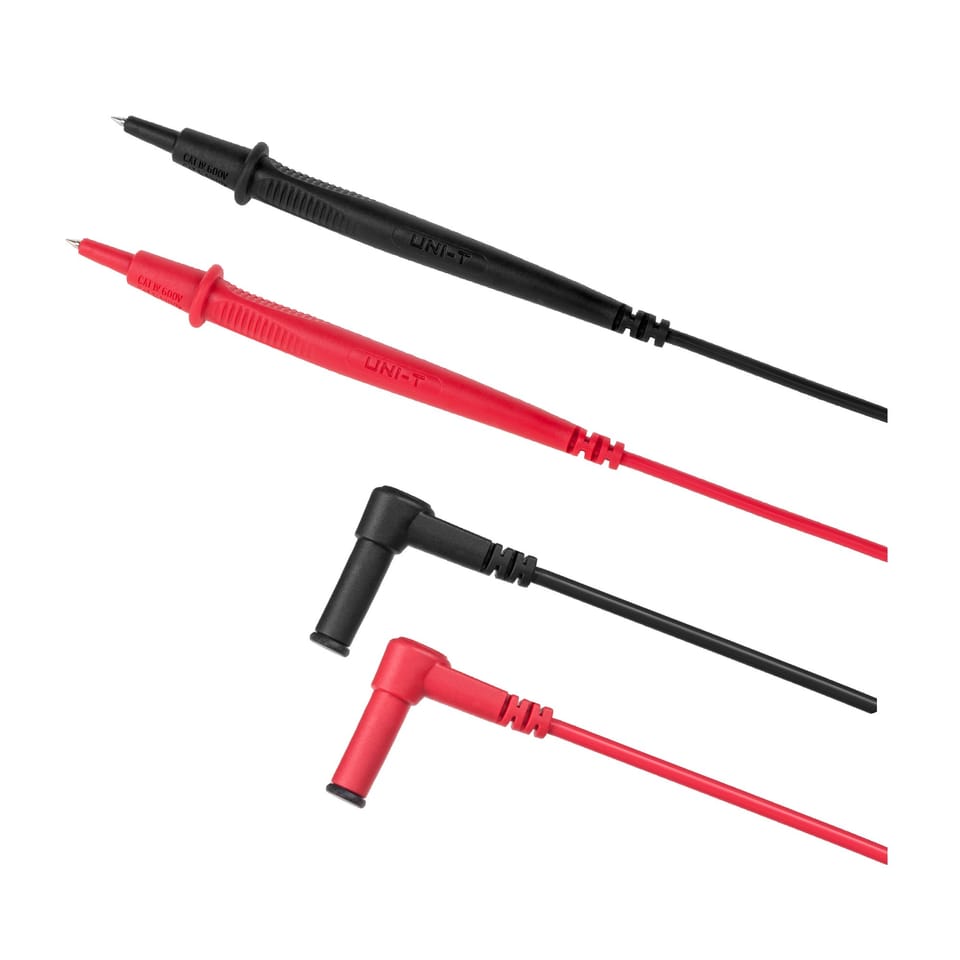

MEASURING RANGEDC CONSTANT VOLTAGE: 400 mV / 4 V / 40 V / 400 V / 600 V ? (0,8%+1) AC voltage: 4V/40V/400V/600V ? (1,2%+5) AC current: 4 A / 40 A / 400 A ? (1,8%+9) Resistance: 400 Ohm / 4 kOhm / 40 kOhm / 400 kOhm / 4 MOhm / 40 MOhm; ? (1%+2) Capacity: 50 nF / 500 nF / 5 ? F/ 50 ? F/100 ? F ? (4%+5) Frequency: 10Hz~1MHz ? (0,1%+4) Diode test: approx. 1.5 VSChecking continuity of the circuitFilling factorADDITIONAL FUNCTIONSAutomatic change of measuring rangesElectric field detection function (NCV)Freezing of the last indicationDepending modeLit LCD screenExposure of the measurement siteAutomatic shutdownLow battery indicator: =Maximum reading: 4000CECH GENERALDIRECT voltage impedance: >= 10 MOhm Jaw opening: 30 mmNumber of measurements: 3/sPower: 3x 1.5 V battery Reference (R03) Display size: 38 x 24 mmDimensions: 220 × 75 x 40 mmWeight: 280 gAccessories: batteries, test leads, case

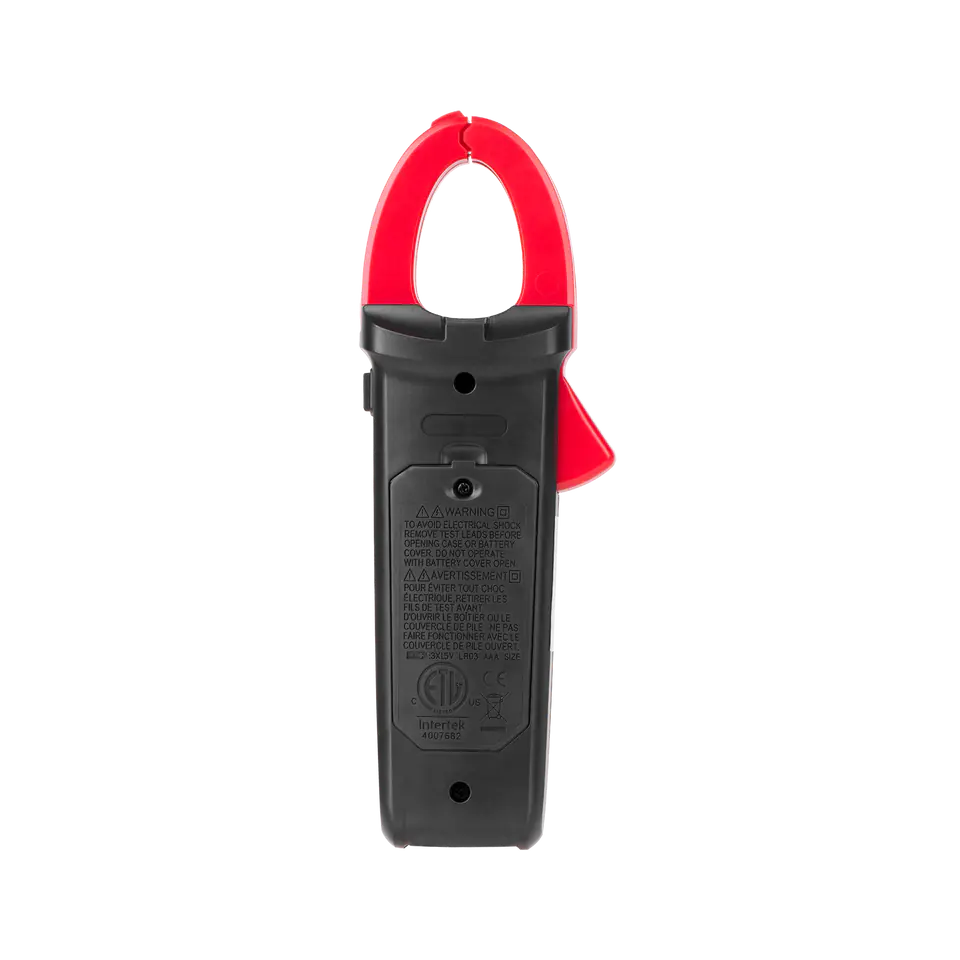

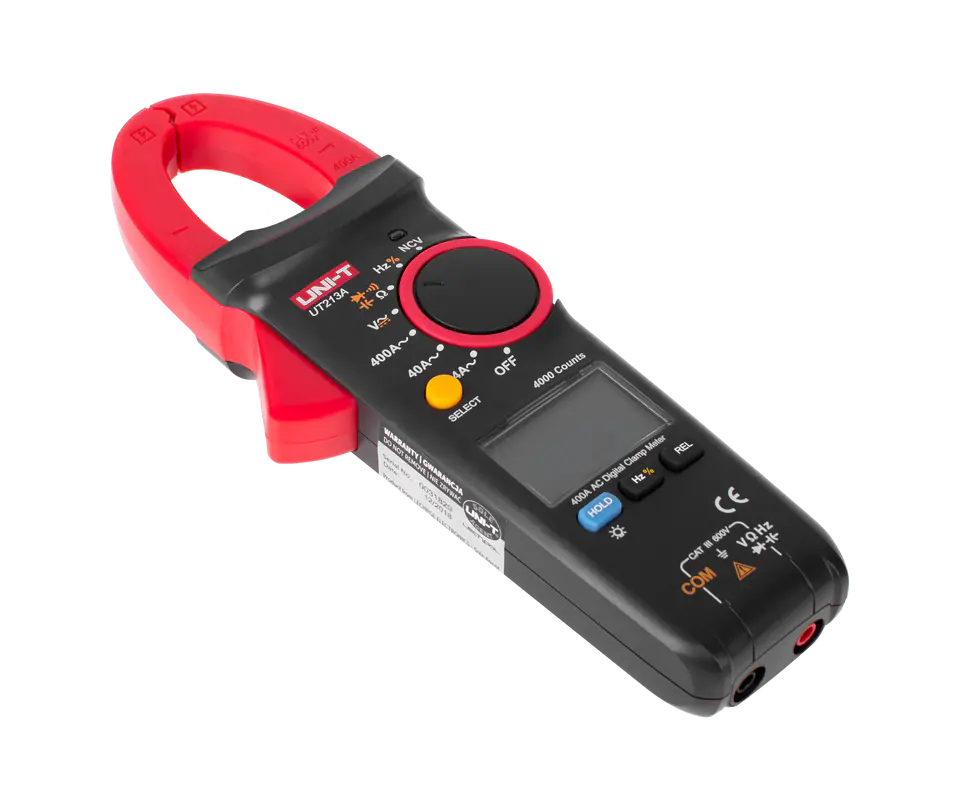

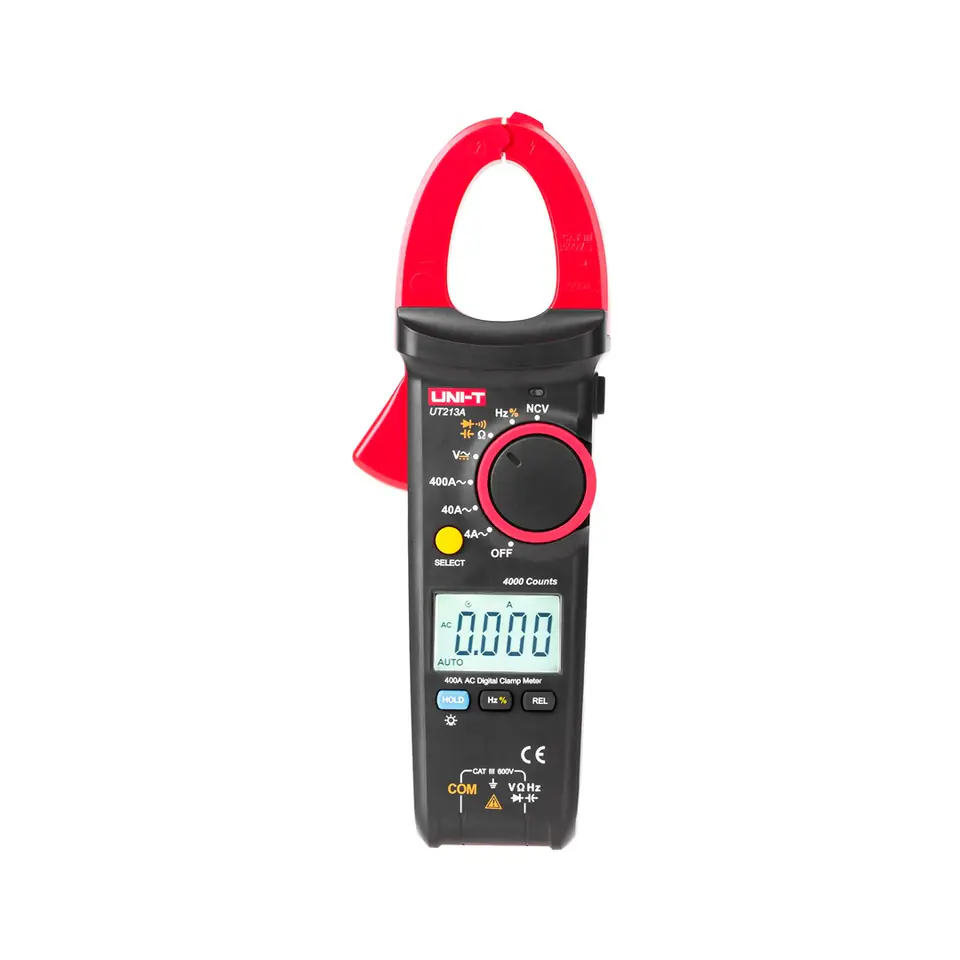

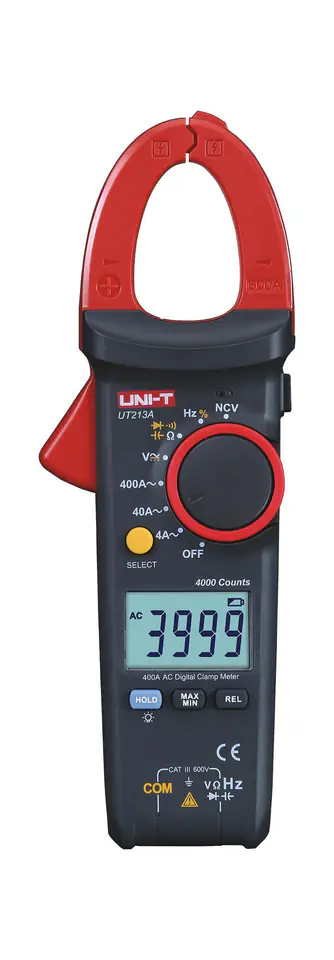

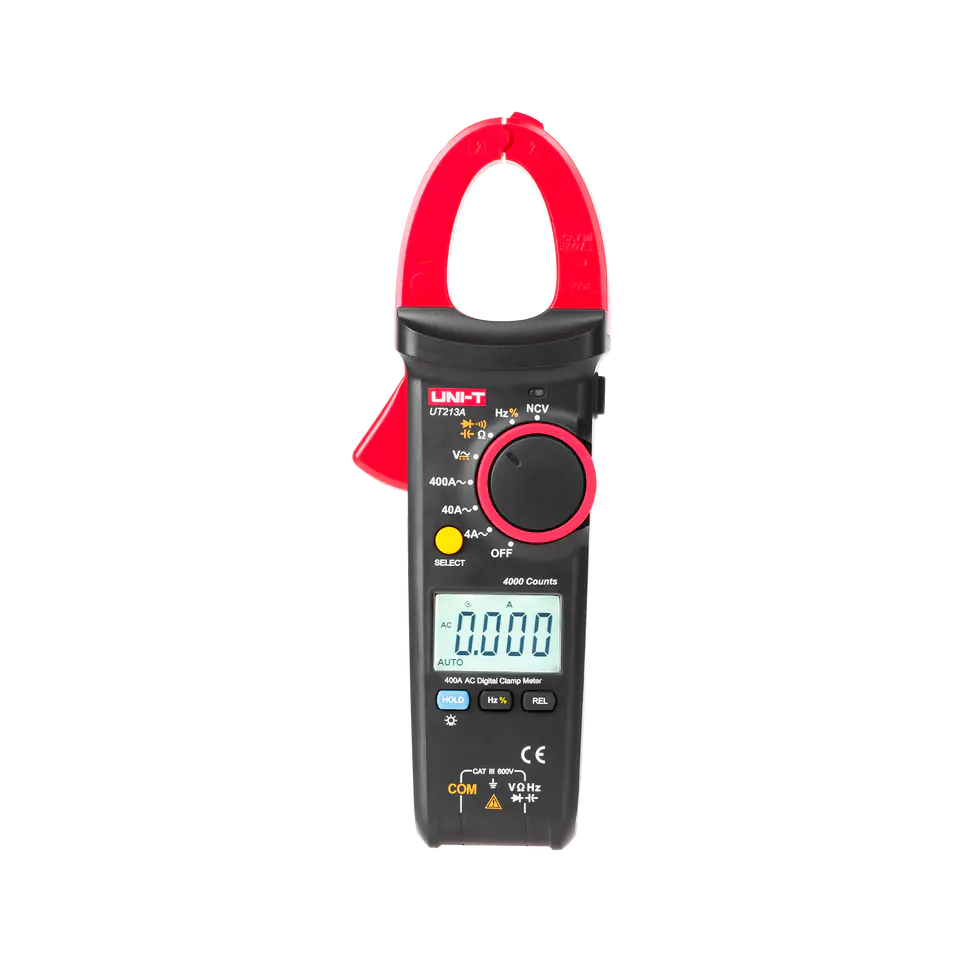

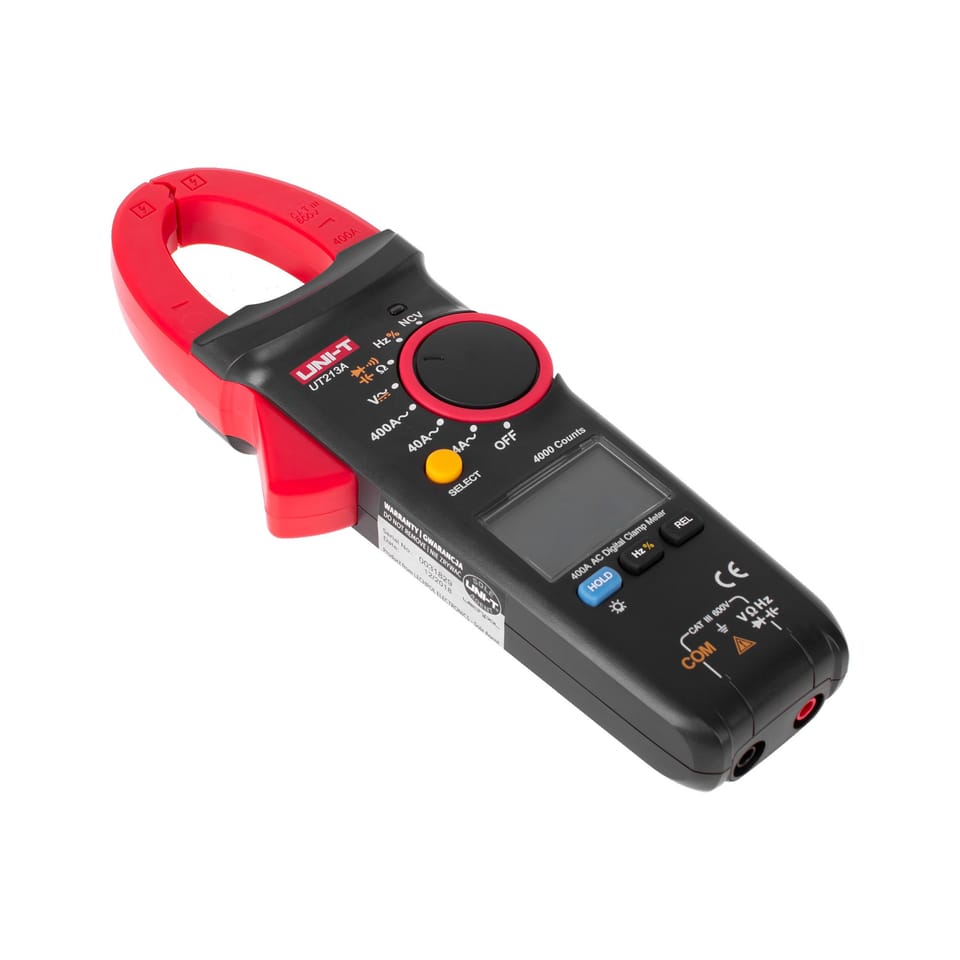

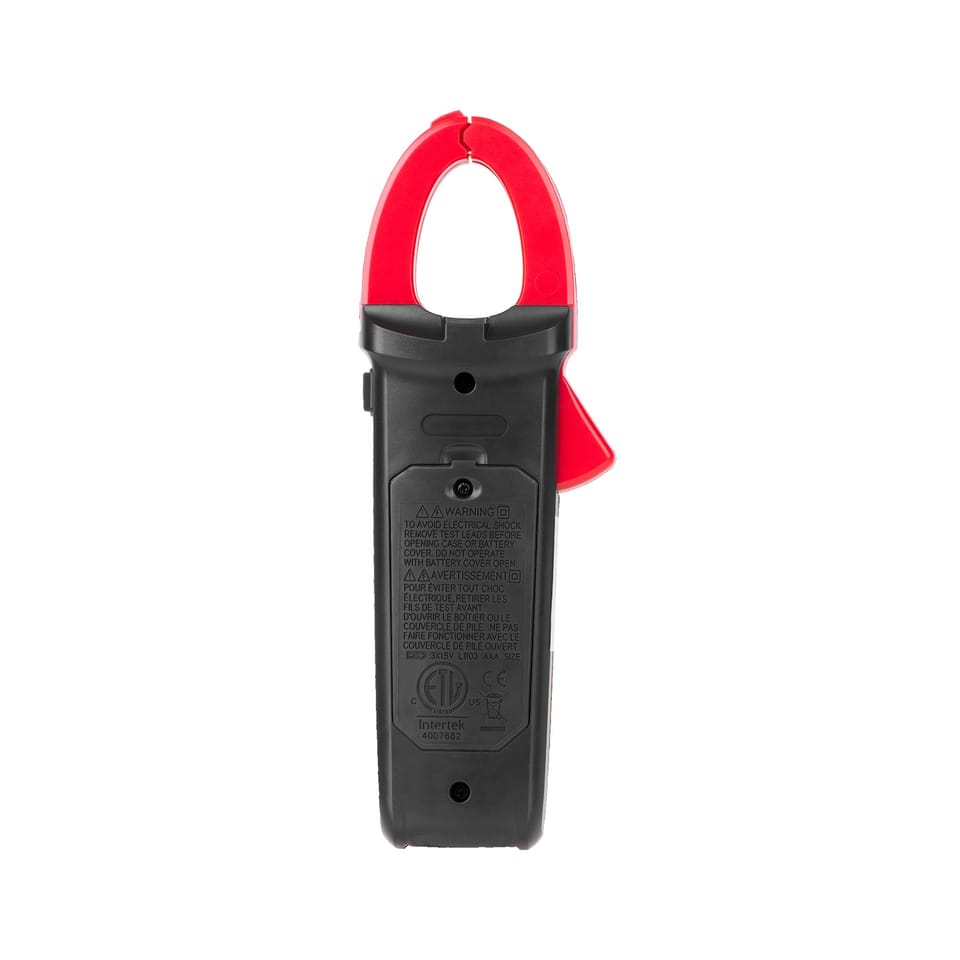

Clamp meter model UT213A
€41.51
Shipping from warehouse: L1
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Uni-T
- Product code:
- MIE0184 / 5901890018197
