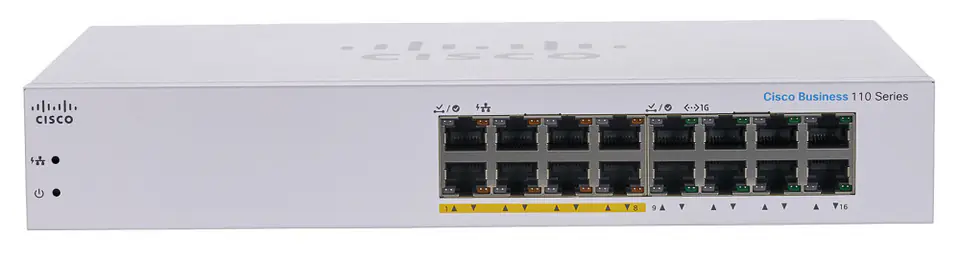

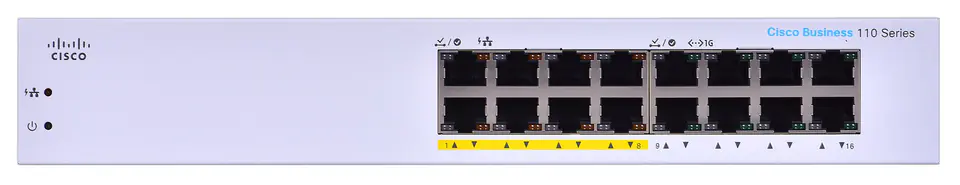

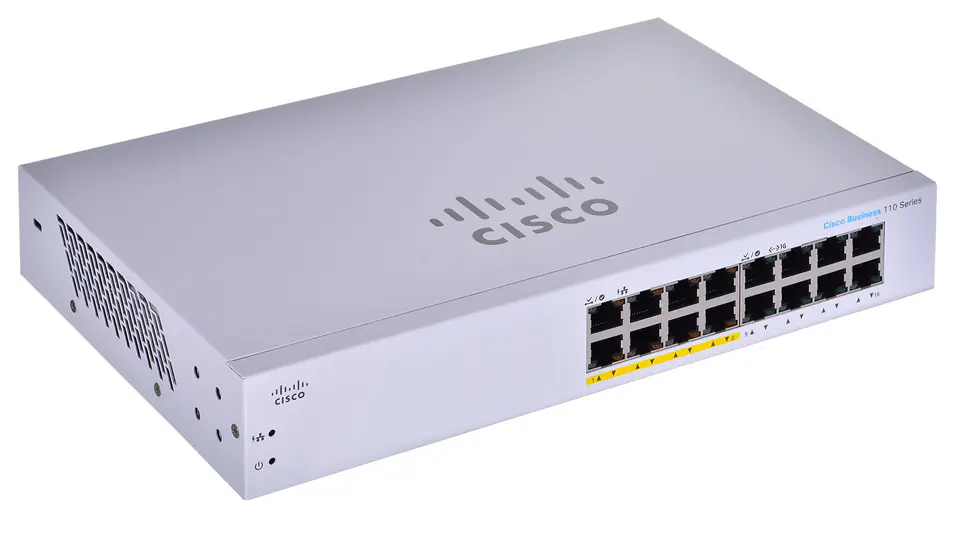

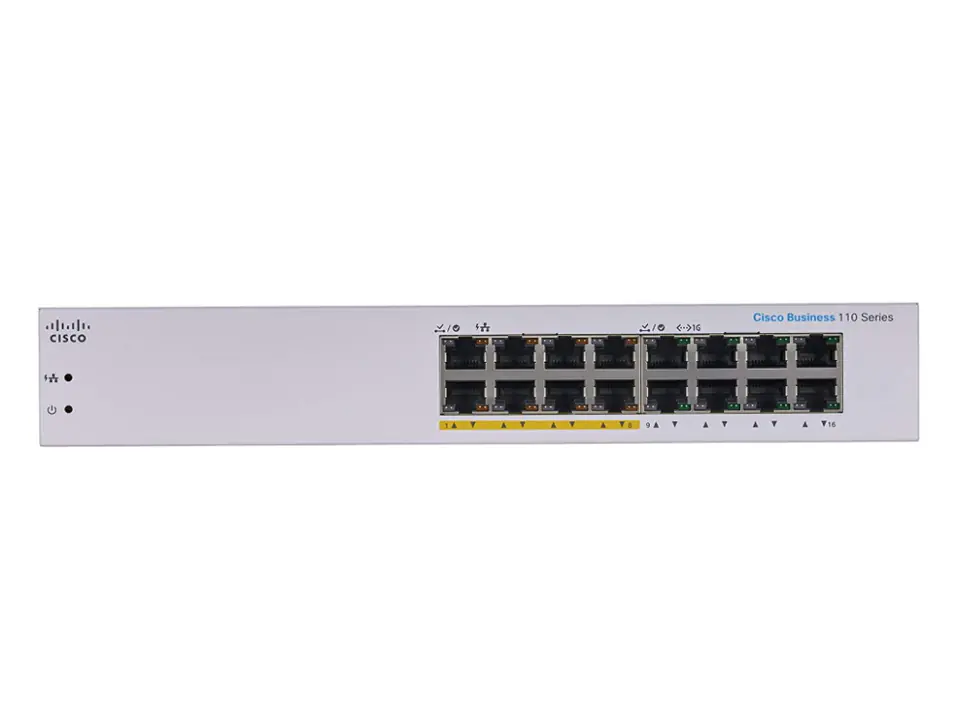

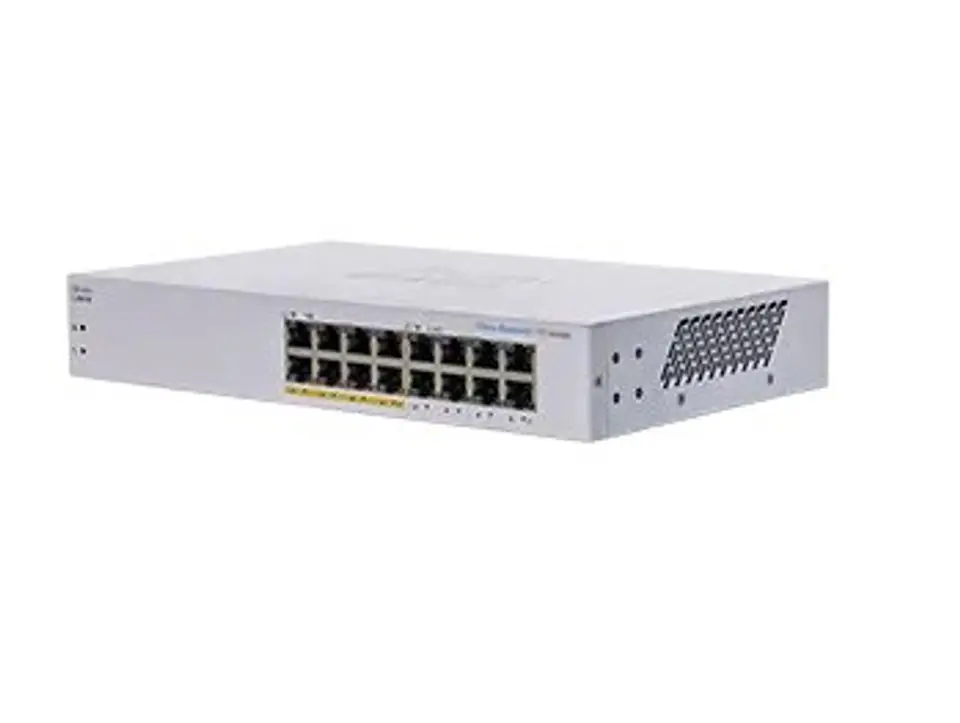

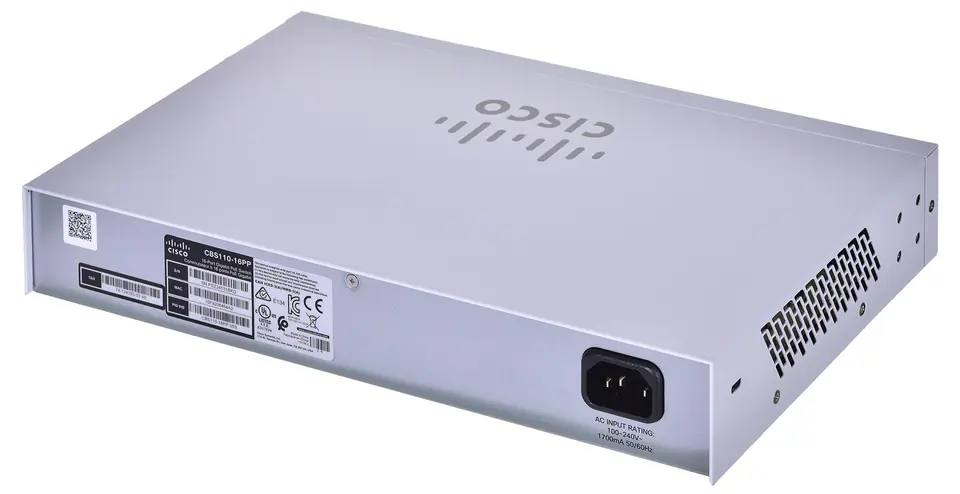

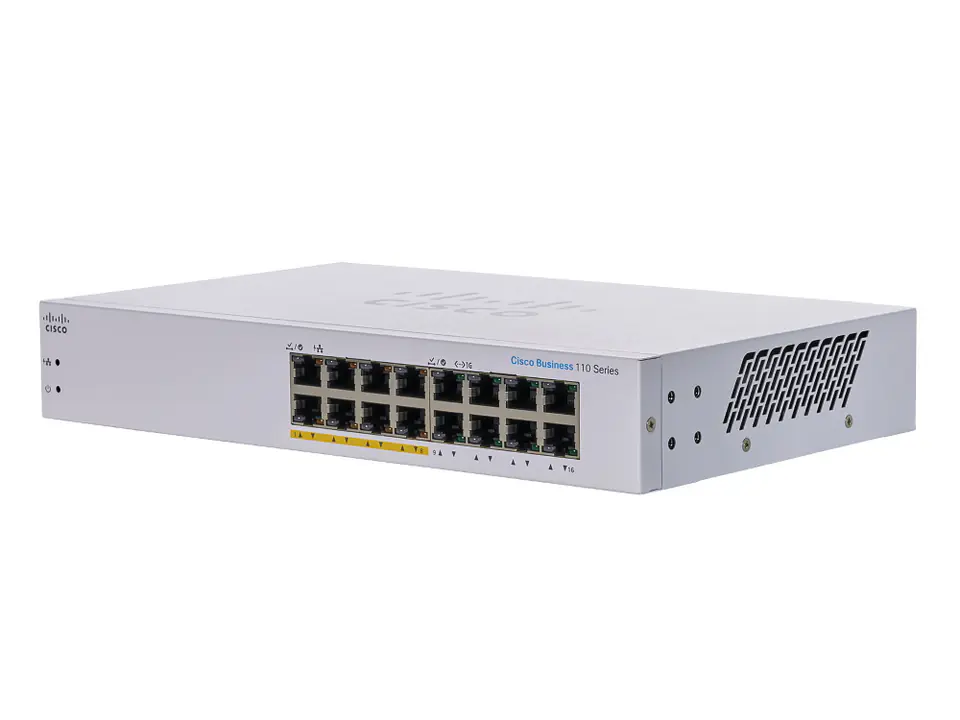

Cisco CBS110 Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
€251.97
Shipping from warehouse: M7
Estimated shipping: Mon, Dec 2 - Tue, Dec 3
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Cisco
- Product code:
- CBS110-16PP-EU / 0889728326520
Share this product:
Specification
| 10g support: | No |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 110 - 240 V |
| Auto mdi/mdi-x: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 16 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Built-in processor: | Yes |
| Cable types supported: | Cat5e |
| Compliance certificates: | CE |
| Copper ethernet cabling technology: | 10BASE-T, 1000BASE-T, 100BASE-TX |
| Depth: | 170 mm |
| Ethernet lan data rates: | 10,100,1000 Mbit/s |
| Flash memory: | 16 MB |
| Flow control support: | Yes |
| Form factor: | 1U |
| Forwarding rate: | 23.8 Mpps |
| Full duplex: | Yes |
| Gigabit ethernet (copper) ports quantity: | 16 |
| Half duplex: | Yes |
| Harmonized system (hs) code: | 85176990 |
| Head-of-line (hol) blocking: | Yes |
| Heat dissipation: | 274.27 BTU/h |
| Height: | 44 mm |
| Internal memory: | 128 MB |
| Jumbo frames: | 9216 |
| Jumbo frames support: | Yes |
| Led indicators: | Yes |
| Mac address table: | 8192 entries |
| Mean time between failures (mtbf): | 1971811 h |
| Networking standards: | IEEE 802.3x, IEEE 802.3u, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3az, IEEE 802.3z |
| Number of queues: | 4 |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | 0 - 40 °C |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) ports quantity: | 8 |
| Power supply included: | Yes |
| Processor frequency: | 400 MHz |
| Product colour: | Grey |
| Quality of service (qos) support: | Yes |
| Queue scheduling algorithms: | Weighted Round Robin (WRR) |
| Quick start guide: | Yes |
| Rack mount kit: | Yes |
| Rack mounting: | Yes |
| Storage relative humidity (h-h): | 5 - 90% |
| Storage temperature (t-t): | -20 - 70 °C |
| Sustainability certificates: | CE |
| Sustainability compliance: | Yes |
| Switch layer: | L2 |
| Switch type: | Unmanaged |
| Switching capacity: | 32 Gbit/s |
| Total power over ethernet (poe) budget: | 64 W |
| Weight: | 1.3 kg |
| Width: | 279 mm |
