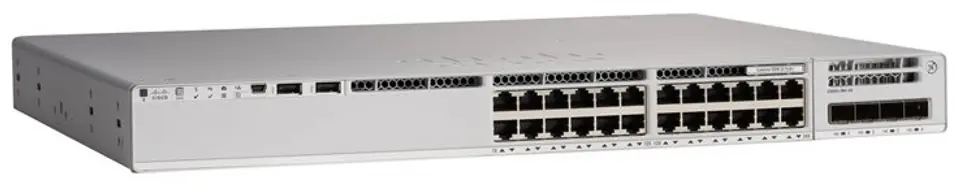

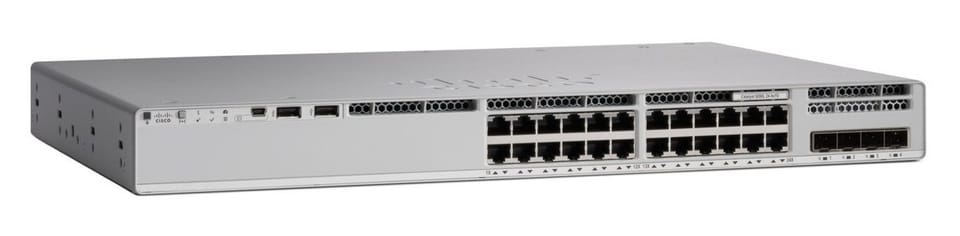

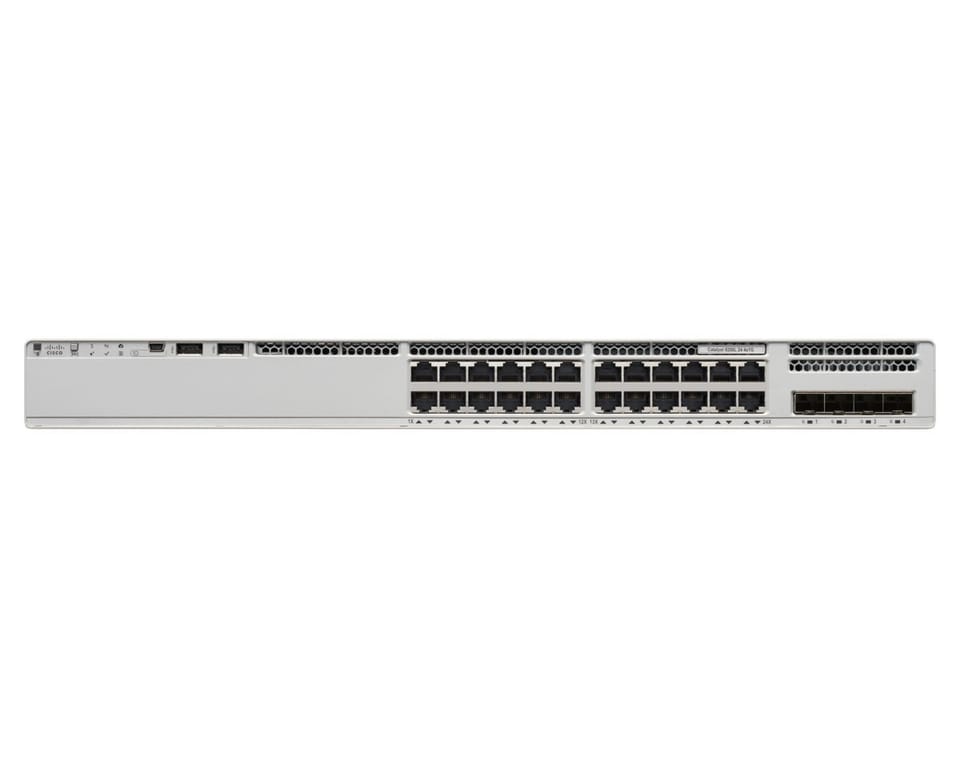

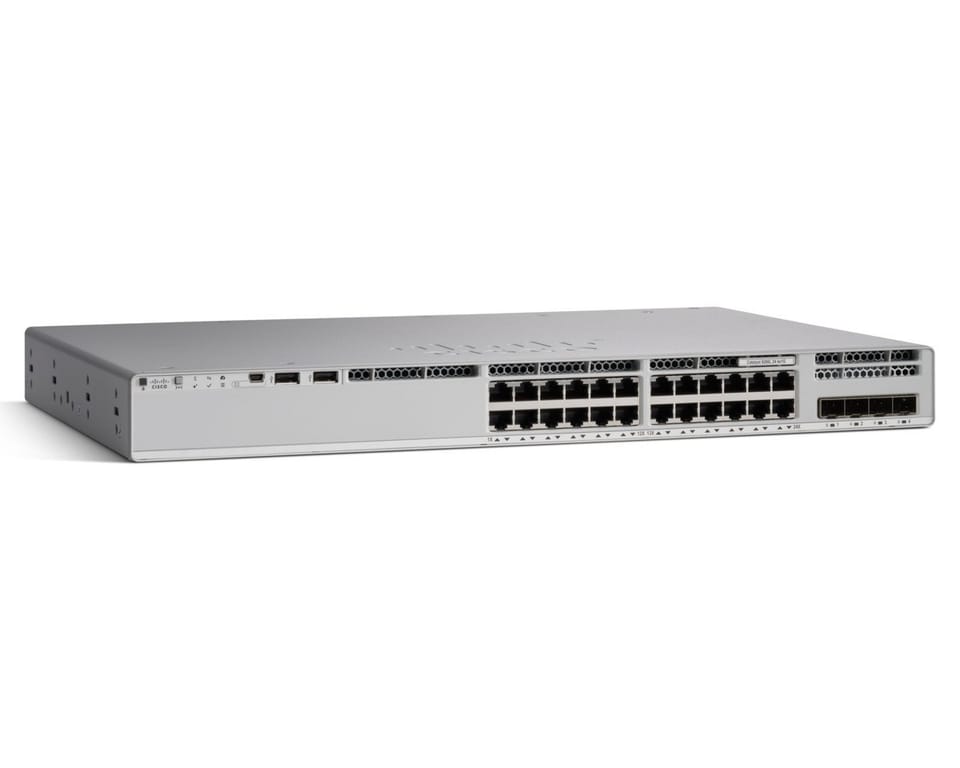

Cisco Catalyst 9200L Switch 24-port PoE+, 4 x 10G,
This product is not available
- Availability:
- expected delivery
- Brand:
- Cisco
- Product code:
- C9200L-24P-4X-E / 0889728170178
Share this product:
Specification
| 10g support: | Yes |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Access control list (acl): | Yes |
| Arp inspection: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 24 |
| Basic switching rj-45 ethernet ports type: | 10G Ethernet (100/1000/10000) |
| Built-in memory: | 4 GB Flash, 2 GB RAM |
| Bus speed: | 80 Gbps |
| Colour: | silver |
| Communication connectors: | RJ-45 console port, 1x management (LAN) RJ-45, 1x network stack |
| Configuration and management: | Yes |
| Configuring location settings (cli): | Yes |
| Copper ethernet cabling technology: | 10BASE-T, 1000BASE-T, 100BASE-TX, 10GBASE-T |
| Depth: | 288 mm |
| Depth (mm): | 44 |
| Destiny: | Rack |
| Flash memory: | 4000 MB |
| Flow control support: | Yes |
| Forwarding rate: | 95.23 Mpps |
| Full duplex: | Yes |
| Harmonized system (hs) code: | 85176990 |
| Height: | 44 mm |
| Height (mm): | 288 |
| Input current: | 1.6 - 0.7 A |
| Internal memory: | 2000 MB |
| Ip routing: | Yes |
| Ipv4 multicast entries: | 3000 |
| Ipv6 multicast entries: | 1500 |
| Jumbo frame support: | Yes |
| Jumbo frames: | 9198 |
| Jumbo frames support: | Yes |
| Mac address array size: | 16000 |
| Mac address table: | 16000 entries |
| Management protocols: | SNMPv1/v2c/v3 |
| Memory type: | DRAM |
| Multicast mac address table: | 1000 entries |
| Multicast support: | Yes |
| Network ports: | 4x SFP+, 24x 10/100/1000 PoE+ |
| Networking standards: | IEEE 802.3ad, IEEE 802.1s, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.1x, IEEE 802.3bz, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3at, IEEE 802.3u, IEEE 802.1D, IEEE 802.3z, IEEE 802.1w |
| Number of power supply units: | 1 |
| Number of vlans: | 4096 |
| Operating altitude: | 0 - 3000 m |
| Operating humidity range (%): | 5 - 90 |
| Operating relative humidity (h-h): | 5 - 90% |
| Operating temperature (t-t): | -5 - 45 °C |
| Other parameters: | CE safety mark |
| Package type: | Box |
| Packet buffer memory: | 6 MB |
| Power: | Network |
| Power connector: | AC-in jack |
| Power consumption (max): | 740 W |
| Power consumption (typical): | 600 W |
| Power over ethernet (poe): | Yes |
| Power over ethernet plus (poe+) ports quantity: | 24 |
| Power supply included: | Yes |
| Product colour: | Grey |
| Protocols and standards: | IEEE 802.1ab, IEEE 802.1d, IEEE 802.1p, IEEE 802.1q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Quality of service (qos) support: | Yes |
| Routing entries: | 3000 |
| Routing protocols: | VRRP, EIGRP, OSPF, RIP, CDP |
| Security algorithms: | 128-bit AES |
| Spanning tree protocol: | Yes |
| Storage temperature (t-t): | -40 - 70 °C |
| Switch layer: | L3 |
| Switch type: | Managed |
| Switching capacity: | 128 Gbit/s |
| Throughput: | 190.4 Mpps |
| Traffic classification: | Yes |
| Vlan support: | Yes |
| Warranty: | Lifetime Limited |
| Web-based management: | Yes |
| Weight (g): | 5500 |
| Width: | 445 mm |
| Width (mm): | 445 |
