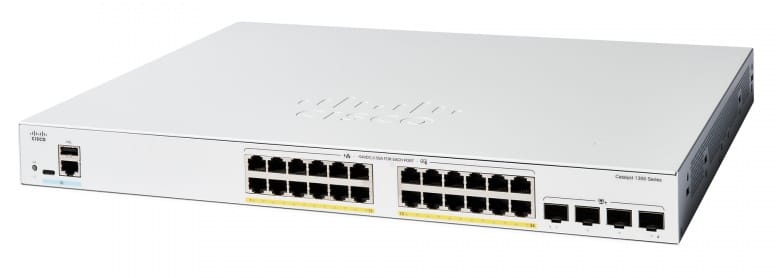

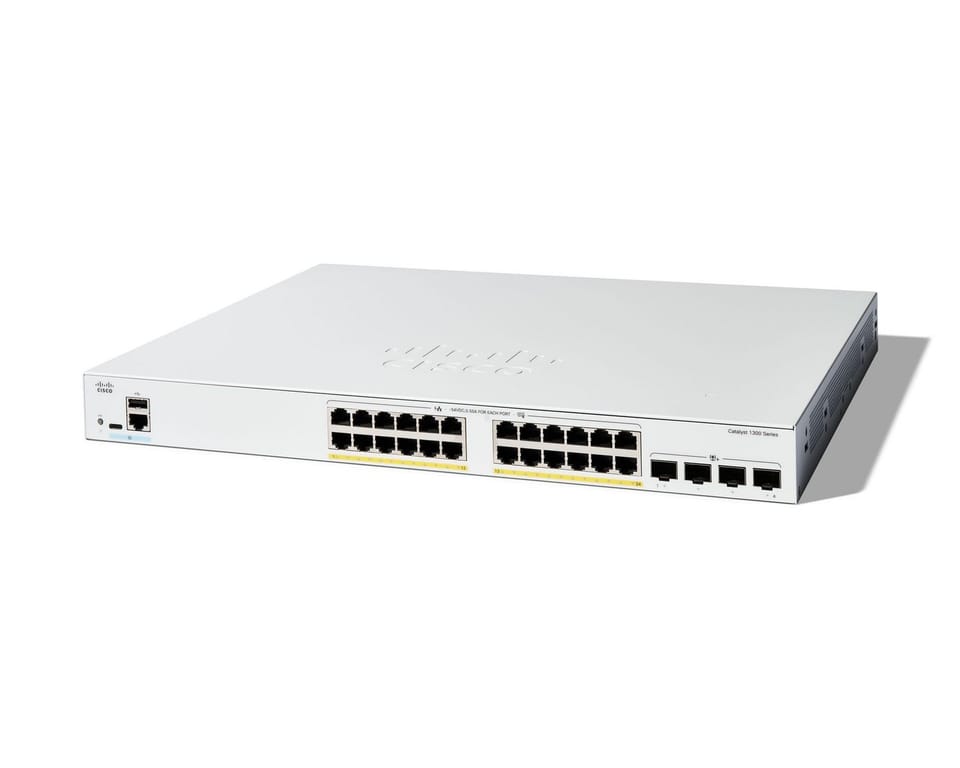

Cisco Catalyst 1300-24FP-4X Managed Switch, 24 Port GE, Full PoE, 4x10GE SFP+, Limited Lifetime Protection C1300-24FP-4X
€1,557.01
Shipping from warehouse: A3
Estimated shipping: Mon, Sep 23 - Thu, Sep 26
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Cisco
- Product code:
- 100052178 / 0889728521505
Share this product:
Specification
| Ac input frequency: | 50/60 Hz |
|---|---|
| Ac input voltage: | 100 - 220 V |
| Access control list (acl): | Yes |
| Access control list (acl) rules: | 1024 |
| Authentication: | MAC-based authentication, Web-based authentication |
| Authentication type: | RADIUS, TACACS+ |
| Basic switching rj-45 ethernet ports quantity: | 24 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control: | Yes |
| Built-in processor: | Yes |
| Cable types supported: | Cat5e |
| Configuring location settings (cli): | Yes |
| Console port: | RJ-45/USB Type-C |
| Country of origin: | China |
| Depth: | 444.5 mm |
| Dhcp features: | DHCP auto-config, DHCP client, DHCP relay, DHCP snooping, DHCP server |
| Dos attack prevention: | Yes |
| Flash memory: | 512 MB |
| Garp vlan registration protocol (gvrp): | Yes |
| Head-of-line (hol) blocking: | Yes |
| Heat dissipation: | 1548.8 BTU/h |
| Height: | 43.9 mm |
| Igmp proxy: | Yes |
| Igmp snooping: | Yes |
| Internal memory: | 1000 MB |
| Ipv4 & ipv6 features: | ICMPv6, IPv6 Telnet, IPv6 SNMP, IPv6 TFTP, IPv6 SSH |
| Jumbo frames: | 9000 |
| Jumbo frames support: | Yes |
| Link aggregation: | Yes |
| Mac address table: | 16000 entries |
| Mean time between failures (mtbf): | 698220 h |
| Memory type: | DDR4-SDRAM |
| Mib support: | Y |
| Multicast support: | Yes |
| Networking standards: | IEEE 802.1Q, IEEE 802.3x, IEEE 802.1D, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3az, IEEE 802.3at, IEEE 802.3an, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1ab, IEEE 802.3u, IEEE 802.1x, IEEE 802.1w |
| Noise level: | 34.8 dB |
| Number of queues: | 8 |
| Number of static routes: | 990 |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | -5 - 50 °C |
| Package depth: | 575.1 mm |
| Package height: | 108 mm |
| Package weight: | 7.18 kg |
| Package width: | 512.1 mm |
| Packet buffer memory: | 1.5 MB |
| Plug and play: | Yes |
| Policy-based routing: | Yes |
| Port mirroring: | Yes |
| Power consumption (typical): | 40.9 W |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) ports quantity: | 24 |
| Power plug type: | Type C |
| Power source: | AC |
| Processor frequency: | 1.4 MHz |
| Product colour: | Grey |
| Qinq implementation: | Selective QinQ |
| Quality of service (qos) support: | Yes |
| Queue scheduling algorithms: | Weighted Round Robin (WRR) |
| Rack mounting: | Yes |
| Rate limiting: | Yes |
| Reset button: | Yes |
| Security algorithms: | HTTPS, SNMPv2, SSH, SNMP, SNMPv3, SSH-2 |
| Sfp module slots quantity: | 4 |
| Spanning tree protocol: | Yes |
| Ssh/ssl support: | Yes |
| Static route: | Yes |
| Storage relative humidity (h-h): | 10 - 90% |
| Storage temperature (t-t): | -25 - 70 °C |
| Switch layer: | L2/L3 |
| Switch type: | Managed |
| Switching capacity: | 128 Gbit/s |
| Total power over ethernet (poe) budget: | 375 W |
| Virtual lan features: | Voice VLAN, Private VLAN |
| Vlan support: | Yes |
| Web-based management: | Yes |
| Weight: | 4.6 kg |
| Width: | 350 mm |
