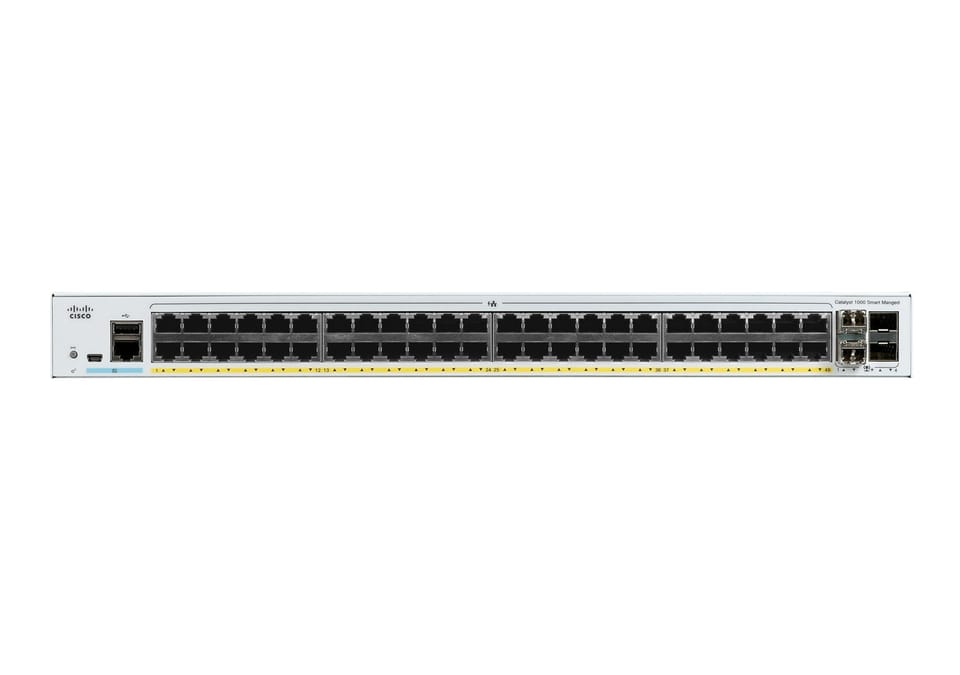

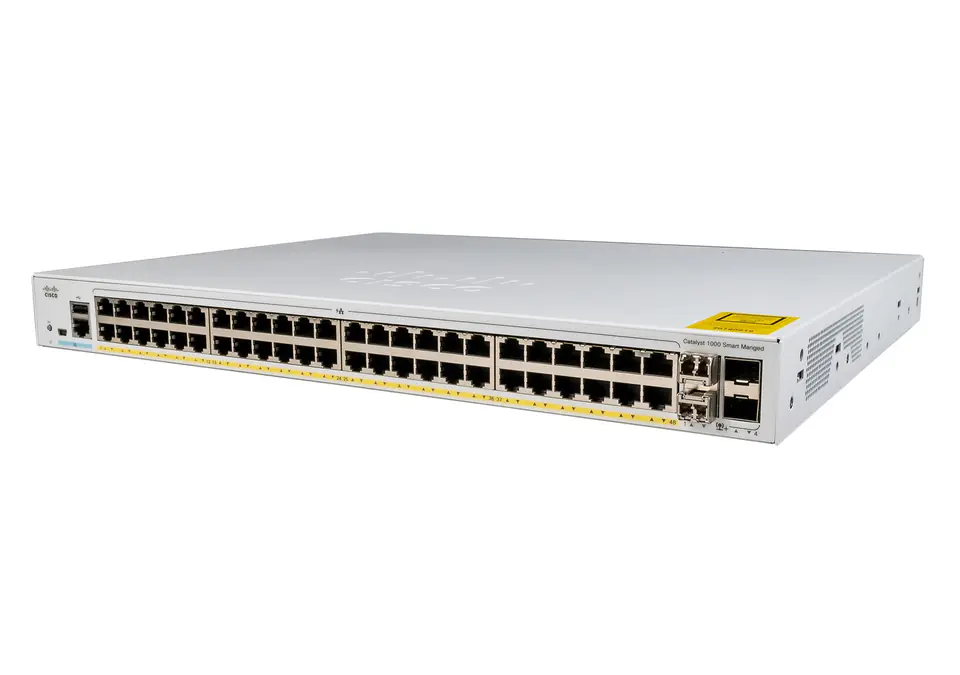

Cisco Catalyst 1000-48P-4X-L Network Switch, 48 Gigabit Ethernet (GbE) PoE+ Ports, 370W PoE Budget, four 10 G SFP+ Uplink Ports, Enhanced Limited Lifetime Warranty C1000-48P-4X-L

€2,210.20
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Cisco
Product code:
C1000-48P-4X-L / 0889728248648

Specification

10g support:Yes
Ac input frequency:50 - 60 Hz
Ac input voltage:110 - 220 V
Access control list (acl):Yes
Arp inspection:Yes
Authentication:Web-based authentication
Authentication type:RADIUS
Auto mdi/mdi-x:Yes
Auto-negotiation:Yes
Basic switching rj-45 ethernet ports quantity:48
Basic switching rj-45 ethernet ports type:Gigabit Ethernet (10/100/1000)
Bpdu filtering/protection:Yes
Broadcast storm control:Yes
Built-in processor:Yes
Configuring location settings (cli):Yes
Console port:RJ-45/Mini-USB
Country of origin:China
Depth:350 mm
Dhcp features:DHCP snooping
Ethernet lan data rates:10,100,1000 Mbit/s
Flash memory:256 MB
Forwarding rate:77.38 Mpps
Full duplex:Yes
Harmonized system (hs) code:85176990
Height:43.9 mm
Igmp entries:1024
Igmp snooping:Yes
Input current:0.37 - 0.64 A
Internal memory:512 MB
Ipv4 multicast entries:1024
Ipv6 multicast entries:1024
Jumbo frames:10240
Jumbo frames support:Yes
Led indicators:Yes
Link aggregation:Yes
Loop protection:Yes
Mac address table:16000 entries
Management protocols:SNMP
Market segment:Business
Mean time between failures (mtbf):1452667 h
Memory type:DRAM
Mib support:Y
Multicast support:Yes
Networking standards:IEEE 802.3at, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1D, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3az, IEEE 802.1x, IEEE 802.1AX, IEEE 802.3ad, IEEE 802.1s, IEEE 802.3u, IEEE 802.3ah, IEEE 802.1w, IEEE 802.1ab
Non-operating altitude:0 - 4500 m
Number of static routes:16
Number of vlans:256
Operating altitude:0 - 3000 m
Operating relative humidity (h-h):5 - 90%
Operating temperature (t-t):-5 - 50 °C
Package depth:549.4 mm
Package height:147.6 mm
Package weight:7.18 kg
Package width:444.5 mm
Power consumption (max):40.56 W
Power consumption (typical):35.56 W

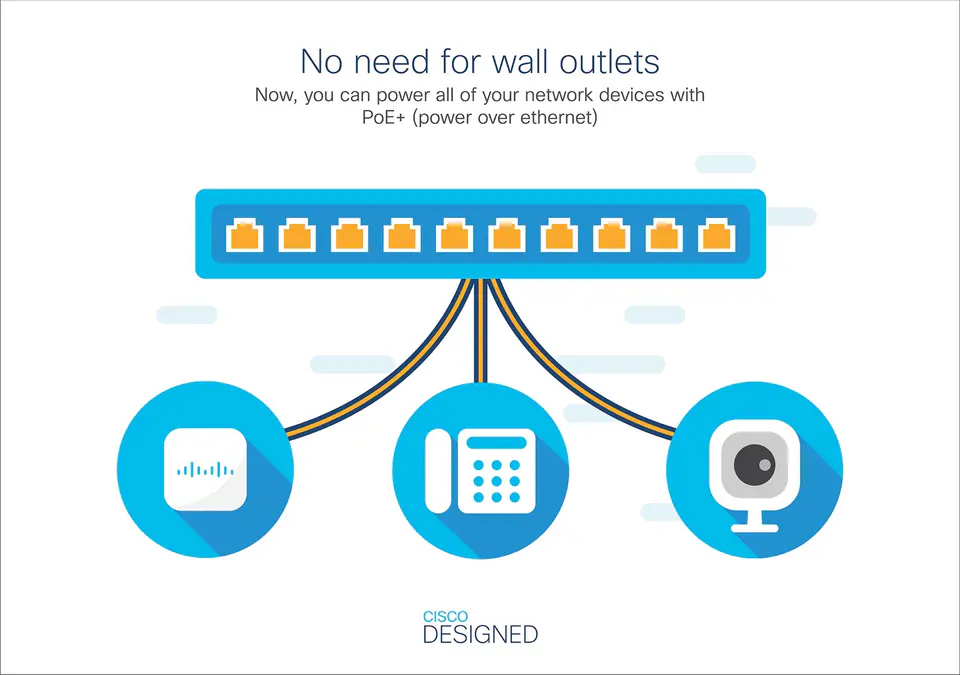

Power over ethernet (poe):Yes
Power over ethernet (poe) power per port:15 W
Power plug type:Type C
Processor frequency:800 MHz
Processor model:ARM7
Product colour:Grey
Products per master (outer) case:1 pc(s)
Products per shipping (inner) case:1 pc(s)
Quality of service (qos) support:Yes
Quantity per pack:1 pc(s)
Sfp+ module slots quantity:4
Spanning tree protocol:Yes
Ssh/ssl support:Yes
Static route:Yes
Storage relative humidity (h-h):5 - 95%
Storage temperature (t-t):-25 - 70 °C
Switch layer:L2
Switch type:Managed
Switching capacity:176 Gbit/s
Total power over ethernet (poe) budget:370 W
Traffic classification:Yes
Usb 2.0 ports quantity:1
Vlan support:Yes
Web-based management:Yes
Weight:5.43 kg
Width:444.5 mm

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
