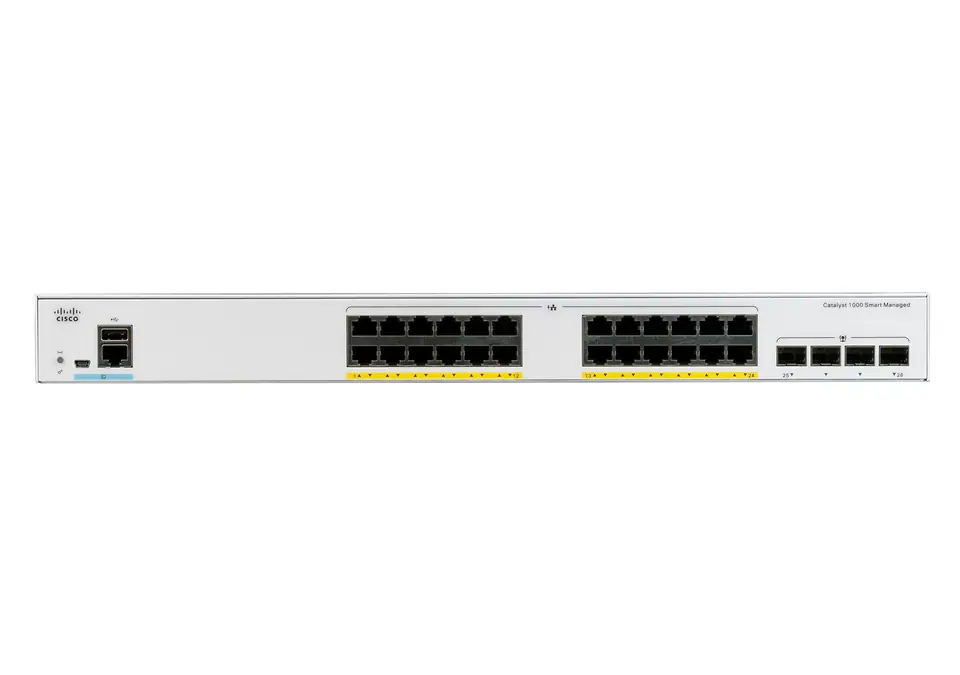

Cisco Catalyst 1000-24P-4G-L Network Switch, 24 Gigabit Ethernet (GbE) PoE+ Ports, 195W PoE Budget, four 1 G SFP Uplink Ports, Fanless Operation, Enhanced Limited Lifetime Warranty (C1000-24P-4G-L)
This product is not available
- Availability:
- expected delivery
- Brand:
- Cisco
- Product code:
- C1000-24P-4G-L / 0889728248549
Share this product:
Specification
| 10g support: | No |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 110 - 220 V |
| Access control list (acl): | Yes |
| Arp inspection: | Yes |
| Authentication: | Web-based authentication |
| Authentication type: | RADIUS |
| Auto mdi/mdi-x: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 24 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Bpdu filtering/protection: | Yes |
| Broadcast storm control: | Yes |
| Built-in processor: | Yes |
| Configuring location settings (cli): | Yes |
| Console port: | RJ-45/Mini-USB |
| Depth: | 299 mm |
| Dhcp features: | DHCP snooping |
| Ethernet lan data rates: | 10,100,1000 Mbit/s |
| Flash memory: | 256 MB |
| Forwarding rate: | 41.67 Mpps |
| Full duplex: | Yes |
| Harmonized system (hs) code: | 85176990 |
| Height: | 44 mm |
| Igmp entries: | 1024 |
| Igmp snooping: | Yes |
| Internal memory: | 512 MB |
| Ipv4 multicast entries: | 1024 |
| Ipv6 multicast entries: | 1024 |
| Jumbo frames: | 10240 |
| Jumbo frames support: | Yes |
| Led indicators: | Yes |
| Link aggregation: | Yes |
| Loop protection: | Yes |
| Mac address table: | 16000 entries |
| Mean time between failures (mtbf): | 698220 h |
| Memory type: | DRAM |
| Mib support: | Y |
| Multicast support: | Yes |
| Networking standards: | IEEE 802.1p, IEEE 802.1w, IEEE 802.3u, IEEE 802.1Q, IEEE 802.1D, IEEE 802.3ae, IEEE 802.1x, IEEE 802.3at, IEEE 802.3ah, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.1AX |
| Non-operating altitude: | 0 - 4500 m |
| Number of static routes: | 16 |
| Number of vlans: | 4094 |
| Operating altitude: | 0 - 3000 m |
| Operating relative humidity (h-h): | 5 - 90% |
| Operating temperature (t-t): | -5 - 50 °C |
| Package depth: | 549.4 mm |
| Package height: | 147.6 mm |
| Package weight: | 5.54 kg |
| Package width: | 390.7 mm |
| Power over ethernet (poe): | Yes |
| Power over ethernet plus (poe+) ports quantity: | 24 |
| Processor frequency: | 800 MHz |
| Processor model: | ARM7 |
| Product colour: | Grey |
| Quality of service (qos) support: | Yes |
| Quantity per pack: | 1 pc(s) |
| Sfp module slots quantity: | 4 |
| Spanning tree protocol: | Yes |
| Ssh/ssl support: | Yes |
| Static route: | Yes |
| Storage relative humidity (h-h): | 5 - 95% |
| Storage temperature (t-t): | -25 - 70 °C |
| Switch layer: | L2 |
| Switch type: | Managed |
| Switching capacity: | 56 Gbit/s |
| Total power over ethernet (poe) budget: | 195 W |
| Traffic classification: | Yes |
| Usb 2.0 ports quantity: | 1 |
| Vlan support: | Yes |
| Web-based management: | Yes |
| Weight: | 3.53 kg |
| Width: | 444.5 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
