CIRCULAR SAW MITER JMS 260

Technical Specifications

Manufacturer: Luna
Manufacturer no: 191440205
Motor power: 1800 W
Power:
Supply voltage: 230 V
Number of phases: 1-phase
Rotational speed: 4800 orb/min
Dial Diameter: 255mm
Dial Hole Diameter: 25.4 mm
Cutting ability:
Cut bevel left/right: 45°
Sawing height 0°: 75 mm
Sawing height 45°: 45 mm
Sawing length 0°: 305 mm
Sawing length 45°: 210 mm
Weight: 15.5 kg

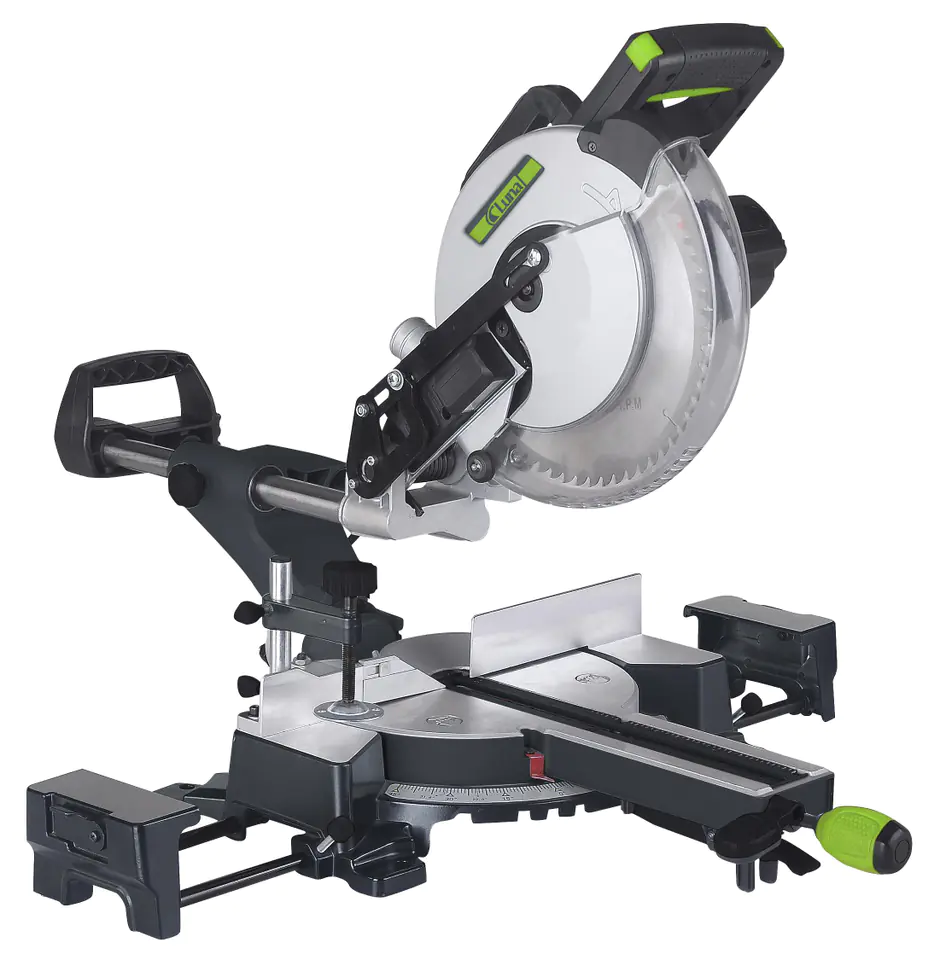

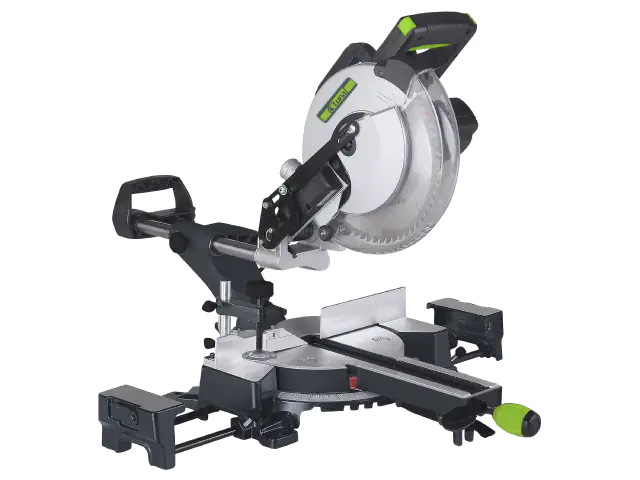

Circular saw miter JMS 260

LUNA JMS260 professional combined circular saw miter - saw. The sawing head assembly, mounted with bearings on guides and tilted to the left up to 45°, has a laser mounted that clearly indicates the cutting line. The saw is equipped with a retractable resistance stop. The saw table has a die-cast blade made of aluminum - rotated to the right and left, with fixed positions every 15°. Supplied with carbide circular saw, sawdust bag and material fastening clamp.

PROPERTIES
High-end JSM 260 miter saw specially designed by the Swedish company Luna, equipped with an adjustable clamp to hold the material being cut, illumination of the working area and a laser to facilitate more precise cutting
Mitre saw JSM 260, with sliding head for cutting wider pieces of material
The saw blade head is mounted on a ball bearing guide, has a tilt function of up to 45° to the left, and is equipped with a laser pointer, whose radius clearly determines the cutting line, and also has a sliding resistance pattern
Table and movable work plate made of cast aluminium, disc rotated right and left, with fixed positions in 15° increments
Laser and backlight for more precise cuts
Adjustable clamp for fastening the material
Carbide disc
Cut bevel 45° left and right


**

Illustrative photos
