Technical data:
Product series: PRO accessories

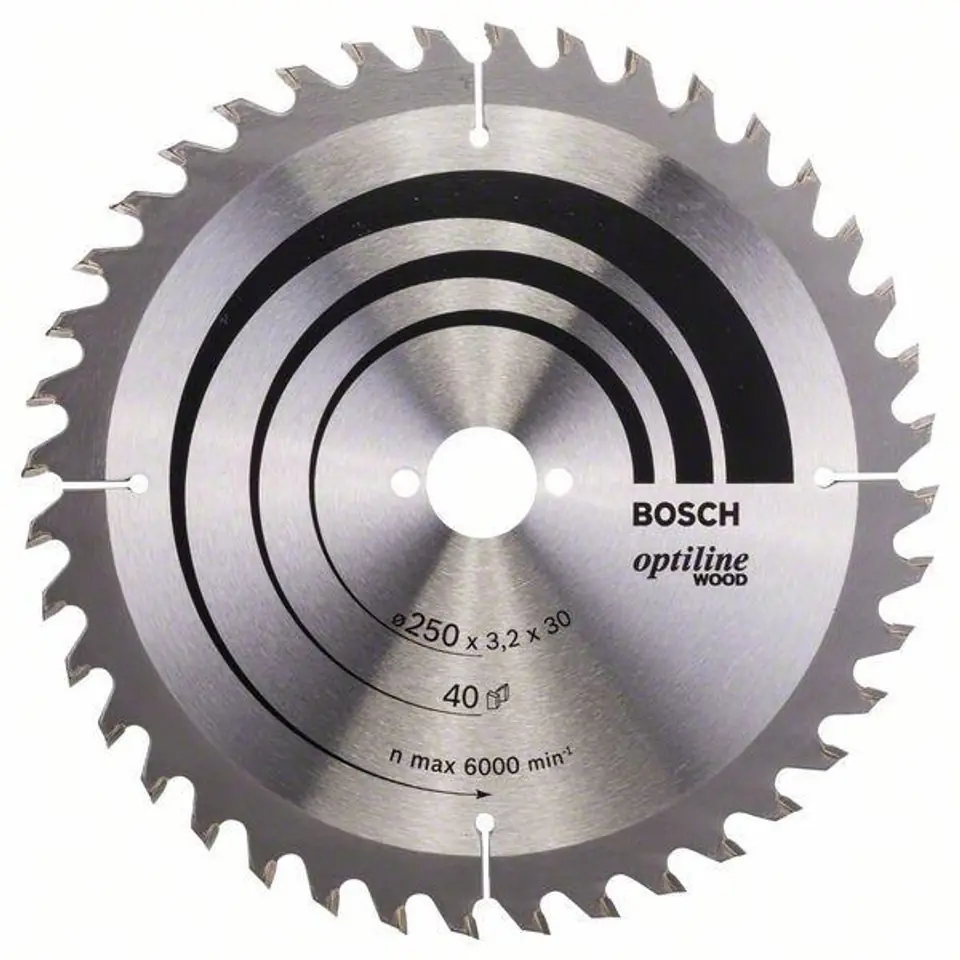

Description: 250 x 30 x 3.2 mm, 40
Genus. Pack.: Paper / Cardboard / Corrugated cardboard - Packaging, case, with Euro hole
Incl. Pack. : 1 Pcs.
Minimum order quantity: 1 pc.
Outside diameter mm: 250
Mm hole: 30

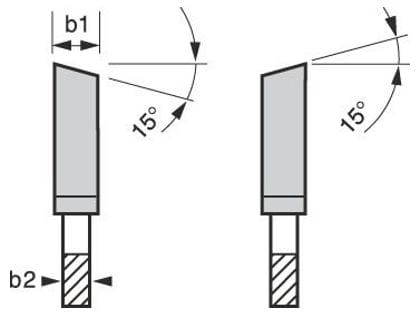

Cutting width (b1) mm / body thickness (b2) mm: 3,2/2,2
Number of teeth: 40
Tooth shape: ATB
Max. rotation speed (rev/min): 6000
Cutting result: 3
NL/Diameter TKS: 7/42

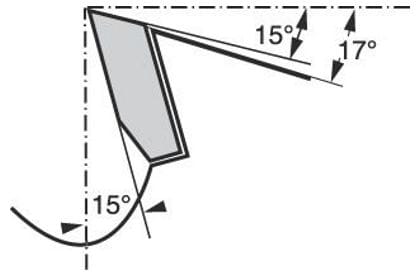

Angle of attack ° ?: 10
Angle of application ° ß: 15
Materials for processing (details):
- Chipboard
- Sound-absorbing records
- Light building boards
- Composite materials
- Soft wood
- Hardwood/solid wood
- Pressed chip plywood
- Plywood/carpentry boards
- Laminated MDF
**
The presented photos have an illustrative function.
