CIRCULAR SAW-H MULTI 190*2,4*30Z*54

Technical data:

Product series: PRO accessories
Description: 190 x 30 x 2.4 mm 54
Genus. Pack.: Paper / Cardboard / Corrugated cardboard - Packaging, case, with Euro hole
Incl. Pack. : 1 Pcs.
Minimum order quantity: 1 pc.
Outside diameter inches: 7 1/2
Outside diameter mm: 190
Mm hole: 30
Cutting width (b1) mm / body thickness (b2) mm: 2.4/1.8
Number of teeth: 54
Tooth shape: HLTCG
Max. rotation speed (rev/min): 8000
Cutting result: 4
Approach angle ° ?: -5
Angle of application ° ß: 15


Materials for processing (details):
- Chipboard
- Sound-absorbing records
- Light building boards
- Laminated MDF
- Epoxy (epoxy resin)
- Aluminum
- Feet
- Copper

**

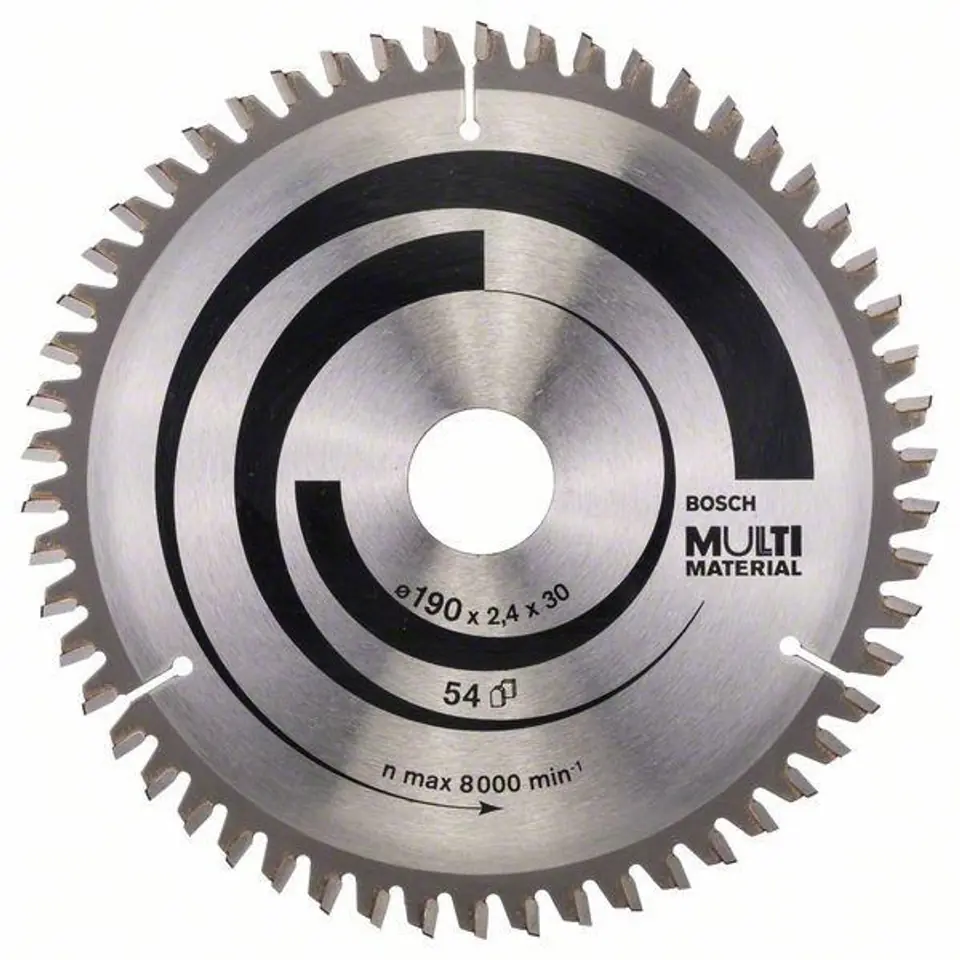

The presented photo has an illustrative function.
