Technical data:
Product series: PRO accessories
Description: 160 x 20/16 x 2,4 mm 42
Genus. Pack.: Paper / Cardboard / Corrugated cardboard - Packaging, case, with Euro hole
Incl. Pack. : 1 Pcs.
Minimum order quantity: 1 pc.
Outside diameter mm: 160
Mm hole: 20
Hole with reduction ring mm: 16
Cutting width (b1) mm / body thickness (b2) mm: 2.4/1.8
Number of teeth: 42
Tooth shape: HLTCG
Max. rotation speed (rev/min): 9500
Cutting result: 4
Approach angle ° ?: -5
Angle of application ° ß: 15
Materials for processing (details):
- Chipboard
- Sound-absorbing records
- Light building boards
- Laminated MDF
- Epoxy (epoxy resin)
- Aluminum
- Feet
- Copper
**

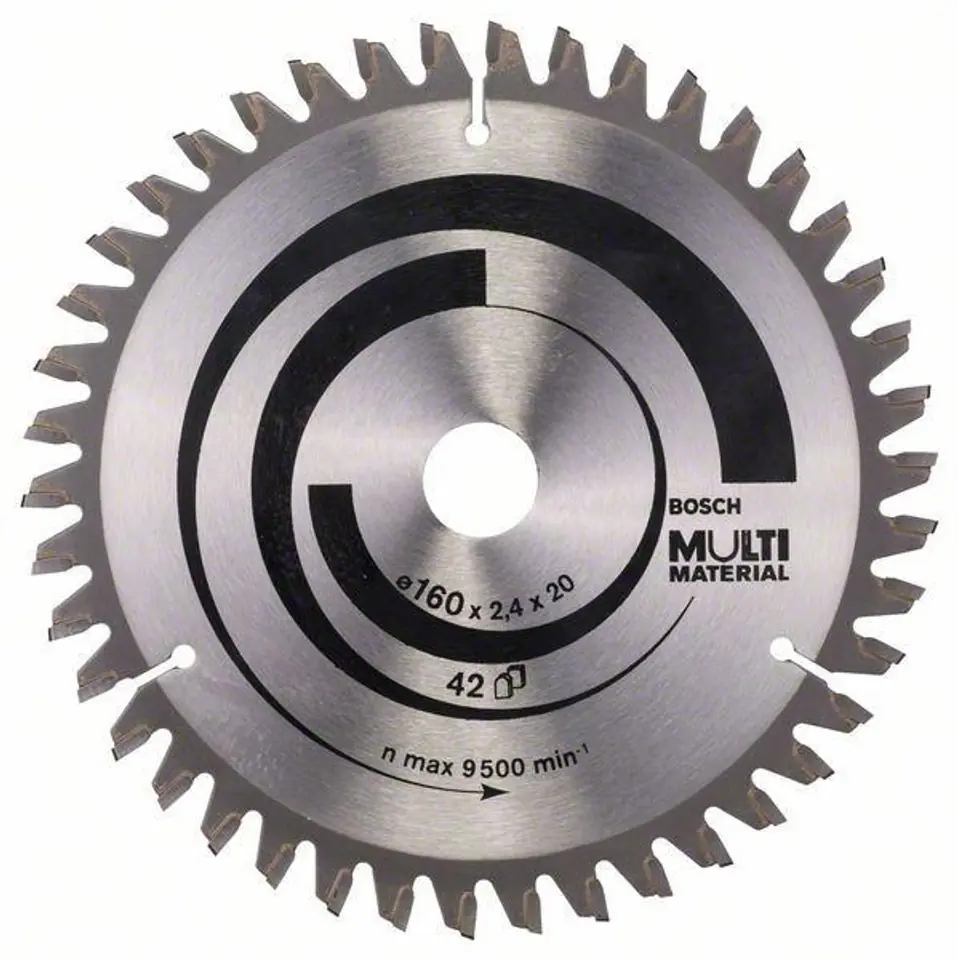

The presented photo has an illustrative function.
Product series: PRO accessories
Description: 160 x 20/16 x 2,4 mm 42
Genus. Pack.: Paper / Cardboard / Corrugated cardboard - Packaging, case, with Euro hole
Incl. Pack. : 1 Pcs.
Minimum order quantity: 1 pc.
Outside diameter mm: 160
Mm hole: 20
Hole with reduction ring mm: 16
Cutting width (b1) mm / body thickness (b2) mm: 2.4/1.8
Number of teeth: 42
Tooth shape: HLTCG
Max. rotation speed (rev/min): 9500
Cutting result: 4
Approach angle ° ?: -5
Angle of application ° ß: 15
Materials for processing (details):
- Chipboard
- Sound-absorbing records
- Light building boards
- Laminated MDF
- Epoxy (epoxy resin)
- Aluminum
- Feet
- Copper
**

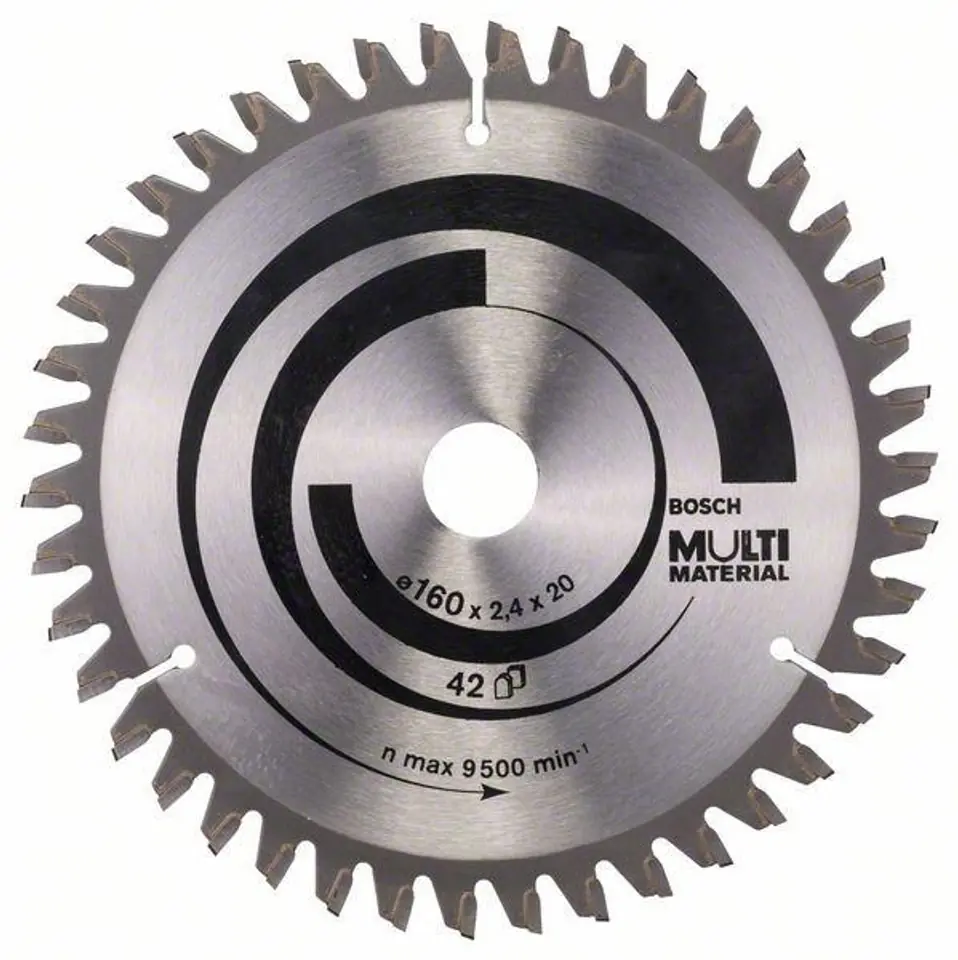

The presented photo has an illustrative function.
