| Case: | Plastic, DIN rail mounting, TS-35 |
|---|---|
| Case:: | Plastic, DIN rail mounting, TS-35 |
| Connector type: | screwed clamps |
| Connector type:: | screwed clamps |
| Current: | 25 amps |
| Current:: | 25 amps |
| Dimensions: | 54 x 83 x 75 mm |
| Dimensions:: | 54 x 83 x 75 mm |
| Manufacturer / brand:: | LEGRAND |
| Number of poles: | 3 |
| Number of poles:: | 3 |
| Producer / brand: | LEGRAND |
| Rated short-circuit switching capacity: | 6000 A |
| Rated short-circuit switching capacity:: | 6000 A |
| Scales: | 0.4 kg |
| Scales:: | 0.4 kg |

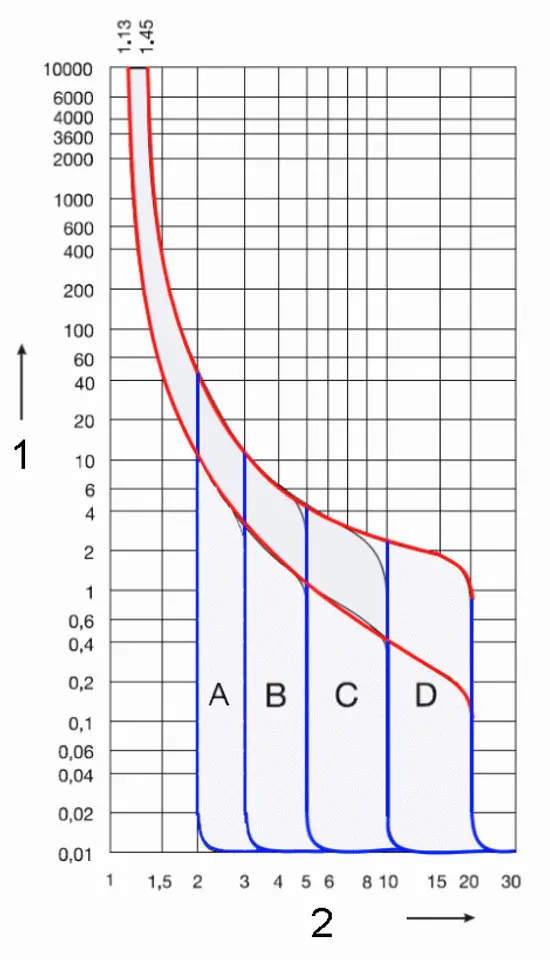

| Triggering characteristics: | Type C |
| Triggering characteristics:: | Type C |
| Type of device: | Circuit breaker, Three-phase |
| Type of device:: | Circuit breaker, Three-phase |
| Voltage: | 230 VAC / 50 Hz 400 VAC / 50 Hz |
| Voltage:: | 230 VAC / 50 Hz 400 VAC / 50 Hz |
| Warranty: | 2 years |
| Warranty:: | 2 years |
| Width in modules 17.5 mm: | 3 |
| Width in modules 17.5 mm:: | 3 |

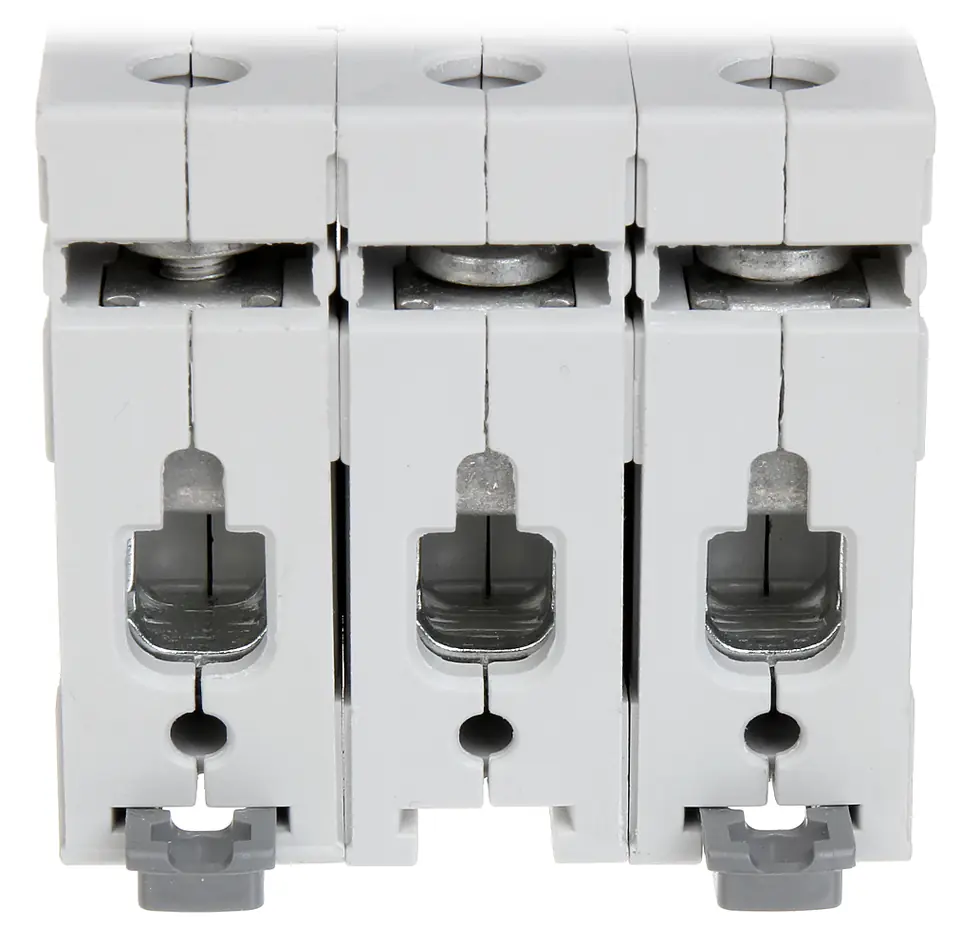

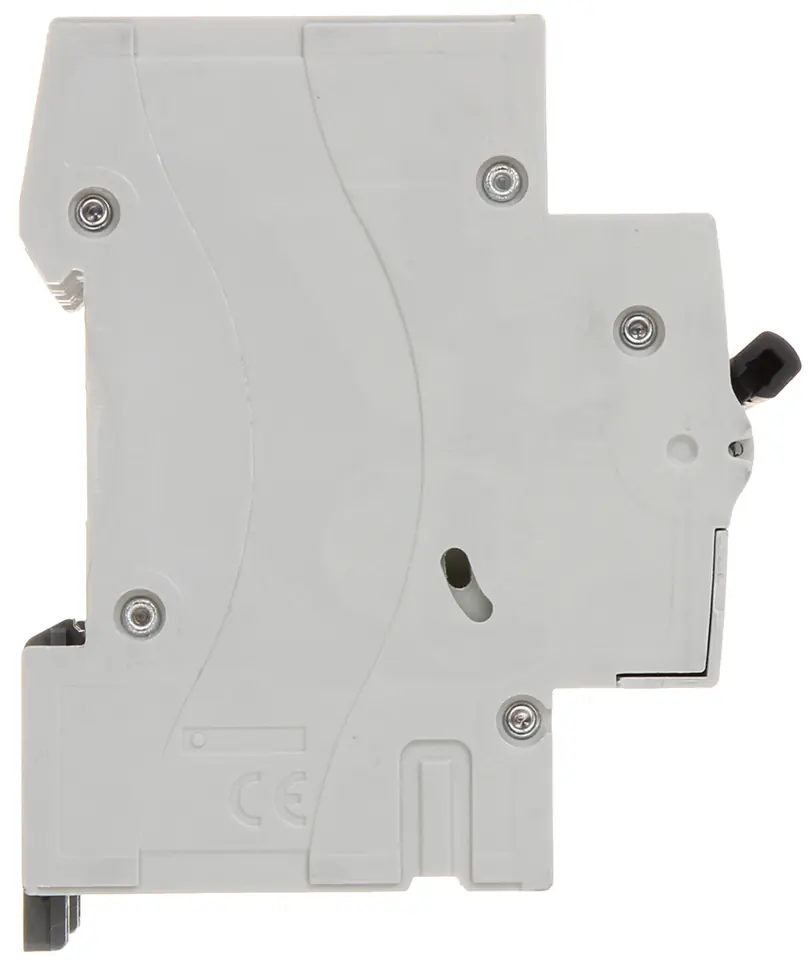

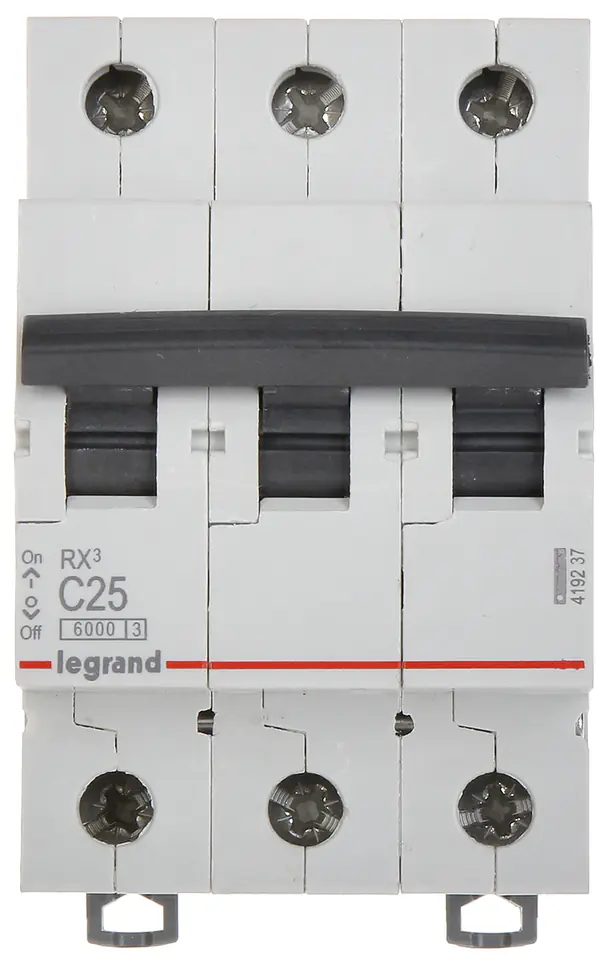

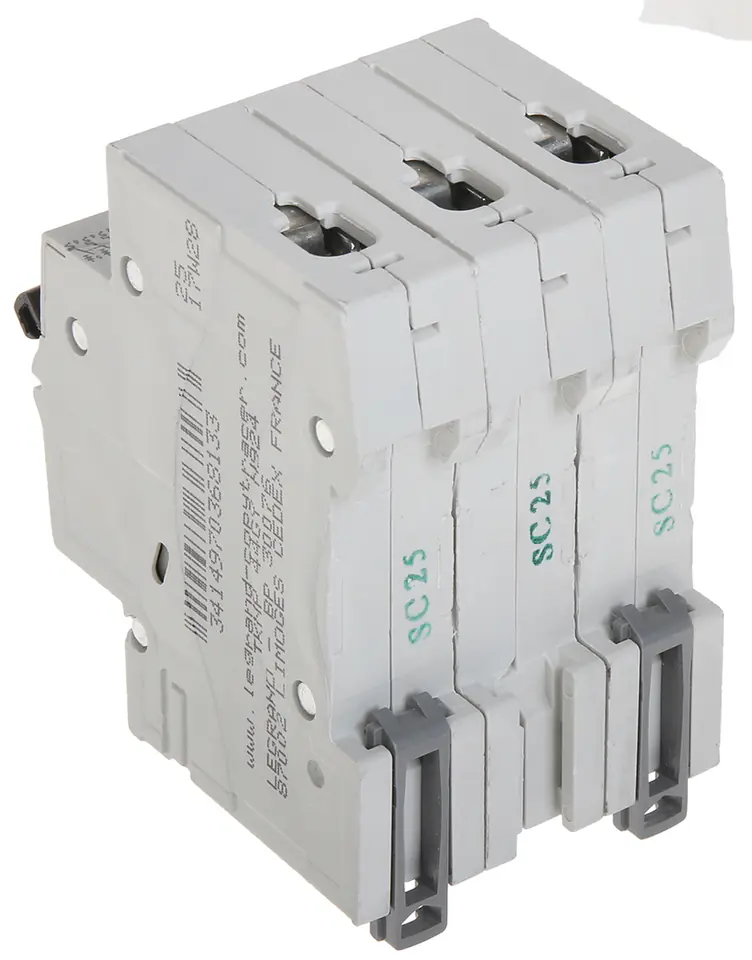

C-type circuit breaker with rated current 25AWeiled switch LE-419237 is designed for mounting on DIN rail TS-35
C-characteristic circuit breakers are designed to protect against the effects of short circuits and overloads in installations in which devices with high starting currents (motors, transformers) are used
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
