| Case:: | Plastic, DIN rail mounting, TS-35 |
|---|---|
| Connector type:: | screw terminals |
| Current:: | 25 A |
| Device type:: | Circuit breaker, Three-phase |
| Dimensions:: | 54 x 83 x 75 mm |
| Manufacturer / brand:: | LEGRAND |
| Number of poles:: | 3 |
| Rated short-circuit switching capacity:: | 6000 A |
| Scales:: | 0.4 kg |
| Triggering characteristics:: | Type B |
| Voltage:: | 230 V AC / 50 Hz 400 V AC / 50 Hz |
| Warranty:: | 2 years |
| Width in modules 17.5 mm:: | 3 |

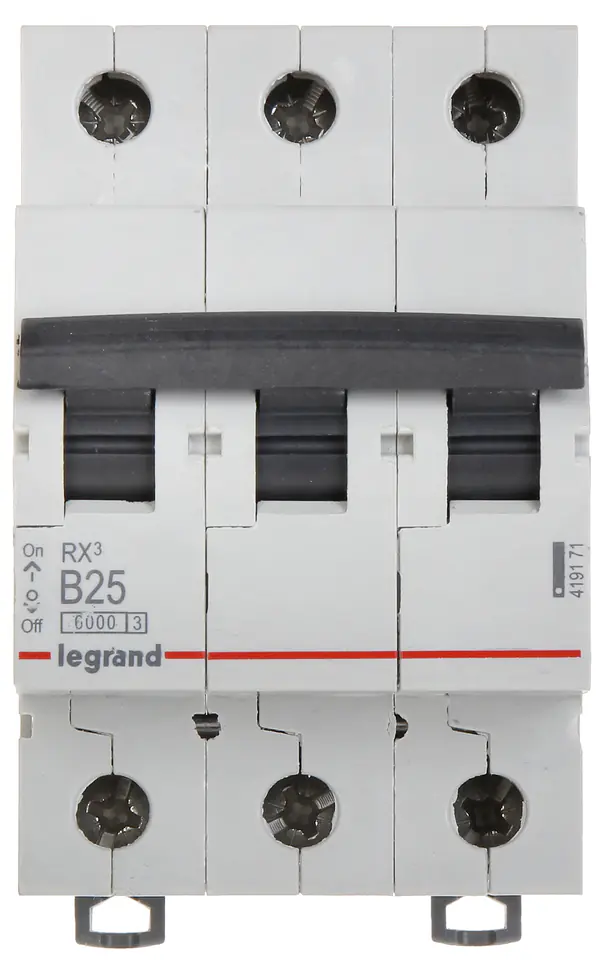

Circuit breaker with type B characteristics and rated current 25AThe LE-419171 switch is designed for mounting on the TS-35 DIN rail

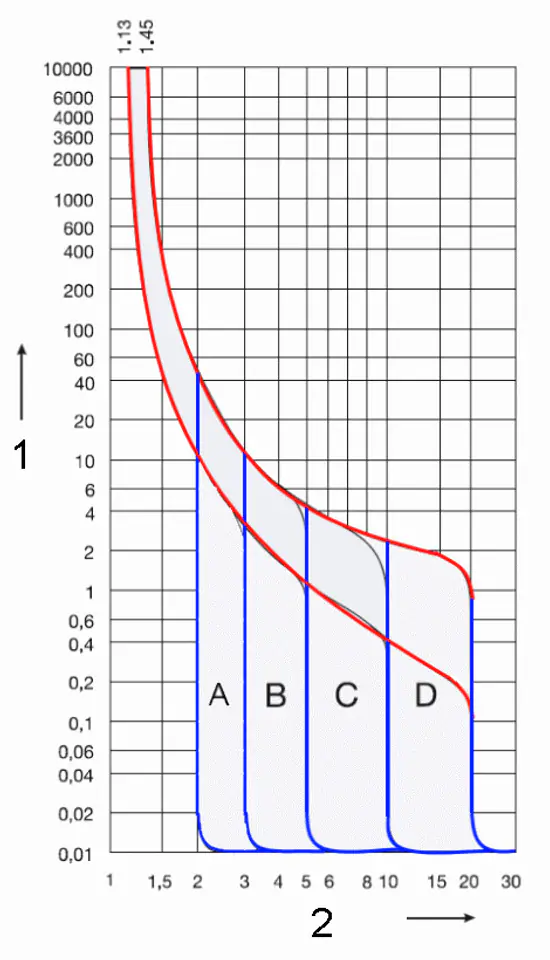

Circuit breakers with characteristic B are designed to protect lighting, control and plug socket circuits from the effects of short circuits and overloads
