| Case: | Plastic, DIN rail mounting, TS-35 |
|---|---|
| Case:: | Plastic, DIN rail mounting, TS-35 |
| Connector type: | screwed clamps |
| Connector type:: | screwed clamps |
| Current: | 25 amps |
| Current:: | 25 amps |
| Dimensions: | 83 x 74 x 17.5 mm |
| Dimensions:: | 83 x 74 x 17.5 mm |
| Manufacturer / brand:: | LEGRAND |
| Number of poles: | 1 |
| Number of poles:: | 1 |
| Producer / brand: | LEGRAND |
| Rated short-circuit switching capacity: | 6000 A |
| Rated short-circuit switching capacity:: | 6000 A |
| Scales: | 0.134 kg |
| Scales:: | 0.134 kg |

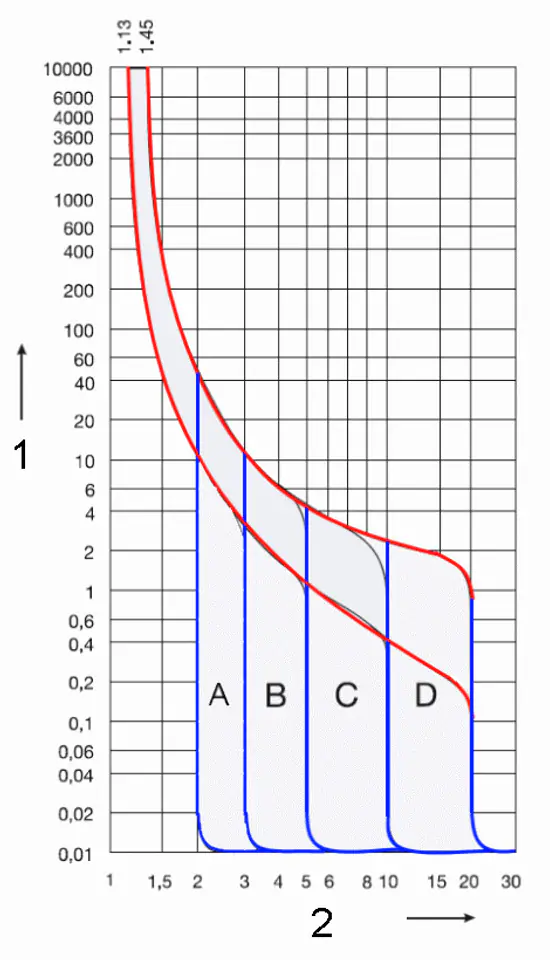

| Triggering characteristics: | Type B |
| Triggering characteristics:: | Type B |
| Type of device: | Circuit breaker, Single phase |
| Type of device:: | Circuit breaker, Single phase |
| Voltage: | 230 VAC / 50 Hz 400 VAC / 50 Hz |
| Voltage:: | 230 VAC / 50 Hz 400 VAC / 50 Hz |
| Warranty: | 2 years |
| Warranty:: | 2 years |
| Width in modules 17.5 mm: | 1 |
| Width in modules 17.5 mm:: | 1 |

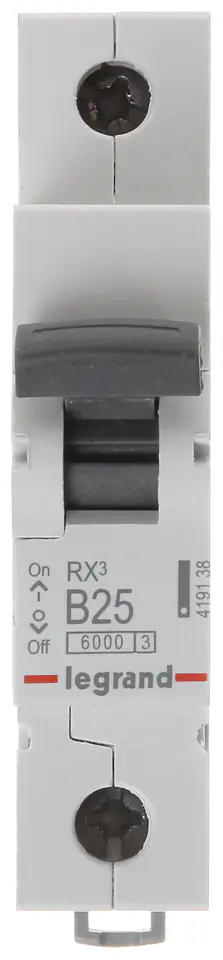

Type B circuit breaker with rated current 25AWthe LE-419138 switch is designed for mounting on a TS-35 DIN rail
B-characteristic circuit breakers are designed to protect lighting, control and socket circuits against the effects of short circuits and overloads
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
