| Case: | Plastic, DIN rail mounting, TS-35 |
|---|---|
| Case:: | Plastic, DIN rail mounting, TS-35 |
| Connector type: | screwed clamps |
| Connector type:: | screwed clamps |
| Current: | 10 amps |
| Current:: | 10 amps |
| Dimensions: | 53 x 83 x 75 mm |
| Dimensions:: | 53 x 83 x 75 mm |
| Manufacturer / brand:: | LEGRAND |
| Number of poles: | 3 |
| Number of poles:: | 3 |
| Producer / brand: | LEGRAND |
| Rated short-circuit switching capacity: | 6000 A |
| Rated short-circuit switching capacity:: | 6000 A |
| Scales: | 0.31 kg |
| Scales:: | 0.31 kg |
| Selected features: | Can be equipped with auxiliary contacts, triggers and drives from the DX3 series No possibility of connecting RCD blocks Can be connected using comb or stick rails Provided space for a description card |
| Selected features:: | Can be equipped with auxiliary contacts, triggers and drives from the DX3 series No possibility of connecting RCD blocks Can be connected using comb or stick rails Provided space for a description card |
| Triggering characteristics: | Type C |
| Triggering characteristics:: | Type C |
| Type of device: | Circuit breaker, Three-phase |
| Type of device:: | Circuit breaker, Three-phase |
| Voltage: | 230 VAC / 50 Hz 400 VAC / 50 Hz |
| Voltage:: | 230 VAC / 50 Hz 400 VAC / 50 Hz |
| Warranty: | 2 years |
| Warranty:: | 2 years |
| Width in modules 17.5 mm: | 3 |
| Width in modules 17.5 mm:: | 3 |

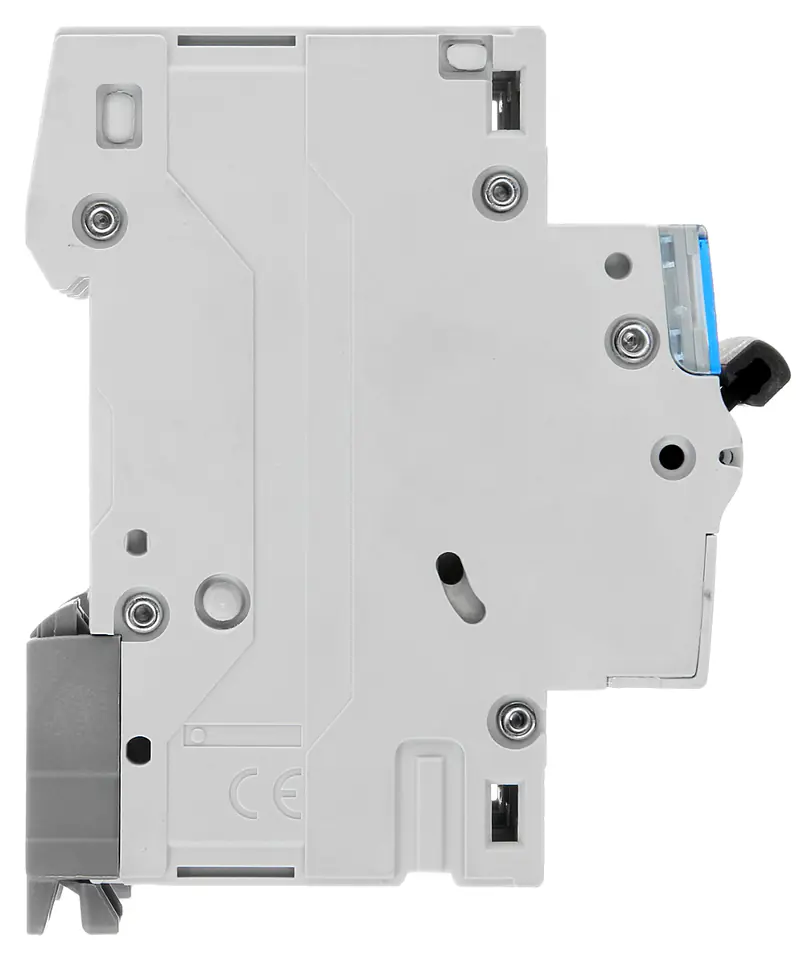

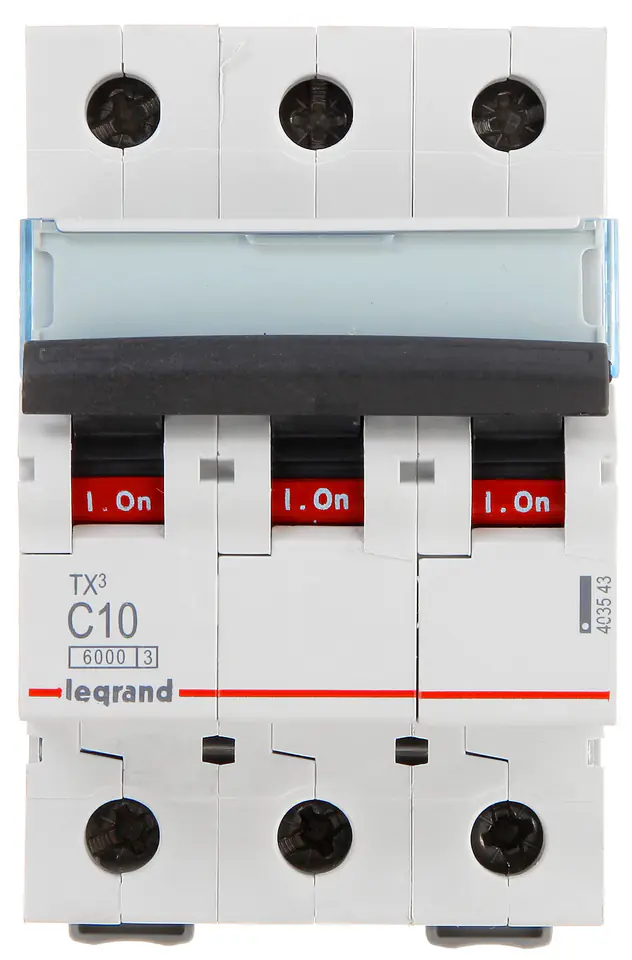

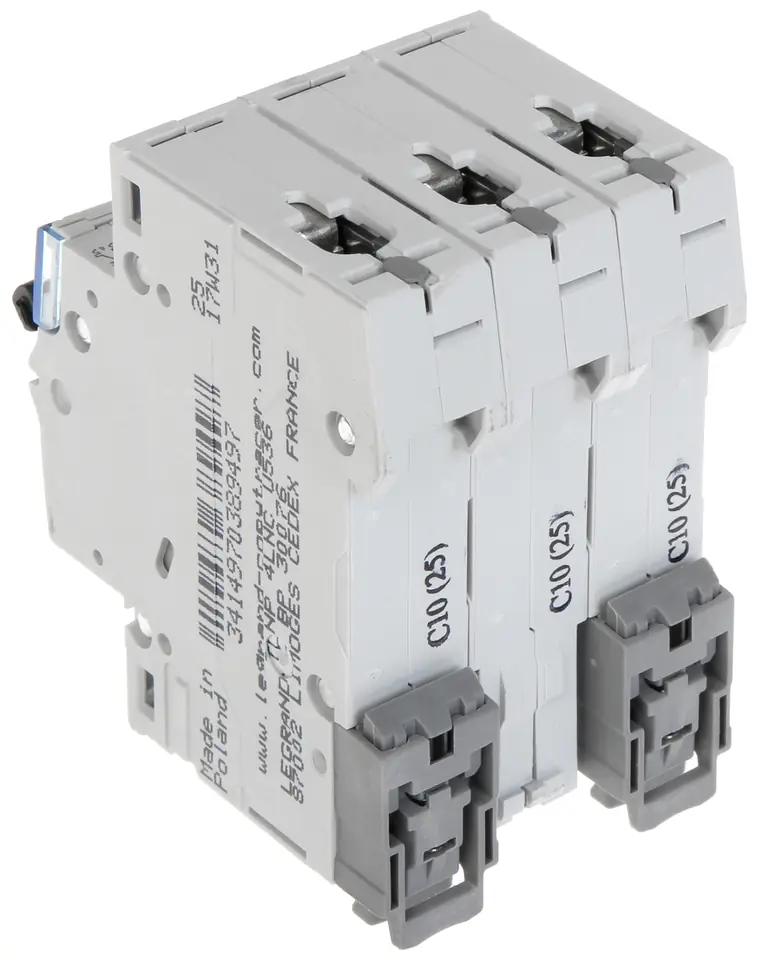

C-type circuit breaker with rated current 10AWemitter LE-403543 is designed for mounting on DIN rail TS-35

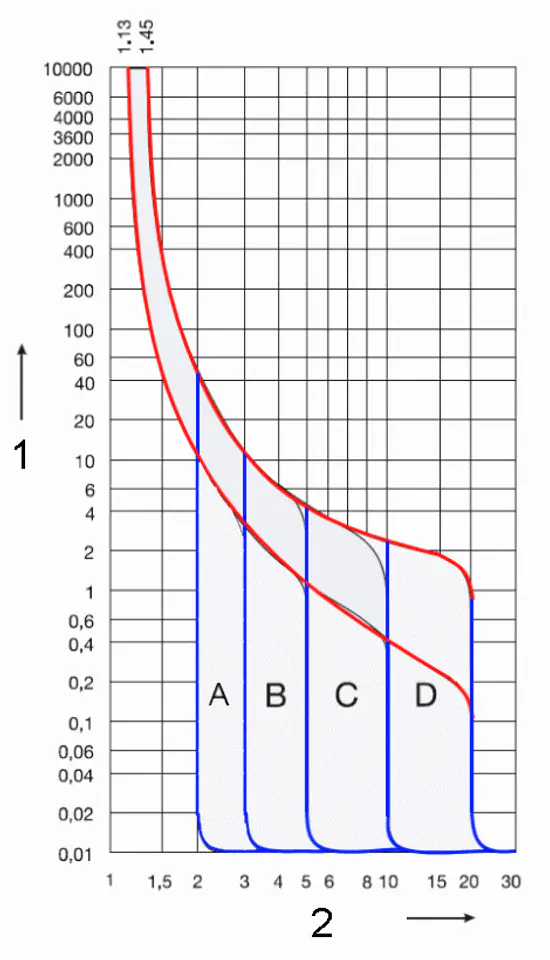

C-characteristic circuit breakers are designed to protect against the effects of short circuits and overloads in installations in which devices with high starting currents (motors, transformers) are used
