| Case:: | Plastic, DIN rail mounting, TS-35 |
|---|---|

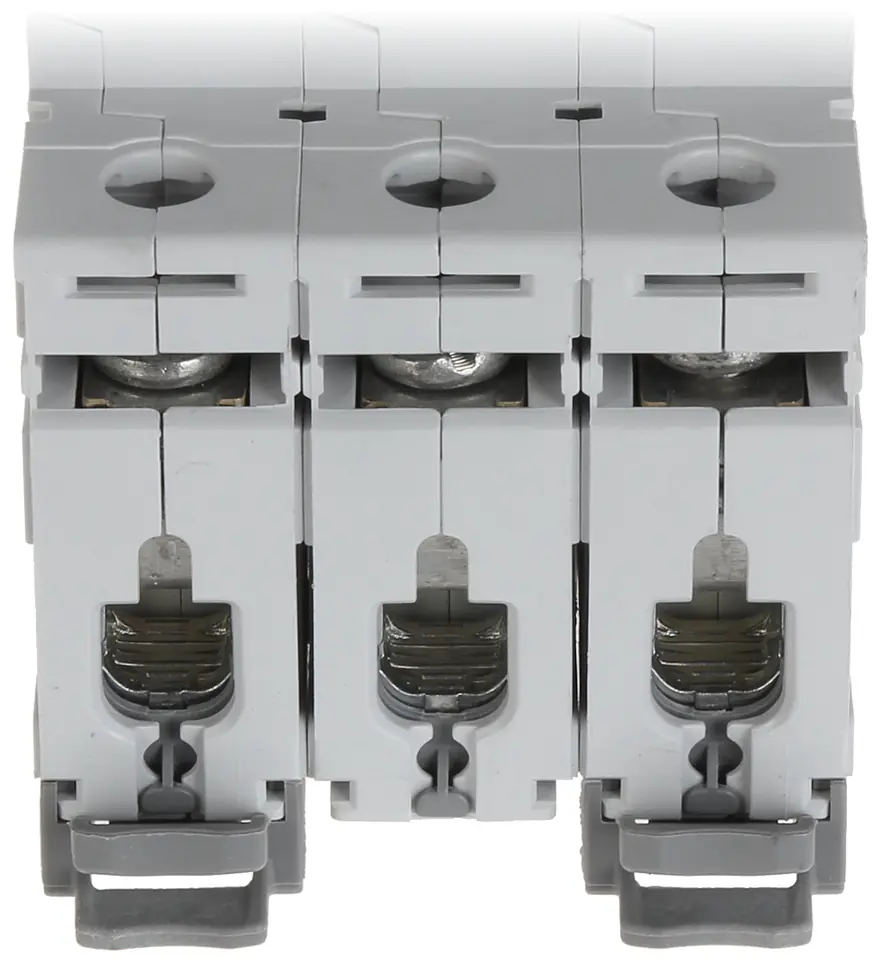

| Connector type:: | screw terminals |
| Current:: | 20 A |
| Device type:: | Circuit breaker, Three-phase |
| Dimensions:: | 53 x 83 x 75 mm |
| Manufacturer / brand:: | LEGRAND |
| Number of poles:: | 3 |
| Rated short-circuit switching capacity:: | 6000 A |
| Scales:: | 0.33 kg |
| Selected features:: | Can be equipped with auxiliary contacts, triggers and drives from the DX3 series No possibility of connecting residual current blocks Possibility of connection by means of comb or stick rails Provided space for a sheet of paper with a description |

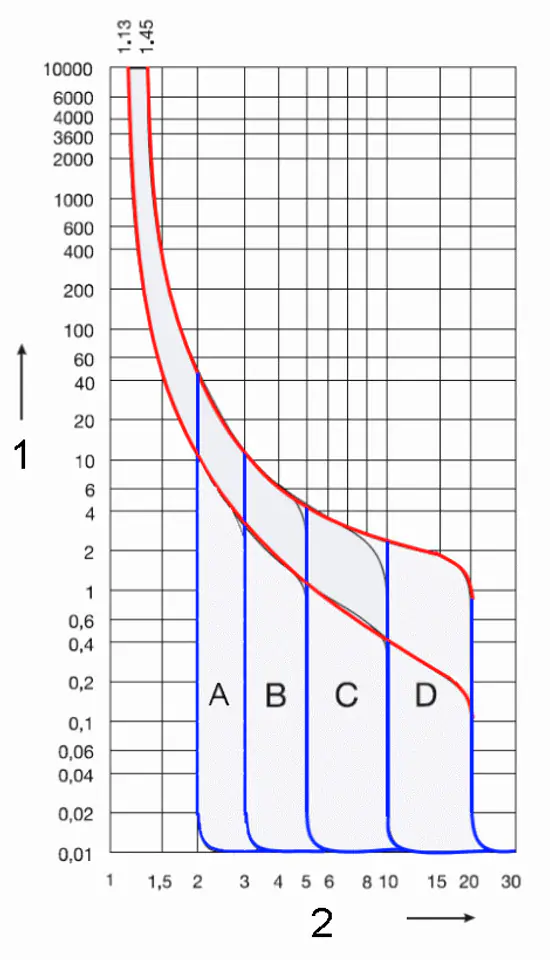

| Triggering characteristics:: | Type B |
| Voltage:: | 400 V AC / 50 Hz |
| Warranty:: | 2 years |
| Width in modules 17.5 mm:: | 3 |

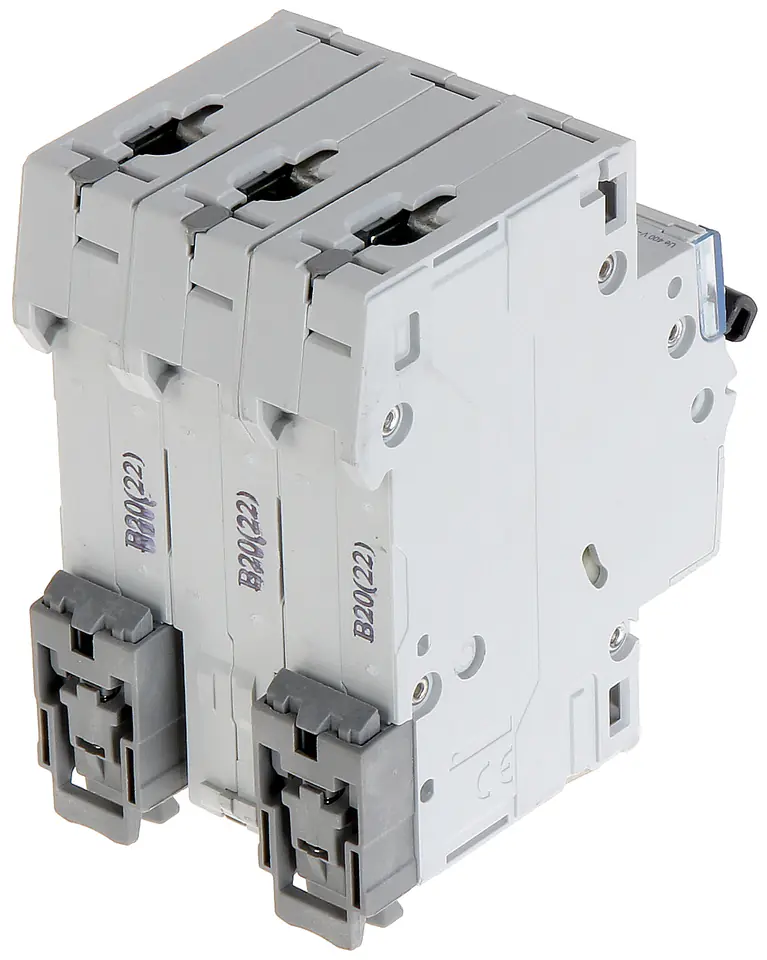

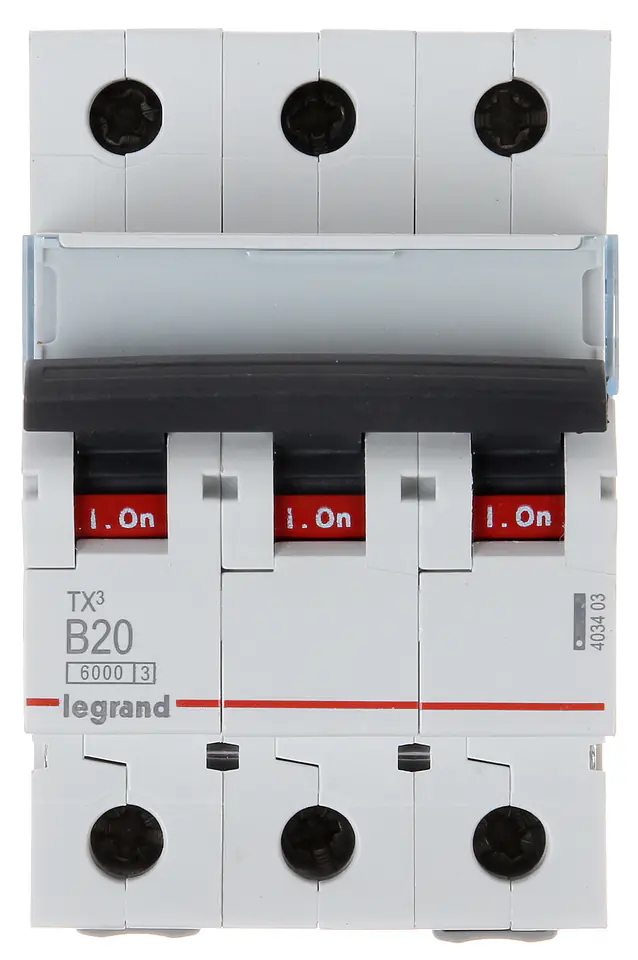

Circuit breaker with type B characteristics and rated current 20AThe LE-403403 switch is designed for mounting on the TS-35 DIN rail
Circuit breakers with characteristic B are designed to protect lighting, control and plug socket circuits from the effects of short circuits and overloads
