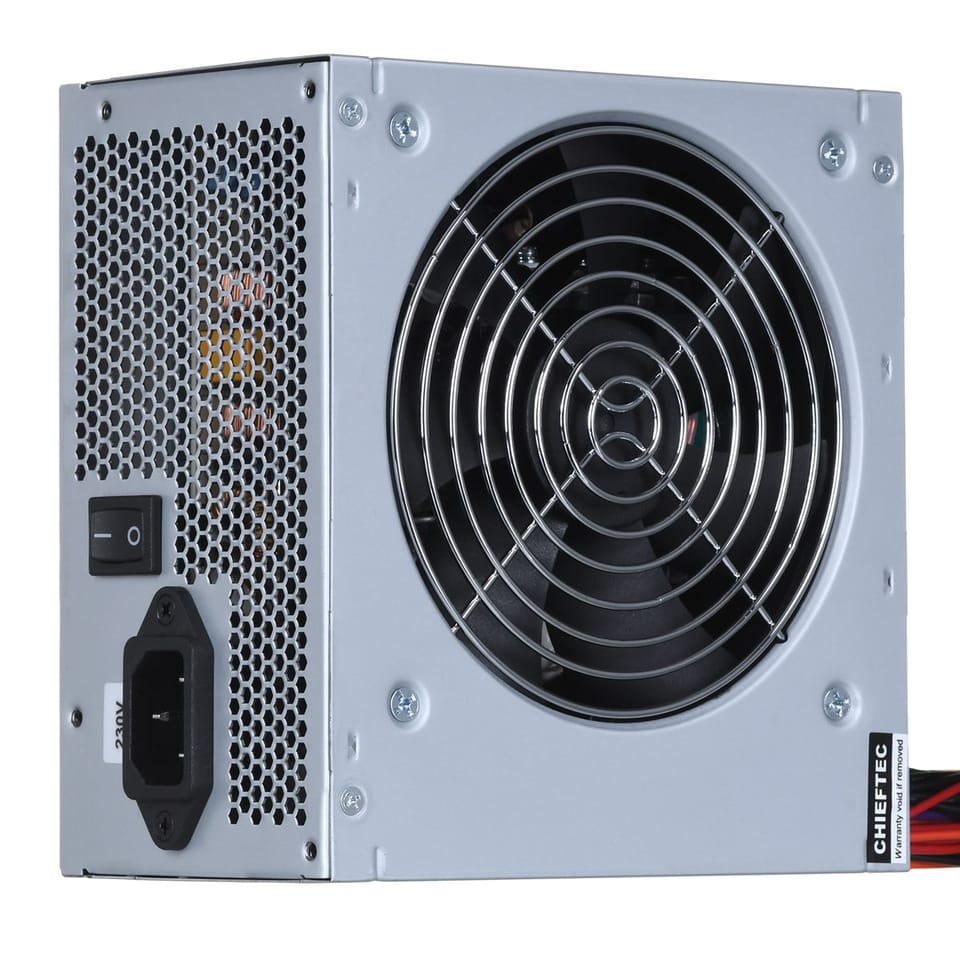

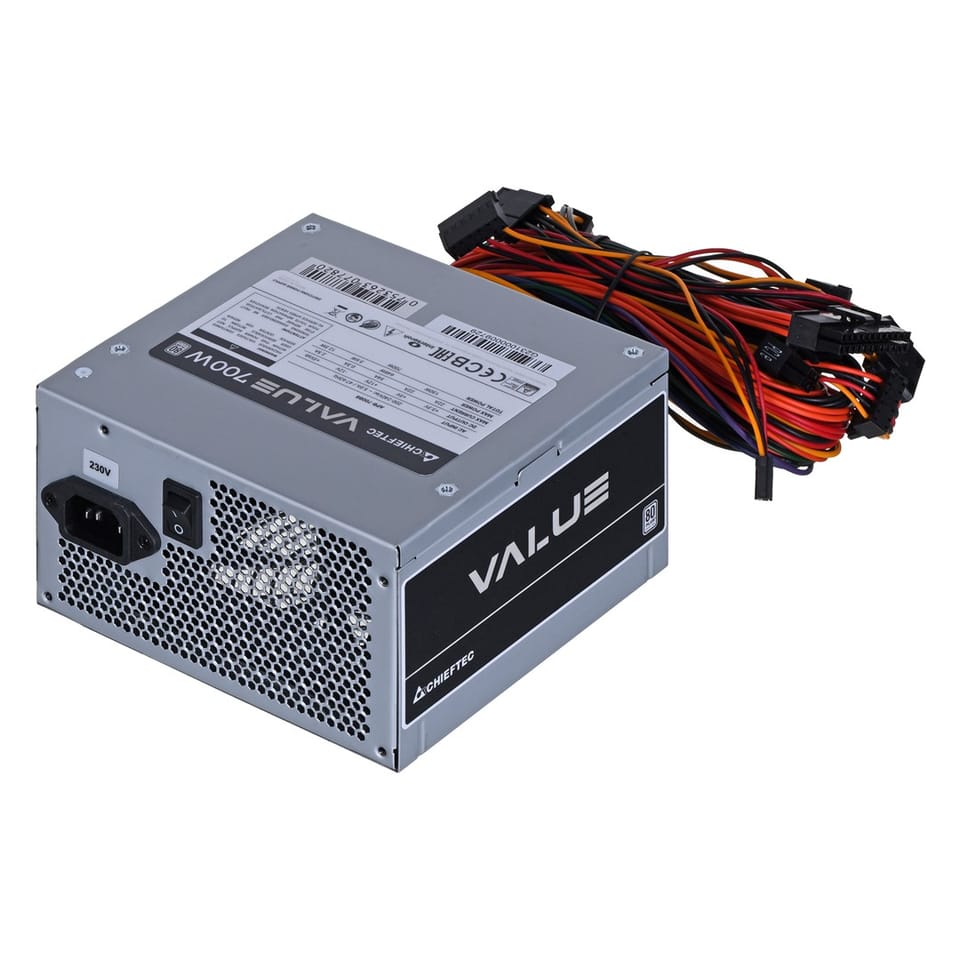

Chieftec Value APB-700B8 power supply unit 700 W 20+4 pin ATX ATX Silver
€61.37
Shipping from warehouse: A3
Estimated shipping: Tue, Nov 19 - Fri, Nov 22
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Chieftec
- Product code:
- APB-700B8 / 0753263077820
Share this product:
Specification
| 80 plus certification: | 80 PLUS |
|---|---|
| Ac input frequency: | 47 - 63 Hz |
| Ac input voltage: | 200 - 240 V |
| Atx version: | 2.3 |
| Cabling type: | Non-Modular |
| Combined power (+12v): | 648 W |
| Combined power (+3.3v): | 130 W |
| Combined power (+5v): | 130 W |
| Cooling type: | Active |
| Cpu power cable length: | 50 cm |
| Cpu power connector (4+4 pin): | Yes |
| Depth: | 140 mm |
| Eps power connector (4+4 pin): | Yes |
| Fan diameter: | 12 cm |
| Floppy disk drive connector: | Yes |
| Floppy drive power connector: | 1 |
| Harmonized system (hs) code: | 84733020 |
| Height: | 87 mm |
| Input current: | 5 A |
| Max output current (+12v1): | 54 A |
| Max output current (+3.3v): | 22 A |
| Max output current (+5v): | 22 A |
| Motherboard power cable length: | 55 cm |
| Motherboard power connector: | 20+4 pin ATX |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 4 |
| Package weight: | 1.57 kg |
| Pci express power cable length: | 50 cm |
| Pci express power connectors (6+2 pin): | 2 |
| Peripheral (molex) power cable length: | 500 mm, 150 |
| Peripheral (molex) power connectors (4-pin): | 2 |
| Power factor: | 0.9 |
| Power factor correction (pfc) type: | Active |
| Power protection features: | Under voltage, Overload, Short circuit, Over voltage, Under power, Overheating |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Silver |
| Purpose: | PC/Server |
| Sata power cable length: | 150, 550 |
| Sustainability certificates: | CE |
| Sustainability compliance: | Yes |
| Total power: | 700 W |
| Weight: | 1.42 kg |
| Width: | 150 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
