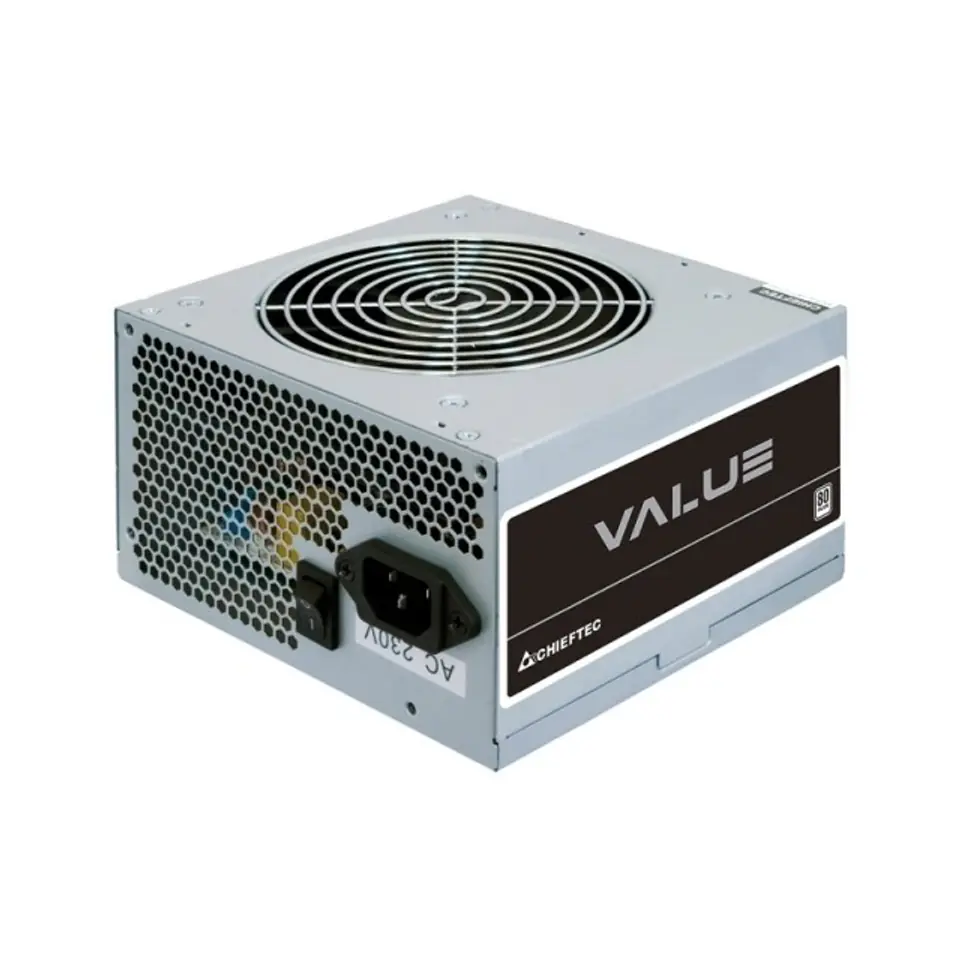

Chieftec Value APB-600B8 power supply unit 600 W 20+4 pin ATX ATX Steel

Name: Chieftec Value APB-600B8 power supply unit 600 W 20+4 pin ATX ATX Steel
Brand: Chieftec
SKU: 1297344
Price: 61.56 EUR
Availability: InStock

€61.56

Shipping from warehouse: ⁨M7⁩

Estimated shipping: Tue, Dec 24 - Fri, Dec 27

14 days returnUnconditional return policy

Availability:: large quantity
Brand:: Chieftec
Product code:: APB-600B8 / 0753263077813

Specification

80 plus certification:	80 PLUS
Ac input frequency:	47 - 63 Hz
Ac input voltage:	200 - 240 V
Atx version:	2.3
Cabling type:	Non-Modular
Combined power (-12v):	3.6 W
Combined power (+12v):	552 W
Combined power (+3.3v):	120 W
Combined power (+5v):	120 W
Combined power (+5vsb):	12.5 W
Cooling type:	Active
Depth:	140 mm
Eps power connector (4+4 pin):	Yes
Eps power connector (8-pin):	No
Fan diameter:	12 cm
Fan location:	Top
Floppy disk drive cable length:	15 cm
Floppy disk drive connector:	Yes
Harmonized system (hs) code:	84733020
Height:	87 mm
Max output current (-12v):	0.3 A
Max output current (+12v1):	46 A
Max output current (+3.3v):	20 A
Max output current (+5v):	20 A
Max output current (+5vsb):	2.5 A
Maximum input current (@220v):	4.5 A
Motherboard power cable length:	55 cm
Motherboard power connector:	20+4 pin ATX
Number of fans:	1 fan(s)
Number of sata power connectors:	4
On/off switch:	Yes
Package weight:	1.56 kg
Pci express power connectors (6+2 pin):	2
Peak power:	600 W
Peripheral (molex) power cable length:	500 mm, 150
Peripheral (molex) power connectors (4-pin):	2
Power supply unit (psu) form factor:	ATX
Product colour:	Steel
Purpose:	PC
Sata power cable length:	500 mm, 150
Sustainability certificates:	CE, RoHS
Total power:	600 W
Weight:	1.42 kg
Width:	150 mm

APB-600B8 600W PSU bulk power supply

The Value series offers both quality and performance at a very competitive price. The efficiency of the Value series power supplies is confirmed by the 80 PLUS 230V EU certificate. Equipped with a huge number of required connectors, long native cables and a silent fan with installed thermal plate, the power supply runs quietly at full load and provides Real Power while maintaining all safety rules. The Value power supply series is CE, CB, EAC and TÜV certified.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
