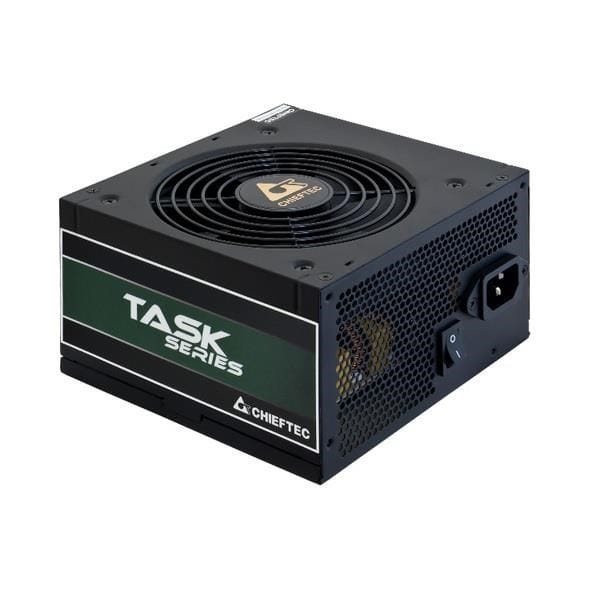

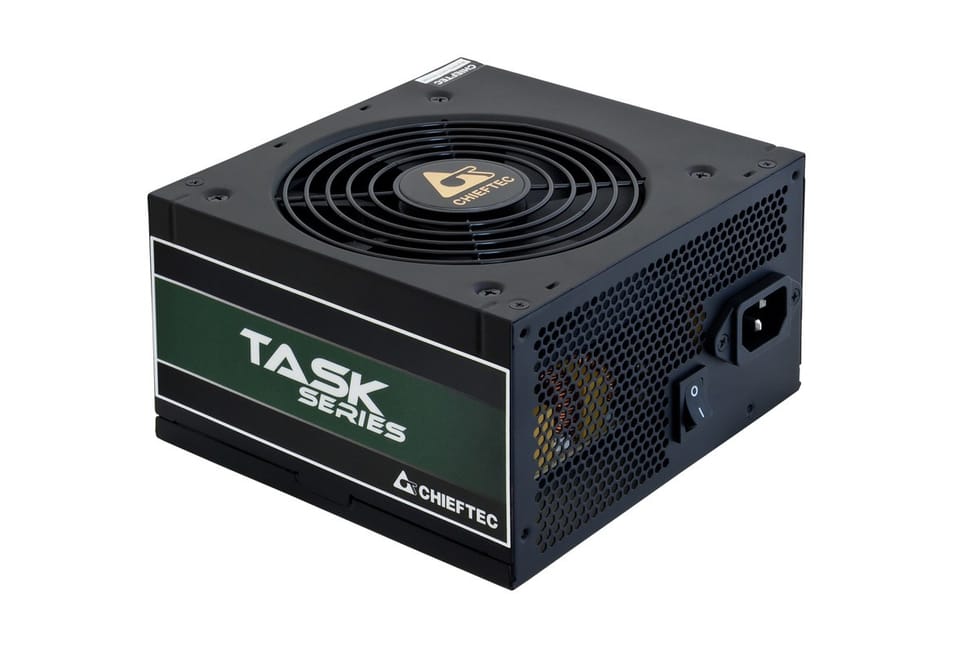

Chieftec Task TPS-700S power supply unit 700 W 20+4 pin ATX ATX Black
€72.37
Shipping from warehouse: A1
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Chieftec
- Product code:
- TPS-700S / 0753263076502
Share this product:
Specification
| 80 plus certification: | 80 PLUS Bronze |
|---|---|
| Ac input frequency: | 47 - 63 Hz |
| Ac input voltage: | 100 - 240 V |
| Atx power connector (20+4 pin): | Yes |
| Cabling type: | Non-Modular |
| Combined power (-12v): | 3.6 W |
| Combined power (+12v): | 648 W |
| Combined power (+5vsb): | 12.5 W |
| Compliance certificates: | RoHS |
| Depth: | 140 mm |
| Eps cable length: | 65 cm |
| Eps power connector (4+4 pin): | Yes |
| Fan diameter: | 12 cm |
| Harmonized system (hs) code: | 84733020 |
| Height: | 87 mm |
| Input current: | 10 A |
| Max output current (-12v): | 0.3 A |
| Max output current (+12v): | 54 A |
| Max output current (+3.3v): | 19 A |
| Max output current (+5v): | 17 A |
| Max output current (+5vsb): | 2.5 A |
| Motherboard power cable length: | 65 cm |
| Motherboard power connector: | 20+4 pin ATX |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 6 |
| Package type: | Box |
| Package weight: | 2.15 kg |
| Pci express power cable length: | 50 cm |
| Pci express power connectors (6+2 pin): | 2 |
| Peripheral (molex) power cable length: | 150, 500 mm |
| Peripheral (molex) power connectors (4-pin): | 3 |
| Power factor: | 0.9 |
| Power factor correction (pfc) type: | Active |
| Power protection features: | Overload, Short circuit, Over voltage, Overheating, Under voltage |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Purpose: | PC |
| Sata power cable length: | 150, 500 mm |
| Supported motherboard form factors: | ATX |
| Total power: | 700 W |
| Weight: | 1.74 kg |
| Width: | 150 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
