| 80 plus certificate: | 80 PLUS Bronze |
|---|---|
| 80 plus certification: | No |
| Ac input frequency: | 47 - 63 Hz |
| Ac input voltage: | 230 V |
| Atx version: | 2.3 |
| Atx version: | 2.3 |
| Cabling type: | Non-Modular |
| Combined power (-12v): | 3.6 W |
| Combined power (+3.3v): | 120 W |
| Combined power (+5v): | 120 W |
| Combined power (+5vsb): | 12.5 W |
| Compliant standards: | ATX 12V V2.3 |
| Depth: | 140 mm |
| Fan diameter: | 12 cm |
| Floppy drive power connector: | 1 |
| Height: | 87 mm |
| Input current: | 4.5 A |
| Line current: | +12V1 - 46A, -12V - 0.3A, +3.3V - 20A, +5Vsb - 2.5A, +5V - 20A |
| Line load: | -12V - 3.6W, +12V - 552W, +3.3V/+5V - 120W, +5Vsb - 12.5W |
| Max output current (-12v): | 0.3 A |
| Max output current (+12v1): | 46 A |
| Max output current (+3.3v): | 20 A |
| Max output current (+5v): | 20 A |
| Max output current (+5vsb): | 2.5 A |
| Maximum output current (-12 v): | 0.3 A |
| Maximum output current (+12 v1): | 46 amps |
| Maximum output current (+3.3v): | 20 amps |
| Maximum output current (+5 v): | 20 amps |
| Maximum output current (+5 vsb): | 2.5 A |
| Motherboard power connector: | 20+4 pin ATX |
| Number of sata power connectors: | 4 |
| Pci express power connectors (6+2 pin): | 2 |
| Peripheral (molex) power connectors (4-pin): | 2 |
| Pfc: | Active |
| Pfc (power factor correction) type: | Active |
| Power factor correction (pfc) type: | Active |
| Power protection features: | Short circuit, Over voltage, Overload, Under voltage |
| Power supply (w): | 600 |
| Power supply efficiency (%): | >80 |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Purpose: | PC |
| Security measures applied: | OVP, UVP, SCP, OPP/OLP |
| Total power: | 600 W |
| Total power (-12v): | 3.6 W |
| Total power (+3.3 v): | 120 watts (Printing) |
| Total power (+5 v): | 120 watts (Printing) |
| Total power (+5 vsb): | 12.5 W |
| Type of cooling: | Fan 120 mm |
| Type of power supply (psu): | ATX |
| Width: | 150 mm |

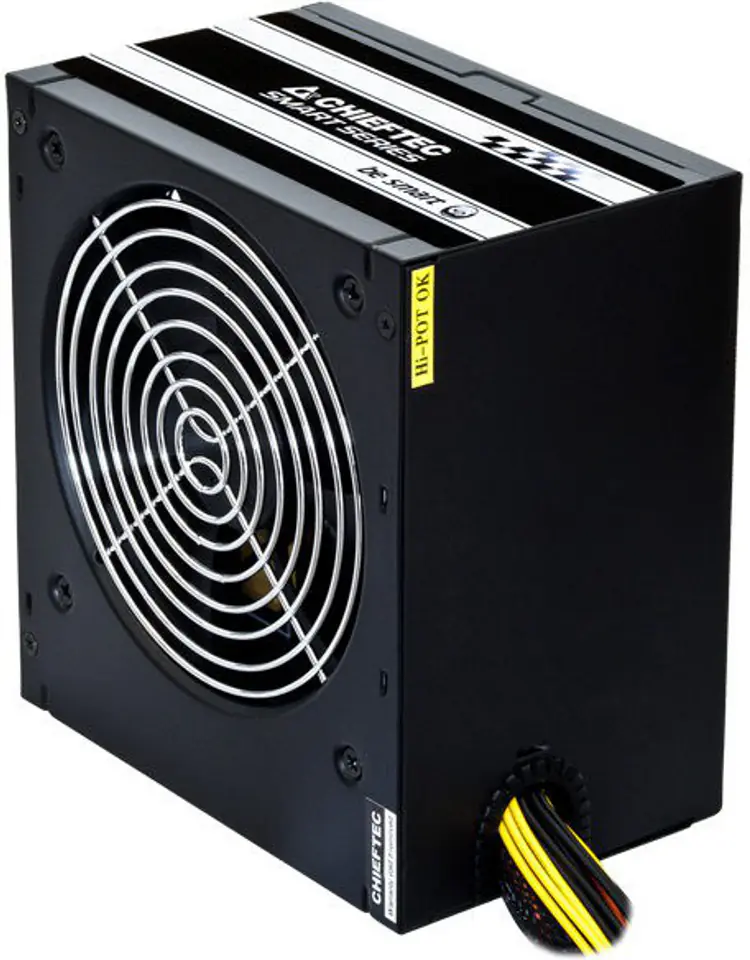

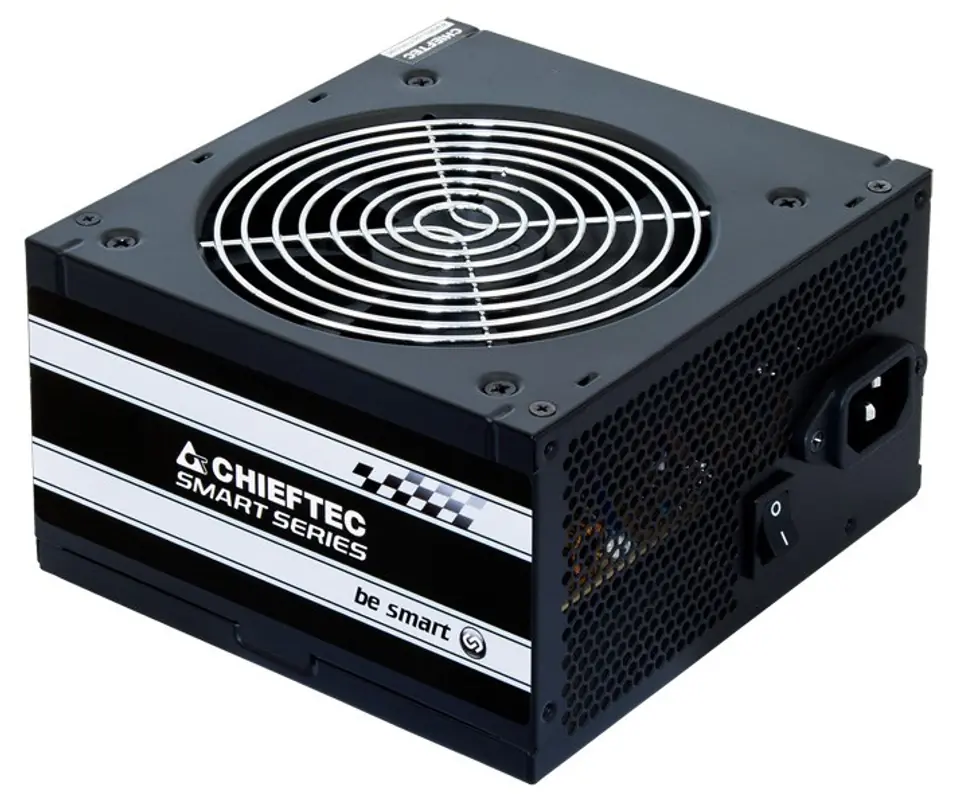

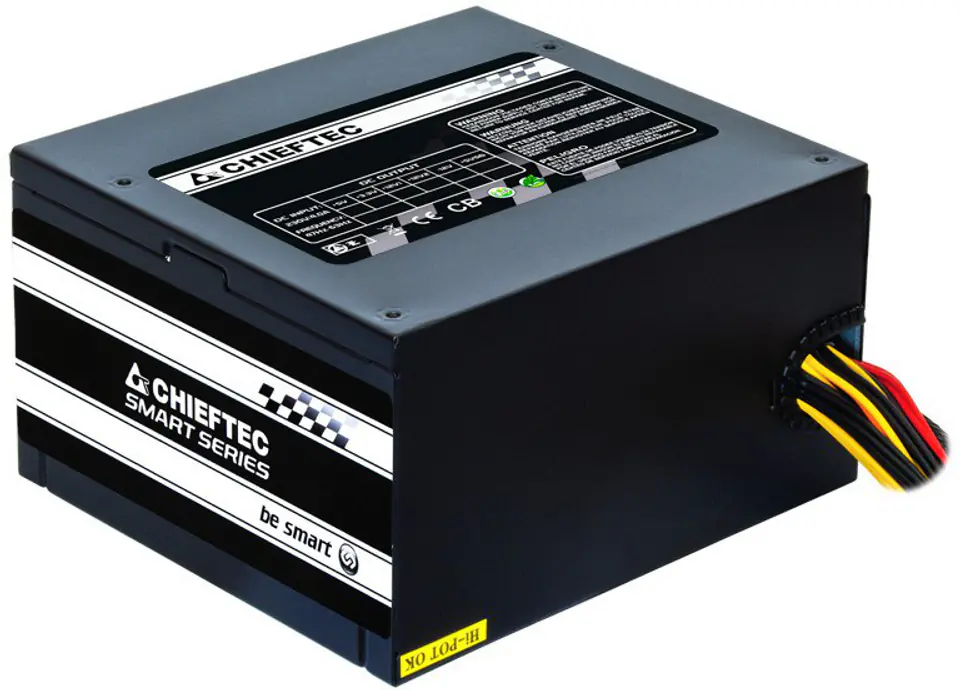

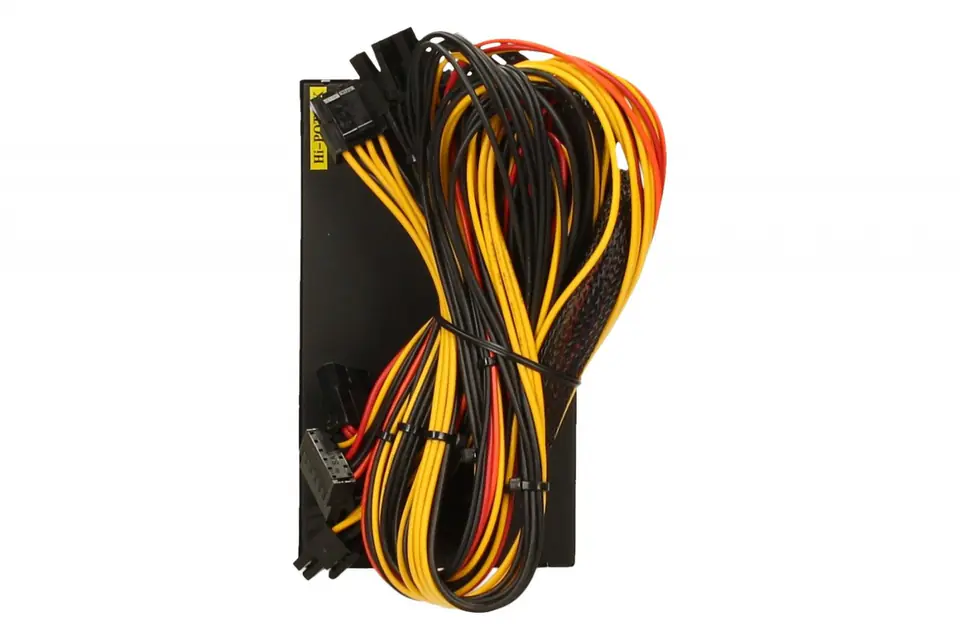

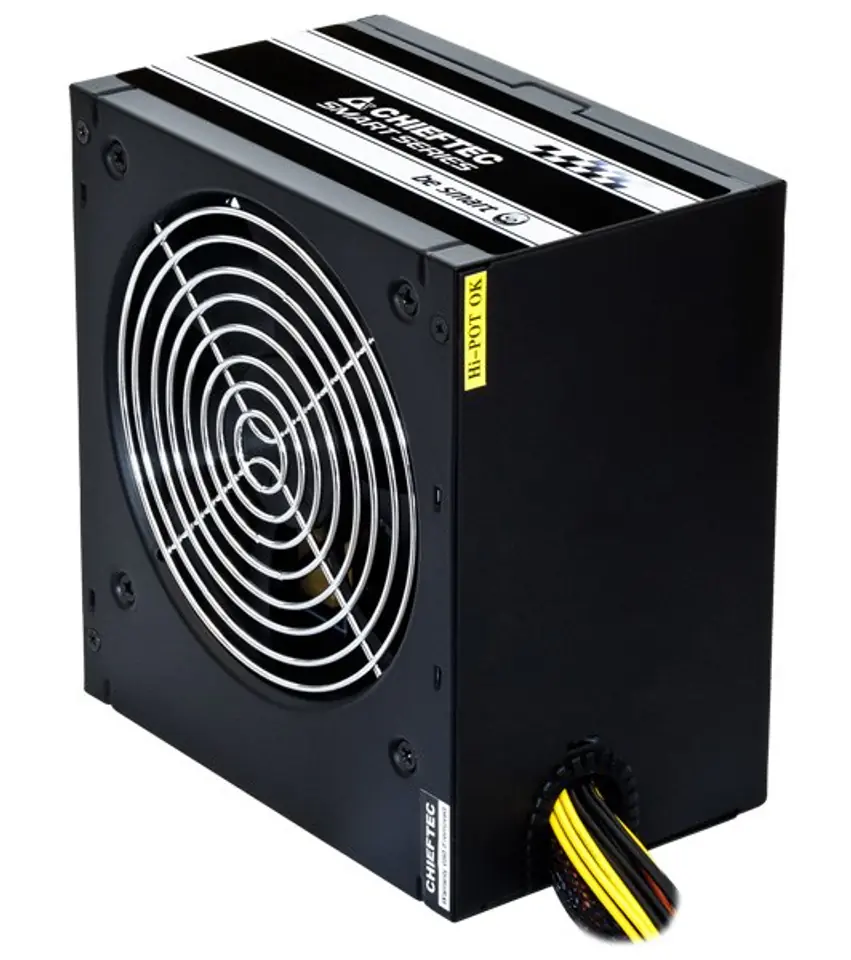

The new smart series offers both high quality and efficiency. The power supply is painted black and equipped with long cables, a power cord and a sturdy cardboard box that protects it in transport. With an efficiency of over 80%, the GPS-600A8 meets the requirements of green IT at a moderate purchase price.
140 mm x 150 mm x 87 mm
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
