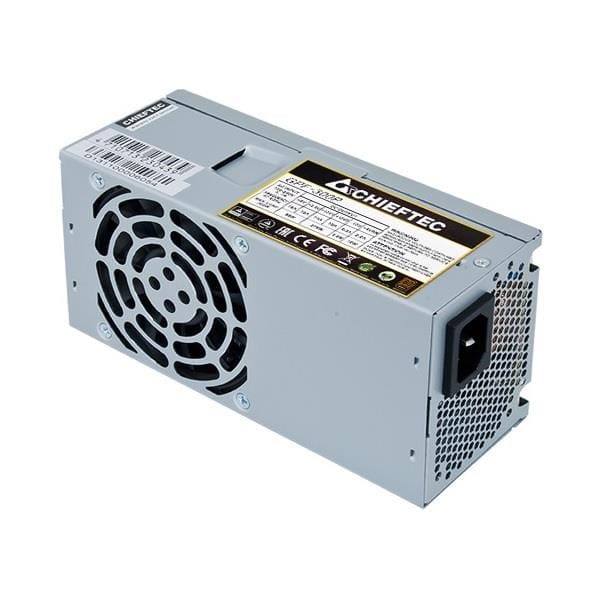

Chieftec Smart 300W power supply unit 20+4 pin ATX TFX Grey
This product is not available
- Availability:
- expected delivery
- Brand:
- Chieftec
- Product code:
- GPF-300P / 4710713234666
Share this product:
Specification
| 80 plus certification: | 80 PLUS Bronze |
|---|---|
| Ac input frequency: | 47 - 63 Hz |
| Ac input voltage: | 115 - 230 V |
| Atx version: | 2.3 |
| Cabling type: | Non-Modular |
| Combined power (-12v): | 3.6 W |
| Combined power (+3.3v): | 95 W |
| Combined power (+5v): | 95 W |
| Combined power (+5vsb): | 10 W |
| Cooling type: | Active |
| Cpu power cable length: | 35 cm |
| Depth: | 175 mm |
| Eps power connector (4+4 pin): | Yes |
| Fan diameter: | 8 cm |
| Floppy disk drive cable length: | 15 cm |
| Floppy drive power connector: | 1 |
| Harmonized system (hs) code: | 84733020 |
| Height: | 65 mm |
| Input current: | 6.3 A |
| Max output current (-12v): | 0.3 A |
| Max output current (+12v1): | 14 A |
| Max output current (+12v2): | 15 A |
| Max output current (+3.3v): | 16 A |
| Max output current (+5v): | 15 A |
| Max output current (+5vsb): | 2 A |
| Motherboard power cable length: | 30 cm |
| Motherboard power connector: | 20+4 pin ATX |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 4 |
| Package weight: | 1.13 kg |
| Peripheral (molex) power cable length: | 150, 350 mm |
| Peripheral (molex) power connectors (4-pin): | 2 |
| Power factor: | 0.9 |
| Power factor correction (pfc) type: | Active |
| Power protection features: | Overheating, Overload, Short circuit, Over voltage, Under voltage |
| Power supply unit (psu) form factor: | TFX |
| Product colour: | Grey |
| Purpose: | PC/Server |
| Sata power cable length: | 350 mm, 150 |
| Sustainability certificates: | RoHS |
| Total power: | 300 W |
| Weight: | 1.07 kg |
| Width: | 85 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
