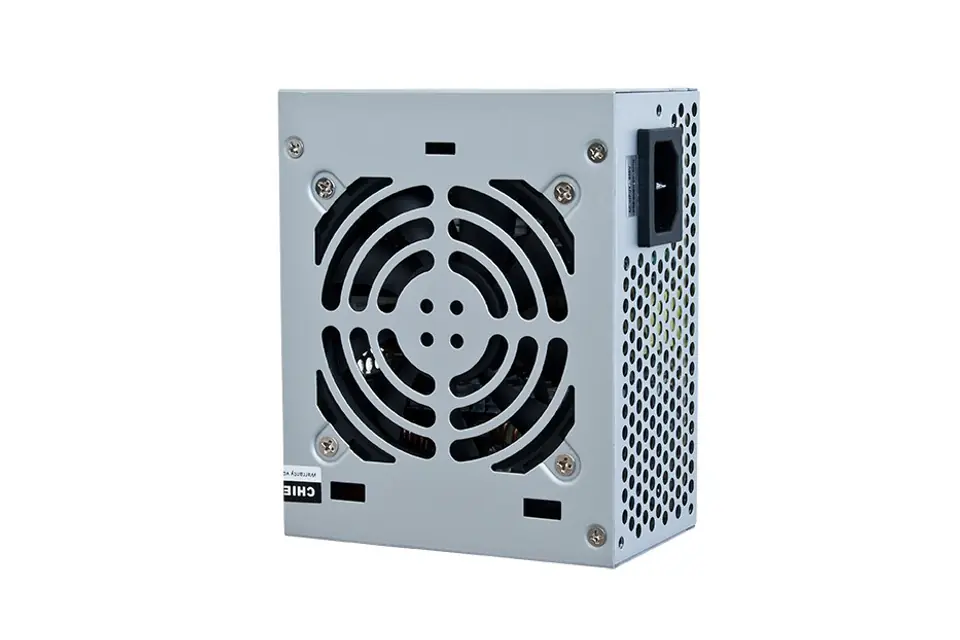

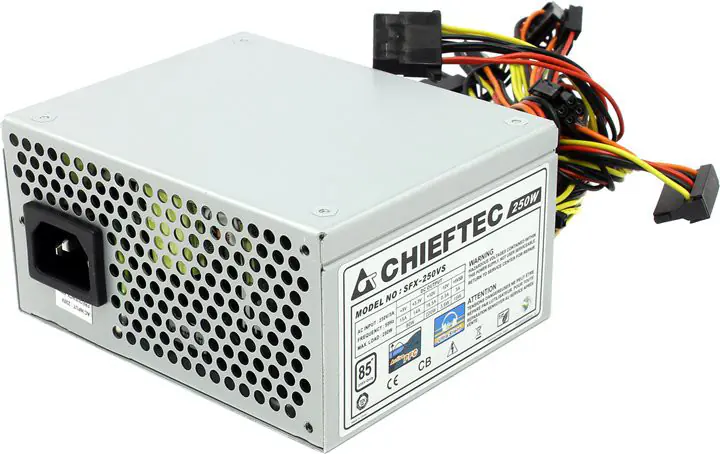

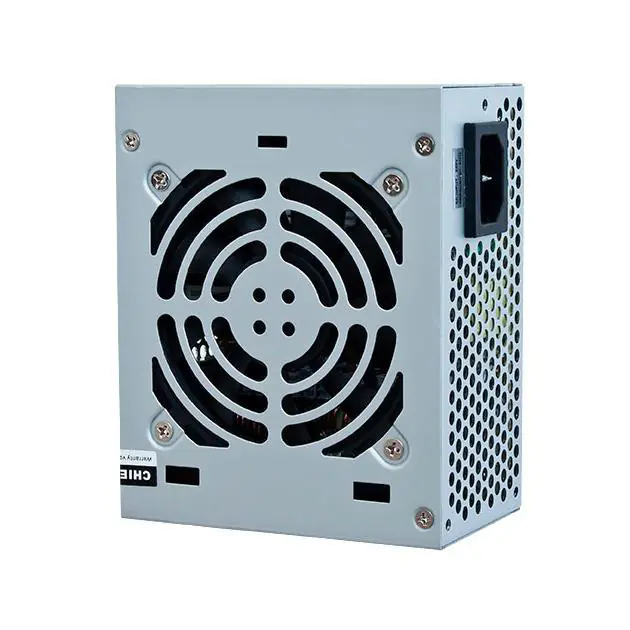

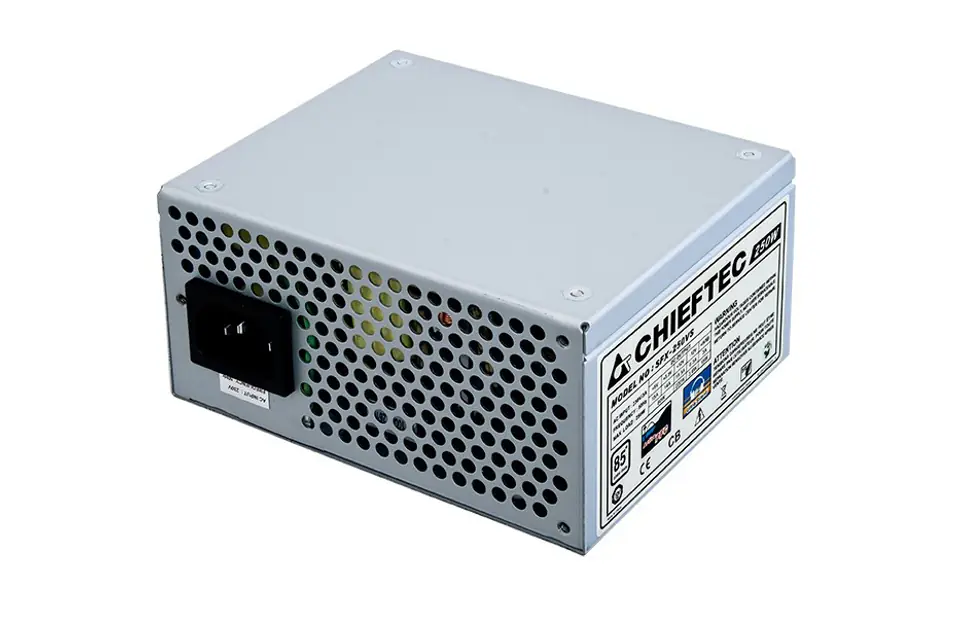

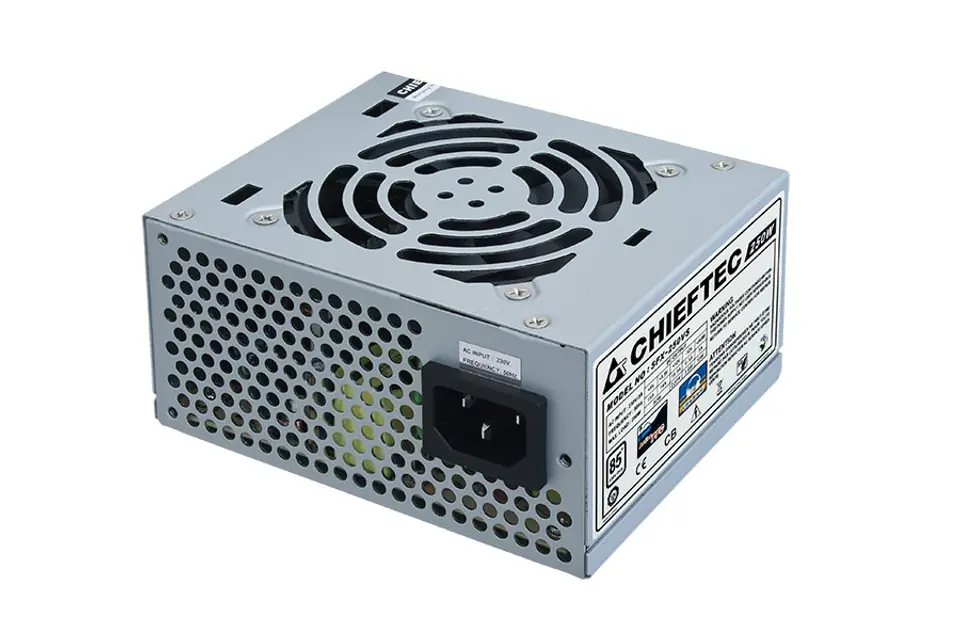

Chieftec SFX-250VS power supply unit 250 W 20+4 pin ATX Silver
This product is not available
- Availability:
- expected delivery
- Brand:
- Chieftec
- Product code:
- SFX-250VS / 4710713239982
Share this product:
Specification
| Ac input frequency: | 50 Hz |
|---|---|
| Ac input voltage: | 230 V |
| Atx power connector (20+4 pin): | Yes |
| Atx version: | 2.3 |
| Combined power (-12v): | 3.6 W |
| Combined power (+3.3v): | 80 W |
| Combined power (+5v): | 80 W |
| Combined power (+5vsb): | 15 W |
| Depth: | 125 mm |
| Efficiency: | 85% |
| Fan diameter: | 8 cm |
| Floppy drive power connector: | 1 |
| Height: | 64 mm |
| Input current: | 3 A |
| Max output current (-12v): | 0.3 A |
| Max output current (+12v1): | 18.5 A |
| Max output current (+3.3v): | 14 A |
| Max output current (+5v): | 15 A |
| Max output current (+5vsb): | 3 A |
| Motherboard power connector: | 20+4 pin ATX |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 2 |
| Peripheral (molex) power connectors (4-pin): | 2 |
| Power factor: | 0.9 |
| Power factor correction (pfc) type: | Active |
| Power supply unit (psu) form factor: | SFX |
| Product colour: | Silver |
| Purpose: | PC |
| Total power: | 250 W |
| Width: | 100 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
