| 80 plus certification: | No |
|---|---|
| Ac input frequency: | 47 - 63 Hz |
| Ac input voltage: | 230 V |
| Atx version: | 2.3 |
| Cabling type: | Non-Modular |
| Combined power (-12v): | 3.6 W |
| Combined power (+12v): | 408 W |
| Combined power (+3.3v): | 130 W |
| Combined power (+5v): | 130 W |
| Cooling type: | Active |
| Depth: | 140 mm |
| Efficiency: | 80% |
| Fan diameter: | 12 cm |
| Floppy drive power connector: | 1 |
| Height: | 87 mm |
| Max output current (-12v): | 0.3 A |
| Max output current (+12v): | 12.5 A |
| Max output current (+12v1): | 24 A |
| Max output current (+12v2): | 21 A |
| Max output current (+3.3v): | 22 A |
| Max output current (+5v): | 19 A |
| Max output current (+5vsb): | 3 A |
| Motherboard power connector: | 20+4 pin ATX |
| Number of sata power connectors: | 3 |
| Pci express power connectors (6+2 pin): | 1 |
| Peripheral (molex) power connectors (4-pin): | 2 |
| Power protection features: | Under voltage, Over current, Short circuit, Over voltage, Overheating, Overload |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Purpose: | PC |
| Total power: | 500 W |
| Width: | 150 mm |

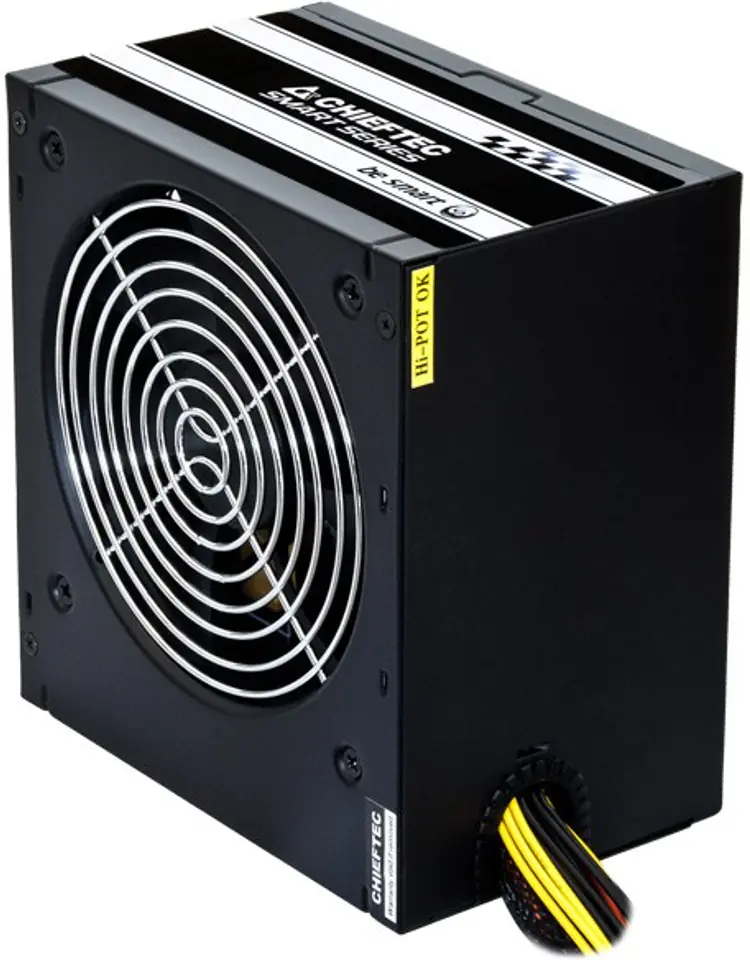

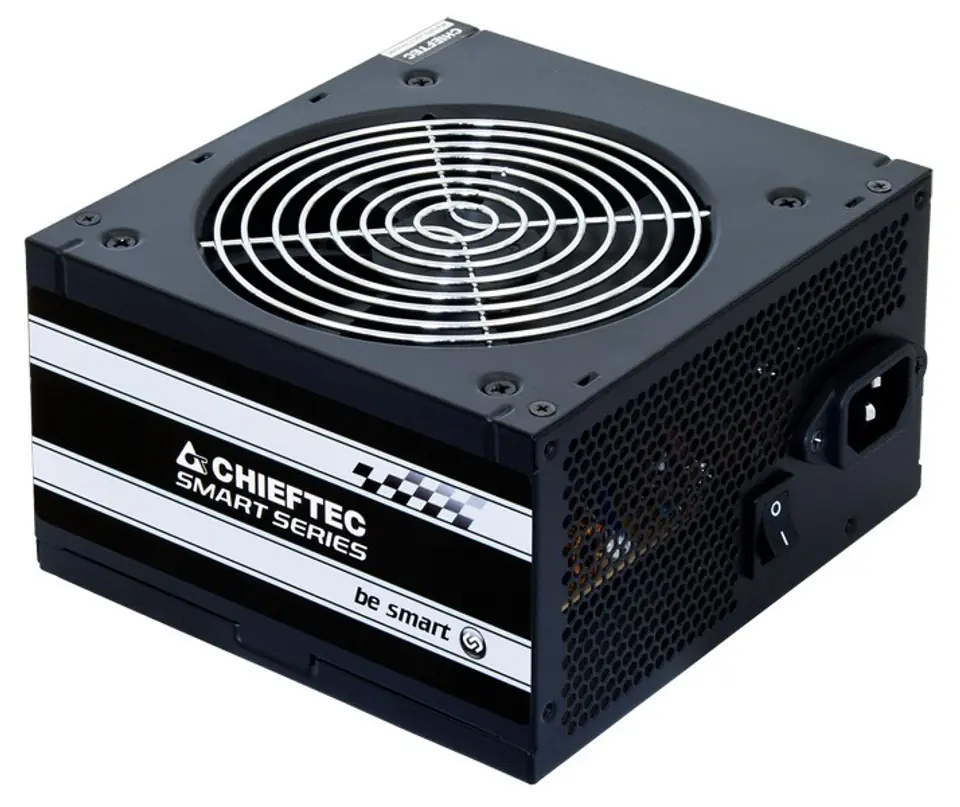

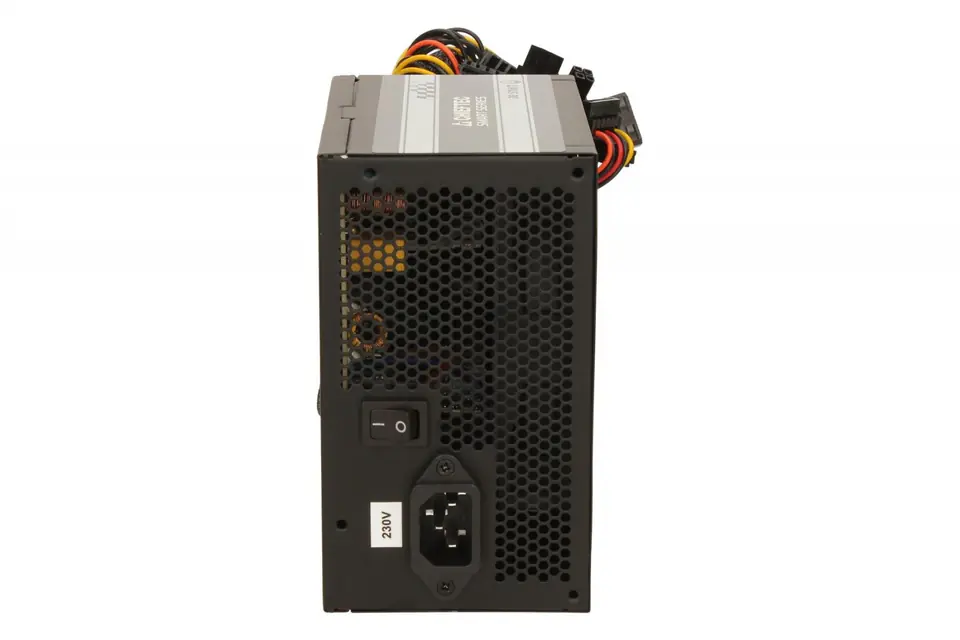

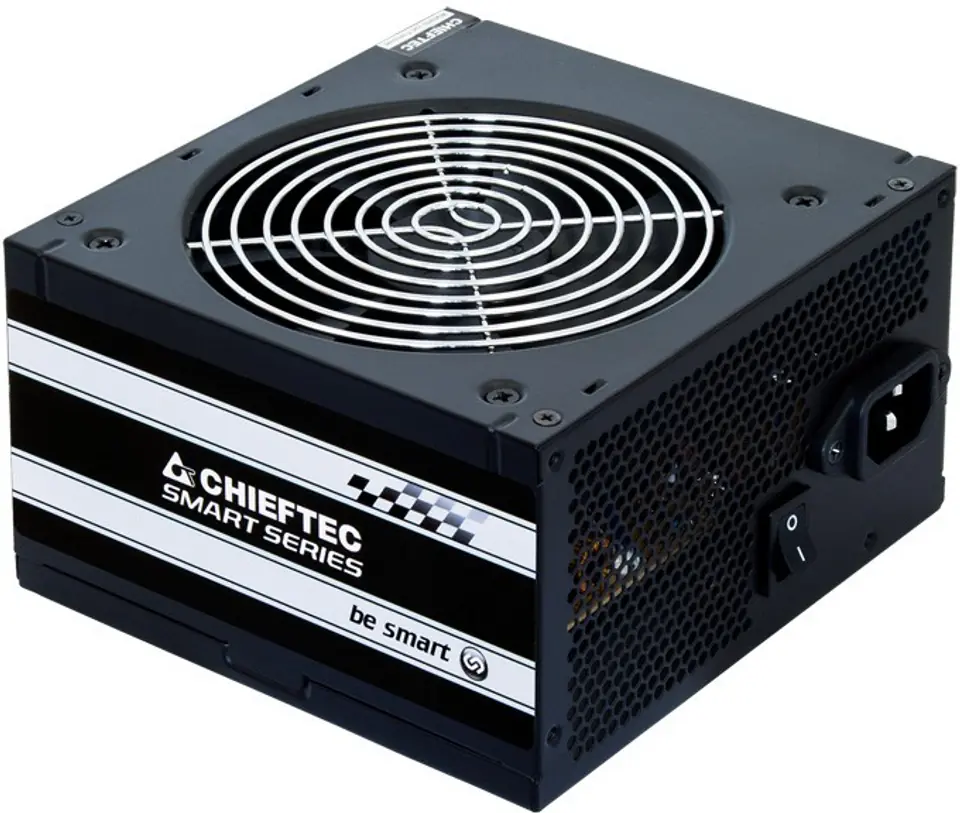

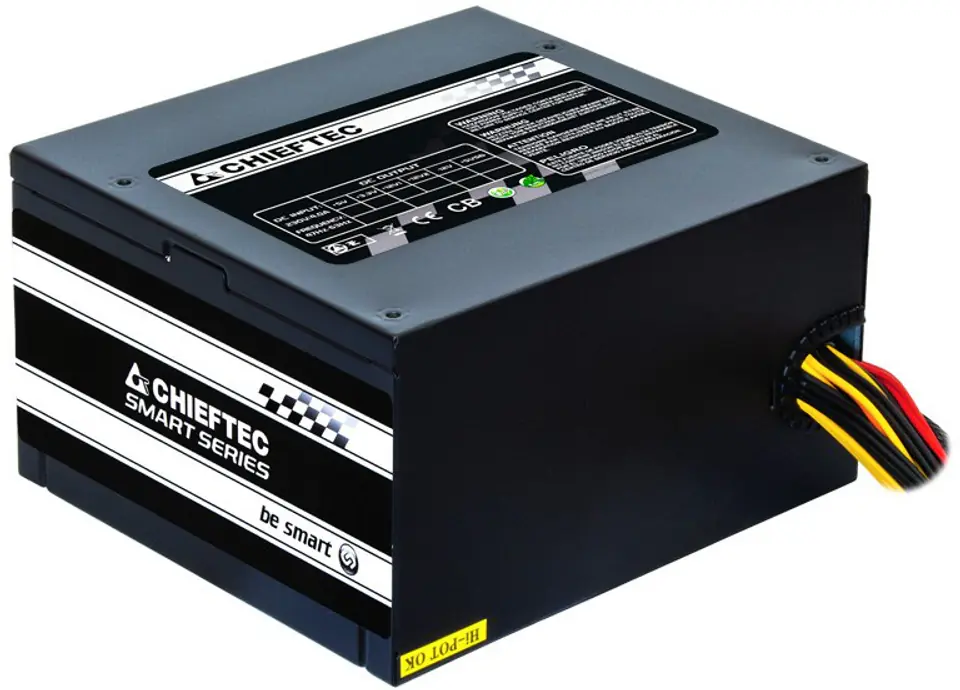

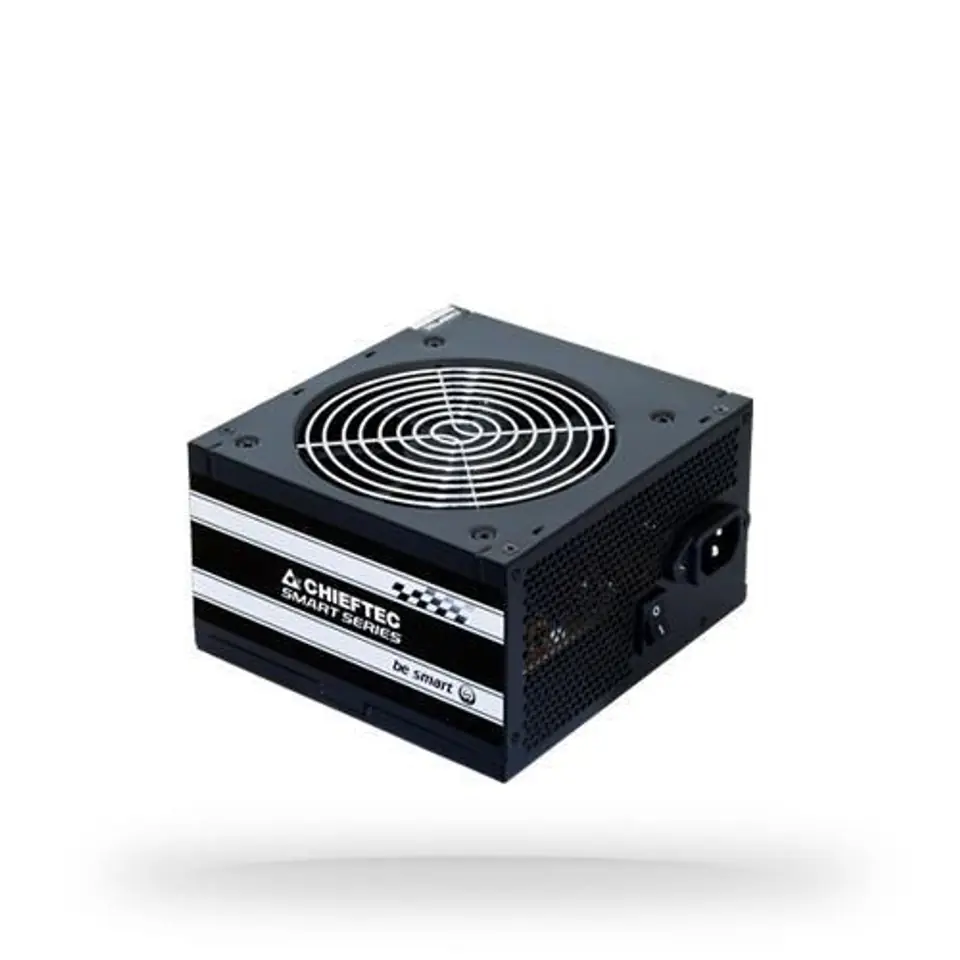

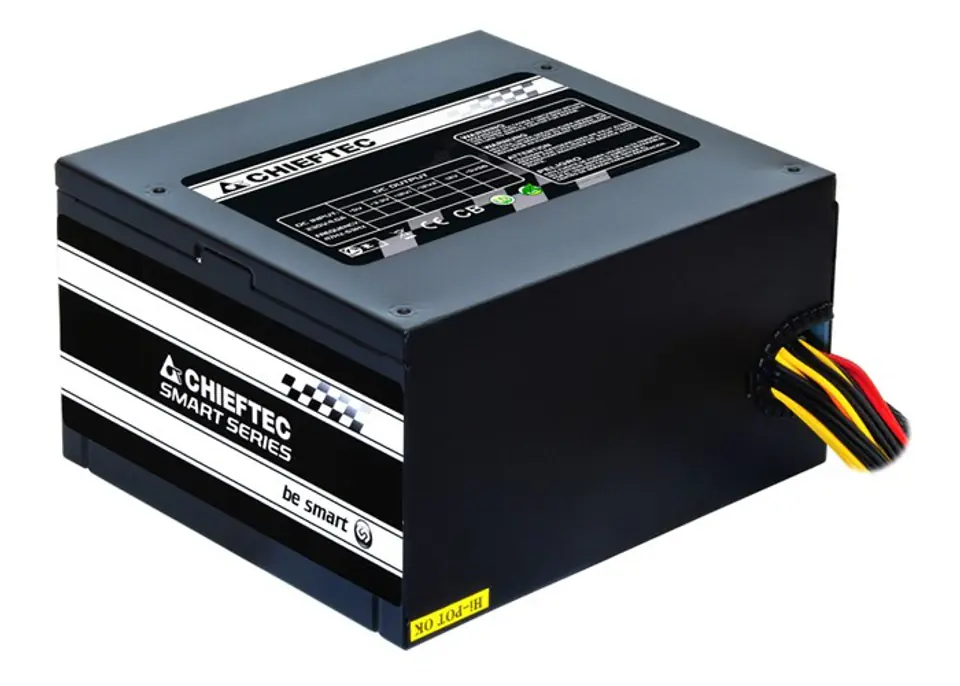

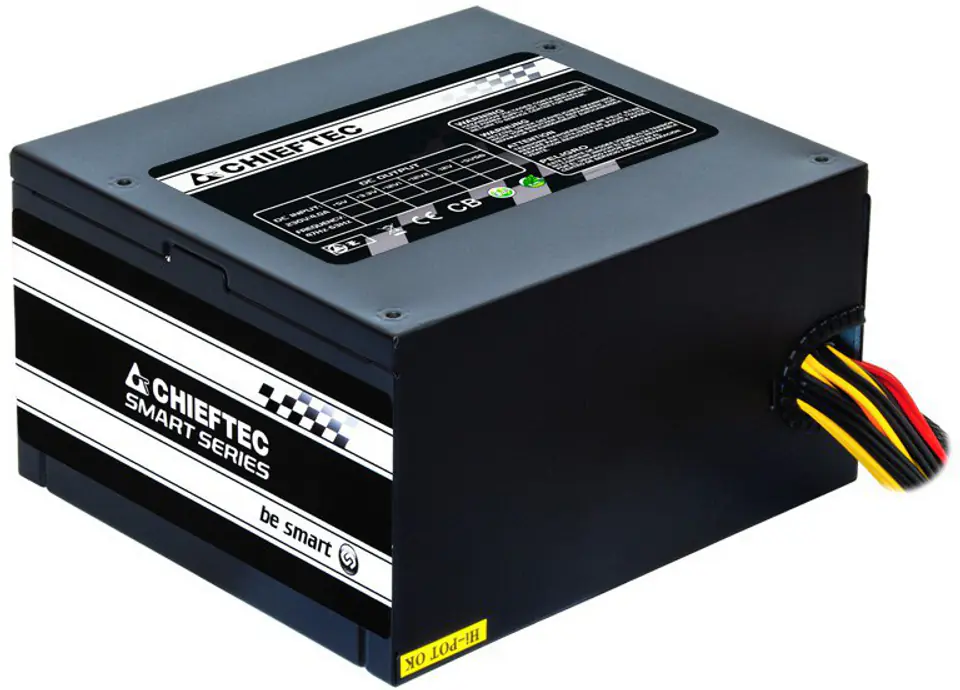

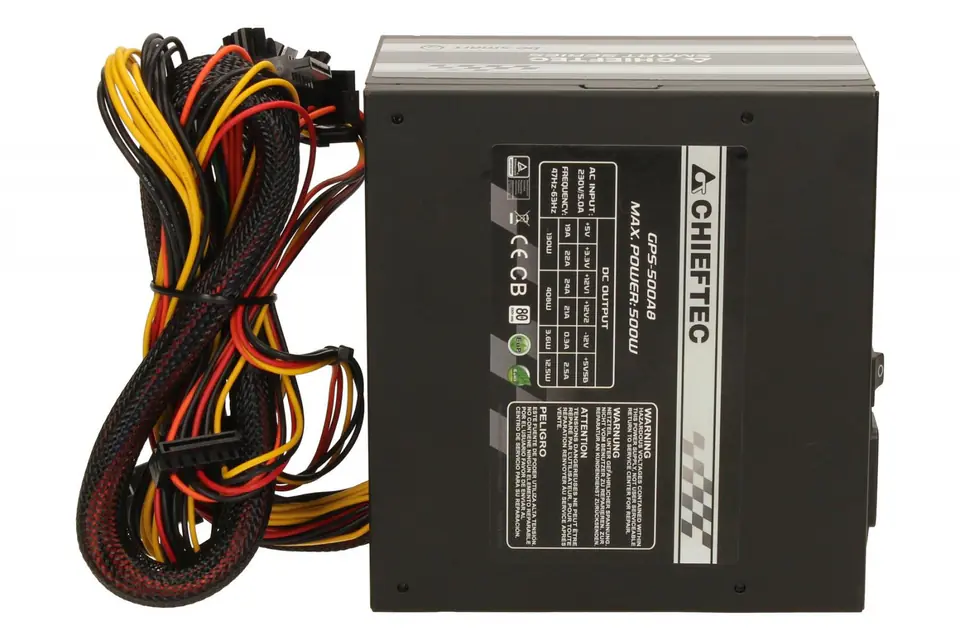

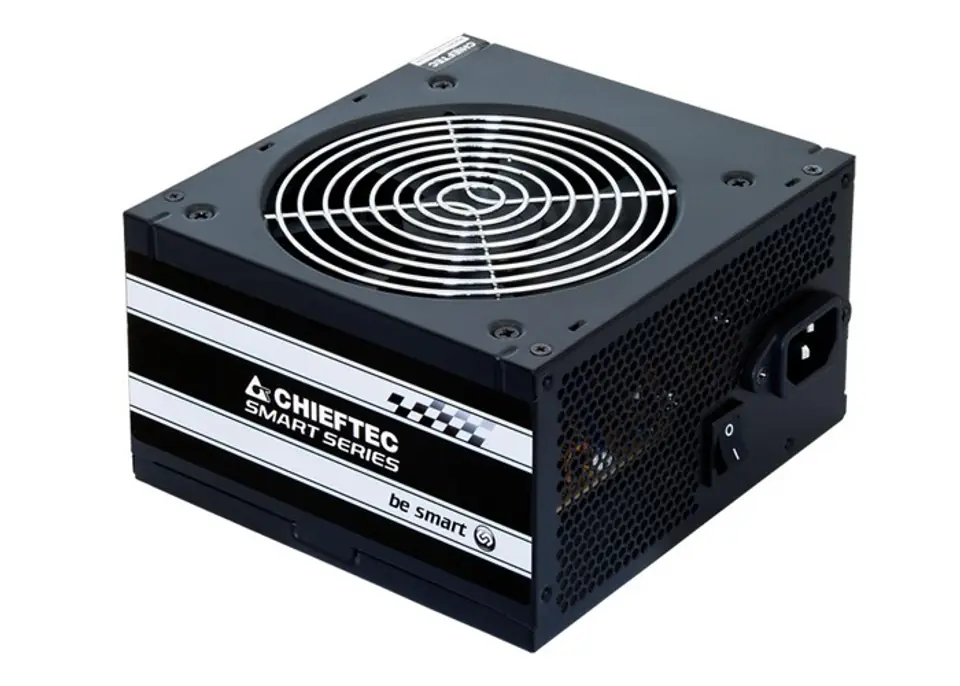

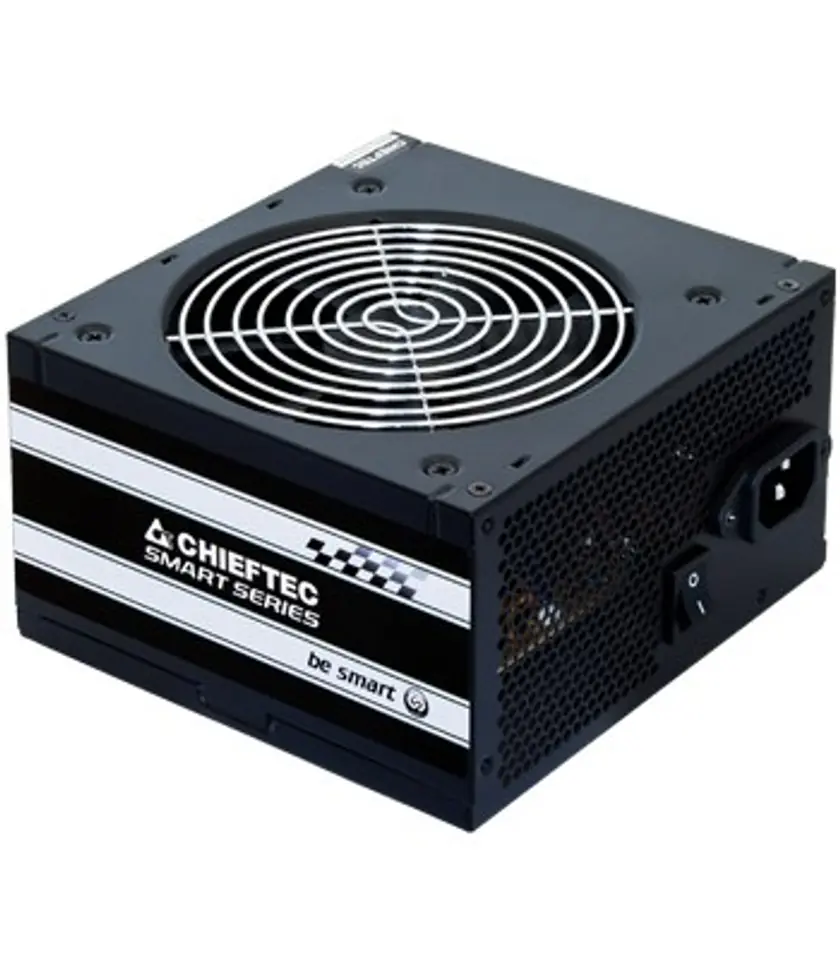

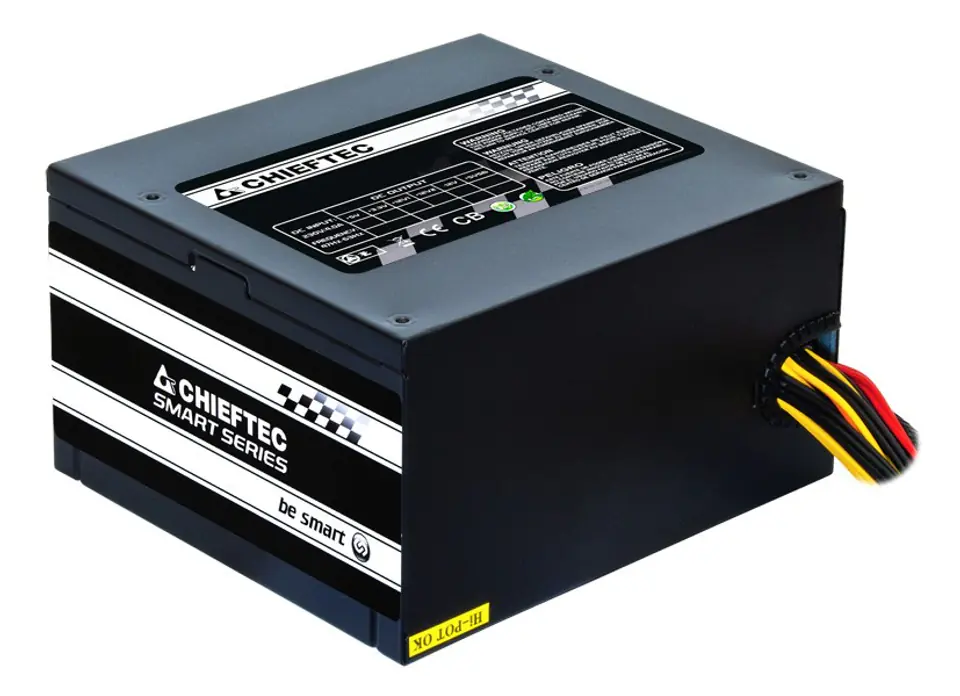

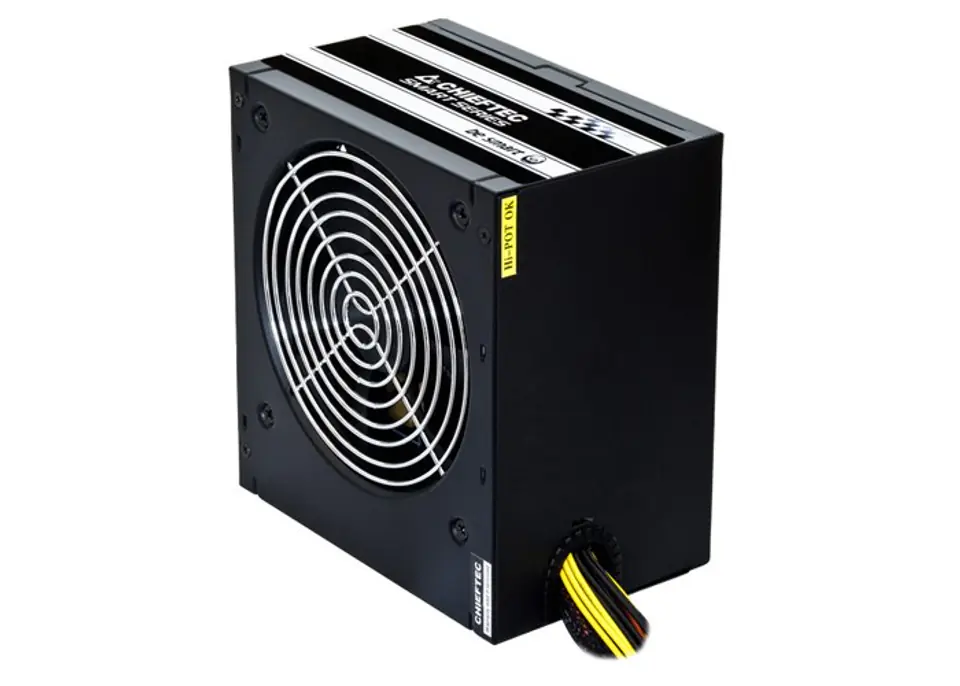

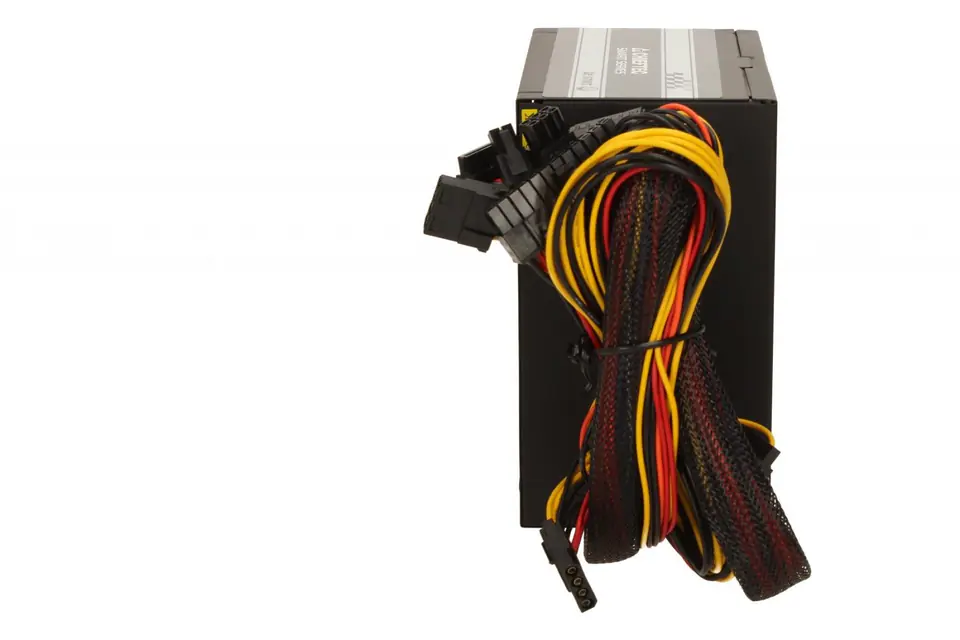

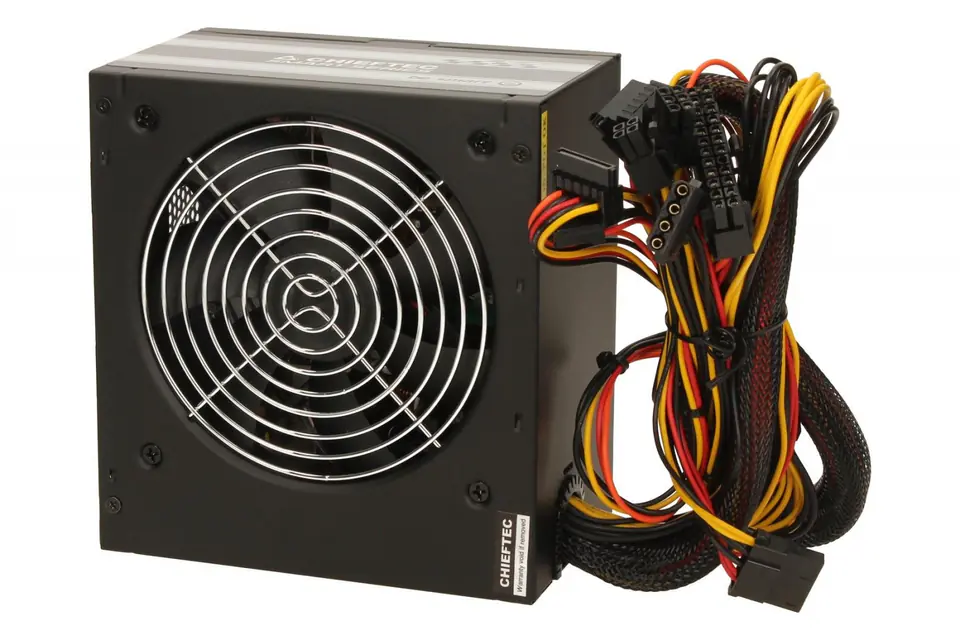

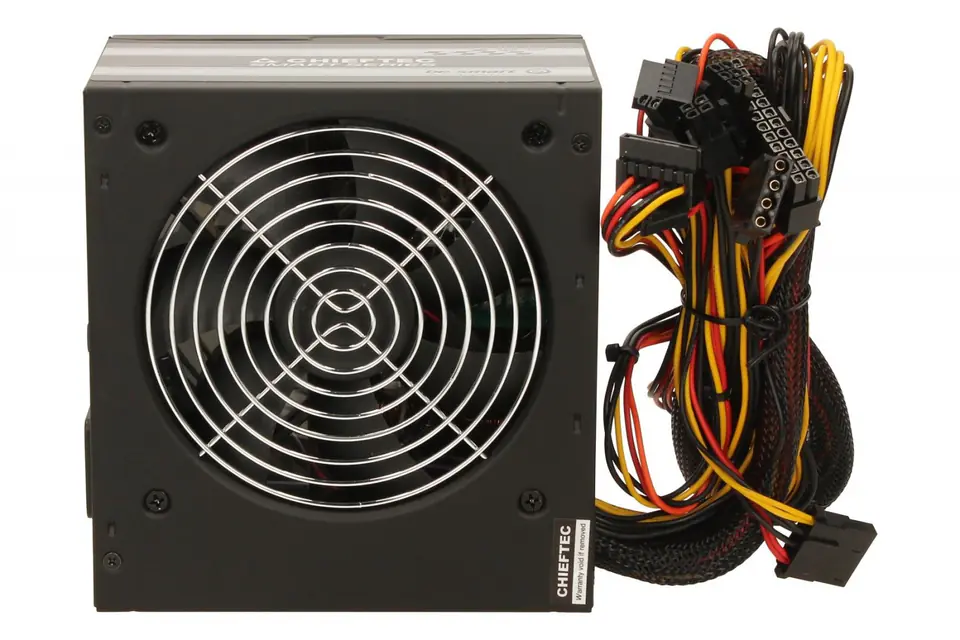

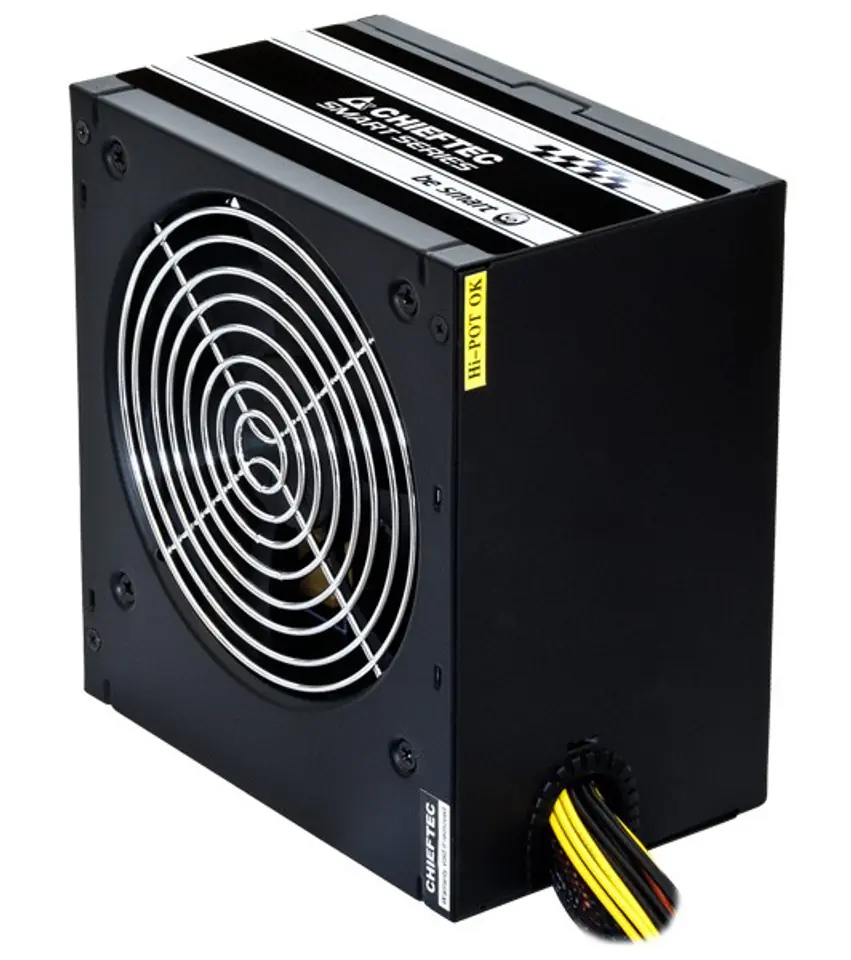

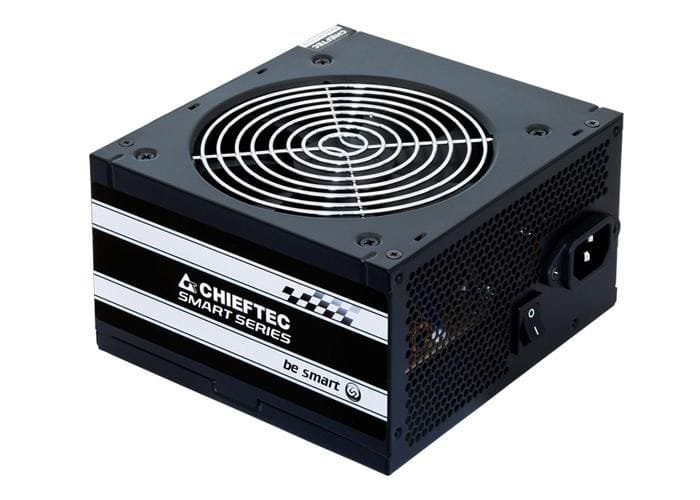

GPS-500A8 Nowa seria smart oferuje zarówno wysoką jakość wykonania jak i sprawność. Zasilacz jest pomalowany na czarno oraz wyposażony w długie kable, przewód zasilający oraz solidny karton, który chroni go w transporcie. Dzięki sprawność zasilacza na poziomie powyżej 80% GPS-500A8 spełnia wymagania zielonego IT, przy umiarkowanej cenie zakupu.
140 mm x 150 mm x 87 mm
