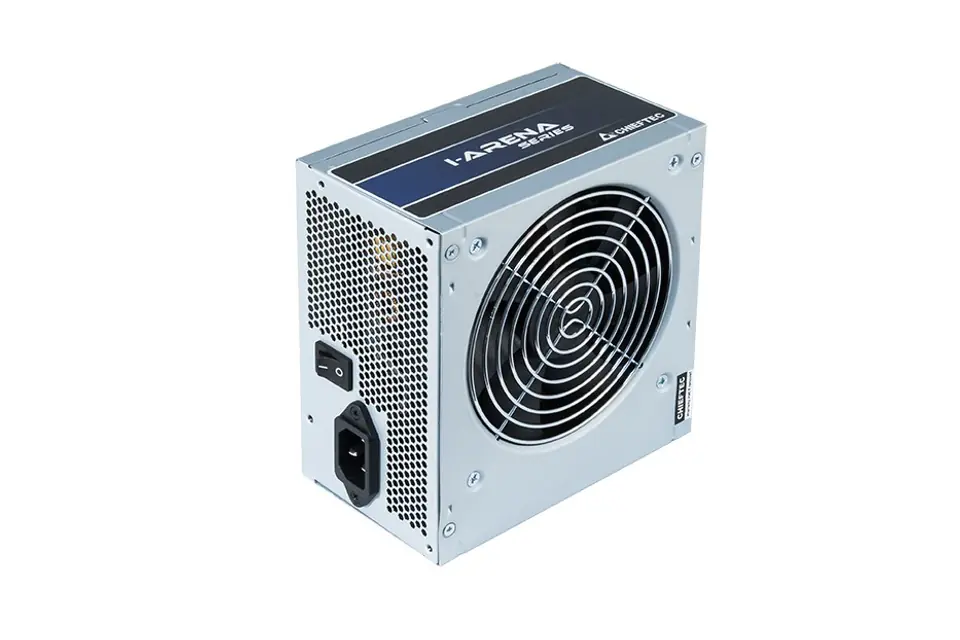

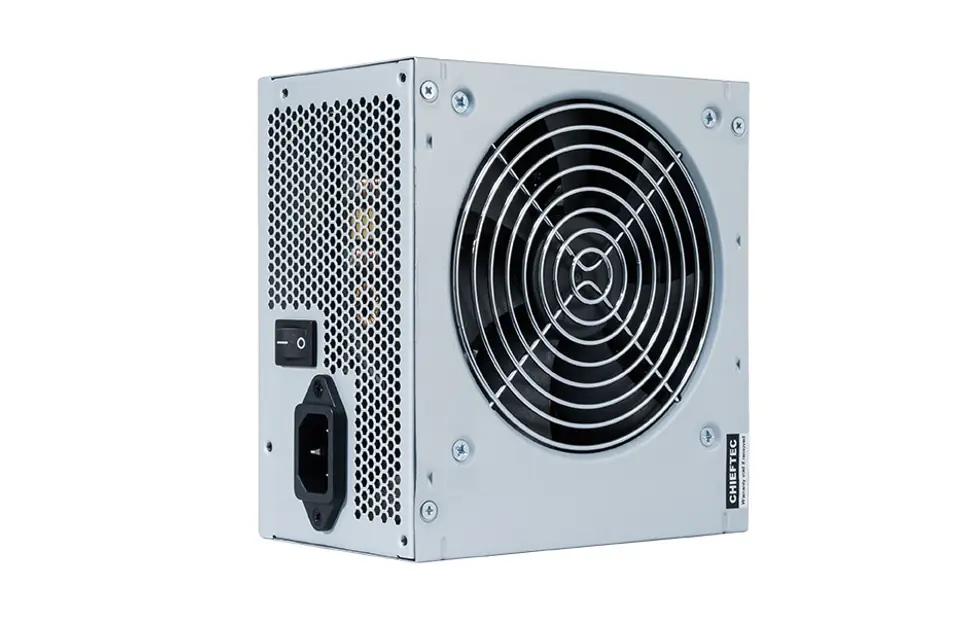

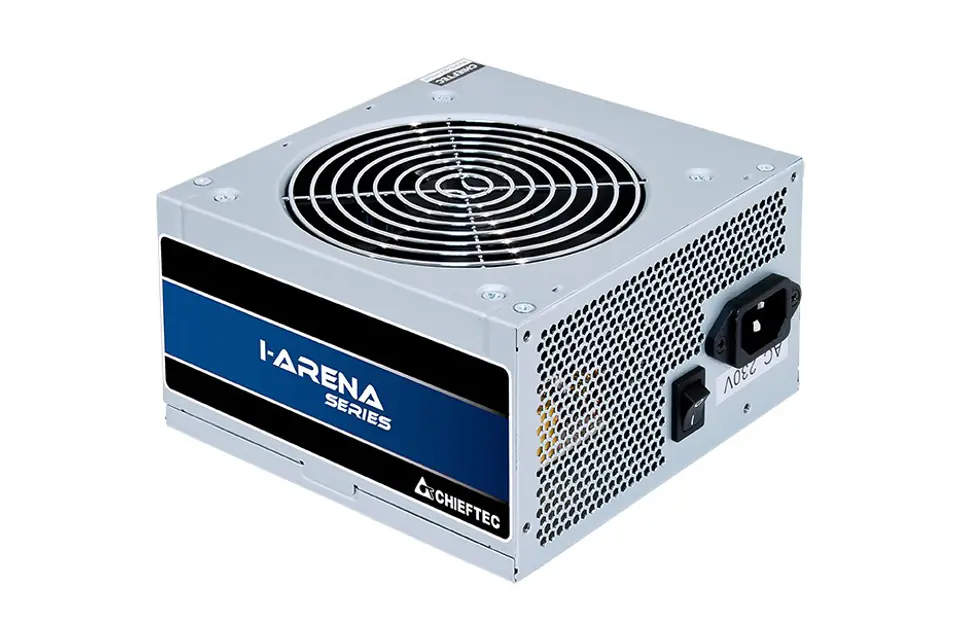

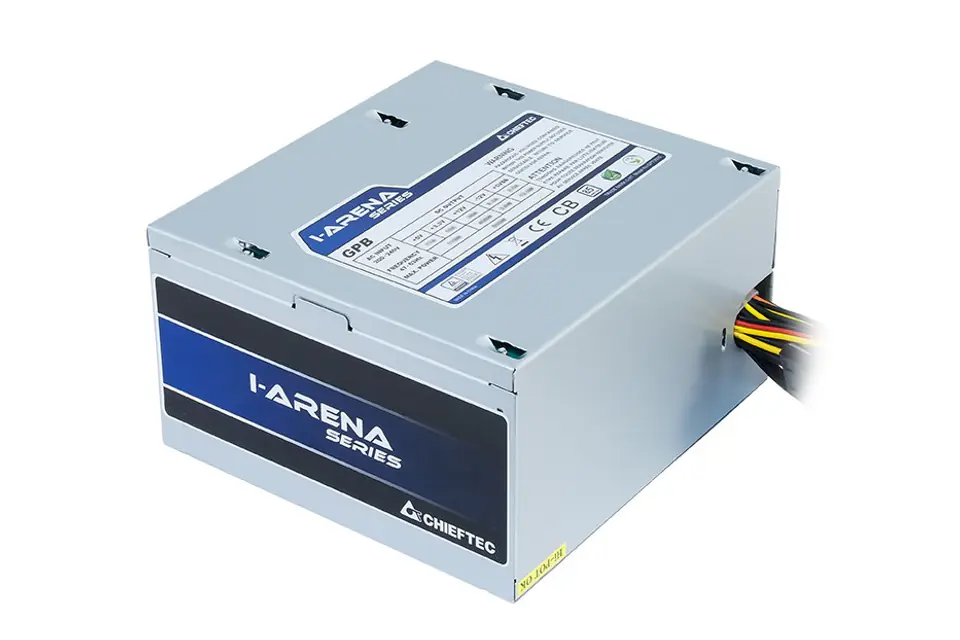

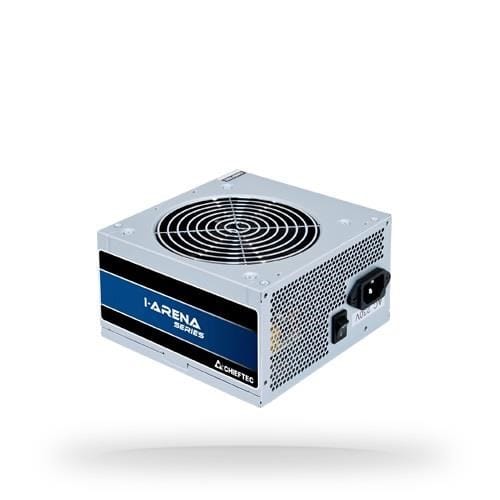

Chieftec GPB-350S power supply unit 350 W 20+4 pin ATX PS/2 Silver

This product is not available
Availability:
expected delivery
Brand:
Chieftec
Product code:
GPB-350S / 4710713233614

Specification

Ac input frequency:47 - 63 Hz
Ac input voltage:200 - 240 V
Atx version:2.3
Combined power (-12v):3.6 W
Combined power (+12v):312 W
Combined power (+3.3v):90 W
Combined power (+5v):90 W
Combined power (+5vsb):12.5 W
Cooling type:Active
Depth:150 mm
Efficiency:85%
Fan diameter:12 cm
Fan location:Top
Height:87 mm
Input current:3 A
Manual:Yes
Max output current (-12v):0.3 A
Max output current (+12v1):26 A
Max output current (+3.3v):16 A
Max output current (+5v):15 A
Max output current (+5vsb):2.5 A
Motherboard power connector:20+4 pin ATX
Number of fans:1 fan(s)
Number of sata power connectors:5
On/off switch:Yes
Package type:Box
Pci express power connectors (6+2 pin):1
Peripheral (molex) power connectors (4-pin):3
Power factor:0.9
Power factor correction (pfc) type:Active
Power protection features:Overload, Short circuit, Over voltage, Under voltage
Power supply unit (psu) form factor:PS/2
Product colour:Silver
Purpose:PC
Rohs compliance:Y
Total power:350 W
Warranty card:Yes
Width:140 mm

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
