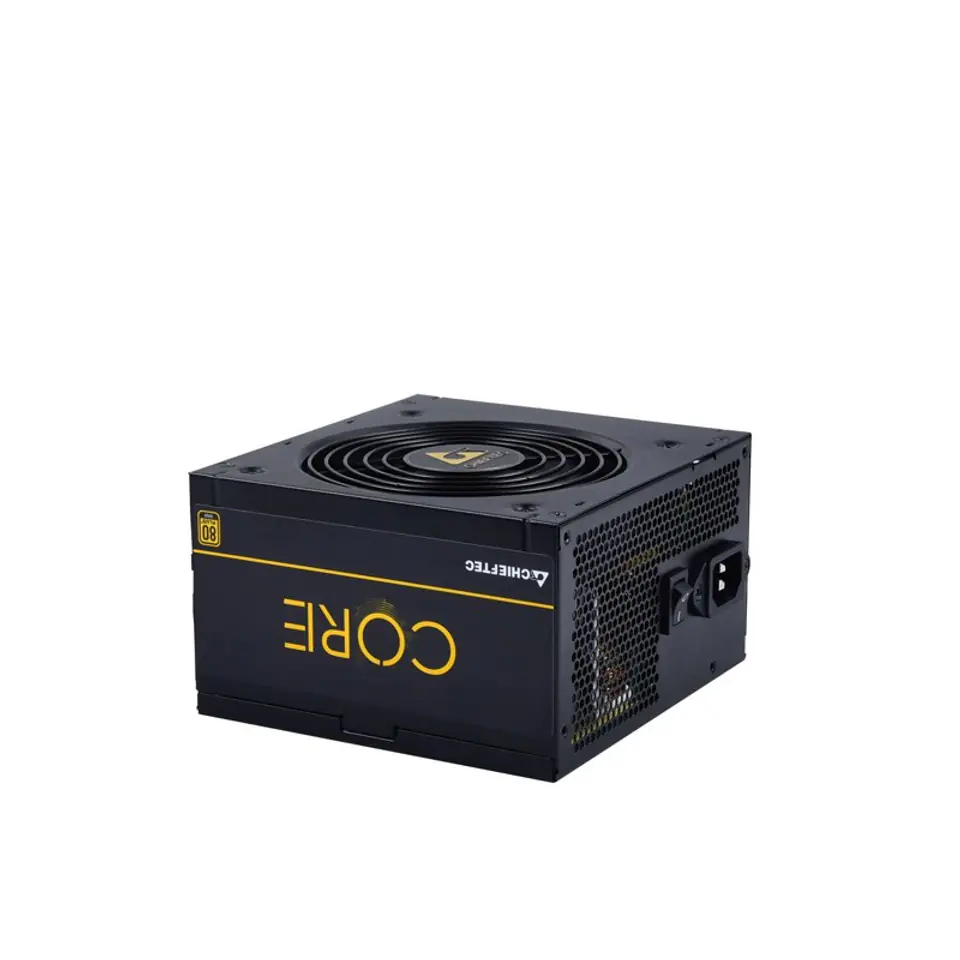

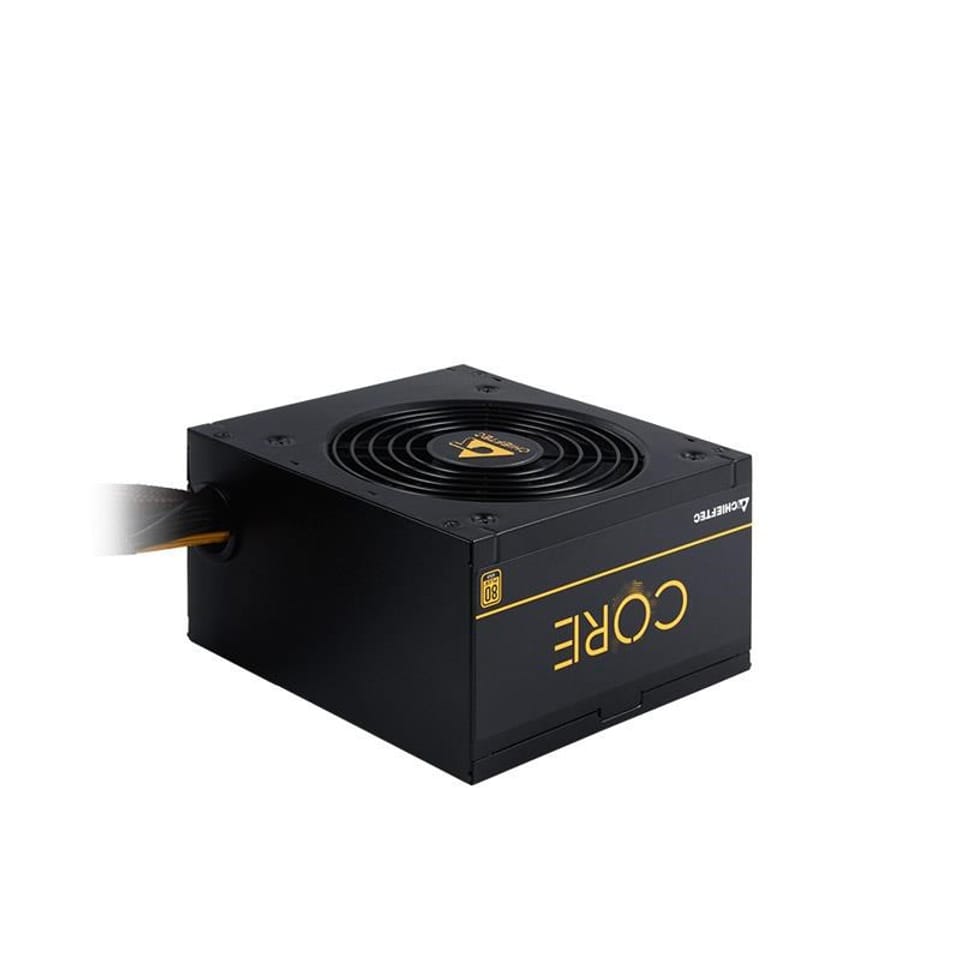

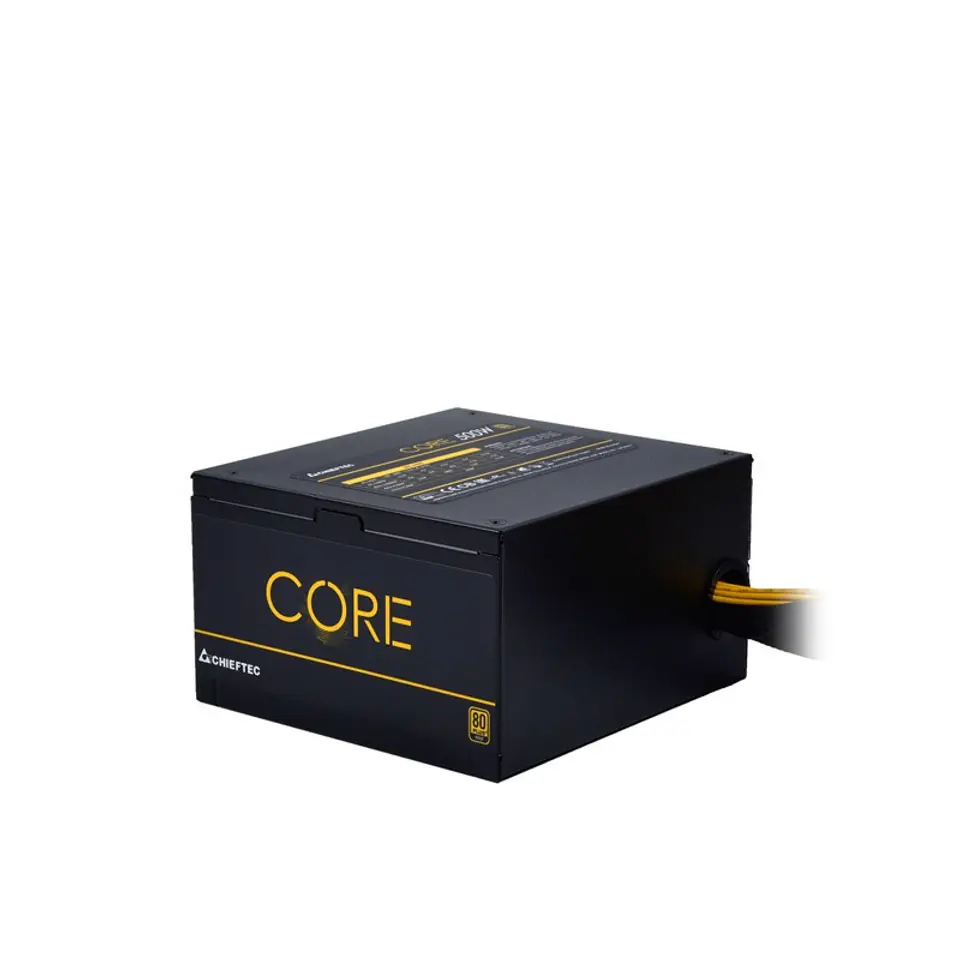

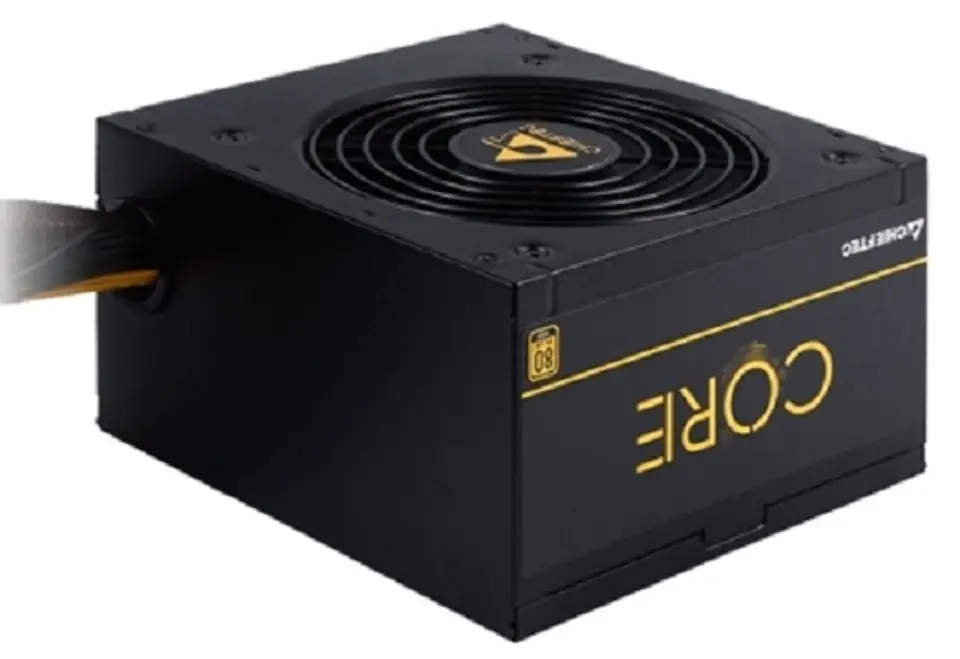

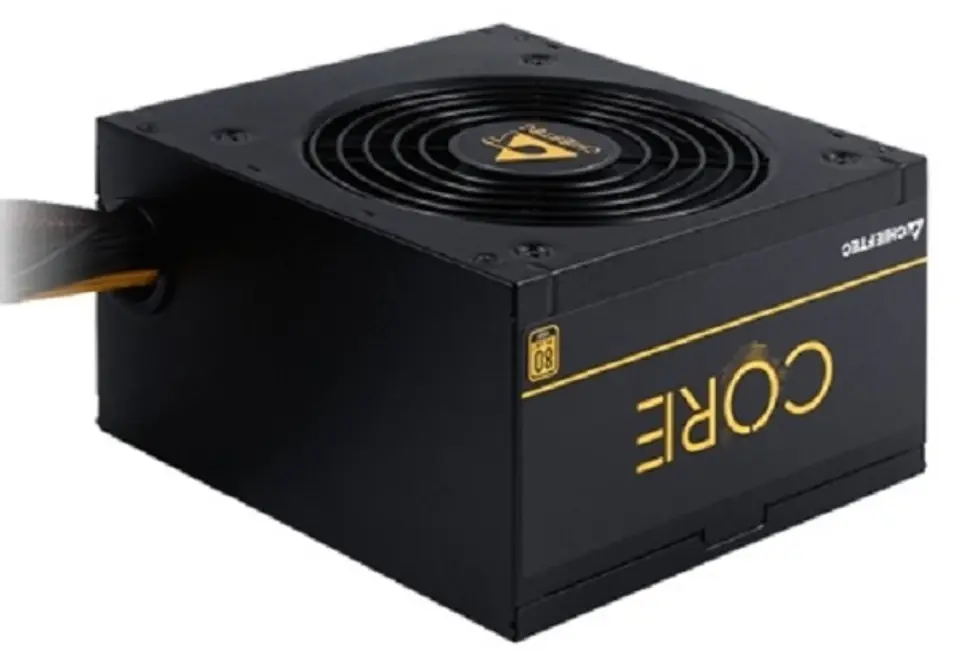

Chieftec Core BBS-500S power supply unit 500 W 24-pin ATX PS/2 Black
This product is not available
- Availability:
- expected delivery
- Brand:
- Chieftec
- Product code:
- BBS-500S / 0753263076120
Share this product:
Specification
| 80 plus certification: | 80 PLUS Gold |
|---|---|
| Ac input frequency: | 47 - 63 Hz |
| Ac input voltage: | 100 - 240 V |
| Atx version: | 2.3 |
| Cabling type: | Non-Modular |
| Combined power (-12v): | 3.6 W |
| Combined power (+5vsb): | 12.5 W |
| Cooling type: | Active |
| Cpu power cable length: | 65 cm |
| Cpu power connector (4+4 pin): | Yes |
| Depth: | 150 mm |
| Fan diameter: | 12 cm |
| Floppy disk drive connector: | Yes |
| Floppy drive power connector: | 1 |
| Harmonized system (hs) code: | 84733020 |
| Height: | 86 mm |
| Input current: | 8 A |
| Max output current (-12v): | 0.3 A |
| Max output current (+12v1): | 41 A |
| Max output current (+3.3v): | 18 A |
| Max output current (+5v): | 18 A |
| Max output current (+5vsb): | 2.5 A |
| Motherboard power connector: | 24-pin ATX |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 4 |
| Package weight: | 2.06 kg |
| Pci express power cable length: | 50 cm |
| Pci express power connectors (6+2 pin): | 1 |
| Peripheral (molex) power cable length: | 150, 500 |
| Peripheral (molex) power connectors (4-pin): | 3 |
| Power factor correction (pfc) type: | Active |
| Power protection features: | Short circuit, Over voltage, Overload |
| Power supply unit (psu) form factor: | PS/2 |
| Product colour: | Black |
| Purpose: | PC |
| Sata power cable length: | 500, 150 |
| Total power: | 500 W |
| Weight: | 1.65 kg |
| Width: | 140 mm |
