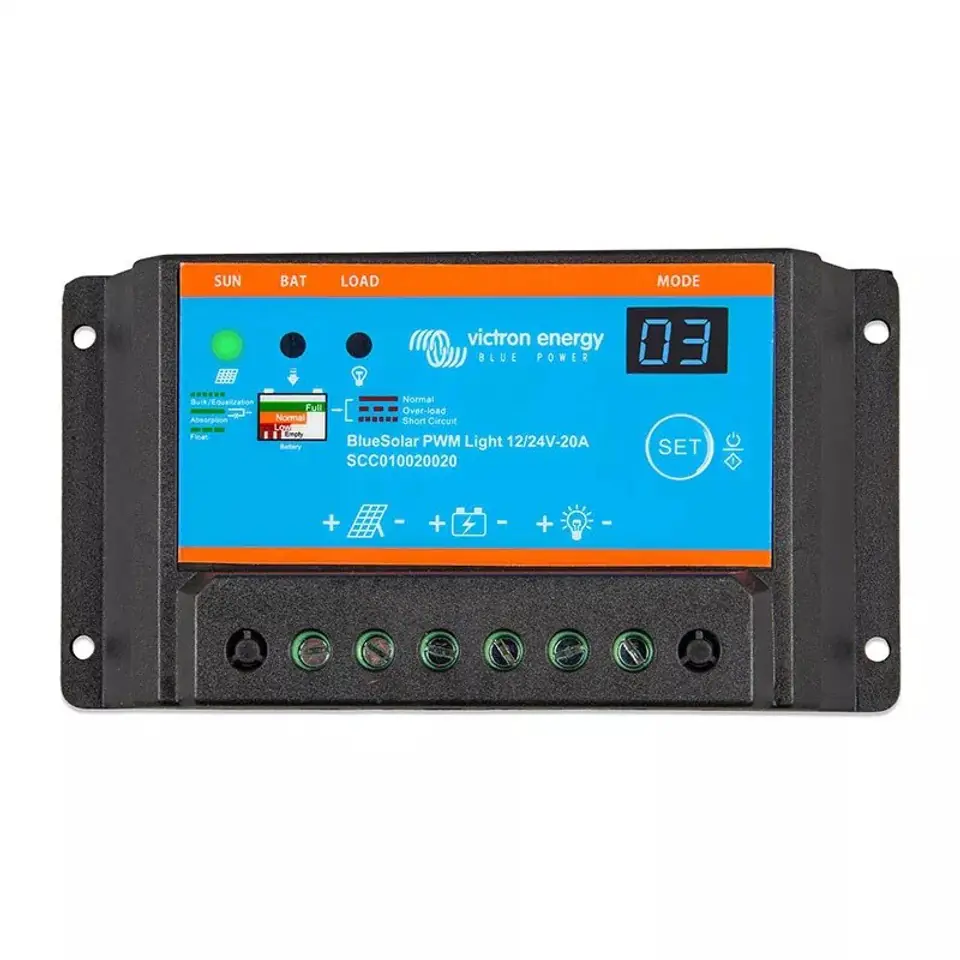

Charge controller VICTRON ENERGY BlueSolar PWM 12/24V - 20A (SCC010020020)
€38.14
Shipping from warehouse: A3
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Victron Energy
- Product code:
- SCC010020020 / 8719076025351
Share this product:
Specification
| Awg wire size: | 10 |
|---|---|
| Brand compatibility: | Victron Energy |
| Built-in display: | LCD |
| Charging voltage (absorption): | 14.2 / 28.4 V |
| Charging voltage (liquid): | 13,8 / 27,6 V |
| Conductor cross section: | 5 mm² |
| Dc battery voltage: | 12 / 24 V |
| Depth: | 70 mm |
| Efficiency: | 95% |
| Height: | 33.5 mm |
| International protection (ip) code: | IP20 |
| Led indicators: | Yes |
| Operating temperature (t-t): | -20 - 50 °C |
| Overcurrent protection: | Yes |
| Polarity reverse circuit protection: | Yes |
| Product colour: | Black, Blue |
| Product type: | Charging regulator |
| Rated current: | 20 A |
| Short circuit protection: | Yes |
| Suitable for: | Photovoltaic system |
| Temperature sensor: | Yes |
| Voltage monitoring: | Yes |
| Weight: | 150 g |
| Width: | 133 mm |
