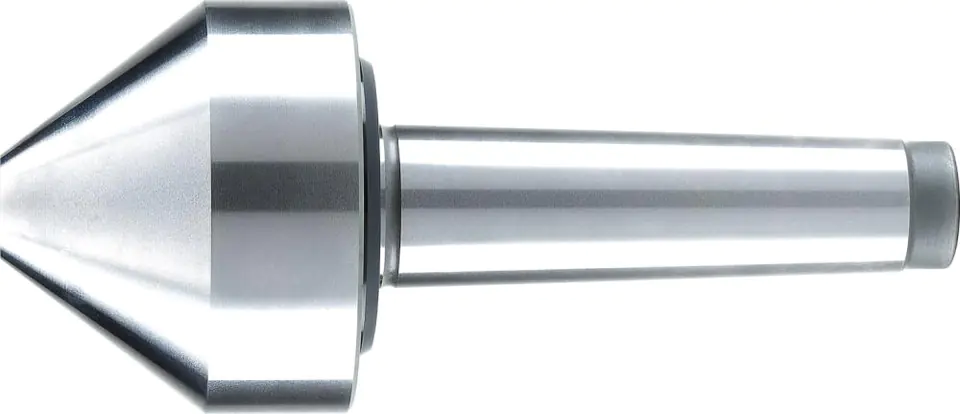

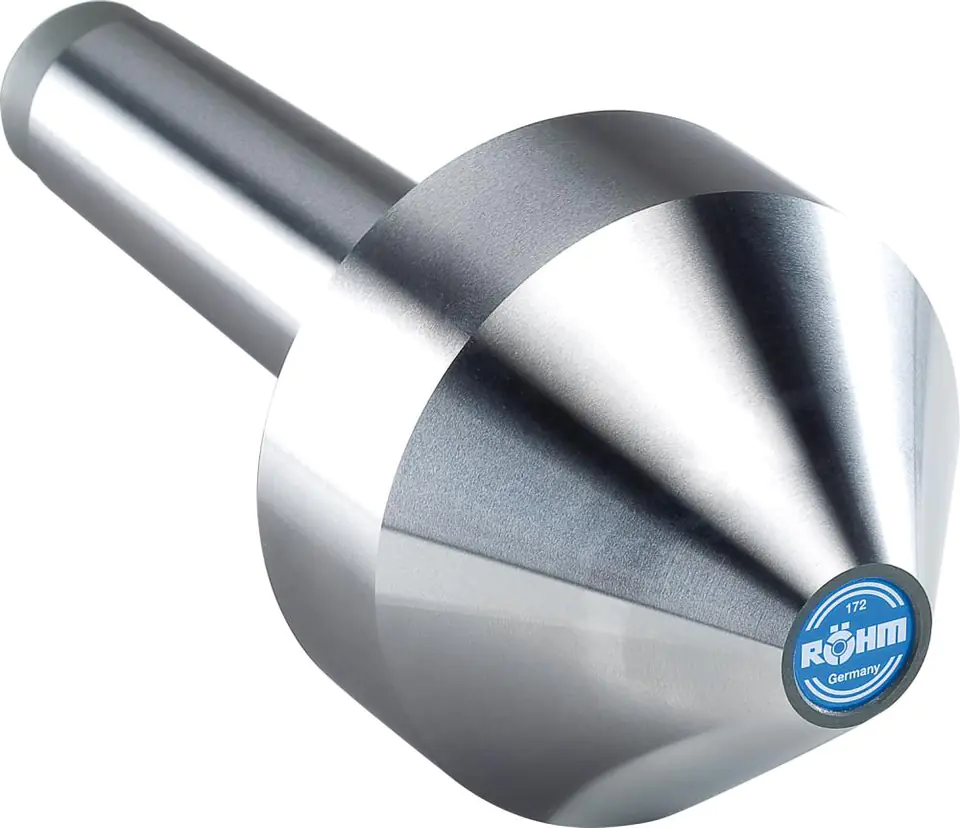

Centering tusk rotary, bluntly tipped
Design: mounting grip, body and hardened cone. Blunt-tipped cone, 75°, stable bearing.
Application: for processing pipes and other hollow elements.

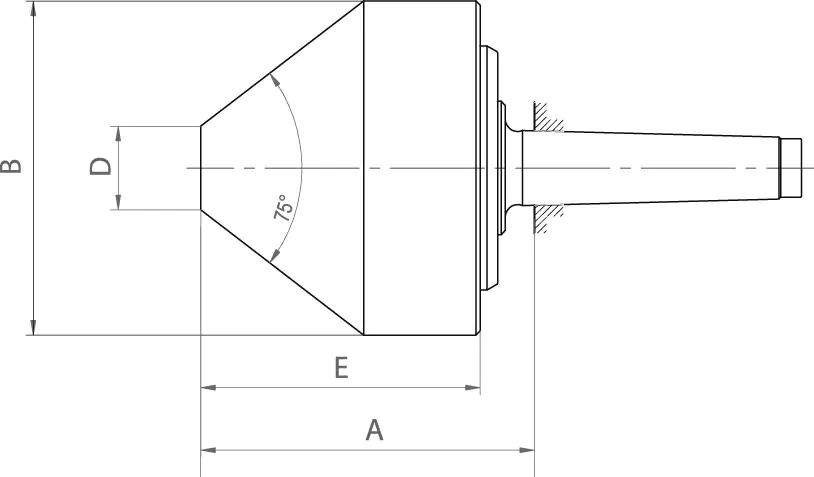

Dimension a: | 88 mm |
---|---|
Dimension b: | 120 mm |
Dimension d: | 30 mm |
Dimension e: | 72 mm |
Dimension g: | 44.399 mm |
Max. radial runout tolerance: | 0.008 mm |
Max. workpiece weight: | 800 kg |
Mount: | 5 Morse cone |
Size: | 173b |
Centering tusk rotary, bluntly tipped
Design: mounting grip, body and hardened cone. Blunt-tipped cone, 75°, stable bearing.
Application: for processing pipes and other hollow elements.
