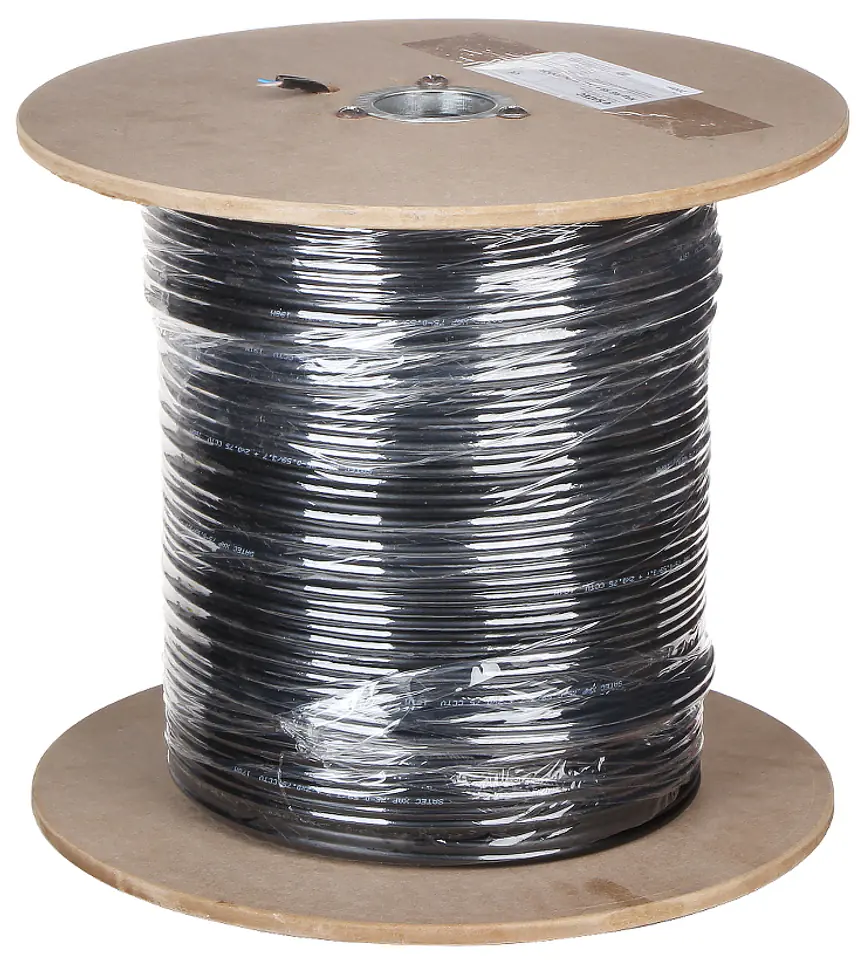

CCTV CABLE RG-59+2X0.75/ZEL/200

€1.05
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
moderate quantity
Product code:
RG-59+2X0.75/ZEL/200 / 5905309210264

Specification

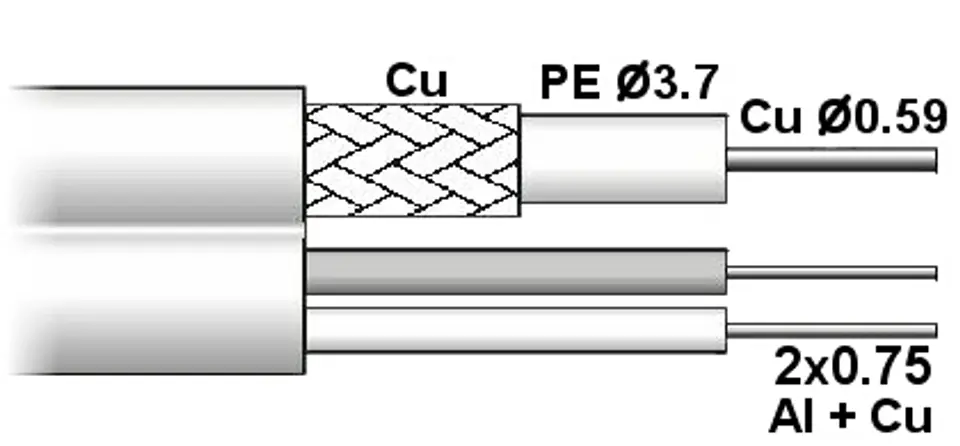

Braid:Cu rope, Coverage : 90 %
Cable attenuation over a distance of 100m:10.9 dB @ 100 MHz15.2 dB @ 200 MHz23.2 dB @ 450 MHz32.6 dB @ 800 MHz36.6 dB @ 1000 MHz
Coaxial cable:RG59
Dielectric:Ø 3.7 mm - PE full
Electrical wire:Electric wire:
Impedance:75 Ω
In ":200 m . Price for 1m when buying the whole roll
Internal vein:2 x 0.75 mm Rope : Al + Cu
Outer shell:Ø 5 mm
Resistance of power wires:4 Ω / 100 m
Warranty:2 years

Specialized cable for CCTV

The cable complies with the CPR Directive No. 305/2011 and meets the requirements of the European standard PN-EN 50575, which specifies requirements for properties in fire conditions, test methods and assessment of cables used as a building material. The cable has a Declaration of Performance and CE marking, which confirm its compliance with the guidelines of the CPR Regulation

The coaxial cable is protected with gel

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
