| Braid: | Cu wire |
|---|---|
| Cable attenuation over a distance of 100m: | 10.6 dB @ 100 MHz15.2 dB @ 200 MHz25.4 dB @ 500 MHz38.9 dB @ 1000 MHz |
| Coaxial cable: | K-60 |
| Dielectric: | Ø 3.7 mm PE full |
| Electrical wire: | Electric wire: |
| Impedance: | 75 Ω |
| In ": | 100 m . Price for 1m when buying the whole roll |
| Internal vein: | 2 x 0.5 mm Cable |
| Outer shell: | Ø 5.5 mm PVC |
| Resistance of power wires: | 4 Ω / 100 m |
| Screen: | Al + PET film |
| Warranty: | 2 years |

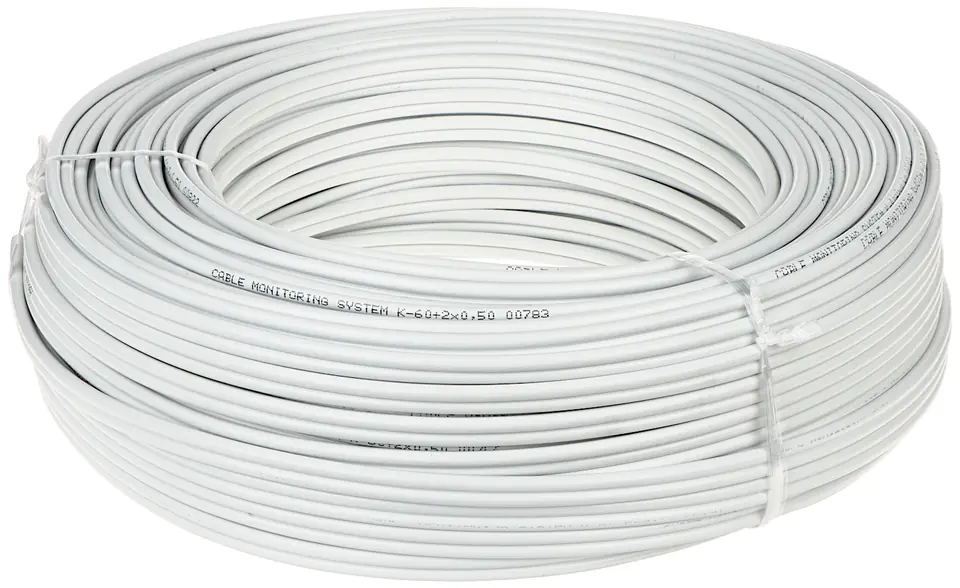

Specialized cable for CCTV
The cable complies with the CPR Directive No. 305/2011 and meets the requirements of the European standard PN-EN 50575, which specifies requirements for properties in fire conditions, test methods and assessment of cables used as a building material. The cable has a Declaration of Performance and CE marking, which confirm its compliance with the guidelines of the CPR Regulation
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
