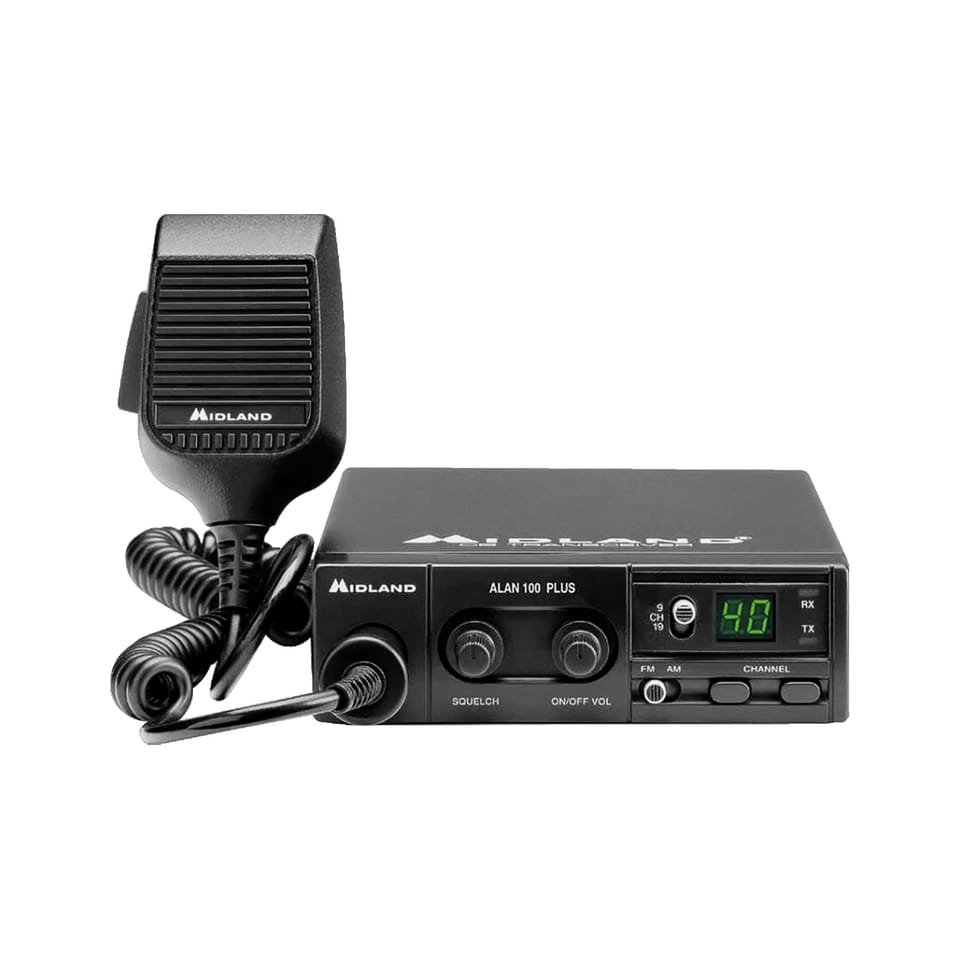

CB radio Midland Alan 100 Plus AM/FM

€85.35
Shipping from warehouse: ⁨P2⁩
Estimated shipping: Mon, Nov 25 - Thu, Nov 28
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Alan
Product code:
URZ0233 / 8011869204913

- Number of channels: 40 AM/FM

- Frequency range: 26.960 to 27.400 MHz

- Frequency control: PLL phase loop

- Operating temperature: -10/+55 °C

- Power supply: 13.8V DC ±15%

- Antenna socket: 50 Ohm, PL-259

- External dimensions: 190 (L)x38(H)x124 (P) mm

- Weight: 0.850 kg

Receiver in CB radio Alan 100 Plus

- Reception system: superheterodyne with double frequency conversion

- Sensitivity: <1μv>

- Intermediate frequencies: 10.695 MHz and 455 kHz

- Channel separation: 65 dB

- Mirror frequency attenuation: 65 dB

- Audio output power: Min.2.0 W @ 8 Ohm

- Audio distortion: less than 3% @ 1 KHz

- Standby current consumption: 200mA

CB radio Alan 100 Plus

Transmitter in CB radio Alan 100 Plus

- Output power: 4W

- Mudulation: AM: 85% to 95%; FM: 1.8KHz ± 0.2KHz

- Frequency response: 500 Hz ÷ 3 kHz

- Output impedance: 50 Ohm

- Maximum current consumption: 1100mA (Without modulation)

Radio CB 100 Plus PL
Radio CB Midland

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
