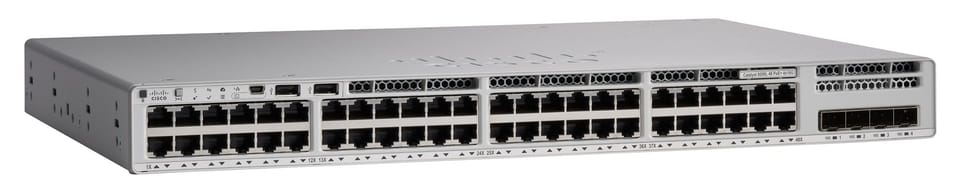

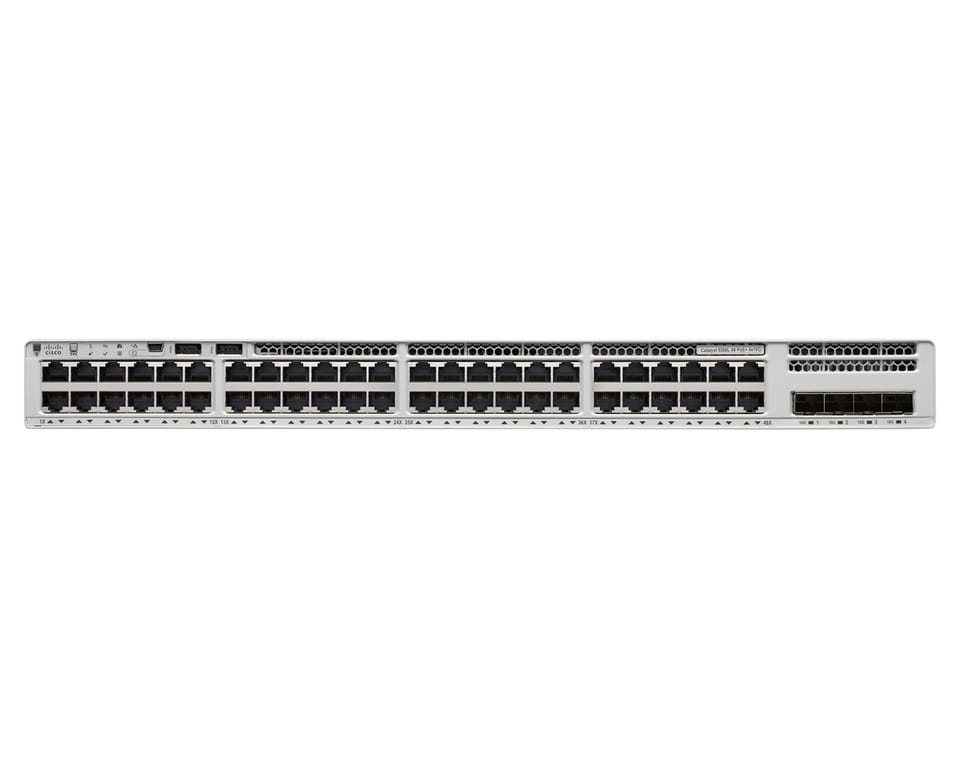

CATALYST 9200L 48-PORT POE+/4 X 10G NETWORK ESSENTIALS IN
€3,222.68
Shipping from warehouse: M7
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Cisco
- Product code:
- C9200L-48P-4X-E / 0889728170192
Share this product:
Specification
| 10g support: | Yes |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Access control list (acl): | Yes |
| Basic switching rj-45 ethernet ports quantity: | 48 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Built-in memory: | 4 GB Flash, 2 GB RAM |
| Bus speed: | 80 Gbps |
| Colour: | silver |
| Configuration and management: | Yes |
| Copper ethernet cabling technology: | 1000BASE-LX, 1000BASE-SX, 100BASE-FX, 1000BASE-T |
| Depth: | 329 mm |
| Depth (mm): | 44 |
| Destiny: | Rack |
| Equipment: | Software, Mounting Kit |
| Flash memory: | 4096 MB |
| Forwarding rate: | 130.95 Mpps |
| Harmonized system (hs) code: | 85176990 |
| Heat dissipation: | 3412 BTU/h |
| Height: | 44 mm |
| Height (mm): | 288 |
| Input current: | 6 - 12 A |
| Internal memory: | 2048 MB |
| Ip routing: | Yes |
| Ipv4 routes: | 3000 |
| Ipv6 routes: | 1500 |
| Jumbo frame support: | Yes |
| Jumbo frames: | 9198 |
| Jumbo frames support: | Yes |
| Mac address array size: | 16000 |
| Mac address table: | 16000 entries |
| Management protocols: | SNMPv1/v2c/v3 |
| Mean time between failures (mtbf): | 346270 h |
| Memory type: | DRAM |
| Multicast support: | Yes |
| Network ports: | 48 x 10/100/1000 PoE+, 4x SFP+ |
| Network virtualization technologies: | Virtual Extensible LAN (VXLAN) |
| Networking standards: | IEEE 802.3ad, IEEE 802.1s, IEEE 802.1D, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1x, IEEE 802.3bz, IEEE 802.3u |
| Noise level: | 42 dB |
| Number of vlans: | 1024 |
| Operating altitude: | 0 - 3000 m |
| Operating relative humidity (h-h): | 5 - 90% |
| Operating temperature (t-t): | -5 - 45 °C |
| Other parameters: | CE safety mark |
| Packet buffer memory: | 6 MB |
| Plug and play: | Yes |
| Power: | Network |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) power per port: | 30 W |
| Power over ethernet plus (poe+) ports quantity: | 48 |
| Power supply included: | Yes |
| Product colour: | Grey |
| Protocols and standards: | IEEE 802.1ab, IEEE 802.1d, IEEE 802.1p, IEEE 802.1q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Quality of service (qos) support: | Yes |
| Redundant power supply (rps) support: | Yes |
| Routing entries: | 3000 |
| Routing protocols: | OSPF, VRRP, EIGRP, RIP, CDP |
| Safety: | IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950.1, Class I Equipment |
| Security algorithms: | 128-bit AES |
| Sfp+ module slots quantity: | 4 |
| Spanning tree protocol: | Yes |
| Stackable: | Yes |
| Storage temperature (t-t): | -40 - 70 °C |
| Switch layer: | L3 |
| Switch type: | Managed |
| Switching capacity: | 176 Gbit/s |
| Throughput: | 261.9 Mpps |
| Total power over ethernet (poe) budget: | 740 W |
| Usb 2.0 ports quantity: | 3 |
| Warranty: | Lifetime Limited |
| Web-based management: | Yes |
| Weight: | 4.8 kg |
| Weight (g): | 5500 |
| Width: | 445 mm |
| Width (mm): | 445 |
