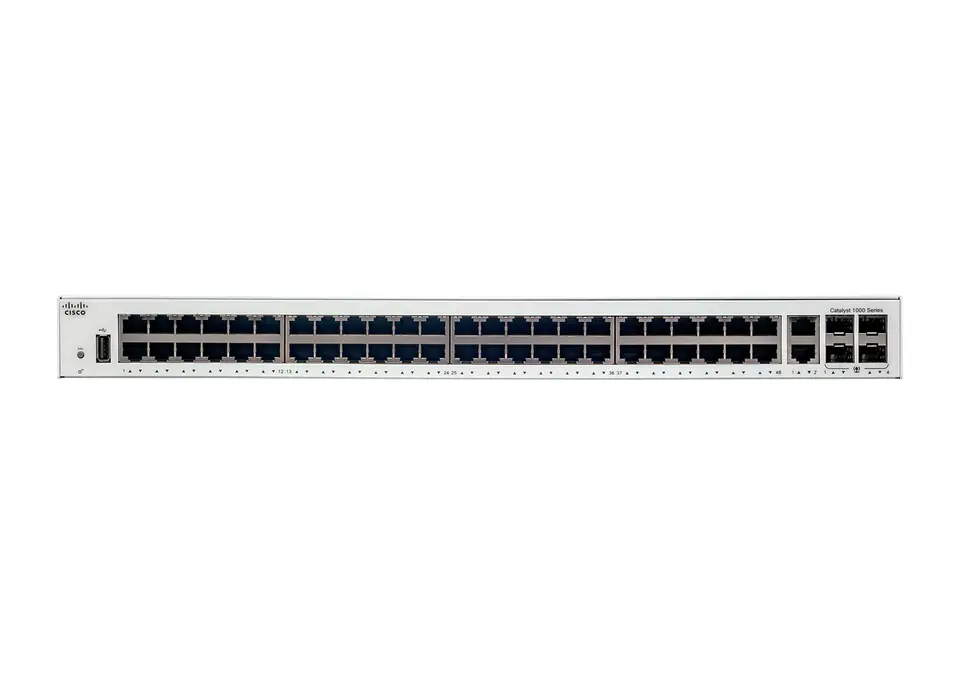

CATALYST 1000 48PORT GE/4×1G SFP
This product is not available
- Availability:
- expected delivery
- Brand:
- Cisco
- Product code:
- C1000-48T-4G-L / 0889728248563
Share this product:
Specification
| 10g support: | No |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 110 - 220 V |
| Access control list (acl): | Yes |
| Arp inspection: | Yes |
| Authentication: | Web-based authentication |
| Authentication type: | RADIUS |
| Auto mdi/mdi-x: | Yes |
| Auto-negotiation: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 48 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Bpdu filtering/protection: | Yes |
| Broadcast storm control: | Yes |
| Built-in processor: | Yes |
| Configuring location settings (cli): | Yes |
| Console port: | RJ-45/Mini-USB |
| Depth: | 272.5 mm |
| Dhcp features: | DHCP snooping |
| Ethernet lan data rates: | 10,100,1000 Mbit/s |
| Flash memory: | 256 MB |
| Forwarding rate: | 77.38 Mpps |
| Full duplex: | Yes |
| Harmonized system (hs) code: | 85176990 |
| Height: | 43.9 mm |
| Igmp entries: | 1024 |
| Igmp snooping: | Yes |
| Internal memory: | 512 MB |
| Ipv4 multicast entries: | 1024 |
| Ipv6 multicast entries: | 1024 |
| Jumbo frames: | 10240 |
| Jumbo frames support: | Yes |
| Led indicators: | Yes |
| Link aggregation: | Yes |
| Loop protection: | Yes |
| Mac address table: | 16000 entries |
| Management protocols: | SNMP |
| Market segment: | Business |
| Mean time between failures (mtbf): | 1452667 h |
| Memory type: | DRAM |
| Mib support: | Y |
| Multicast support: | Yes |
| Networking standards: | IEEE 802.3at, IEEE 802.3ah, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1w, IEEE 802.1D, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1ab, IEEE 802.1x, IEEE 802.1AX, IEEE 802.3af, IEEE 802.3az |
| Non-operating altitude: | 0 - 4500 m |
| Number of static routes: | 16 |
| Number of vlans: | 256 |
| Operating altitude: | 0 - 3000 m |
| Operating relative humidity (h-h): | 5 - 90% |
| Operating temperature (t-t): | -5 - 50 °C |
| Package depth: | 549.4 mm |
| Package height: | 147.6 mm |
| Package weight: | 5.75 kg |
| Package width: | 390.7 mm |
| Power consumption (max): | 33.6 W |
| Power consumption (typical): | 30.32 W |
| Power over ethernet (poe): | No |
| Power plug type: | Type C |
| Processor frequency: | 800 MHz |
| Processor model: | ARM7 |
| Product colour: | Grey |
| Products per master (outer) case: | 1 pc(s) |
| Products per shipping (inner) case: | 1 pc(s) |
| Quality of service (qos) support: | Yes |
| Quantity per pack: | 1 pc(s) |
| Sfp module slots quantity: | 4 |
| Spanning tree protocol: | Yes |
| Ssh/ssl support: | Yes |
| Static route: | Yes |
| Storage relative humidity (h-h): | 5 - 95% |
| Storage temperature (t-t): | -25 - 70 °C |
| Switch layer: | L2 |
| Switch type: | Managed |
| Switching capacity: | 104 Gbit/s |
| Traffic classification: | Yes |
| Usb 2.0 ports quantity: | 1 |
| Vlan support: | Yes |
| Web-based management: | Yes |
| Weight: | 3.95 kg |
| Width: | 444.5 mm |
