Manufacturer Number: 10060139
The S-CHARGER-50A car rectifier can provide a maximum current of 30 A during charging. In combination with two MIN and MAX modes, this allows you to charge the batteries regardless of the degree of discharge or the type of vehicle. In addition, thanks to the start-up function (max. current 130A), the device is able to start the engine even when the battery is completely discharged.

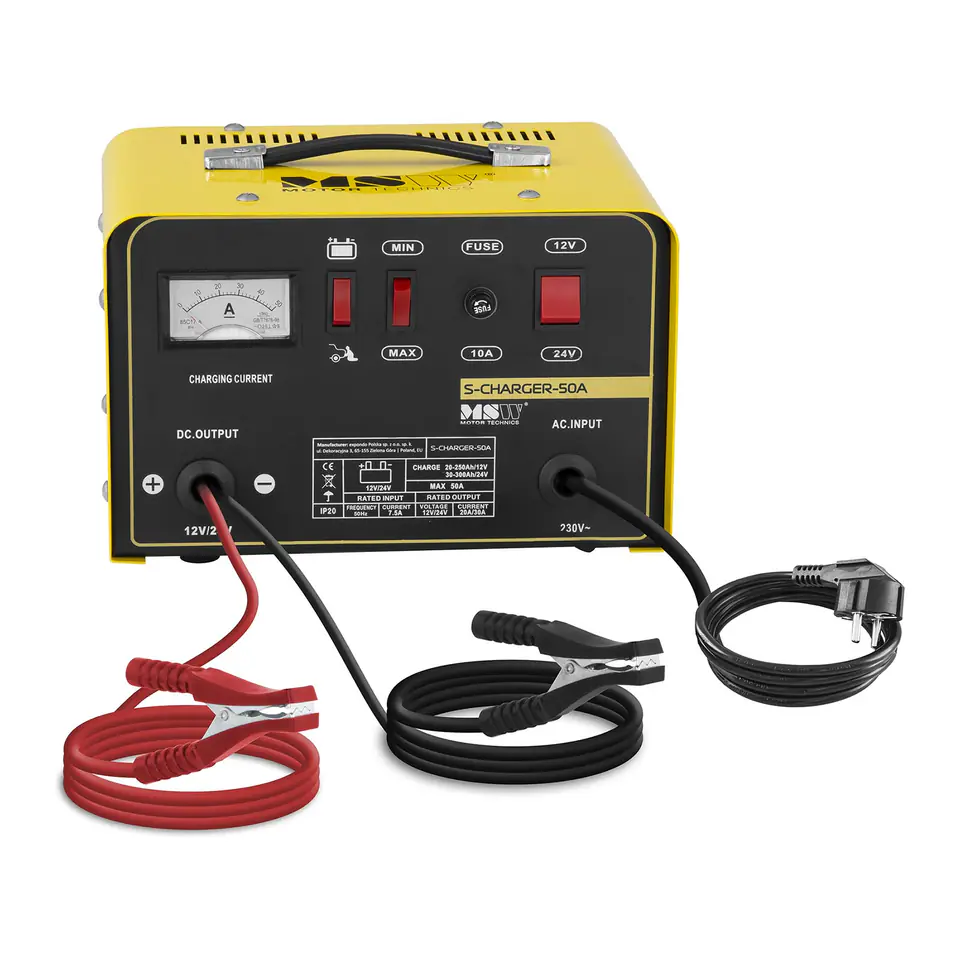

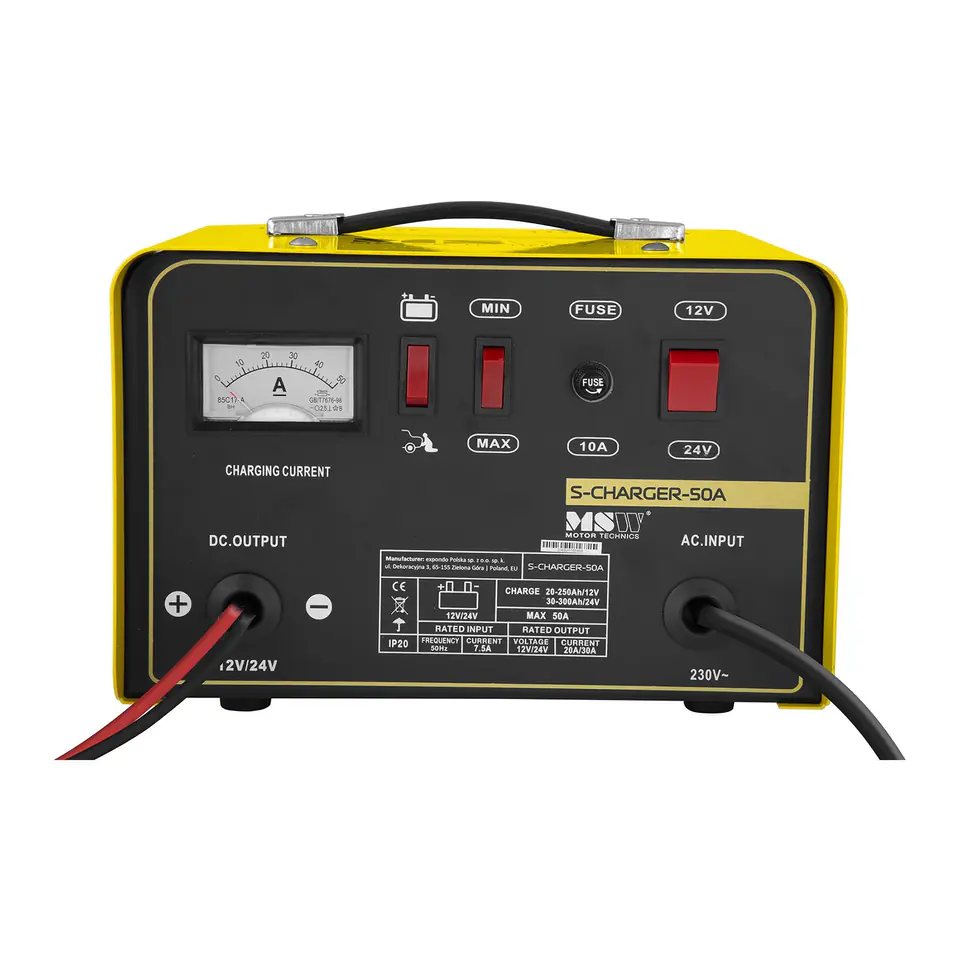

The rectifier has a clear control panel equipped with an analog display and switches for charging mode and output voltage values (12V and 24V).
The built-in fuse protects the device from short circuits and short circuits when the terminals are connected to the battery. The rectifier also has a system of protection against overheating, in the form of two fans and vents. The equipment is convenient to carry, thanks to the ergonomic handle and small size.
Product features:
- Wide application – the possibility of charging various types of batteries (cars, trucks, tractors, motorcycles, motor boats, etc.)
- Functionality – start-up with a maximum current of 320A
- Efficiency – fast battery charging (MIN and MAX mode )
- Safety – built-in short-circuit protection fuse
- Convenience – practical cable pocket
- Mobility – comfortable handle and compact size
- - Model - S-CHARGER-50A
- - Catalogue number - 10060139
- - Article status - New
- - Voltage - 230V / 50Hz
- - Output voltage - 12/24V
- - Functions of work - Charging, starting
- - Charging current - 20/30A
- - Max. starting current - 130A
- - Housing color - Black and yellow
- - The length of the power cord - 150 cm

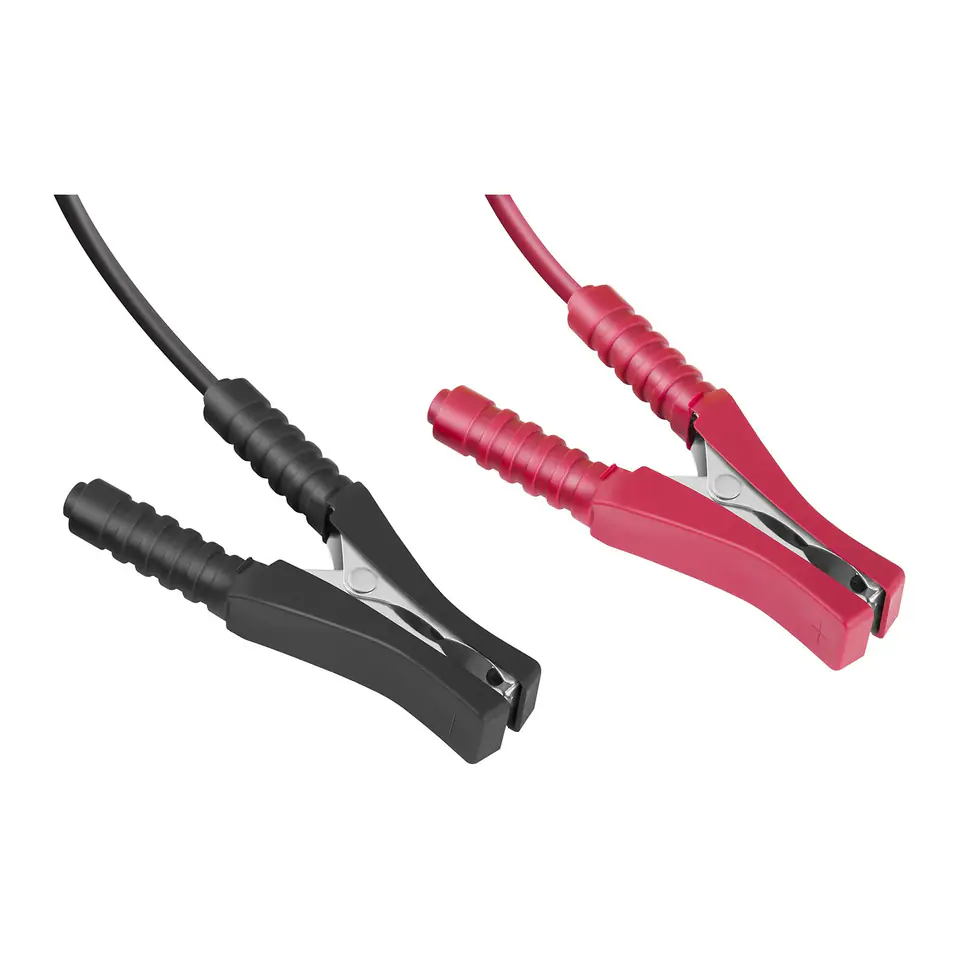

- - Jumper cable length (+) - 150 cm
- - Jumper cable length (-) - 150 cm
- - Max. current consumption - 1,7kW
- - Max. current consumption when using the start-up function - 2,2kW
- - Battery type - Lead-acid
- - Recommended battery capacity - 20-300Ah
- - Dimensions (LxWxH) - 22.2 x 29 x 22 cm
- - Weight - 10.1 kg
- - Shipping dimensions (LxWxH) - 36 x 29 x 23.5 cm
- - Shipping weight - 10.8 kg
- Rectifier with wires
- Manual PL
