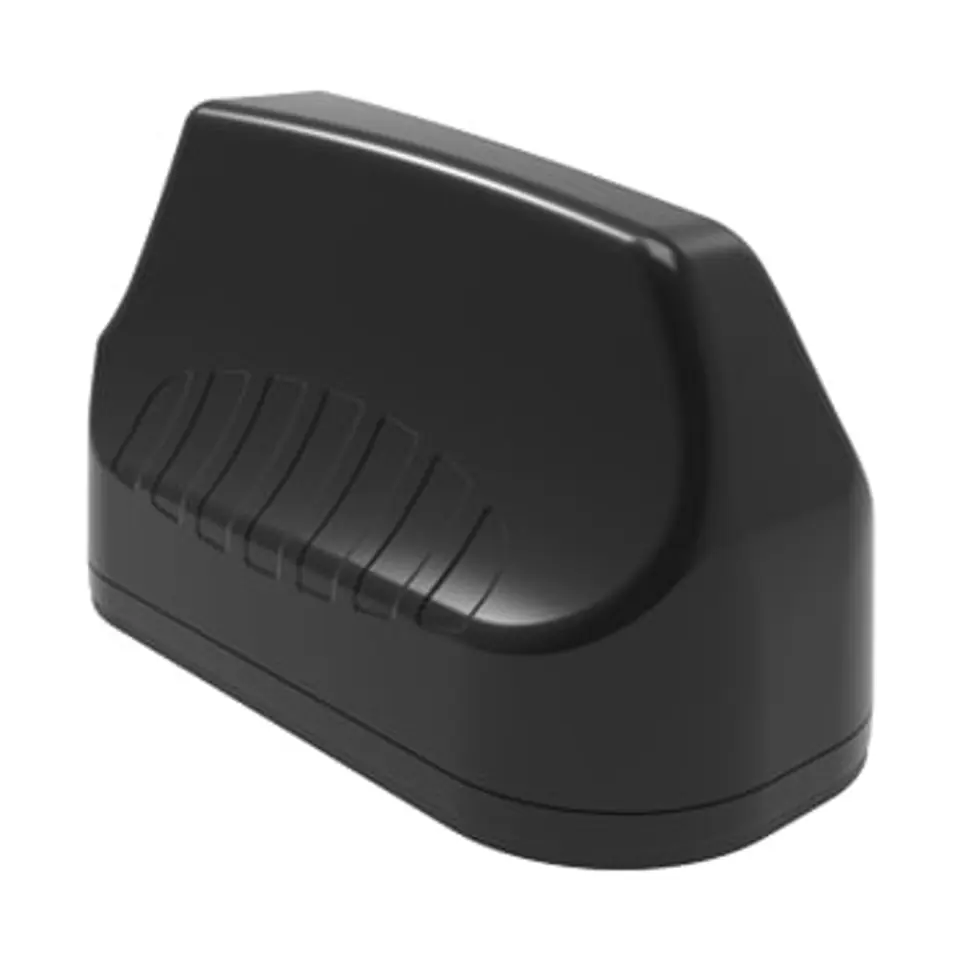

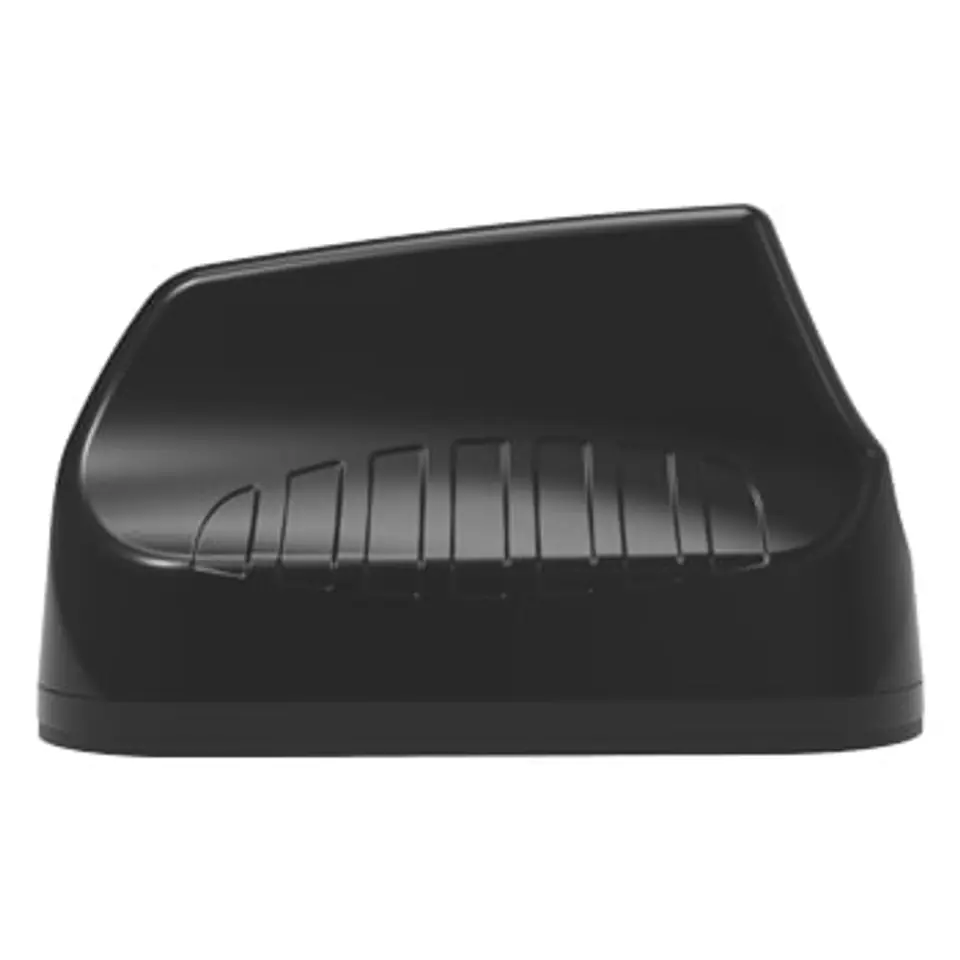

Broadband Car Antenna 5in1 Poynting MIMO-3-15 2X2 LTE (MIMO) 5.8 dBi; 2X2 Wi-Fi (MIMO) 7 dBi; GPS/GLONASS 21 dBi black

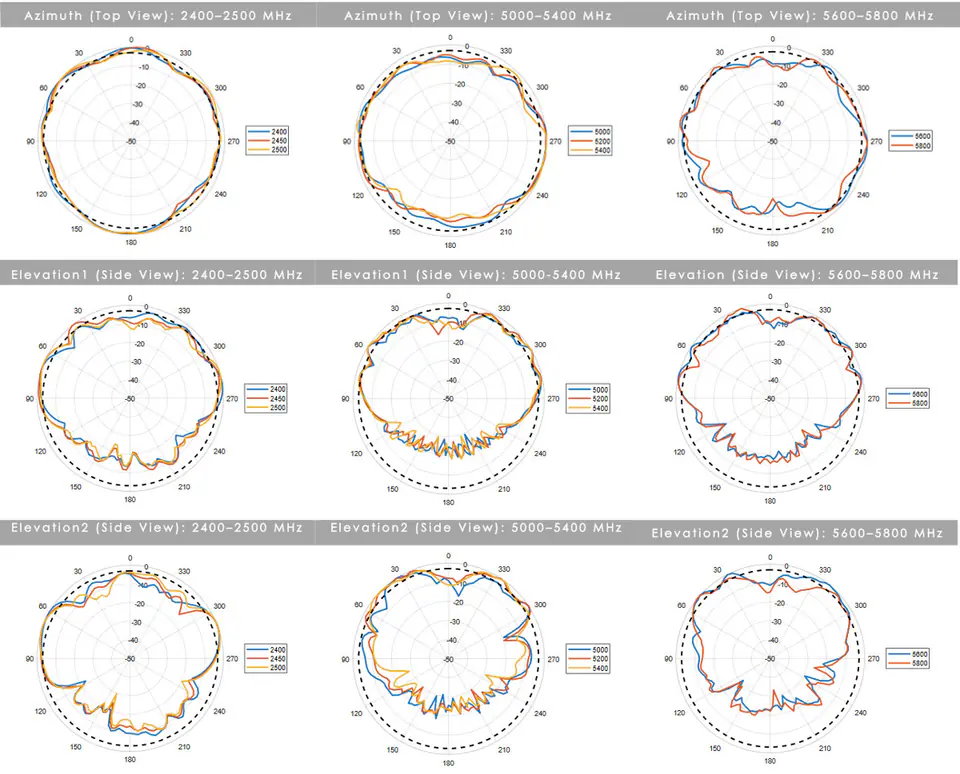

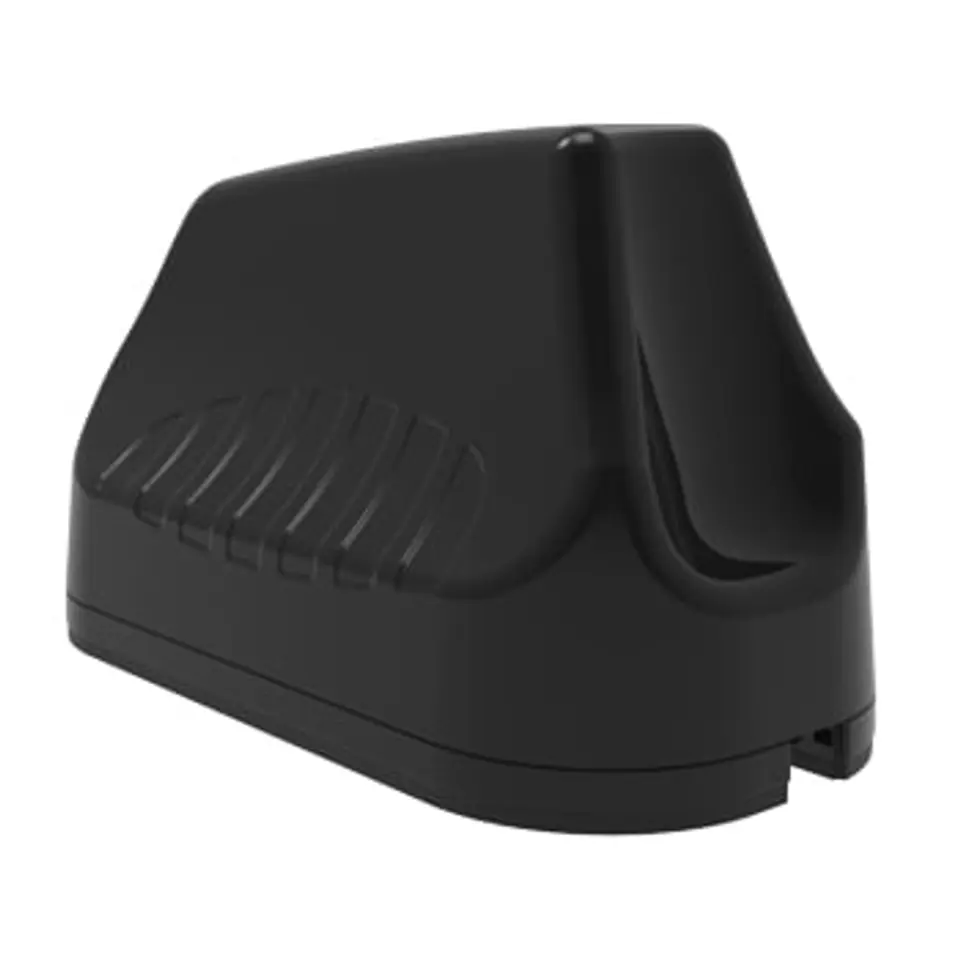

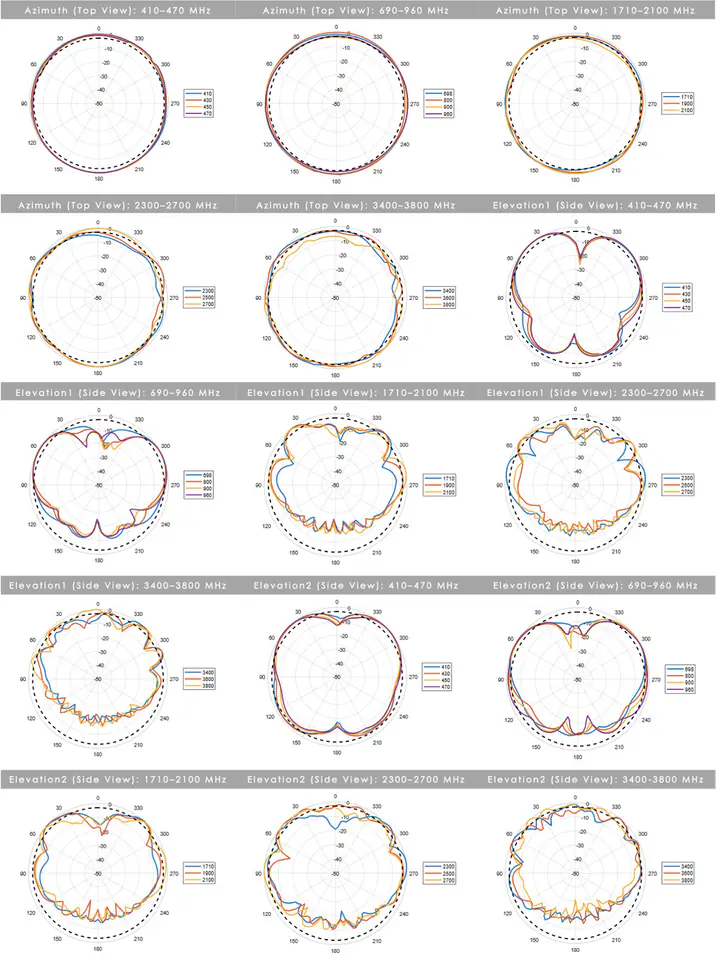

The MIMO-3-15 is a high-performance 5in1 multi-frequency antenna, providing two cellular antennas, two Wi-Fi and a GPS/GLONASS antenna. The two cellular MIMO antennas (for 2G/3G/4G) cover the modern bands from 690MHz to 2700MHz, as well as the new emerging LTE and 5G spectrum for the 450MHz and 3.5GHz CBRS bands, which are becoming popular with various international LTE mobile network operators. The ultra-wideband performance of the antenna allows it to be used by different operators and different technologies and is ready for future cellular technologies up to 3.8 GHz for 5G applications. The antenna provides two separate dual-band Wi-Fi antennas while providing 2.4GHz and 5GHz on each antenna with 2x2 MIMO capability. The fifth antenna is a high-performance, active GPS/GLONASS system operating down to -40°C. MIMO-3-15 outperforms most competitors due to the attention to design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between multidirectionality, variety of patterns and good radiation abilities at the desired height. This is an important criterion for the transport and maritime market. for which the antenna has been specially designed. Major applications include commercial/industrial vehicles, marine, M2M and other IoT systems using a wide range of radio technologies, while preserving the future in a wide frequency band.
- Ultra-wideband bands from 410 to 470 MHz, from 690 to 2700 MHz and from 3400 to 3800 MHz.
- Thoughtful, decorated antennas provide excellent MIMO performance in both Wi-Fi and cellular bands
- The above functions are maintained in the range from 690 to 5800 MHz in the respective bands, including 450 MHz

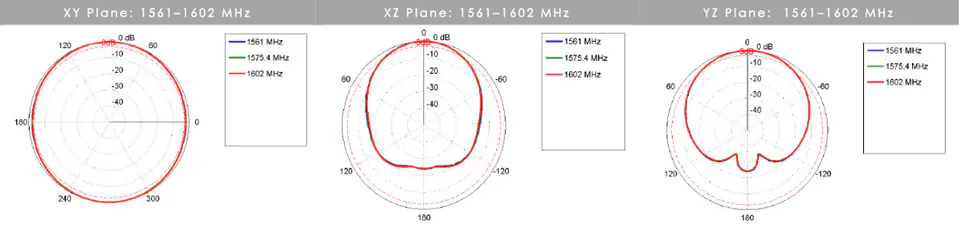

- Includes high-performance GPS/GLONASS antenna
- Careful mechanical design ensures strength, corrosion, water and dust resistance (IP 68)
- Independent of the ground plane: MIMO-3 has an internal ground plane, making the antenna suitable for use on all types of surfaces

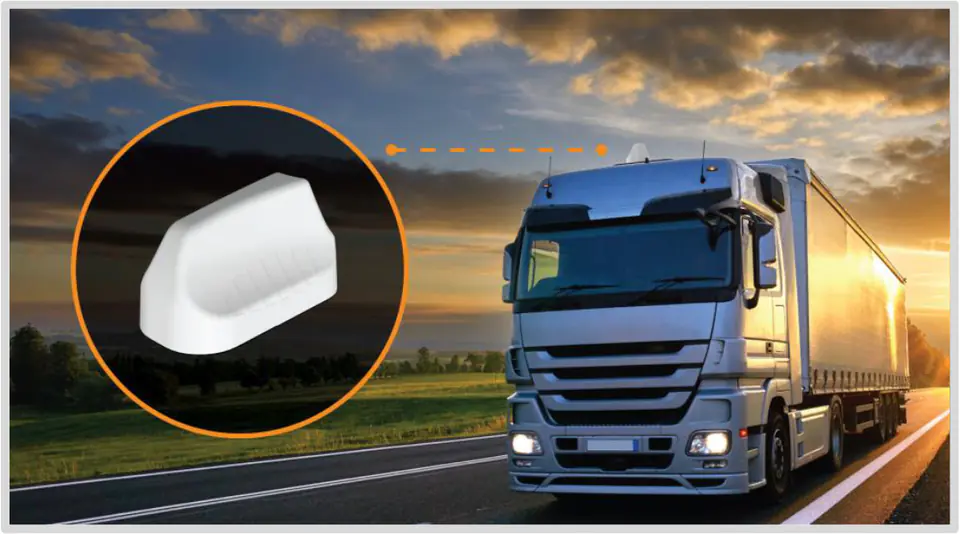

- Broadband, automation and telemetry for buses, commercial vehicles, trucks and public safety vehicles
- Industrial automation, robotic machines and other telemetry of M2M systems
- Automation of agriculture and agriculture, such as M2M and IoT
- Mobile broadband distribution for ships/boats (inland and near coastal vessels)
- mining vehicles and machine communication, telemetry and automation (M2M and IoT)

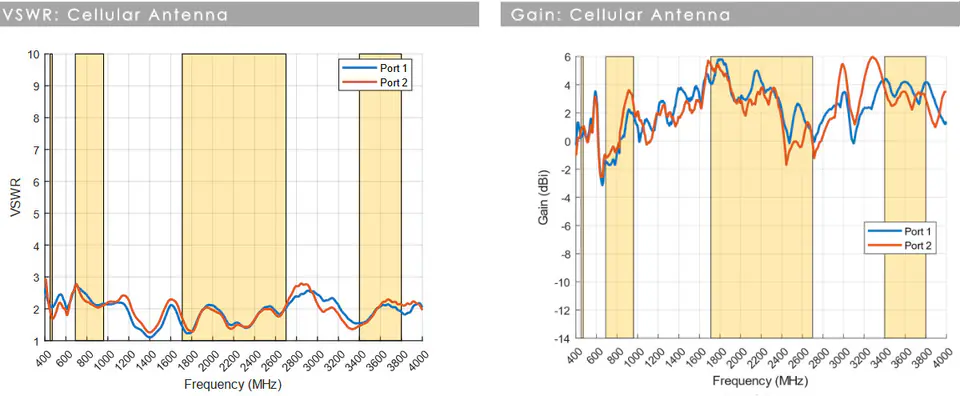

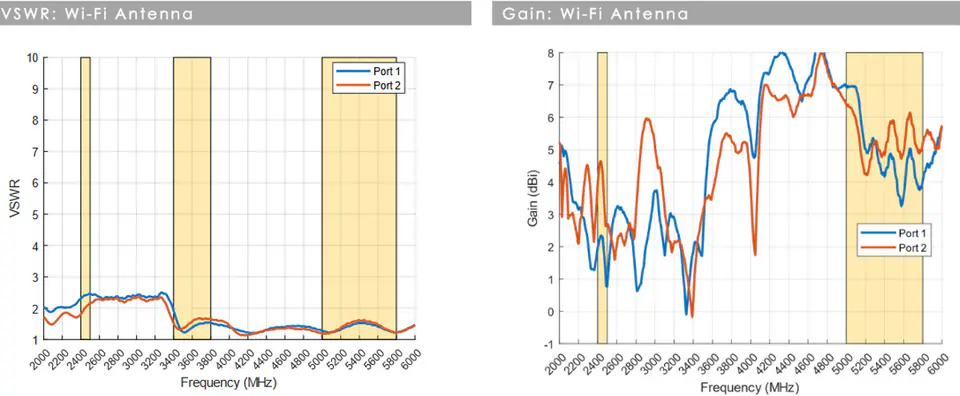

Voltage Wave Factor (VSWR)*
VSWR is a measure of the efficiency of transmitting radio frequency power from a power source through a transmission line to a load. In an ideal system, 100% of the power is transmitted, which corresponds to VSWR 1:1, MIMO-3-14 provides excellent performance on all bands with VSWR ≤2.5:1 at 90% of the bandwidth
* Measured with a cable length of approximately 2m, ground plane 650 x 650 mm and unused ports terminated with a load of 50 Ω

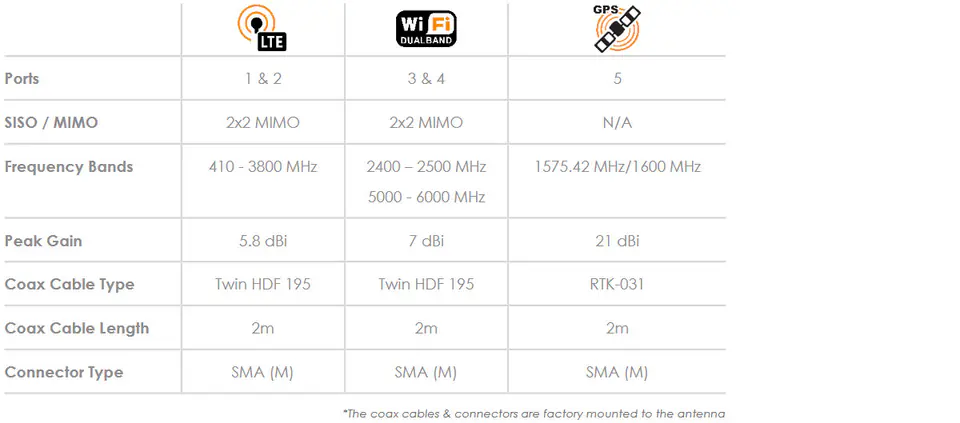

Gain in dBi
5.8 dBi is peak gain in all bands from 410-3800 MHz,
- gain at 410-470 MHz: 1 dBi
- gain at 690-960 MHz: 3.5 dBi
- gain at 1710-2700 MHz: 5.8 dBi
- gain at 3400-3800 MHz: 4 dBi
7 dBi is peak gain in all bands from 2400-2500 and 5000-6000 MHz
- Gain at 2400–2500 MHz: 5 dBi
- Gain at 5000–6000 MHz: 7 dBi
link: https://www.youtube.com/watch?v=5iD6oDwlxP4

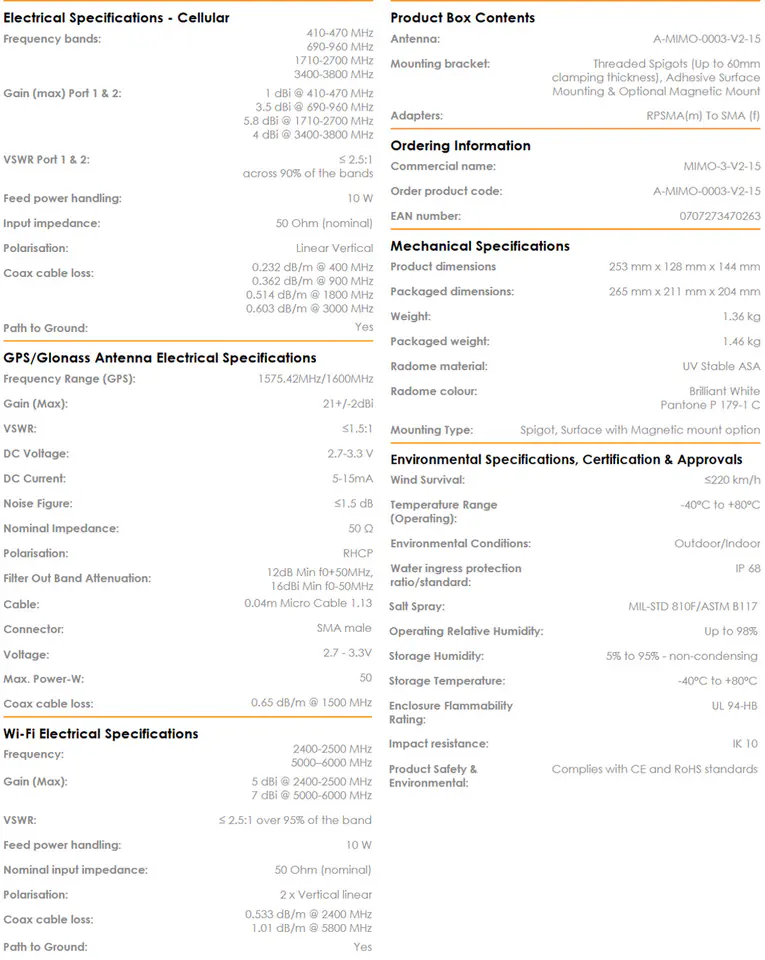

Click here for full antenna technical documentation.
