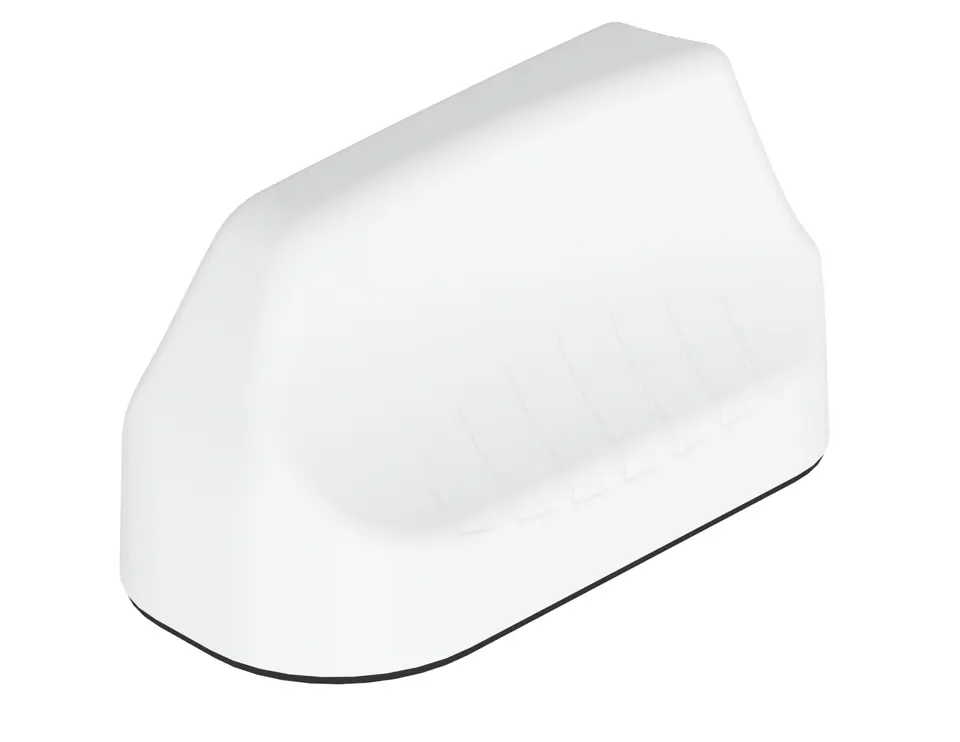

Broadband Car Antenna 2in1 Poynting MIMO-3-12 LTE 5.8 dBi
High-performance multi-frequency MIMO-3-12 2-in-1 antenna in one housing. Dual-cell MIMO antennas (for 2G / 3G / 4G) include modern bands from 690 MHz to 2700 MHz, as well as new emerging LTE and 5G spectrum for cbrs bands of 450 MHz and 3.5 GHz, which is becoming popular among various international mobile network operators for LTE. The antenna's ultra-wideband performance allows it to be used by different operators and technologies, and is ready for future cellular technologies up to 3.8GHz for 5G applications. The antenna outperforms the performance of most competitors thanks to the attention to the design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between multidirectionality, diversity of patterns and good radiation abilities at the desired altitude. This is an important criterion for the transport and maritime market. for which the antenna has been specially designed. The main applications are commercial/industrial vehicles, marine, M2M and other IoT systems using a wide range of radio technologies, while preserving the future in the wide frequency band.
- Ultra-wideband bands from 410 to 470 MHz, from 690 to 2700 MHz and from 3400 to 3800 MHz.
- Thoughtful, decorrelated antennas provide excellent MIMO performance in cellular bands
- The above functions are maintained from 690 to 3800 MHz in the appropriate bands, including 450 MHz
- Careful mechanical design provides strength, corrosion, water and dust resistance (IP 68)
- Ground plane independent: MIMO-3 has an internal ground plane, making the antenna suitable for use on all types of surfaces
- Broadband transport, automation and telemetry for buses, commercial vehicles, trucks and public safety vehicles
- Industrial automation, robotic machines and other telemetry of M2M systems
- Automation of agriculture and agriculture, such as M2M and IoT
- Mobile broadband distribution for ships / boats (inland and coastal vessels)
- mining vehicles and machine communication, telemetry and automation (M2M and IoT)

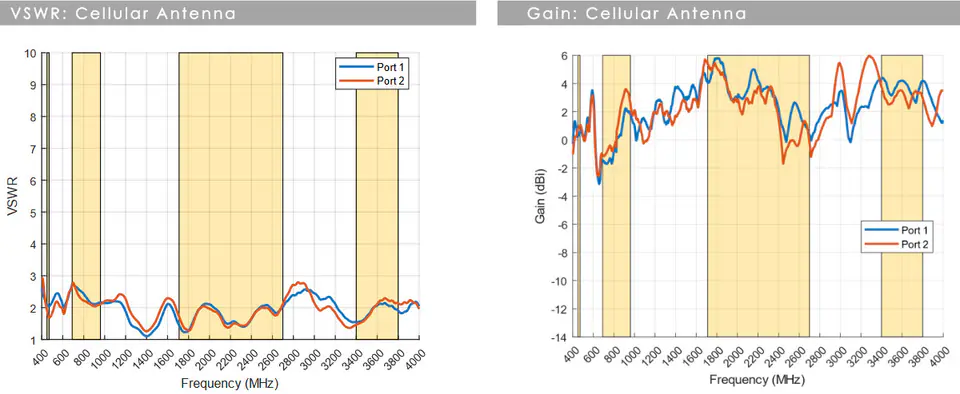

Voltage Wave Factor (VSWR)*
VSWR is a measure of the efficiency of transmitting radio frequency power from a power source through a transmission line to a load. In an ideal system, 100% of the energy is transmitted, which corresponds to a VSWR of 1:1, the MIMO-3-12 provides excellent performance in all bands with VSWR ≤2.5:1 in 90% of the bandwidth
* Measured with a cable length of about 2m
Gain in dBi
5.8 dBi is the peak gain for all bands from 410-3800 Mhz:
- Gain at 410-470 MHz: 1 dBi
- Gain at 690-960 MHz: 3.5 dBi,
- Gain at 1710-2700 MHz: 5.8 dBi,
- Gain at 3400-3800 MHz: 4 dBi
link: https://www.youtube.com/watch?v=5iD6oDwlxP4
Click here for full technical documentation of the antenna.
